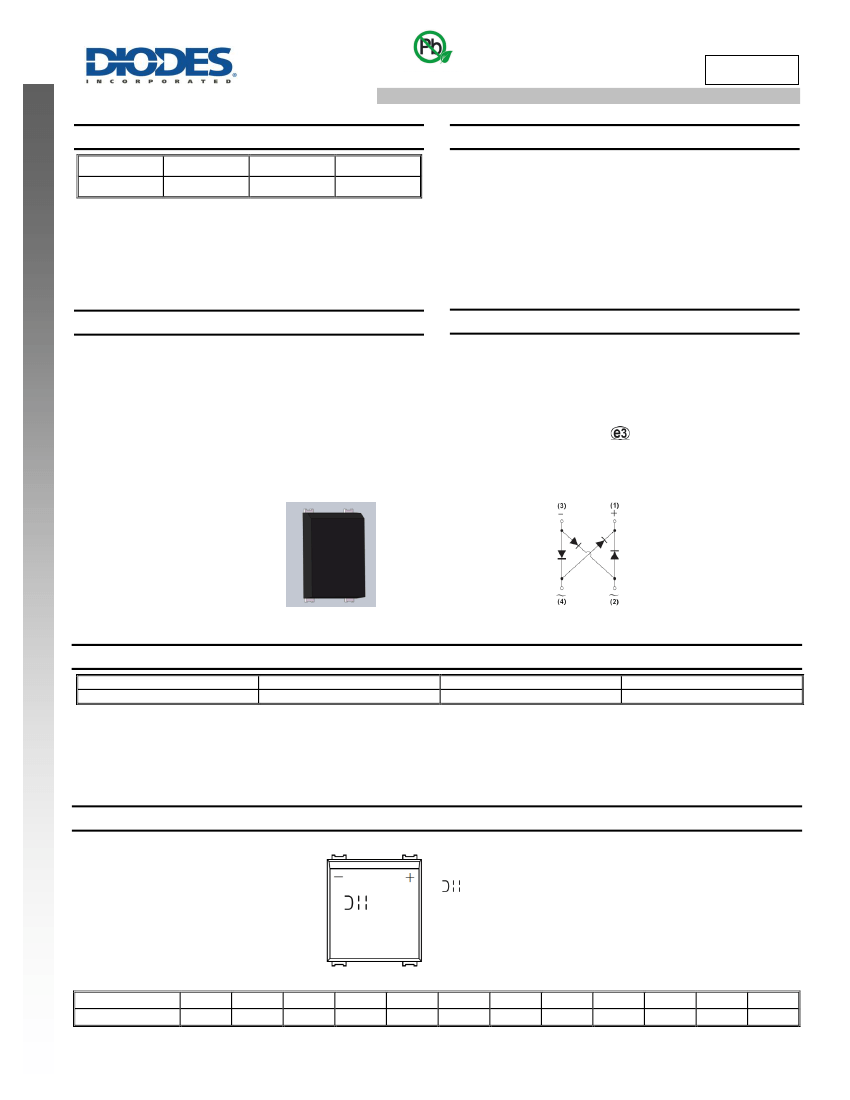

DBF310
3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Product Summary
(@T
A
= +25°
C)
V
RRM
(V)
1,000
I
O
(A)
3
V
F
(V)
1.0
I
R
(μA)
5
Features and Benefits
Glass Passivated Die Construction
Miniature Package Saves Space on PC Boards
Low Leakage Current
Ideal for SMT Manufacturing
Low Forward Voltage Drop
Surge Overload Rating to 110A Peak
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW INFORMATION
ADVANCEDPRODUCT
NEW PRODUCT
Description and Applications
Suitable for AC to DC bridge full wave rectification for SMPS, LED
lighting, adapter, battery charger, home appliances, office equipment,
and telecommunication applications.
Mechanical Data
Case: DBF
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: As Marked on Body
Weight: 0.214 grams (Approximate)
Top View
Internal Schematic
Ordering Information
(Note 4)
Part Number
DBF310-13
Notes:
Compliance
Commercial
Case
DBF
Packaging
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
DBF310 = Product Type Marking Code
= Manufacturers’ Code Marking
YM = Date Code Marking
Y = Last Digit of Year (ex: 7 = 2017)
M = See Month/Code Table Below
D = Day 1~9 =1~9; Day 10~31= A~V
YMD
DBF310
Month
Code
Jan
1
Feb
2
Mar
3
Apr
4
May
5
Jun
6
Jul
7
Aug
8
Sep
9
Oct
O
Nov
N
Dec
D
DBF310
Document number: DS39407 Rev. 3 - 2
1 of 5
www.diodes.com
January 2018
© Diodes Incorporated
DBF310
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
I t
2
Value
1,000
700
3.0
110
50.2
Unit
V
V
A
A
A S
2
NEW INFORMATION
ADVANCEDPRODUCT
NEW PRODUCT
RMS Reverse Voltage
Average Rectified Output Current (Note 5) @ T
C
= +120°
C
Non-Repetitive Peak Forward Surge Current, 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I t Rating for Fusing (1ms < t < 8.3ms)
2
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Ambient (Note 6)
(Per Element)
Typical Thermal Resistance, Junction to Case (Per Element)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJC
T
J,
T
STG
Value
15
5
-55 to +150
Unit
°
C/W
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage (Per Element)
Leakage Current (Note 7) (Per Element)
Total Capacitance (Per Element)
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
Min
1,000
—
—
—
—
—
Typ
—
0.88
0.93
0.07
25
35
Max
—
0.95
1.0
5
500
—
Unit
V
V
μA
pF
Test Condition
I
R
= 5μA
I
F
= 1.5A, T
A
= +25°
C
I
F
= 3A, T
A
= +25°
C
V
R
= 1,000V, T
A
= +25°
C
V
R
= 1,000V, T
A
= +125°
C
V
R
= 4V, f = 1.0MHz
5. Device mounted on glass epoxy PC board with 1.3mm
2
solder pad.
2
6. Device mounted on glass epoxy substrate with 1oz/ft , 15mmx15mm copper pad per pin.
7. Short duration pulse test used to minimize self-heating effect.
DBF310
Document number: DS39407 Rev. 3 - 2
2 of 5
www.diodes.com
January 2018
© Diodes Incorporated
DBF310
I
F
, INSTANTANEOUS FORWARD CURRENT
(A)
3.5
10
I
(AV),
AVERAGE FORWARD RECTIFIED
CURRENT (A)
3
2.5
2
1.5
1
0.5
0
50
70
90
110
130
150
T
C
, CASE TEMPERATURE(°C)

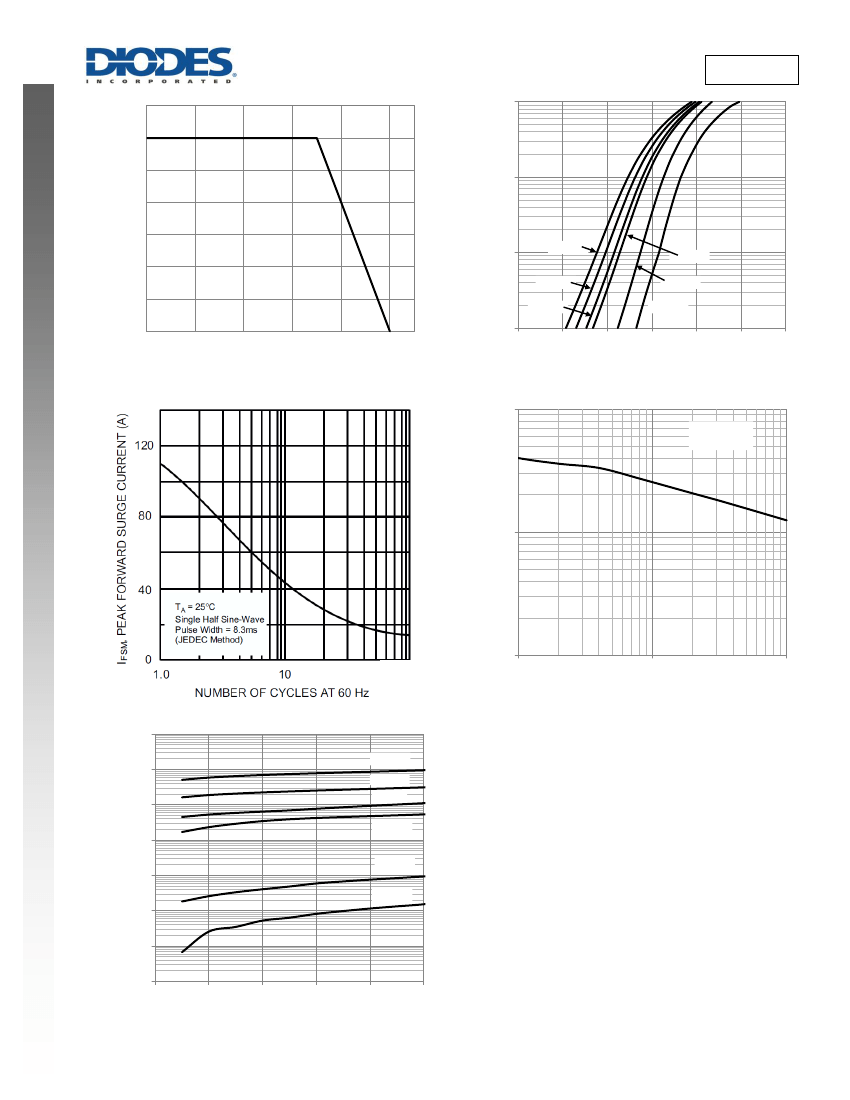

Figure 1. Output Current Derating Curve
1
NEW INFORMATION
ADVANCEDPRODUCT
NEW PRODUCT
0.1
150℃
125℃
100℃
85℃
25℃
-55℃
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2. Typical Forward Characteristics (Per Leg)
100
C
T
, TYPICAL TOTAL CAPACITANCE (pF)
T
A
= 25°C
f = 1MHz
10
1
100
Figure 3. Maximum Peak Forward Surge Current (Per Leg)
1000
150℃
100
10
1
25℃
0.1
-55℃
0.01
0.001
125℃
100℃
85℃
1
10
100
V
R
, REVERSE VOLTAGE (V)
Figure 4. Typical Total Capacitance (Per Leg)
I
R
, INSTANTANEOUS REVERSE CURRENT
(µA)
0.0001
0
400
600
800
V
R
, REVERSE VOLTAGE (V)
Figure 5. Typical Reverse Characteristics
200
1000
DBF310
Document number: DS39407 Rev. 3 - 2
3 of 5
www.diodes.com
January 2018
© Diodes Incorporated
DBF310

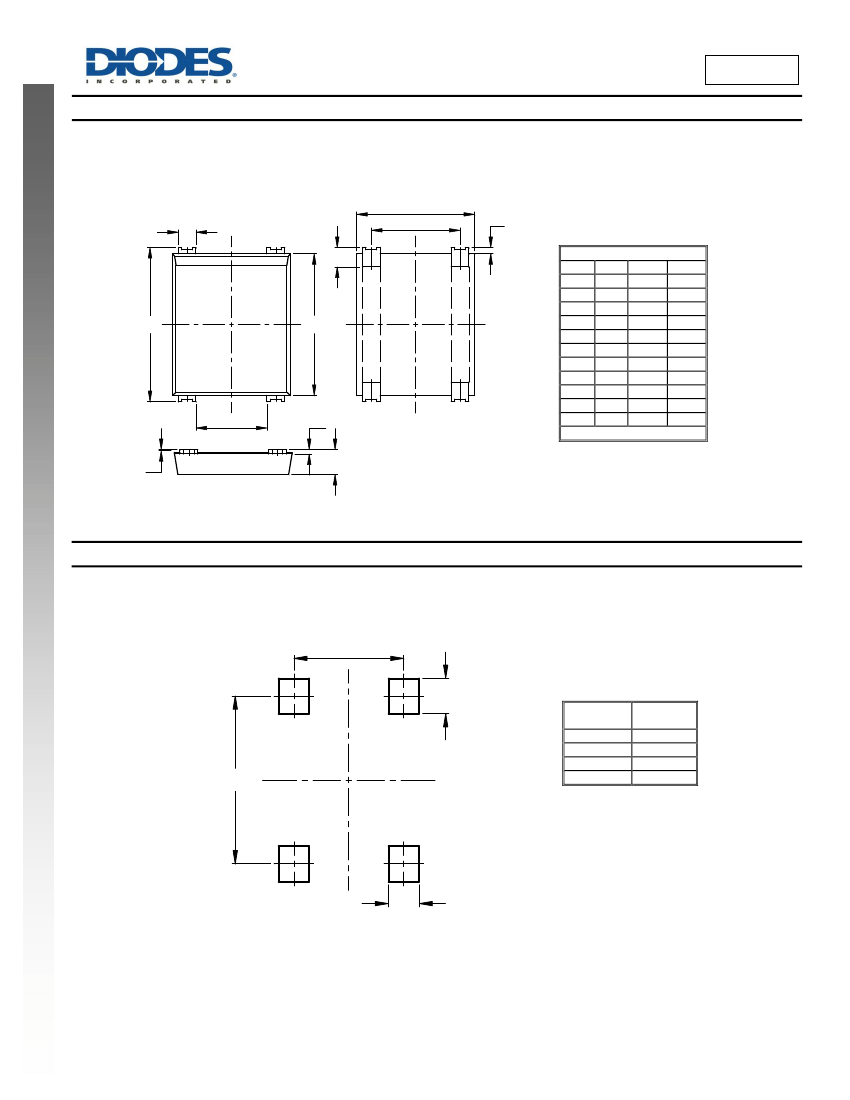

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
DBF
D
NEW INFORMATION
ADVANCEDPRODUCT
NEW PRODUCT
b
L
e
L1
E
E1
D3
A3
DBF
Dim Min Max
Typ
A
1.30 1.50
--
A1
0.04 0.12
--
A3
0.15 0.35
--
b
0.80 1.20
--
D
6.45 6.85
--
D3
3.80 4.20
--
E
8.50 8.90
--
E1
7.80 8.20
--
e
4.80 5.20
--
L
0.80 1.40
--
L1
0.30 0.40
--
All Dimensions in mm
A1
A
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
DBF
C
Y
Dimensions
C
C1
X
Y
Value
(in mm)
5.00
7.60
1.40
1.60
C1
X
DBF310
Document number: DS39407 Rev. 3 - 2
4 of 5
www.diodes.com
January 2018
© Diodes Incorporated
DBF310
