DIO2352A/B
30μV Vos, 2.5kHz, RRIO CMOS High-Precision Amplifier
Features
Rail-to-Rail Input and Output
Low offset (V
OS
):
±30μV
Gain Error:
±1%
Input offset drift: 0.01μV/°
C(Max)
Gain drift: 10ppm/°
C(Max)
Gain Selection:
DIO2352A: 50V/V
DIO2352B: 100V/V
Wide supply range: 2.5V to 5.5V
Single Supply Operation
Quiescent Current: 730µA(Typ)
Available Package: SOIC-8, TSSOP-8
Descriptions
The DIO2352X is an ultra-low offset voltage rail-to-
rail input and output voltage feedback amplifier.
They have a wide input common-mode voltage
range and output voltage swing, and take the
operating supply voltage is from 2.5 to 5.5V.
The DIO2352X features an offset voltage of only
30μV and drift of 0.01μV/° which makes the
C,
product perfect in applications of intolerant errors.
Temperature/position/pressure
sensors
and
medical equipment can benefit greatly from nearly
zero drift over their operating temperature range.
Applications
Notebook Computer
Mobile Phone
Power Management IC
Battery Charger
Welding Equipment
Reference
Voltage

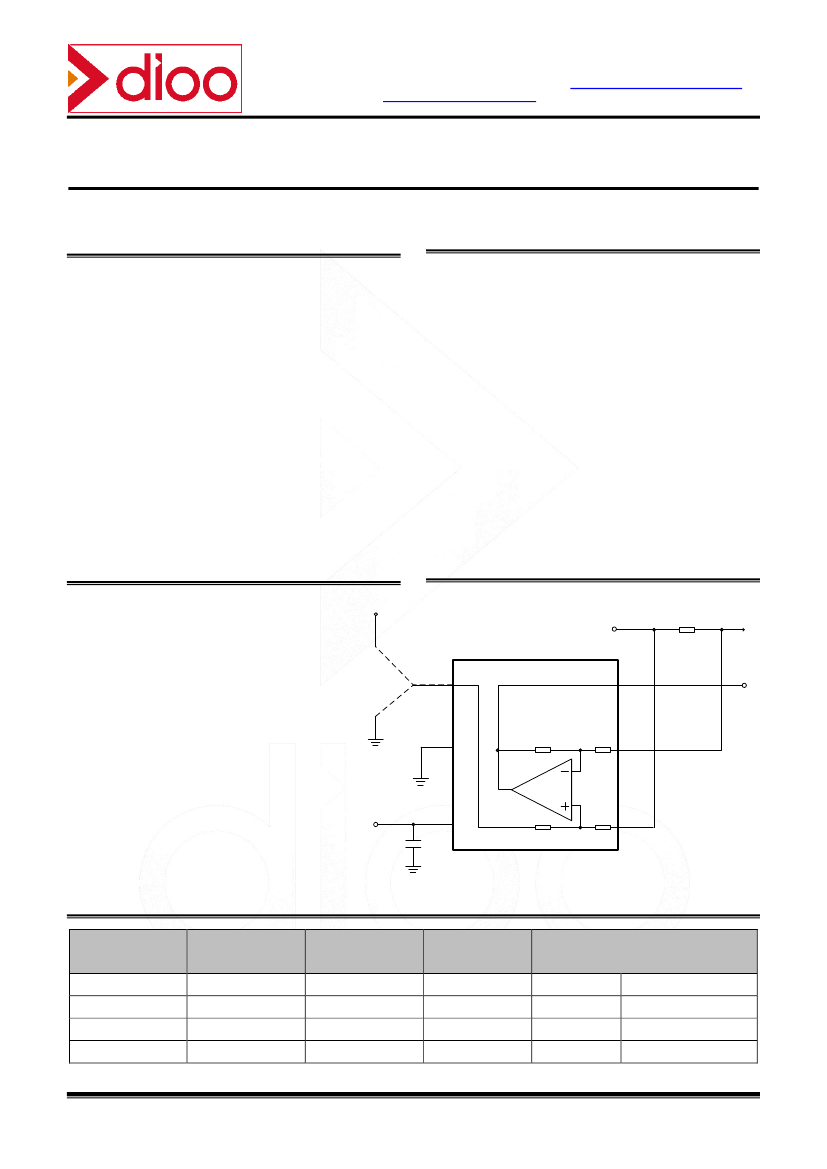

Typical Application
Power
Supply
Rshunt
Load
REF
OUT
OUT
GND
R1
R3
IN-
DIO2352X
2.5V-5.5V
Cbypass
0.01-0.1uF
V+
R2
R4
IN+
Ordering Information
Order Part
Number
DIO2352ASO8
DIO2352BSO8
DIO2352ATP8
DIO2352BTP8
Top Marking
DIO2352A
DIO2352B
DIO2352A
DIO2352B
Green/RoHS
Green/RoHS
Green/RoHS
Green/RoHS
T
A
-40 to +125°
C
-40 to +125°
C
-40 to +125°
C
-40 to +125°
C
SOIC-8
SOIC-8
TSSOP-8
TSSOP-8
Package
Tape & Reel, 2500
Tape & Reel, 2500
Tape & Reel, 3000
Tape & Reel, 3000
www.dioo.com
© 2014 DIOO MICROCIRCUITS CO., LTD
DIO2352X• Rev. 0.3
DIO2352X
30
μ
V V
OS
2.5kHz, RRIO CMOS High-Precision Amplifier

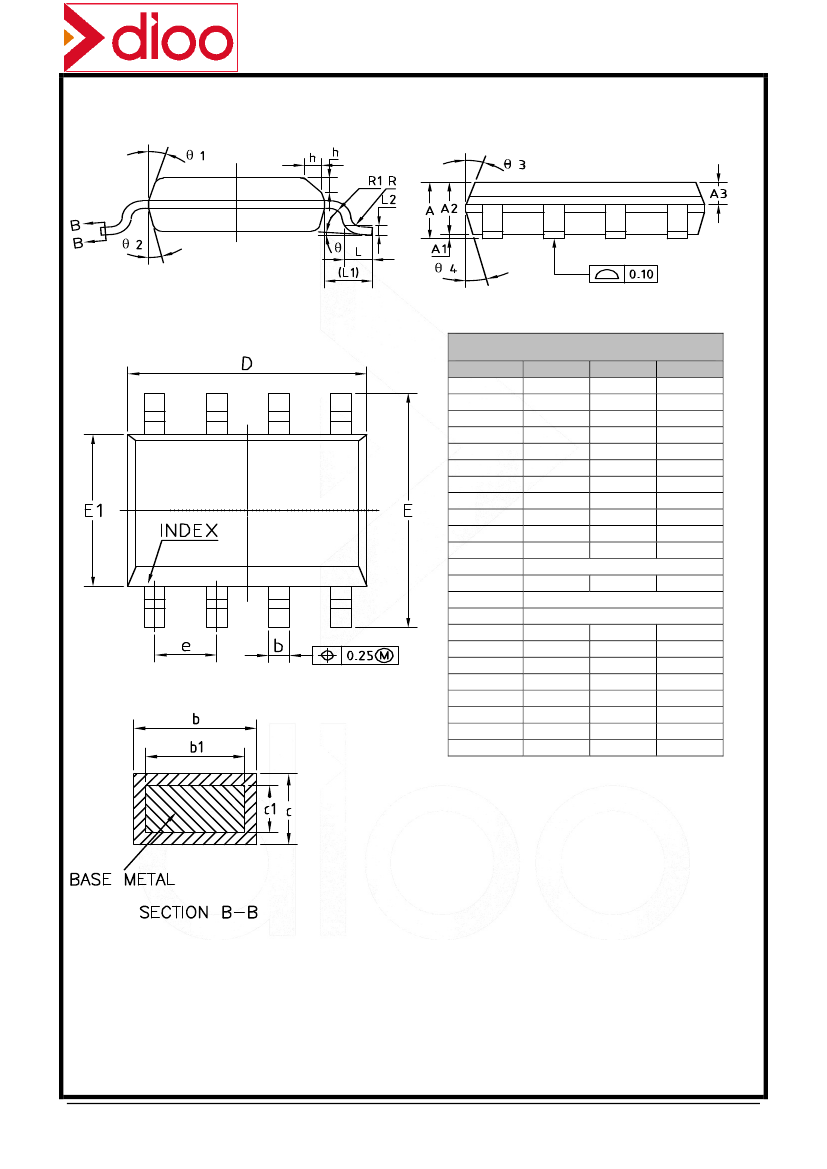

Physical Dimensions: SOIC-8
COMMON DIMENSIONS
(UNITS OF MEASURE=MILLIMETER)
Symbol
MIN
NOM
MAX
A
1.35
1.55
1.75
A1
0.10
0.15
0.25
A2
1.25
1.40
1.65
A3
0.50
0.60
0.70
b
0.38
-
0.51
b1
0.37
0.42
0.47
c
0.17
-
0.25
c1
0.17
0.20
0.23
D
4.80
4.90
5.00
E
5.80
6.00
6.20
E1
3.80
3.90
4.00
e
1.27BSC
L
0.45
0.60
0.80
L1
1.04REF
L2
0.25BSC
R
0.07
-
-
R1
0.07
-
-
h
0.30
0.40
0.50
0°
8°
Θ
-
15°
17°
19°
Θ1
11°
13°
15°
Θ2
15°
17°
19°
Θ3
11°
13°
15°
Θ4
www.dioo.com
© 2014 DIOO MICROCIRCUITS CO., LTD
DIO2352X• Rev. 0.3
DIO2352X
30
μ
V V
OS
2.5kHz, RRIO CMOS High-Precision Amplifier

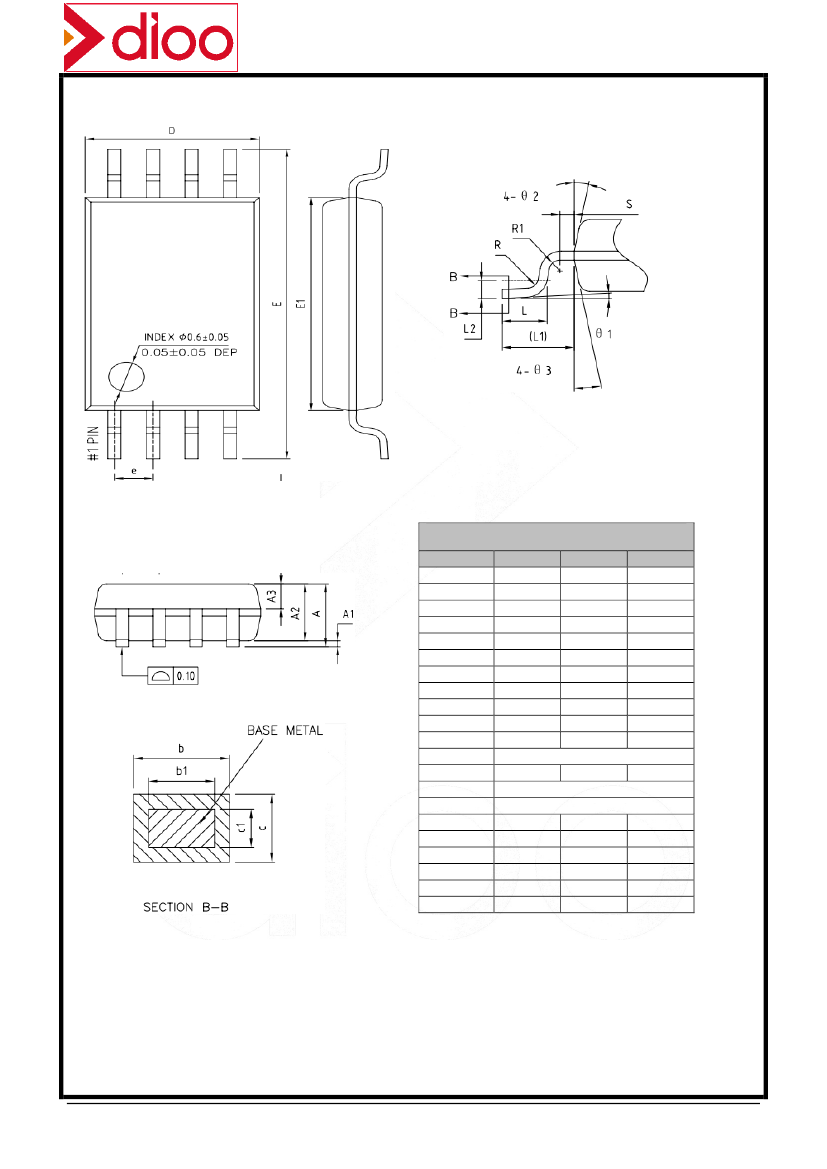

Physical Dimensions: TSSOP-8
COMMON DIMENSIONS
(UNITS OF MEASURE=MILLIMETER)
Symbol
MIN
NOM
MAX
A
-
-
1.20
A1
0.05
-
0.15
A2
0.90
1.00
1.05
A3
0.34
0.44
0.54
b
0.20
-
0.28
b1
0.20
0.22
0.24
c
0.10
-
0.19
c1
0.10
0.13
0.15
D
2.83
2.93
3.03
E
6.20
6.40
6.60
E1
4.30
4.40
4.50
e
0.65BSC
L
0.45
0.60
0.75
L1
1.00REF
L2
0.25BSC
R
0.09
-
-
R1
0.09
-
-
S
0.20
-
-
0°
8°
Θ1
-
10°
12°
14°
Θ2
10°
12°
14°
Θ3
www.dioo.com
© 2014 DIOO MICROCIRCUITS CO., LTD
DIO2352X• Rev. 0.3
DIO2352X
30
μ
V V
OS
2.5kHz, RRIO CMOS High-Precision Amplifier
