SHEET 1 OF 1
8.80
[.346 in]
7.30
[.287 in]
19.80
[.780 in]
[.065 in]
P.C. MOUNTING
6.40
[.252 in]
n
1.65

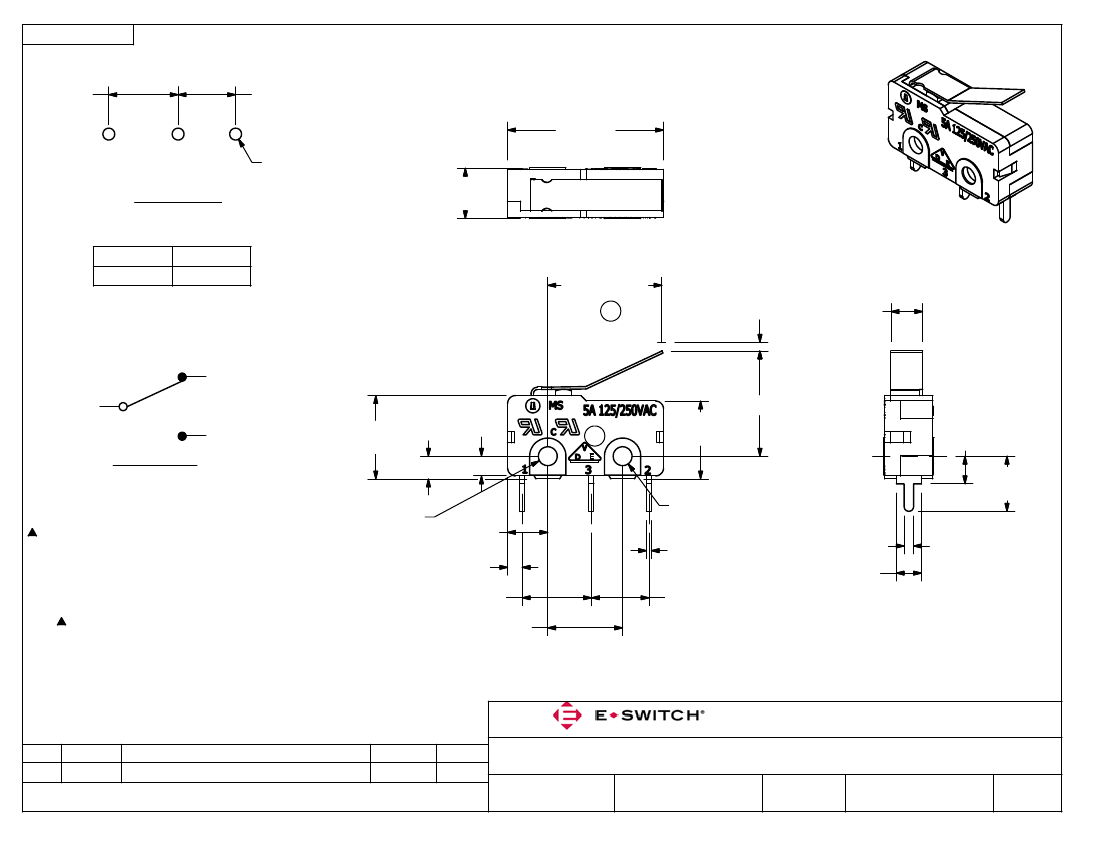

ISOMETRIC
O.P. (MM)
13.9
`
1.5
P.T. (MM)
4.1 MAX
14.50
`
.50
[.571
`
.020
in]
D
P.T.
4.00
[.157 in]
O.P. = OPERATING POINT
P.T. = PRE-TRAVEL
NC
COM
NO
10.60
[.417 in]
O.P.
D
9.90
[.390 in]
3.50
[.138 in]
7.00
[.276 in]
2.50
2.90
[.098 in]
[.114 in]
CIRCUIT: SPDT
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
n
2.50
3. RATING: 5A @125/250VAC UL, CUL, VDE APPROVED
[.098 in]
4. OPERATING FORCE: 35
`
20 GRAMS
5. OPERATING TEMP: -25
~
C TO 85
~
C
6. ELECTRICAL LIFE: 50,000 CYCLES MIN.
7. MECHANICAL LIFE: 1,000,000 CYCLES TYP.
8. INSULATION RESISTANCE: 100 MEGA-OHMS AT 500VDC
9. DIELECTRIC STRENGTH: 1000VAC 1 MINUTE (INITAL VALUE)
10. CONTACT RESISTANCE: 100 MILLI-OHMS MAX.
11.
DENOTES CRITICAL PARAMETER.
12. 2002/95/EC (ROHS) COMPLIANT
n
2.40
[.094 in]
5.10
[.201 in]
1.85
[.073 in]
8.80
[.346 in]
9.50
[.374 in]
.60
[.024 in] TYP.
7.30
[.287 in]
1.20
[.047 in]
3.20
[.126 in]
A
REV
20299
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
11/21/11
DATE
BMA
BY
TITLE
SCALE
MS0850506F035P1A
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
11/21/2011
DR
rc
DWG
Q970118
REV
A
