800SP9B6M6RE datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 800SP9B6M6RE

Preview

800SP9B6M6RE: DescriptionSelf-locking/unlocked: Unlocked switch height: 5.08mm Contact rated current: 400mA Action force: - Installation type: through hole, right angle Dimensions (length and width): 18.21mm x 8.13mm Circuit structure: SPST; CategoryMechanical and electronic products switch; File Size77KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

800SP9B6M6RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800SP9B6M6RE	-	-	View	Buy Now

800SP9B6M6RE Overview

Self-locking/unlocked: Unlocked switch height: 5.08mm Contact rated current: 400mA Action force: - Installation type: through hole, right angle Dimensions (length and width): 18.21mm x 8.13mm Circuit structure: SPST

800SP9B6M6RE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
JESD-609 code	e4
Manufacturer's serial number	800SP9B6M6RE
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

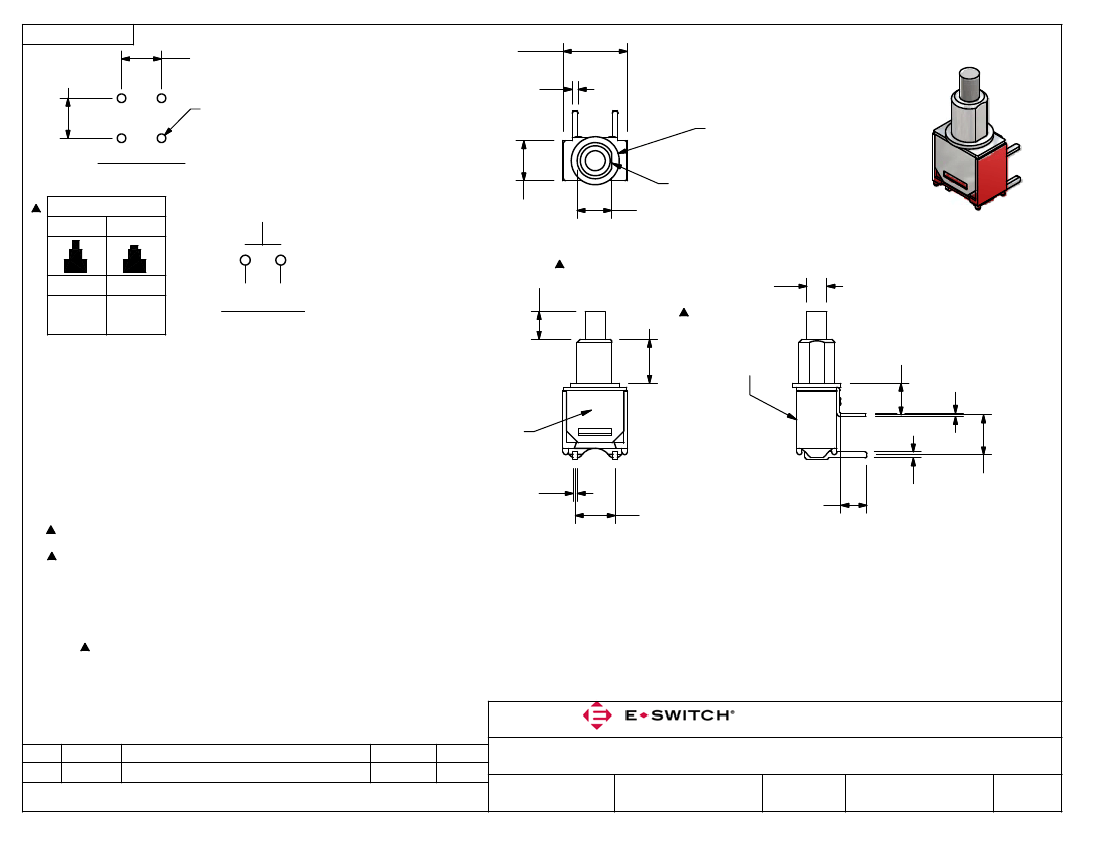

SHEET 1 OF 1

5.08

[.200 in]

5.08

[.200 in]

n

1.09

(4)

[.043 in]

8.13

[.320 in]

.76

[.030 in]

n

6.10

[.240 in]

P.C. MOUNTING

FLAT

SWITCH FUNCTION

POS. 1

POS. 2

3

5.08

[.200 in]

4.39

[.173 in]

1

OFF

OPEN

(ON)

1-3

3.53

[.139 in]

5.59

[.220 in]

CIRCUIT: SPST

[.100 in]

n

2.54

(ON)=MOMENTARY

SWITCH

RATING

4.01

[.158 in]

.41

[.016 in]

E-LOGO ON

OPPOSITE SIDE

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: COPPER ALLOY W/ GOLD

PLATE OVER NICKEL PLATE

5. RATING: 0.4VA @ 20V AC OR DC MAX.

6. MECHANICAL LIFE: 50,000 MAKE-AND-BREAK CYCLES

7. CONTACT RESISTANCE: 20 mΩ MAX. INITIAL @ 2-4VDC

100mA FOR BOTH GOLD AND SILVER CONTACTS

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. ELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

1

.51

[.020 in]

3

5.08

[.200 in]

3.30

[.130 in]

.76

[.030 in]

5.08

[.200 in]

B

REV

20003

PCR NO

UPDATED AND REDRAWN

DESCRIPTION

06/16/11

DATE

BMA

BY

TITLE

SCALE

800SP9B6M6RE

2:1

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

6/16/2011

BMA

T811006

C
