SP706SEN-L/TR: DescriptionMonitoring chip type: Simple Reset/Power-On Reset Voltage threshold: 2.93V Number of monitoring voltage groups: 1 Output structure: - Effective reset level: Active Low Low-power microprocessor monitoring circuit, threshold voltage = 2.93 V; CategoryPower/power management The power supply circuit; File Size678KB，17 Pages; ManufacturerExar; Environmental Compliance

Download Datasheet Parametric View All

SP706SEN-L/TR Overview

Monitoring chip type: Simple Reset/Power-On Reset Voltage threshold: 2.93V Number of monitoring voltage groups: 1 Output structure: - Effective reset level: Active Low Low-power microprocessor monitoring circuit, threshold voltage = 2.93 V

SP706SEN-L/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Exar
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RESET THRESHOLD VOLTAGE IS 2.93V; MANUAL RESET INPUT
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	1.748 mm
Maximum supply current (Isup)	0.04 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.895 mm

Preview

Download Datasheet

View All

S P 7 0 6 R/ S / T - S P 7 0 8 R/ S / T

3.0V/3.3V Low Power Microprocessor Supervisory

Circuits

April 2015

Rev. 3.0.0

GENERAL DESCRIPTION

The SP706R/S/T and SP708R/S/T series is a

family of microprocessor (µP) supervisory

circuits that integrate myriad components

involved in discrete solutions which monitor

power-supply and battery in µP and digital

systems.

The SP706R/S/T and SP708R/S/T series will

significantly improve system reliability and

operational efficiency when compared to

solutions obtained with discrete components.

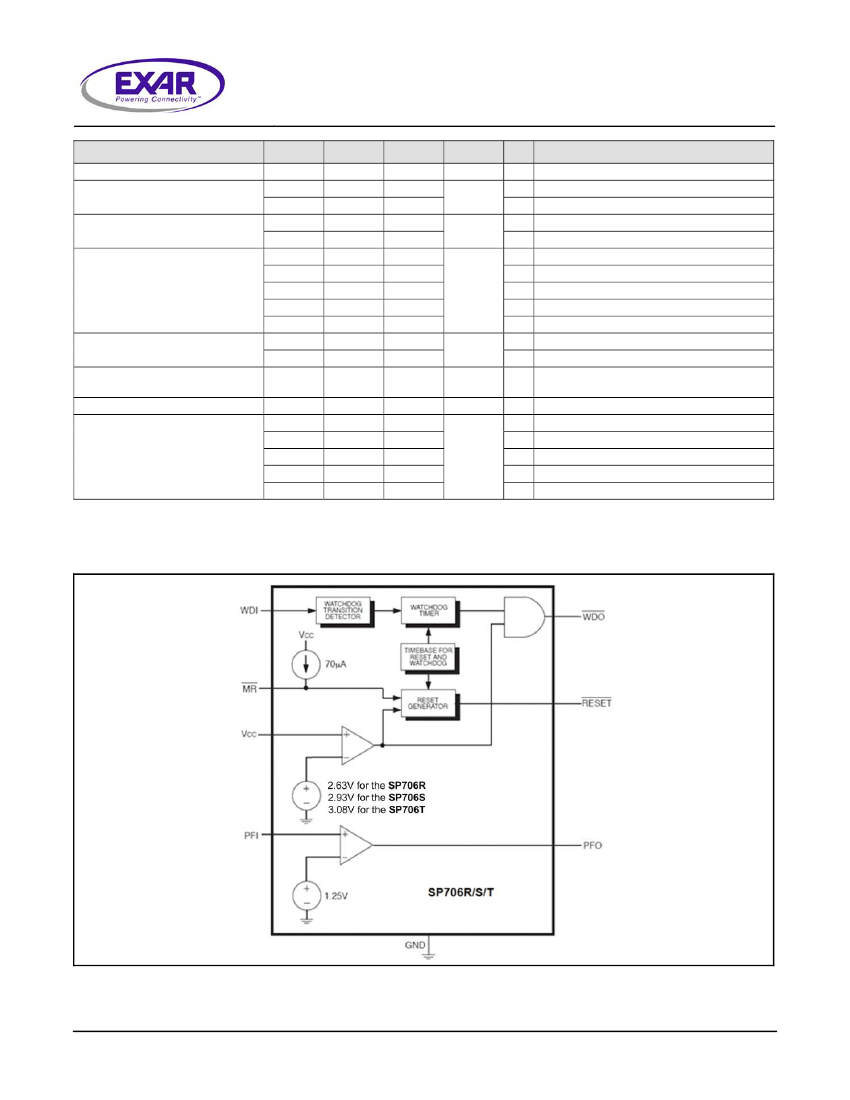

The features of the SP706R/S/T and

SP708R/S/T series include a watchdog timer, a

µP reset, a Power Fail Comparator, and a

manual-reset input.

The SP706R/S/T and SP708R/S/T series is ideal

for 3.0V or 3.3V applications in automotive

systems, computers, controllers, and intelligent

instruments. The SP706R/S/T and SP708R/S/T

series is an ideal solution for systems in which

critical monitoring of the power supply to the µP

and related digital components is demanded.

APPLICATIONS



Processors & DSPs Based Systems



Industrial & Medical Instruments

FEATURES



Precision Low Voltage Monitor



SP706R/SP708R: +2.63V



SP706S/SP708S: +2.93V



SP706T/SP708T: +3.08V



200ms RESET Pulse Width



SP706R/S/T: Active Low



SP708R/S/T: Active High and Active Low



Independent Watchdog Timer



1.6s Timeout (SP706R/S/T)



Enable/Disable Function



40µA Maximum Supply Current



Debounced TTL/CMOS Manual Reset

Input



RESET

Asserted Down to V

=1V



Glitch Immunity



Voltage Monitor for Power Failure or

Low Battery Warning



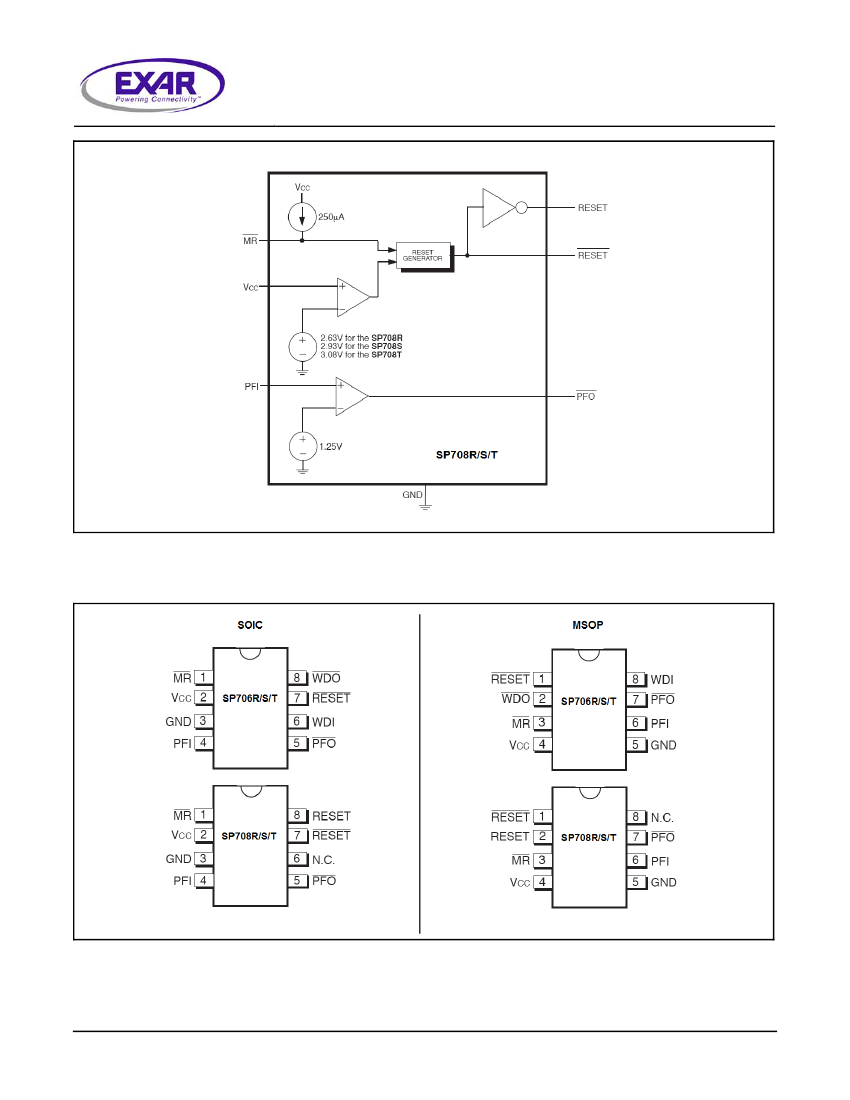

8-Pin NSOIC and MSOP Packages



Pin Compatible with Industry

Standards 706R/S/T and 708R/S/T

Part Number

SP706R

SP706S

SP706T

SP708R

SP708S

SP708T

RESET Threshold

2.63V

2.93V

3.08V

2.63V

2.93V

3.08V

RESET Active

Low

Low and High

Manual RESET

Yes

Watchdog

Yes

PFI Accuracy

Exar Corporation

48720 Kato Road, Fremont CA 94538, USA

www.exar.com

Tel. +1 510 668-7000 – Fax. +1 510 668-7001
