IDT74LVC16245A
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
3.3V CMOS 16-BIT
BUS TRANSCEIVER
WITH 3-STATE OUTPUTS,
5 VOLT TOLERANT I/O
• Typical t
SK(o)
(Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
• V
CC
= 3.3V ± 0.3V, Normal Range
• V
CC
= 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4μ W typ. static)
μ
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP and TSSOP packages
IDT74LVC16245A
FEATURES:
DESCRIPTION:
DRIVE FEATURES:
APPLICATIONS:
• High Output Drivers: ±24mA
• Reduced system switching noise
This 16-bit bus transceiver is built using advanced dual metal CMOS
technology. This high-speed, low power transceiver is ideal for asynchro-
nous communication between two busses (A and B). The Direction and
Output Enable controls are designed to operate this device as either two
independent 8-bit transceivers or one 16-bit transceiver. The direction
control pin (DIR) controls the direction of data flow. The output enable pin
(OE) overrides the direction control and disables both ports. All inputs are
designed with hysteresis for improved noise margin.
All pins can be driven from either 3.3V or 5V devices. This feature allows
the use of this device as a translator in a mixed 3.3V/5V supply system.
The LVC16245A has been designed with a ±24mA output driver. This
driver is capable of driving a moderate to heavy load while maintaining
speed performance.
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems

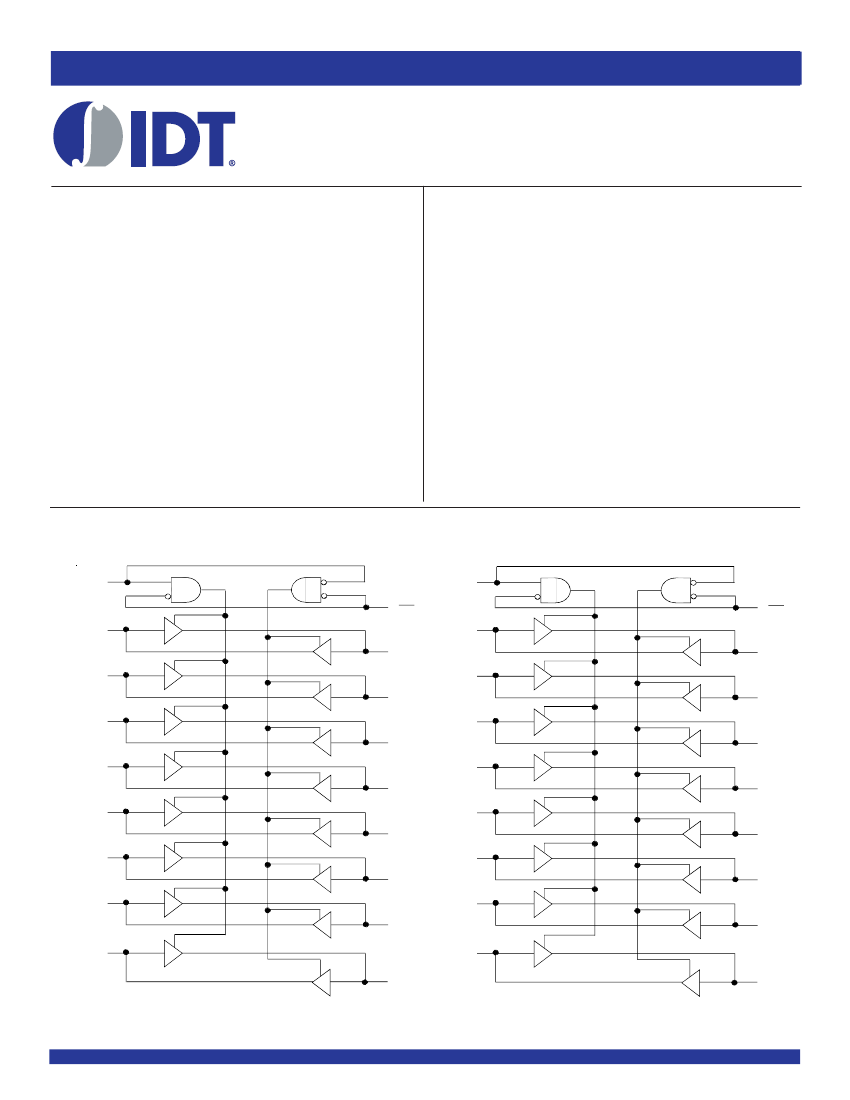

FUNCTIONAL BLOCK DIAGRAM
1
DIR
1
48
2
DIR
1
OE
24
25
2
OE
2
A
1
36
13
35
1
A
1
47
2
46
1
B
1
2
A
2
2
B
1
1
A
2
3
1
B
2
1
A
3
44
5
43
6
33
14
2
B
2
2
A
3
16
1
B
3
32
2
B
3
2
A
4
17
1
A
4
1
B
4
1
A
5
41
8
2
B
4
2
A
5
30
19
1
B
5
1
A
6
40
9
2
B
5
2
A
6
1
B
6
29
20
27
22
2
B
6
1
A
7
38
11
2
A
7
1
B
7
2
B
7
2
A
8
26
23
1
A
8
37
12
1
B
8
2
B
8
IDT and the IDT logo is a registered trademark of Integrated Device Technology, Inc.
INDUSTRIAL TEMPERATURE RANGE
1
© 2015 Integrated Device Technology, Inc.
JULY 2015
DSC-4736/6
IDT74LVC16245A
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol
Description
Max
V
TERM
(2)
V
TERM
(3)
T
STG
I
OUT
I
IK
I
OK
I
CC
I
SS
Terminal Voltage with Respect to GND
Terminal Voltage with Respect to GND
Storage Temperature
DC Output Current
Continuous Clamp Current,
V
I
< 0 or V
O
< 0
Continuous Current through each
V
CC
or GND
–0.5 to +6.5
–0.5 to +6.5
–65 to +150
–50 to +50
–50
±100
Unit
V
V
°C
mA
mA
mA
1
DIR
1
B
1
1
B
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
SSOP / TSSOP
TOP VIEW
1
OE
1
A
1
1
A
2
GND
1
B
3
1
B
4
GND
1
A
3
1
A
4
V
CC
1
B
5
1
B
6
V
CC
1
A
5
1
A
6
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. V
CC
terminals.
3. All terminals except V
CC
.
GND
1
B
7
1
B
8
2
B
1
2
B
2
GND
1
A
7
1
A
8
2
A
1
2
A
2
CAPACITANCE
(T
A
= +25°C, F = 1.0MHz)
Symbol
C
IN
C
OUT
C
I/O
Parameter
(1)
Input Capacitance
Output Capacitance
I/O Port Capacitance
Conditions
V
IN
= 0V
V
OUT
= 0V
V
IN
= 0V
Typ.
4.5
6.5
6.5
Max.
6
8
8
Unit
pF
pF
pF
GND
2
B
3
2
B
4
GND
2
A
3
2
A
4
NOTE:
1. As applicable to the device type.
PIN DESCRIPTION
Pin Names
xOE
xDIR
xAx
xBx
Description
Output Enable Inputs (Active LOW)
Direction Control Input
Side A Inputs or 3-State Outputs
Side B Inputs or 3-State Outputs
V
CC
2
B
5
2
B
6
V
CC
2
A
5
2
A
6
GND
2
B
7
2
B
8
2
DIR
GND
2
A
7
2
A
8
2
OE
FUNCTION TABLE
(EACH 8-BIT SECTION)
(1)
Inputs
xOE
L
L
H
xDIR
L
H
X
Outputs
Bus B Data to Bus A
Bus A Data to Bus B
Z
NOTES:
1. H = HIGH Voltage Level
X = Don’t Care
L = LOW Voltage Level
Z = High-Impedance
2
IDT74LVC16245A
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE
Following Conditions Apply Unless Otherwise Specified:
Operating Condition: T
A
= –40°C to +85°C
Symbol
V
IH
V
IL
I
IH
I
IL
I
OZH
I
OZL
I
OFF
V
IK
V
H
I
CCL
I
CCH
I
CCZ
ΔI
CC
High Impedance Output Current
(3-State Output pins)
Input/Output Power Off Leakage
Clamp Diode Voltage
Input Hysteresis
Quiescent Power Supply Current
V
CC
= 0V, V
IN
or V
O
≤
5.5V
V
CC
= 2.3V, I
IN
= –18mA
V
CC
= 3.3V
V
CC
= 3.6V
V
IN
= GND or V
CC
—
—
—
—
—
—
—
–0.7
100
—
—
—
±50
–1.2
—
10
10
500
μA
V
mV
μA
V
CC
= 3.6V
V
O
= 0 to 5.5V
—
—
±10
μA
Parameter
Input HIGH Voltage Level
Input LOW Voltage Level
Input Leakage Current
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 2.3V to 2.7V
V
CC
= 2.7V to 3.6V
V
CC
= 3.6V
V
I
= 0 to 5.5V
Test Conditions
Min.
1.7
2
—
—
—
Typ.
(1)
—
—
—
—
—
Max.
—
—
0.7
0.8
±5
μA
V
Unit
V
Quiescent Power Supply Current
Variation
3.6
≤
V
IN
≤
5.5V
(2)
One input at V
CC
- 0.6V, other inputs at V
CC
or GND
μA
NOTES:
1. Typical values are at V
CC
= 3.3V, +25°C ambient.
2. This applies in the disabled state only.
OUTPUT DRIVE CHARACTERISTICS
Symbol
V
OH
Parameter
Output HIGH Voltage
V
CC
= 2.3V
V
CC
= 2.3V
V
CC
= 2.7V
V
CC
= 3V
V
CC
= 3V
V
OL
Output LOW Voltage
V
CC
= 2.3V to 3.6V
V
CC
= 2.3V
V
CC
= 2.7V
V
CC
= 3V
I
OH
= – 24mA
I
OL
= 0.1mA
I
OL
= 6mA
I
OL
= 12mA
I
OL
= 12mA
I
OL
= 24mA
Test Conditions
(1)
V
CC
= 2.3V to 3.6V
I
OH
= – 0.1mA
I
OH
= – 6mA
I
OH
= – 12mA
Min.
V
CC
– 0.2
2
1.7
2.2
2.4
2.2
—
—
—
—
—
Max.
—
—
—
—
—
—
0.2
0.4
0.7
0.4
0.55
V
Unit
V
NOTE:
1. V
IH
and V
IL
must be within the min. or max. range shown in the DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE table for the appropriate V
CC
range.
T
A
= – 40°C to + 85°C.
3
IDT74LVC16245A
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
OPERATING CHARACTERISTICS, V
CC
= 3.3V ± 0.3V, T
A
= 25°C
Symbol
C
PD
C
PD
Parameter
Power Dissipation Capacitance per Transceiver Outputs enabled
Power Dissipation Capacitance per Transceiver Outputs disabled
Test Conditions
C
L
= 0pF, f = 10Mhz
Typical
38
4
Unit
pF
SWITCHING CHARACTERISTICS
(1)
V
CC
= 2.7V
Symbol
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
SK
(o)
Parameter
Propagation Delay
xAx to xBx, xBx to xAx
Output Enable Time
xOE to xAx or xBx
Output Disable Time
xOE to xAx or xBx
Output Skew
(2)
Min.
Max.
4.7
6.7
7.1
V
CC
= 3.3V ± 0.3V
Min.
1
1.5
1.5
Max.
4
5.5
6.6
1
Unit
ns
ns
ns
ns
—
—
—
—
—
—
NOTES:
1. See TEST CIRCUITS AND WAVEFORMS. T
A
= – 40°C to + 85°C.
2. Skew between any two outputs of the same package and switching in the same direction.
4
IDT74LVC16245A
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
TEST CIRCUITS AND WAVEFORMS
TEST CONDITIONS
Symbol
V
LOAD
V
IH
V
T
V
LZ
V
HZ
C
L
V
CC
= 3.3V±0.3V
6
2.7
1.5
300
300
50
V
CC
500
Pulse
(1, 2)
Generator
V
IN
D.U.T.
R
T
500
C
L
LVC Link
(1)
V
CC(1)
= 2.7V
6
2.7
1.5
300
300
50
V
CC
= 2.5V±0.2V
2 x Vcc
Vcc
Vcc / 2
150
150
30
(2)
Unit
V
V
V
mV
mV
pF
V
LOAD
Open
GND
SAME PHASE
INPUT TRANSITION
t
PLH
OUTPUT
t
PLH
OPPOSITE PHASE
INPUT TRANSITION
t
PHL
t
PHL
V
IH
V
T
0V
V
OH
V
T
V
OL
V
IH
V
T
0V
LVC Link
Propagation Delay
ENABLE
CONTROL
INPUT
t
PZL
OUTPUT
SWITCH
NORMALLY
CLOSED
LOW
t
PZH
OUTPUT
SWITCH
NORMALLY
OPEN
HIGH
V
LOAD/2
V
T
t
PHZ
V
T
0V
t
PLZ
DISABLE
V
IH
V
T
0V
V
LOAD/2
V
OL+
V
LZ
V
OL
V
OH
V
OH-
V
HZ
0V
LVC Link
V
OUT
Test Circuit for All Outputs
DEFINITIONS:
C
L
= Load capacitance: includes jig and probe capacitance.
R
T
= Termination resistance: should be equal to Z
OUT
of the Pulse Generator.
NOTES:
1. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2.5ns; t
R
≤
2.5ns.
2. Pulse Generator for All Pulses: Rate
≤
10MHz; t
F
≤
2ns; t
R
≤
2ns.
NOTE:
1. Diagram shown for input Control Enable-LOW and input Control Disable-HIGH.
Enable and Disable Times
SWITCH POSITION
Test
Open Drain
Disable Low
Enable Low
Disable High
Enable High
All Other Tests
Switch
V
LOAD
GND
Open
V
IH
V
T
0V
V
OH
V
T
V
OL
V
OH
V
T
V
OL
t
PLH2
t
PHL2
LVC Link
DATA
INPUT
TIMING
INPUT
ASYNCHRONOUS
CONTROL
SYNCHRONOUS
CONTROL
t
SU
t
H
t
REM
t
SU
t
H
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
V
IH
V
T
0V
LVC Link
INPUT
Set-up, Hold, and Release Times
LOW-HIGH-LOW
PULSE
t
W
HIGH-LOW-HIGH
PULSE
V
T
LVC Link
t
PLH1
t
PHL1
OUTPUT 1
V
T
t
SK
(x)
t
SK
(x)
OUTPUT 2
t
SK
(x)
= t
PLH2
-
t
PLH1
or
t
PHL2
-
t
PHL1
Pulse Width
Output Skew - t
SK
(
X
)
NOTES:
1. For t
SK
(o) OUTPUT1 and OUTPUT2 are any two outputs.
2. For t
SK
(b) OUTPUT1 and OUTPUT2 are in the same bank.
5
京公网安备 11010802033920号
EEWORLD
