TECHNICAL DATA
Ground Fault Interrupter Earth
Leakage Current Detector
DESCRIPTION
The IL7101 is designed for use in earth leakage circuit
interrupters for operation directly off the AC Line in breakers.
It contains pre regulator, main regulator, after regulator, differential
amplifier, level comparator, latch circuit. The input in the differential
amp latch circuit. The input in the differential amplifier is connecting to
the secondary node of zero current transformer.
The level comparator generates high level when earth leakage
current is greater than some level.
IL7101
FEATURE
• Low Power Consumption (P
D
=5mW) 100V/200V
• 100V/200V Common Built-in Voltage Regulator
• High Gain Differential Amplifier
• High Input Sensitivity
• Minimum External Parts
• Large Surge Margin
• Wide Operating Temperature Range (T
А
= -30 to 85°C)
• High Noise Immunity
• Meet U. L. 943 standards

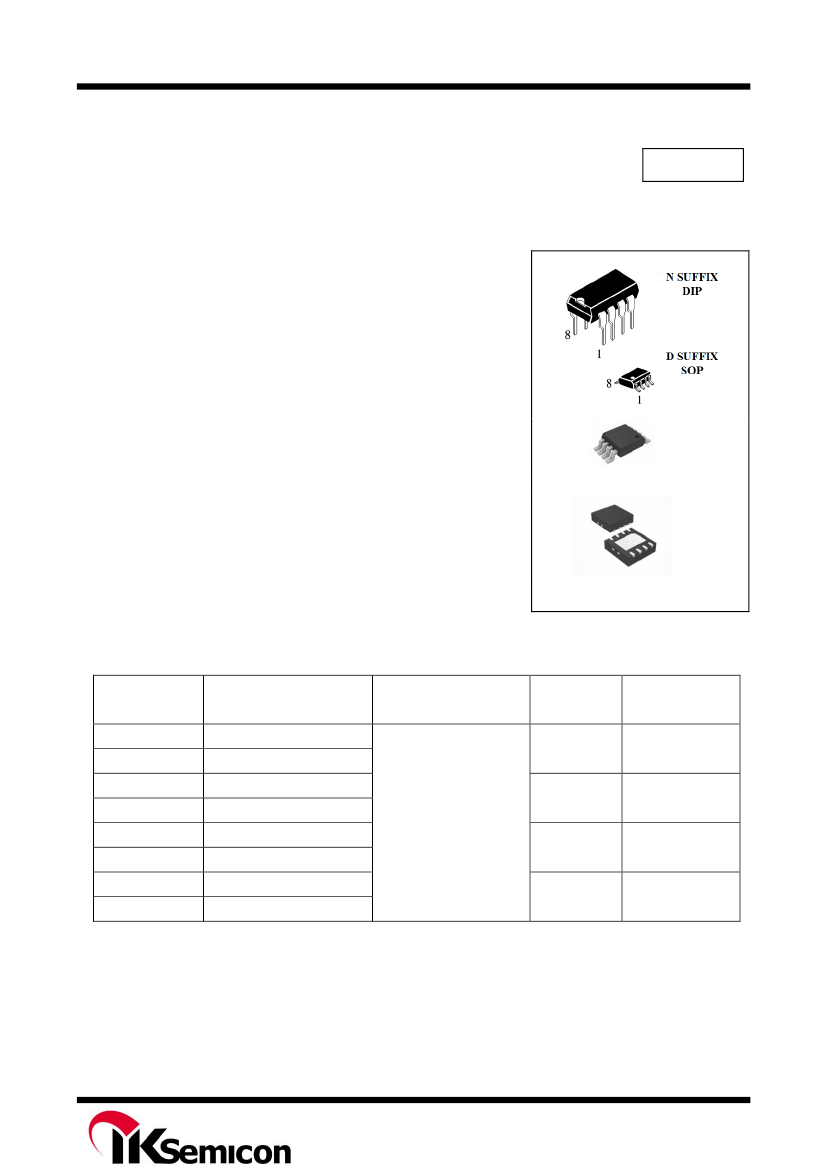

TSSOP
DFN-8
ORDERING INFORMATION
Device
IL7101SN
IL7101AN
IL7101SDT
IL7101ADT
IL7101STSDT
IL7102ATSDT
IL7101SDNT
IL7101ADNT
Trip Voltage
(rms)
11.5mV to 13.86mV
13.86mV to 15.6mV
11.5mV to 13.86mV
13.86mV to 15.6mV
11.5mV to 13.86mV
13.86mV to 15.6mV
TBD
TBD
T
A
= -30 to 85 C
for all packages
Operating
Temperature Range
Package
DIP-8
SOP-8
TSSOP-8
DFN-8
Shipping
Tube
Tape& Reel
Tape& Reel
Tape & Reel
June. 2018. Ver. 06
IL7101
ABSOLUTE MAXIMUM RATINGS
●
●
●
●
Supply Voltage
Supply Current
Power Dissipation
20V
8mA
200mW
- 30 to 85°C
- 55 to 125°C
Operating Temperature
●
Storage Temperature
* Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device.
These are stress ratings only and functional operation of the device at these or any other conditions beyond those
indicated under “recommended operating conditions” is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Pin Configuration
(Top
View)
V
R
IN
GND
O
D
1
2
3
4
8
7
6
5
V+
Os
N
R
Sc
Block Diagram

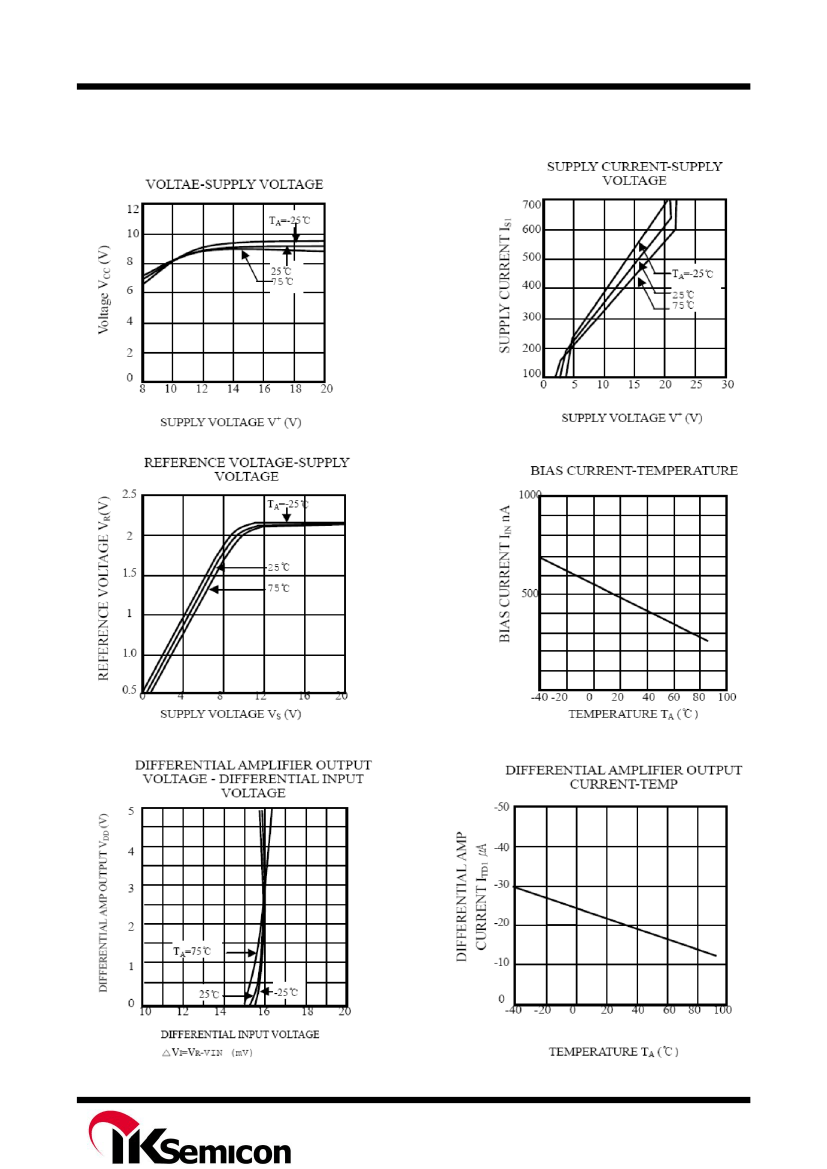

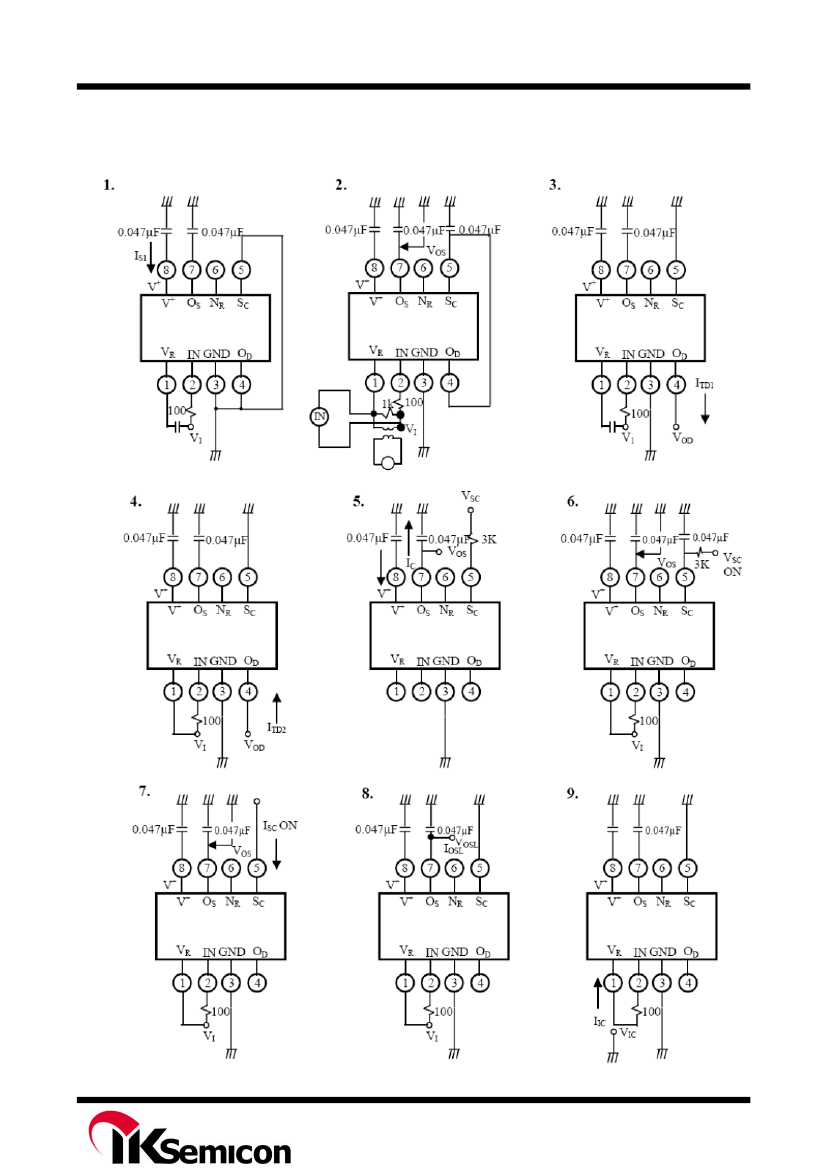

Apr. 2019. Ver. 07
