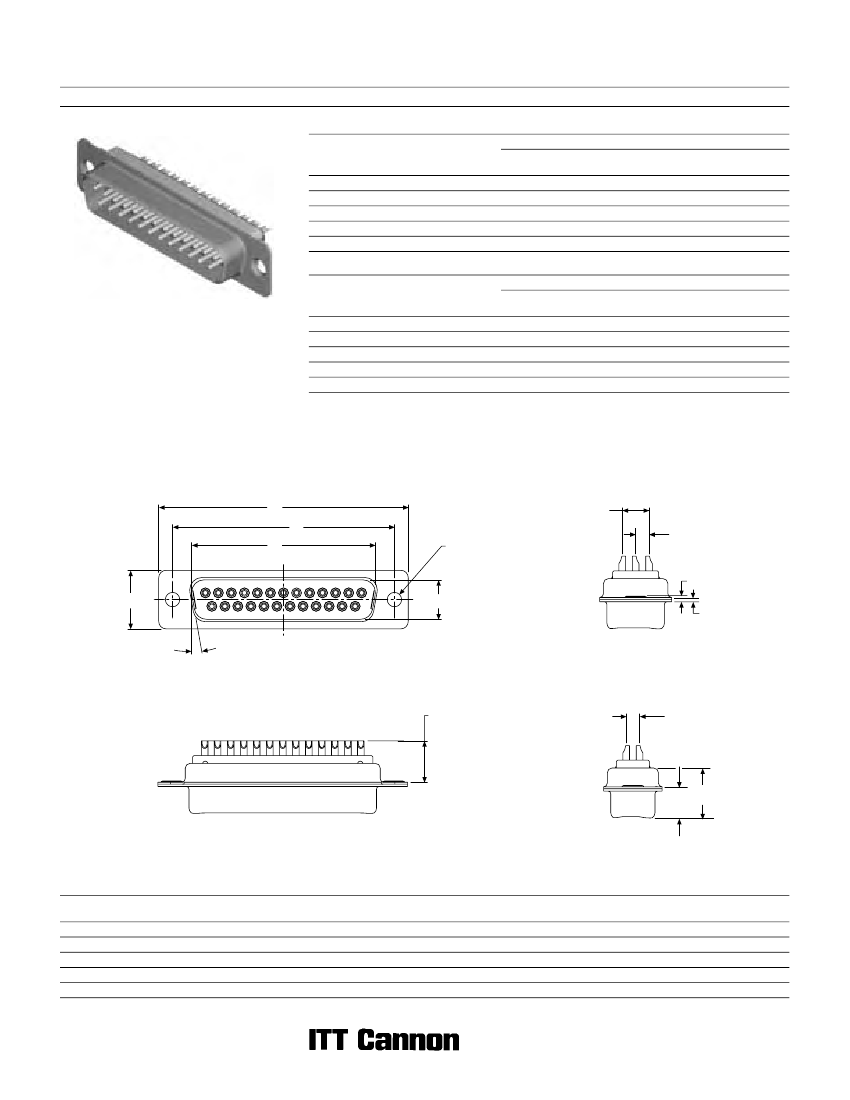

D Subminiature
Solder Cup Connector
Plug
Part Numbers
Shell
Size
DE
DA
DB
DC
DD
Military/High Reliability
Layout
9
15
25
37
50
Through Hole
DEMM9P
DAMM15P
DBMM25P
DCMM37P
DDMM50P
Military Part Numbers
Dual
Float Mount
DEMMY9P
DAMMY15P
DBMMY25P
DCMMY37P
DDMMY50P
Clinch Nut
#4-40 UNC
DEMME9P
DAMME15P
DBMME25P
DCMME37P
DDMME50P
Reader’s Resource
For contact cavity arrangements,
see page 224.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
Shell
Size
DE
DA
DB
DC
DD
Layout
9
15
25
37
50
Through Hole
DEM9P
DAM15P
DBM25P
DCM37P
DDM50P
Commercial Part Numbers
Dual
Float Mount
DEMY9P
DAMY15P
DBMY25P
DCMY37P
DDMY50P
Clinch Nut
#4-40 UNC
DEME9P
DAME15P
DBME25P
DCME37P
DDME50P
Engaging Face
A
C
B
Ø 3,05
(.120)
DD Configuration
5,69
(.224)
2,84
(.112)
K
E
D
L
10°
10,72 (.422)
MAX
2,84
(.112)
F
W
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
52,81 (2.079)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
11,07 (.436)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
W
W
K
K
±0,25
(.010)
±0,368
(.0145)
±0,41
(.016)
±0,317
(.0125)
±0,25
(.010)
10,72 (.422) 6,693 (.2635)
—
1,206 (.0475)
—
10,72 (.422) 6,693 (.2635)
—
1,206 (.0475)
—
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
L
±0,25
(.010)
0.76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
0,99 (.039)
140
Dimensions are shown in mm (inch)
Dimensions subject to change
