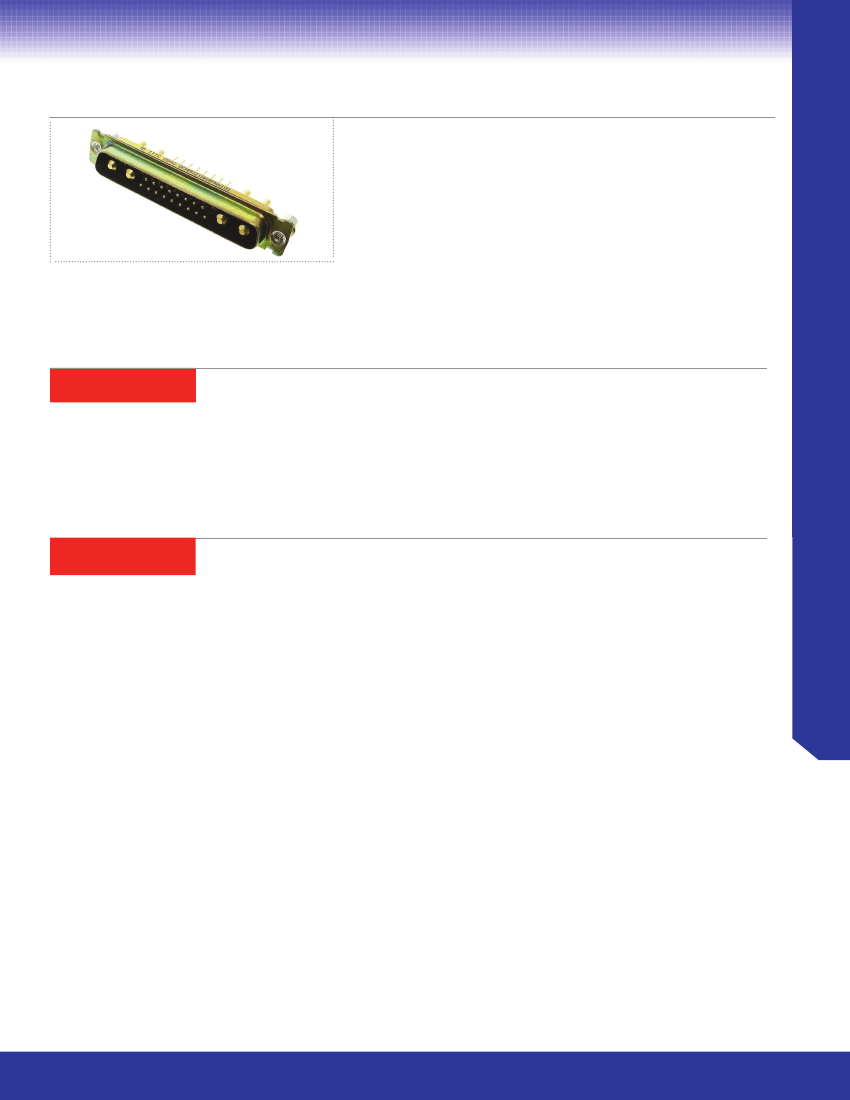

ITT CANNON COMBINATION D-SUB CONNECTORS

ITT Cannon

Combination

D-Sub Connectors

RECTANGULAR CONNECTOR SUITED FOR NETWORK AND

COMMUNICATION PORTS

ITT Cannon Combination D-Sub connectors offer the advantages of an industry

standard shield I/O interconnect, with the flexibility of a customized special,

designed for any application. This connector system is ideal for applications that

require optimization of space while improving overall shielding. Combination D-Sub

accomplishes this by combining multiple interconnect types into one fully-shielded

product, decreasing the number I/O interfaces and reducing the possibility of

EMI/RFI leakage.

APP L IC ATION S

• Video Coaxial Transmission (75Ω)

• RF and Telecom Transmission (50Ω)

• Power Interconnects (Up to 40A)

• Aerospace

• Defense

• Industrial

• Transportation

F E ATURES

OPTIMIZATION OF SPACE WHILE IMPROVING OVERALL SHEILDING

Combination D-Sub connectors are ideal for applications that require optimization of space while improving

overall shielding. Combination D-Sub accomplishes this by combining multiple interconnect types into

one fully shielded product, decreasing the number of I/O interfaces and reducing the possibility of EMI/RFI

leakage. These connectors are typically used where small space and overall shielding are of primary concern.

VERSATILE CONTACT COMBINATIONS

These connectors can combine high power, high voltage, coaxial 50 & 75 ohm with pre-installed signal

contacts. In addition, they are available in either solder or crimp terminations. Guide pins and sockets make

for blind mating applications. Combination D-Sub connectors are available up to 8 size 8 cavities for the High

Power, High Voltage, coaxial contacts and up to 46 signal contacts.

FLEXIBILITY

Combination D-Sub connector series offers the advantages of an industry standard shield I/O interconnect

with standard and European footprints, and the flexibility of a customized special, designed for any

application. There is a wide range of contact and shell types available including RoHS compliant versions,

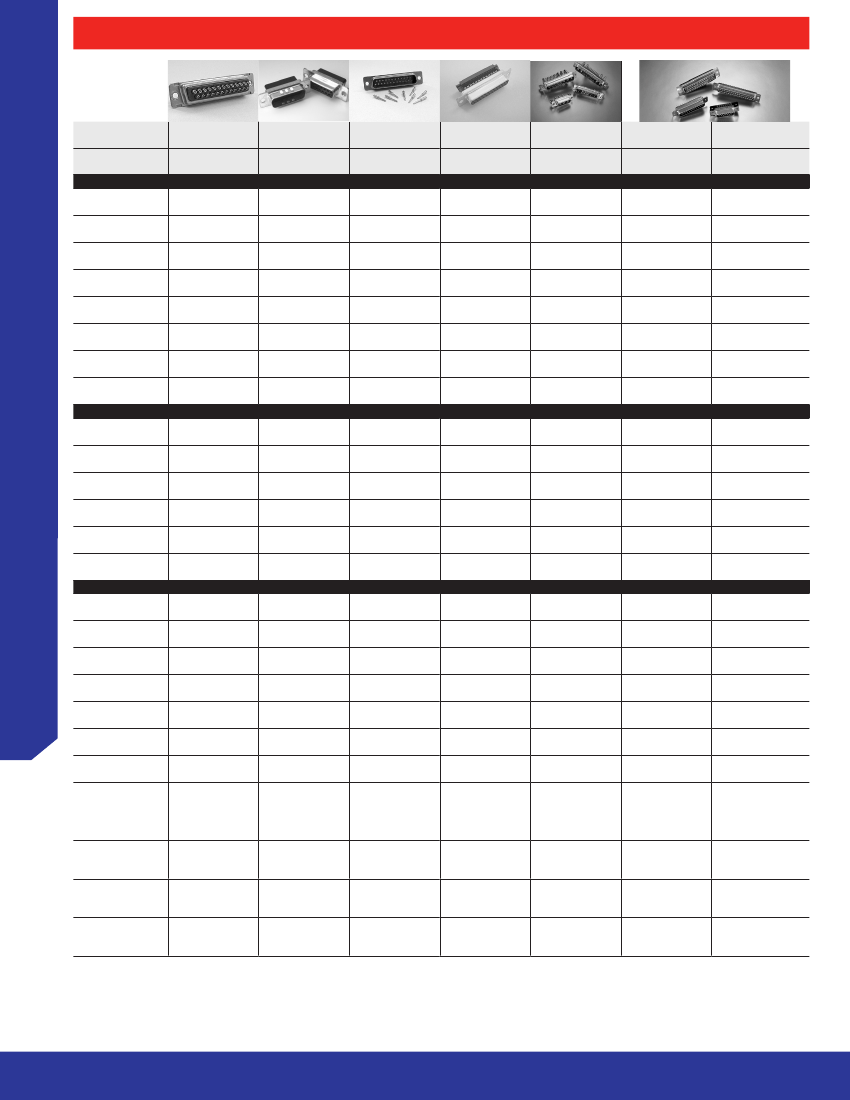

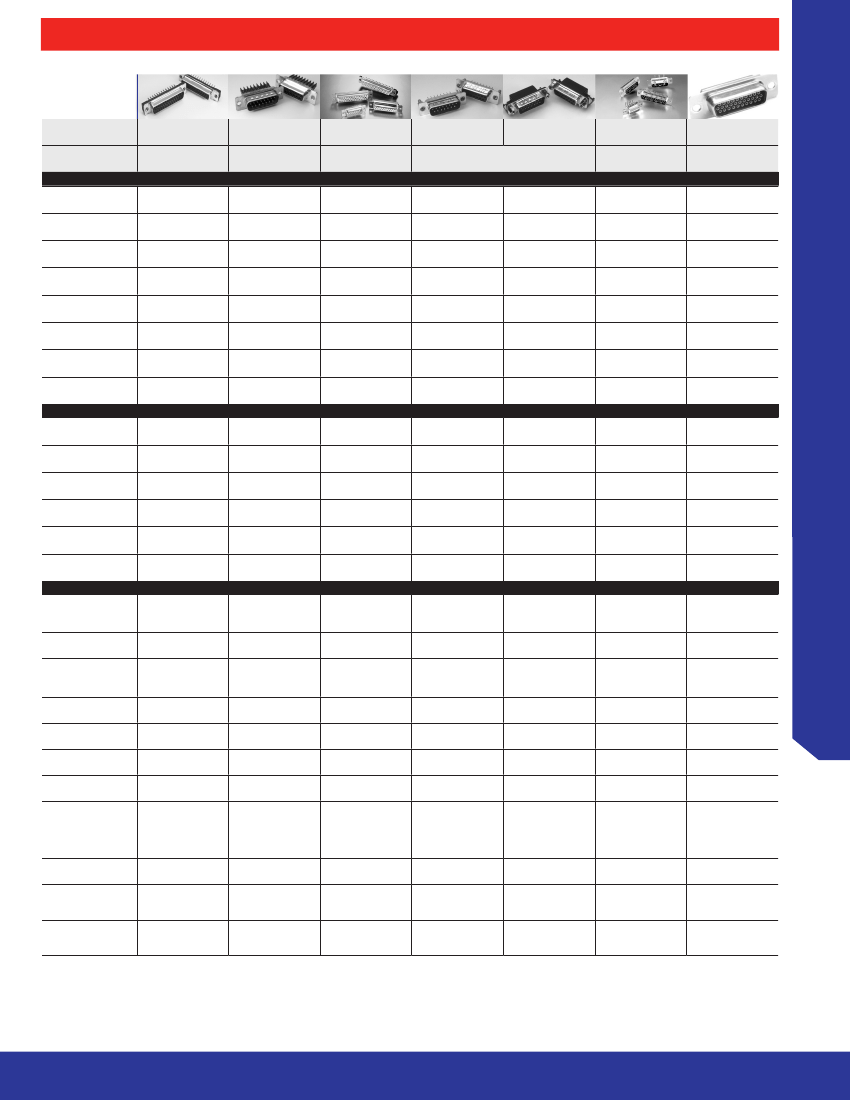

dimpled shells, and stainless steel shells for durability. Please view the specifications for the various shell and

contact platings available.

For assistance in Europe and China, please see the back cover for a complete listing of our branch offices and contact numbers.

Specifications subject to change.

167
