D Subminiature Accessories
Spring Latch Assemblies
ITT Cannon offers the largest variety of locking and
latching hardware. Refer to the accessories
selection guide on pages 198-199 for use with
ITT Cannon Connectors.
Product Features
Low Cost
Minimizes field connection time
Positive lock between connectors
Packaged 2 kits per bag
Materials and Finishes
Material:
Treatment:
Stainless Steel
Passivated
Unlocked
Locked

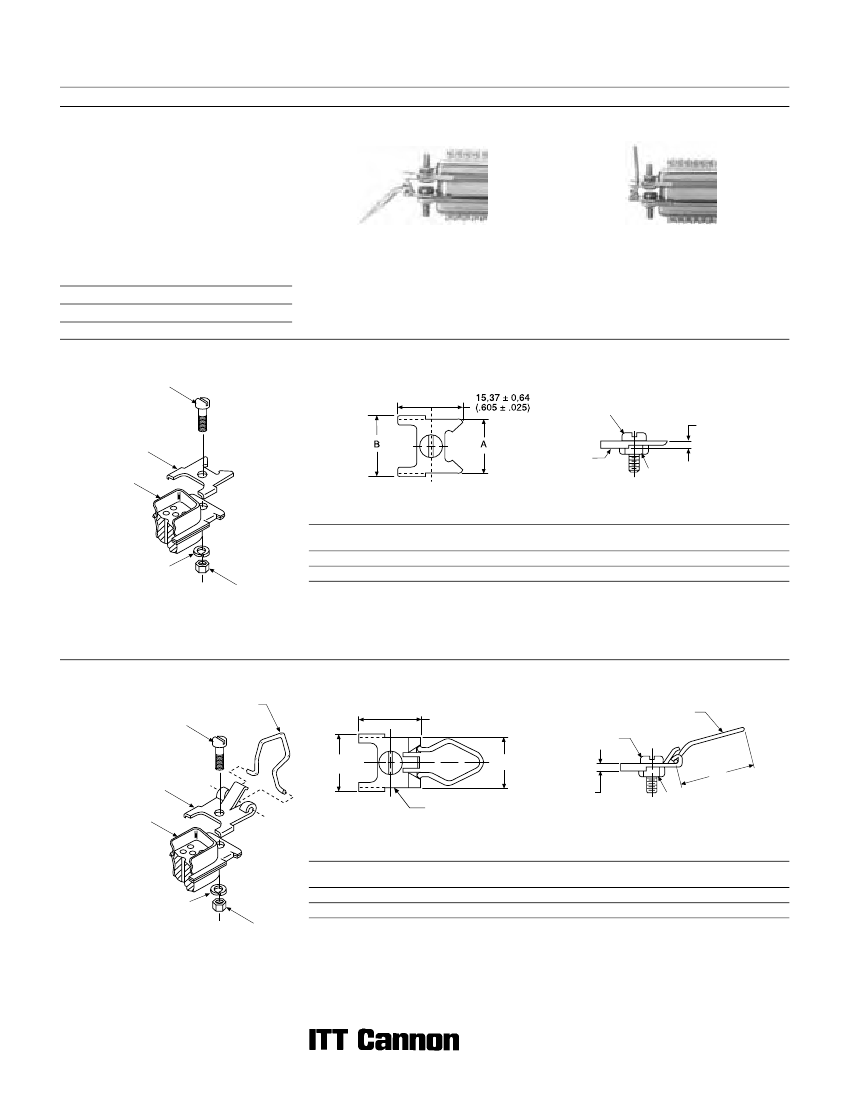

Locking Hardware
Spring Latch Plate Assembly
#4-40
SCREW
#4-40 THD x 7,92 (.312)
SCREW
2,41 - 1,52
(.095 - .060)
PLATE, LATCH
CONNECTOR,
EITHER PIN
OR SOCKET
PLATE,
LATCH
#4-40 NUT, HEX
WASHER, LOCK
#4-40
NUT, HEX
Shell
Size
DE, DA, DB, DC
DD
Layout
9, 15, 25, 37
50
Part
Number
D110278
D110280
A
±0,38
(.015)
12,42 (.489)
15,47 (.609)
B
±0,38
(.015)
14,35 (.565)
17,09 (.673)
Kit consists of 1 plate, 1 screw, 1 lock washer,
1 hex nut
Order 2 kits per connector
Spring Latch Assembly
LATCH, SPRING
#4-40
SCREW
B
SPRING LATCH
MOUNTING BRACKET
CONNECTOR,
EITHER PIN
OR SOCKET
SPRING LATCH
MOUNTING PLATE
* Dimension does not apply to rear panel mounting.
15,57
±
0,64
(.613
±
.025)
LATCH, SPRING
#4-40 THD x 7,92 (.312)
SCREW
A
C
*2,41 - 1,52
(.095 - .060)
#4-40 NUT, HEX
WASHER, LOCK
#4-40
NUT, HEX
Shell
Size
DE, DA, DB, DC
DD
Layout
9, 15, 25, 37
50
Part
Number
D110277
D110279
A
±0,38
(.015)
12,42 (.489)
15,49 (.609)
B
±0,38
(.015)
14,35 (.565)
17,09 (.673)
C
±0,51
(.020)
18,59 (.732)
18,59 (.732)
Kit consists of 1 spring, 1 screw, 1 bracket,
1 lock washer, 1 hex nut
Order 2 kits per connector
Front panel mounting
212
Dimensions are shown in mm (inch)
Dimensions subject to change
