VHR-8N

Description
Number of pins: 8 Number of rows: 1 Series: VH Male and female: Male spacing: 0.156" (3.96mm) Row spacing: -
CategoryThe connector    The connector
File Size105KB,4 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

VHR-8N Overview

Number of pins: 8 Number of rows: 1 Series: VH Male and female: Male spacing: 0.156" (3.96mm) Row spacing: -

VHR-8N Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerJST
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCOMPATIBLE CONTACT: SVH-21T-P1.1
body width0.413 inch
subject depth0.524 inch
body length1.245 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPA
MIL complianceNO
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation option 2LATCHING
Installation typeCABLE
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
GuidelineUL,CSA,TUV
Termination typeCRIMP
Total number of contacts8
UL Flammability Code94V-0
Maximum wire diameter16 AWG
Minimum wire diameter22 AWG
VH
CONNECTOR
6
5
4
3
2
6
T
JS
3.96mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 10 A AC, DC (AWG #16)
• Voltage rating: 250 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6 mm
Note:
Do not branch in parallel current which exceeds the rated current. If branched in
parallel, current imbalance or other problems may develop. If it is absolutely
necessary to branch such a large current in parallel, be sure to use contacts
made of phosphor bronze. Design the circuits without causing imbalance and
provide an extra margin for each circuit.
1
This small, field-proven connector for
printed circuit boards is reliable and has a
large current carrying capacity. It can be
used with a wide variety of signal, power
supply, and output circuits that appear in
consumer electronic products.
• Proven box contact
• Compact connector with a large capacity
• Secure contact and mounting
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Standards–––––––––––––––––––––––
1
Certified LR20812
2
R75122
0
Recognized E60389

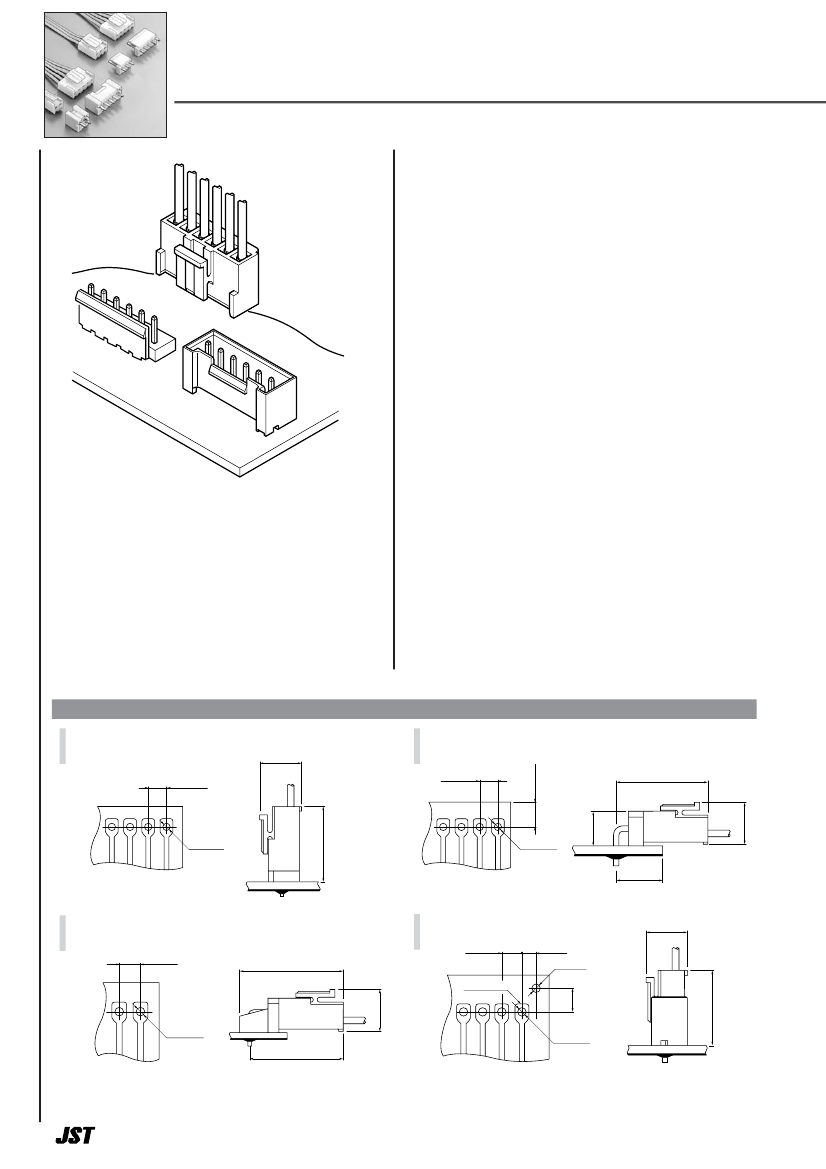

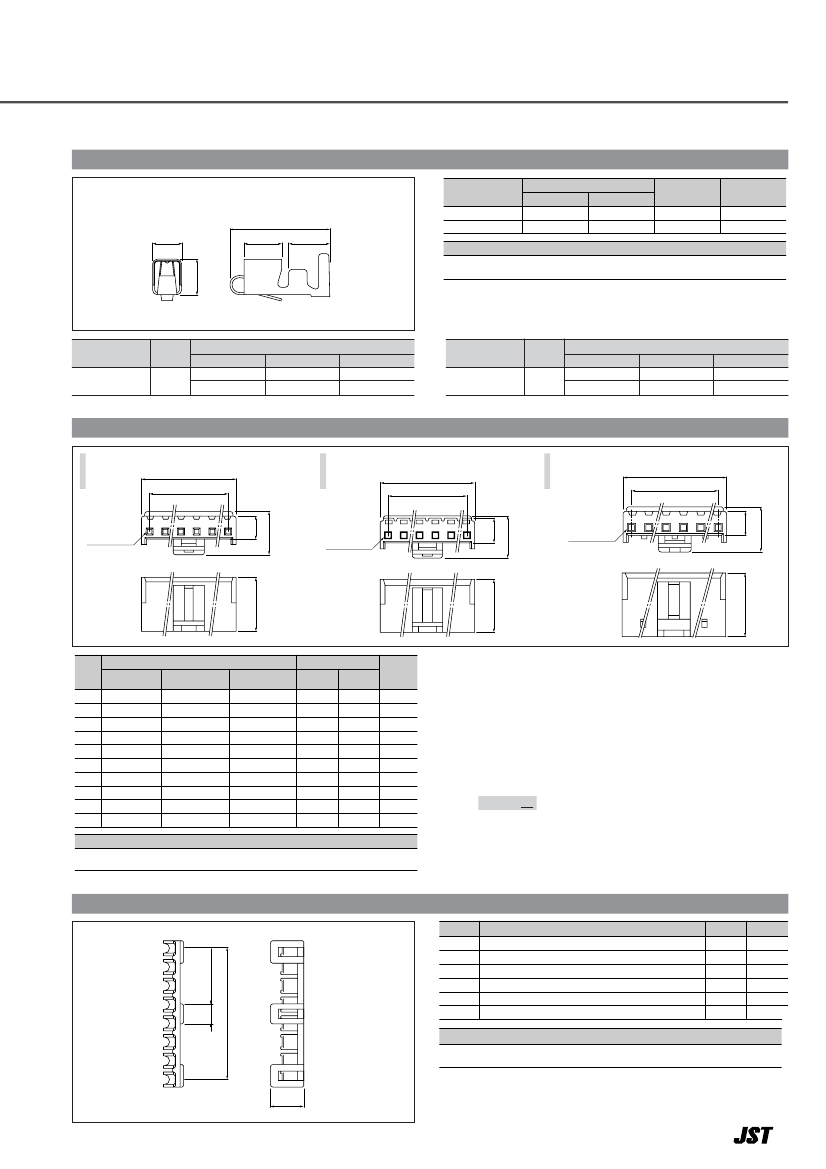

PC board layout and Assembly layout
Locking header
Top entry type
3.96
±0.05
10.5
Locking header
Side entry type
3.96
±0.05
* 7.2
min
(20.5)
+0.1
φ1.65
 0
(16.5)
φ1.65
+0.1
 0
* 7.2
min
*11.0 max. when used with the VR connector receptacle.
Locking header
Side entry type with PCB stabilizer
3.96
±0.05
(21)
Shrouded header
3.96
±0.05
1.5
±0.05
φ1.4
 0
Circuit
No.1
10.5
+0.1
10.5
3.4
±0.05
φ1.65
 0
+0.1
φ1.65
 0
19
+0.1
Note: 1. The above figure is the figure viewed from soldering side.
2. Tolerances are non-cumulative:
±
0.05 mm for all centers.
3. Please consider the pattern layout design in case of applying the large current.
4. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
1
(16.5)
10.5
8
