XHP-4-R

CategoryThe connector    The connector
File Size187KB,5 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

XHP-4-R Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Filter functionNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
Termination typeCRIMP
Total number of contacts4
UL Flammability Code94V-0
XH
CONNECTOR
1
Emboss Tape
Radial Tape

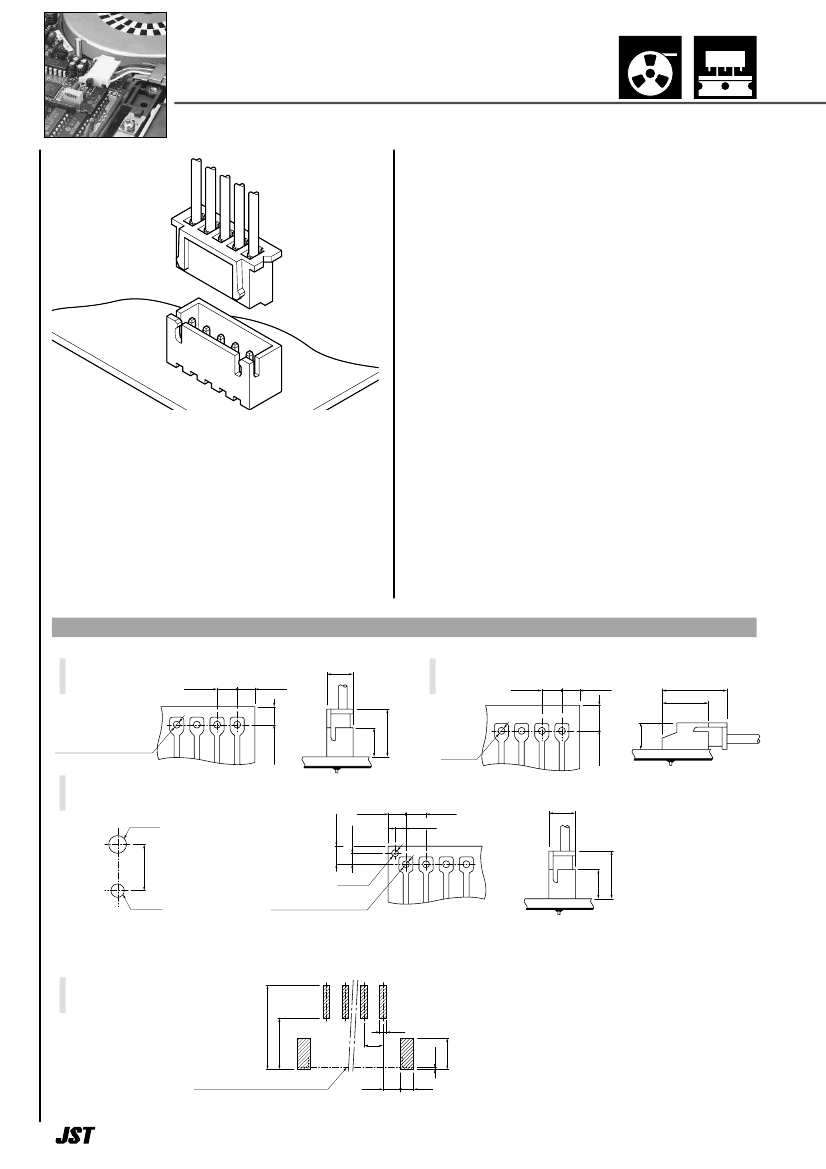

2.5mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 250 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #30 to #22
• Applicable PC board thickness: 1.6 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
5
JS
T
The XH connector was developed based
on the high reliability and versatility of our
NH series connectors. The connector is very
small with a mounting height of 9.8mm.
• Original folded beam contact
• Box-shaped shrouded header
• Header with a boss
• Interchangeability
• Conforming to the HA terminal
Standards ––––––––––––––––––––––
1
Certified LR20812
2
J50014297
0
Recognized E60389

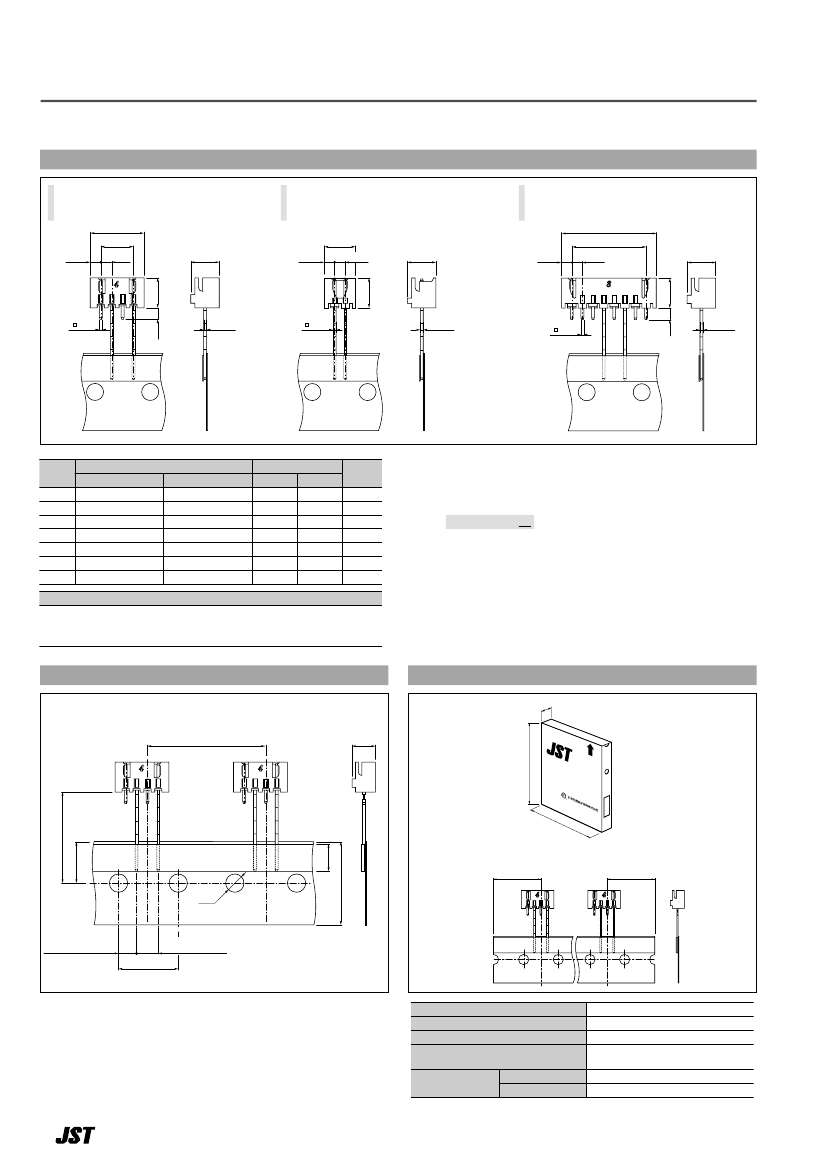

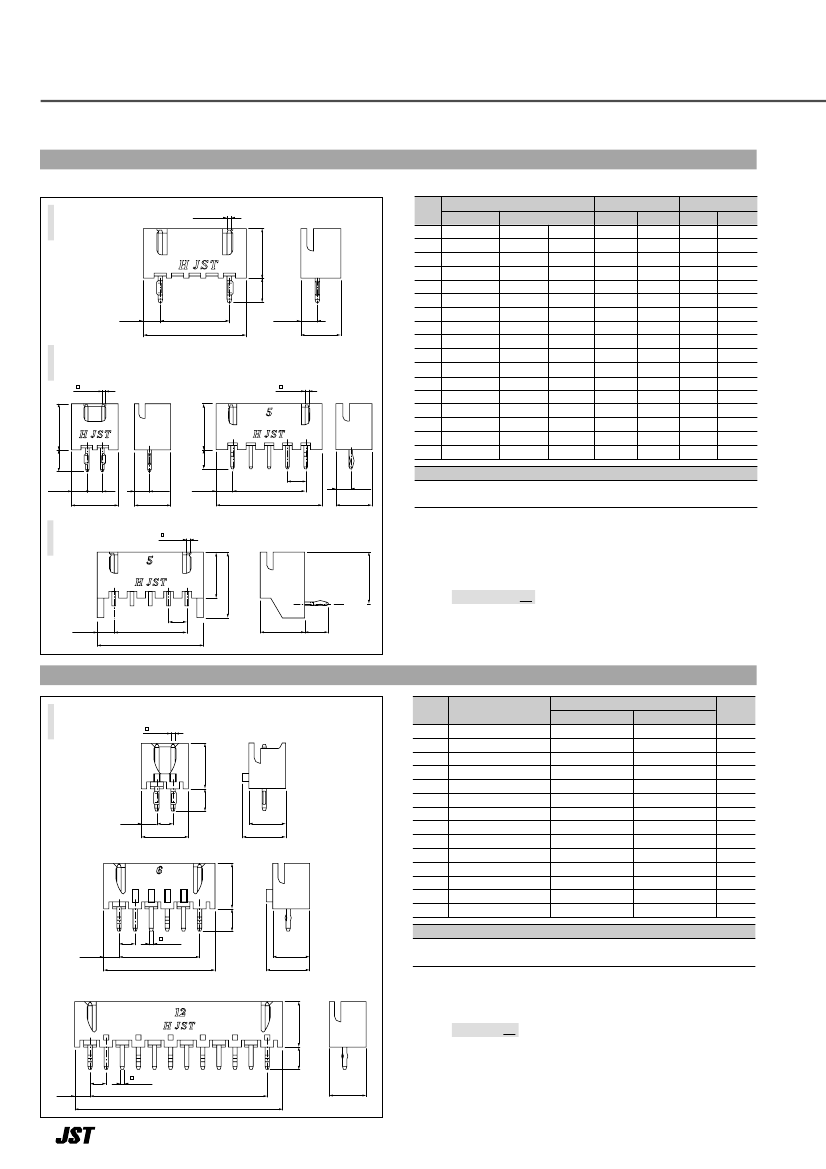

PC board layout and Assembly layout
Through-hole type (viewed from soldening side)
Top entry type
5.75
2.5
±0.05
Side entry type
2.5
±0.05
(2.5
min
(2.5
min
14.3
11.5
(3.4
min
9.8
2 circuits:φ1
±0.05
3 circuits or more:φ0.9
+0.1
 0
φ0.9
+0.1
 0
Top entry type with a boss
<Single circuit>
φ1.7
+0.1
 0
<2 circuits or more>
2.5
min
3.4
min
±0.05
2.5
±0.05
1.6
±0.05
5.75
4.35
±0.05
2
(9.2
min
7
φ0.9
 0
+0.1
2 circuits:φ1
+0.1
3 circuits or more:φ0.9
 0
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05 mm for all centers.
2. Hole dimensions differ according to the type of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
SMT type (viewed from component side)
Side entry type
11
1.3
6.5
2.5
0.2
3.9
End face of wafer on the mating side
2.3
1.8
Note: 1. Tolerances are non-cumulative:
±
0.05 mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
7
φ1.1
+0.2
 0
9.8
6.1
