3P-SDN: DescriptionNumber of needles: 3 Number of rows: 1 Series: - Male and female: - Pitch: 0.156"(3.96mm) Row spacing: -; CategoryThe connector The connector; File Size122KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

3P-SDN Overview

Number of needles: 3 Number of rows: 1 Series: - Male and female: - Pitch: 0.156"(3.96mm) Row spacing: -

3P-SDN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

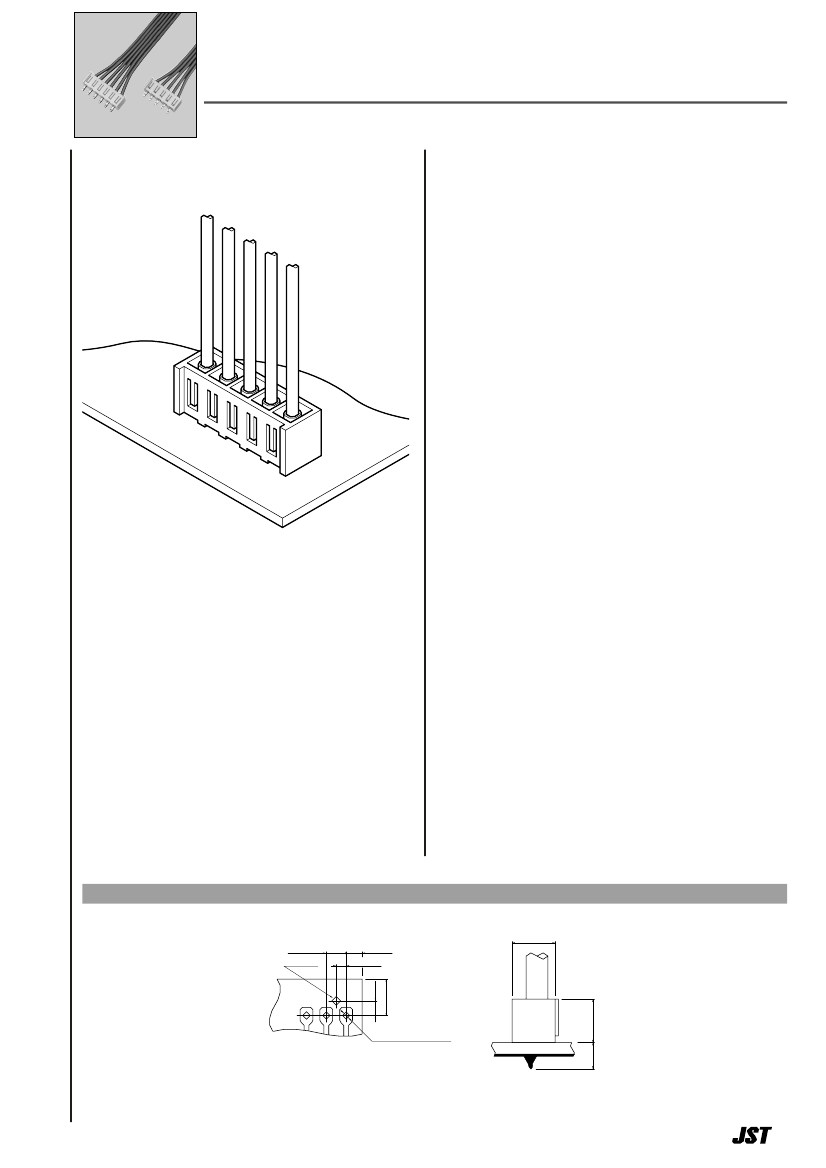

SDN

CONNECTOR

3.96mm pitch/Board-in Crimp style connectors

1

2

3

4

5

Specifications –––––––––––––––––––

• Current rating: 7A AC, DC (AWG #18)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG #22 to #18

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

The SDN connector is a 3.96mm pitch

board-in crimp style connector capable of

connecting a wide variety of circuits

including signal and power supply circuits.

The connector features a slim, low-profile

design. In addition, it has an exclusive

lance construction to reduce insertion

force, thus substantially improving the

working efficiency in mounting the contact.

• Slim, low-profile design

• Easy and secure contact mounting

• Improved solderability

• Polarizing boss

Standards ––––––––––––––––––––––

1

Certified LR20812

2

R50100763

0

Recognized E60389

PC board layout (viewed from soldering side) and Assembly layout

6.2

3.96

±0.05

φ1.5

＋0.1

0

2.5

min

1.98

±0.05

2.7

±0.05

4.0

min

φ1.55

±0.05

（Circuit No.1）

3.9

Note: 1. Tolerances are non-cumulative:

±

0.05mm for all centers. For connectors with 5 or more circuits the hole dimensions will differ from the above values.

Contact JST for details.

2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.

7.0

1
