Serial No. : 2016-1112
DATE : 2016/12/21
ITEM :
CRYSTAL RESONATOR
DSX321G
- - - - -- - - - - - - -- - - - - - - --- - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - -- -- -- - -- - --- - -- - ---- - -- - --- - -- - -- -- - -- - -- -- - -- - -- -- -- -
TYPE :
NOMINAL FREQUENCY :
SPEC No. :
10.000MHz
- - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - --- - -- - -- -- -- - -- - -- -- - -- - -- -- - -- - --- - -- - --- - -- - -- -- - --
1C210000AB0G
- - - - -- - - - - - - -- - - - - - - --- - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - -- -- -- - -- - --- - -- - ---- - -- - --- - -- - -- -- - -- - -- -- - -- - -- -- -- -
- - - - -- - - - - - - -- - - - - - - --- - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - - - -- - - - - -- -- -- - -- - --- - -- - ---- - -- - --- - -- - -- -- - -- - -- -- - -- - -- -- -- -
RECEIPT
DATE
RECEIVED
(signature)
(name)
General Manufacture of Quartz Devices
1389 Shinzaike, Hiraoka-cho, Kakogawa, Hyogo
675-0194 Japan
Phone (81)79-425-3141 Fax (81)79-425-1134
http://www.kds.info/index_en.htm
C.ENG.
ENG.
Serial No.
2016-1112
1. ELECTRICAL CHARACTERISTICS
(This test shall be performed under the conditions of temp.at +25 ± 3°C, Relative Humidity 60% max.)
(1) NOMINAL FREQUENCY
(2) OVERTONE ORDER
(3) LOAD CAPACITANCE(CL)
10.000000 MHz
Fundamental
15.0 pF
(4) FREQUENCY TOLERANCE
(5) DRIVE LEVEL
(6) SERIES RESISTANCE
(7) OPERATING TEMPERATURE RANGE
(8) FREQUENCY CHARACTERISTICS
OVER TEMPERATURE
(9) SHUNT CAPACITANCE
(10) INSULATION RESISTANCE
(11) STORAGE TEMPERATURE RANGE
±10 ppm max. (at +25 ± 3 °C)
10 ±
2
μW
150
Ω
max. (at Series)
-20
~ +75 °C
/
-20
~ +75 °C
(ref. to +25°C)
±20 ppm max.
2.0pF max.
500MΩ min. / DC 100 ± 15V
-40
~ +85 °C
2. CONSTRUCTION
(1) DIMENSIONS AND MARKING
Refer to 4.
3. OTHER SPECIFICATIONS
(1) EMBOSS CARRIER TAPE & REEL
(2) PACKING
(3) REFLOW CONDITIONS (REFERENCE)
(4) LAND PATTERN (REFERENCE)
(5) RELIABILITY SPECIFICATION
(6) OTHER
HANDLING INSTRUCTIONS
Refer to 5.
Refer to 6.
Refer to 7.
Refer to 8.
Refer to 9. ~ 11.
Refer to 12.
TITLE
DSX321G TYPE QUARTZ CRYSTAL SPECIFICATION
DATE
REMARK
SPEC. No.
1C210000AB0G
2016/12/21
REV.
PAGE
1 / 12
DAISHINKU CORP.
DM-Z0002:Style-010Ver.1
Serial No.
2016-1112
4. DIMENSIONS AND MARKING
3 .2±0 .1
2 .5±0 .1
(1 ) (2 ) (3 )
0 .85±0 .15
(Internal connections)
2 .1
<Top View>
#4
#1
1 .6
#2
#3
#1 ,#3 Connected to quartz element
#2 ,#4 Open (unconnected)
0 .7
#4
#3
0 .9
#1
#2
Unit : mm
Tolerance :
±0.1
Figure-1
Logo(1) and Nominal Frequency (2) should be printed as follows by producing district
Made in INDONESIA
-->
Spec. No.:
1C210000AB0G
, Logo :
D
, Frequency: 10
* Made in INDONESIA
: Under Bar with D
Nominal Frequency ( 2 ) = Mark two digits from upper decimal point
(ex. 10.000000 MHz ----> 10 )
Manufacturing lot No.( 3 )
2016
(year) ex.
Dec.
(Month)ex.
shall be marked as '
shall be marked as '
6
M
' (The last digit of the year)
' (As shown in Table-1.)
(Table-1.)
Month Jan.
Mark
A
Feb.
B
Mar.
C
Apr.
D
May.
E
Jun.
F
Jul.
G
Aug.
H
Sep.
J
Oct.
K
Nov.
L
Dec.
M
Plating material of a terminal. : Ni Plating + Au Plating.
A clearance between the soldering terminal portion and a print circuit board side should be less than 0.1mm.
TITLE
DSX321G TYPE QUARTZ CRYSTAL SPECIFICATION
DATE
REMARK
SPEC. No.
1C210000AB0G
2016/12/21
REV.
PAGE
2 / 12
DAISHINKU CORP.
DM-Z0002:Style-010Ver.1
Serial No.
2016-1112

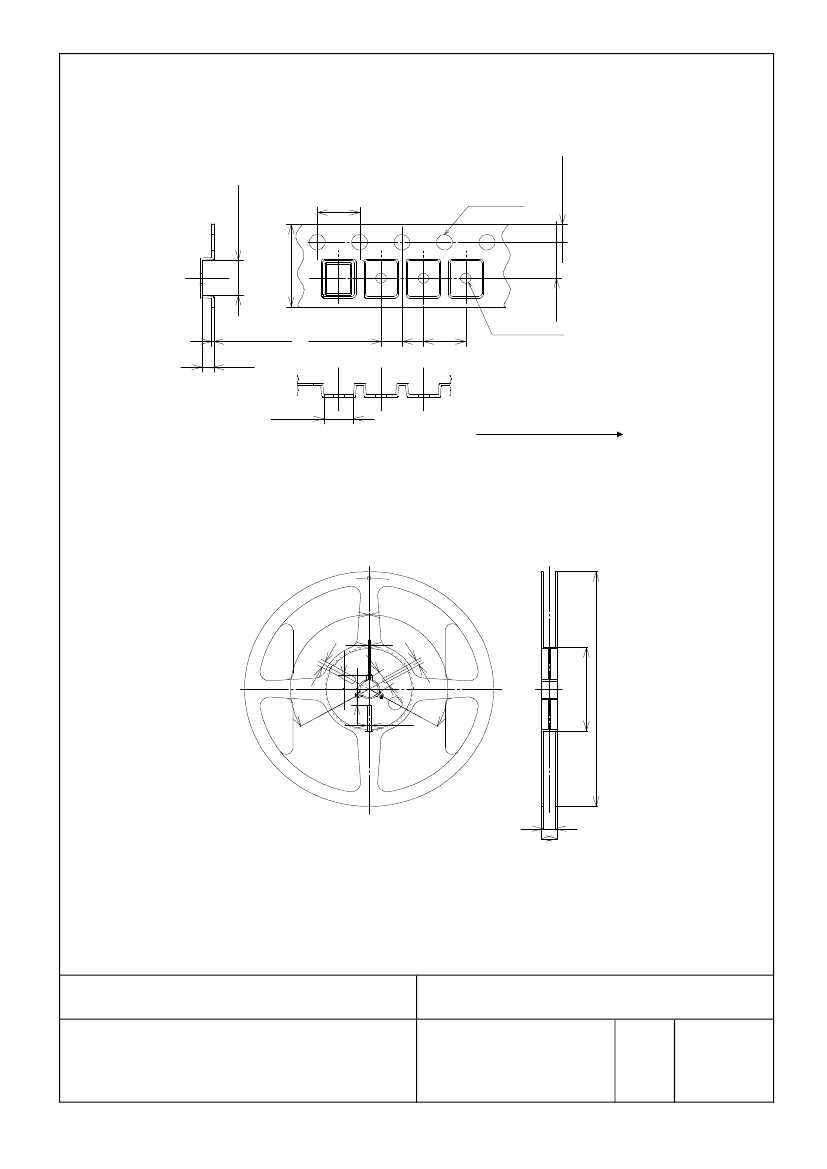

5. EMBOSS CARRIER TAPE & REEL
(1) Dimensions of embossed carrier tape
1.75+/-0.1
3.5+/-0.1
4.0+/-0.1
8.0+/-0.2
1.55dia.+/-0.05
0.25+/-0.05
1.0+/-0.1
2.0+/-0.05
4.0+/-0.1
1.15 dia.+/-0.05
2.8+/-0.1
User Direction of feed
(Unit : mm)
Figure-2
(2) Dimensions of tape reel
E
θ
θ
F3
U
V
F1
W2
W1
Figure-3
TITLE
DSX321G TYPE QUARTZ CRYSTAL SPECIFICATION
DATE
REMARK
SPEC. No.
1C210000AB0G
2016/12/21
B
A
3.5+/-0.05
DAISHINKU CORP.
(1)(2)(3)
F2
C
REV.
PAGE
3 / 12
DM-Z0002:Style-010Ver.1
Serial No.
2016-1112
(Unit:mm)
Item
Diameter
Inside of Frange
Flange
Outside of Frange
Inside Diameter
W2
B
F1
Width
Center
Core Slit
Length
Center
Core
Angle
Spindle Diameter
Width
Key Seats
Length
Angle
F2
F3
V
θ
C
E
U
θ
11.4 ± 1.0
Φ60
+1.0-0
3.0 ± 0.2
4.0 ± 0.2
5.0 ± 0.2
11.9 +0.5 / -0.0
120°
Φ13
± 0.2
2.0 ± 0.5
10.5 ± 0.4
120°
Mark
A
W1
Dimensions Angle
Φ180
+0.0 / -3.0
9.0 ± 0.3
(3) Material of the reel
Polystyrene+Carbon
（
Black
）
Reel
Polystyrene(White)
(4) Storage condition
Temperature : +40 °C max.
Relative Humidity : 80% max.
( It is a guaranteed term because it obtains an excellent soldering: 6 months)
(5) Standard packing quantity
3,000 pcs/reel
(6) Material of the tape
Tape
Carrier tape
Cover tape
Material
Polystyrene+Carbon
Polyester
TITLE
DSX321G TYPE QUARTZ CRYSTAL SPECIFICATION
DATE
REMARK
SPEC. No.
1C210000AB0G
2016/12/21
REV.
PAGE
4 / 12
DAISHINKU CORP.
DM-Z0002:Style-010Ver.1
