C0603C220J3RACAUTO datasheet, PDF

Datasheet> All Categories > Passive components> The patch capacitance> C0603C220J3RACAUTO

C0603C220J3RACAUTO: DescriptionAccuracy: ±5% Capacitance: 22pF Rated voltage: 25V Temperature drift coefficient (dielectric material): X7R Material: X7R; CategoryPassive components The patch capacitance; File Size1MB，24 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0603C220J3RACAUTO Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C0603C220J3RACAUTO	-	-	View	Buy Now

C0603C220J3RACAUTO Overview

Accuracy: ±5% Capacitance: 22pF Rated voltage: 25V Temperature drift coefficient (dielectric material): X7R Material: X7R

C0603C220J3RACAUTO Parametric

Parameter Name	Attribute value
Accuracy	±5%
Capacitance	22pF
Rated voltage	25V
Temperature drift coefficient (dielectric material)	X7R

Preview

Download Datasheet

View All

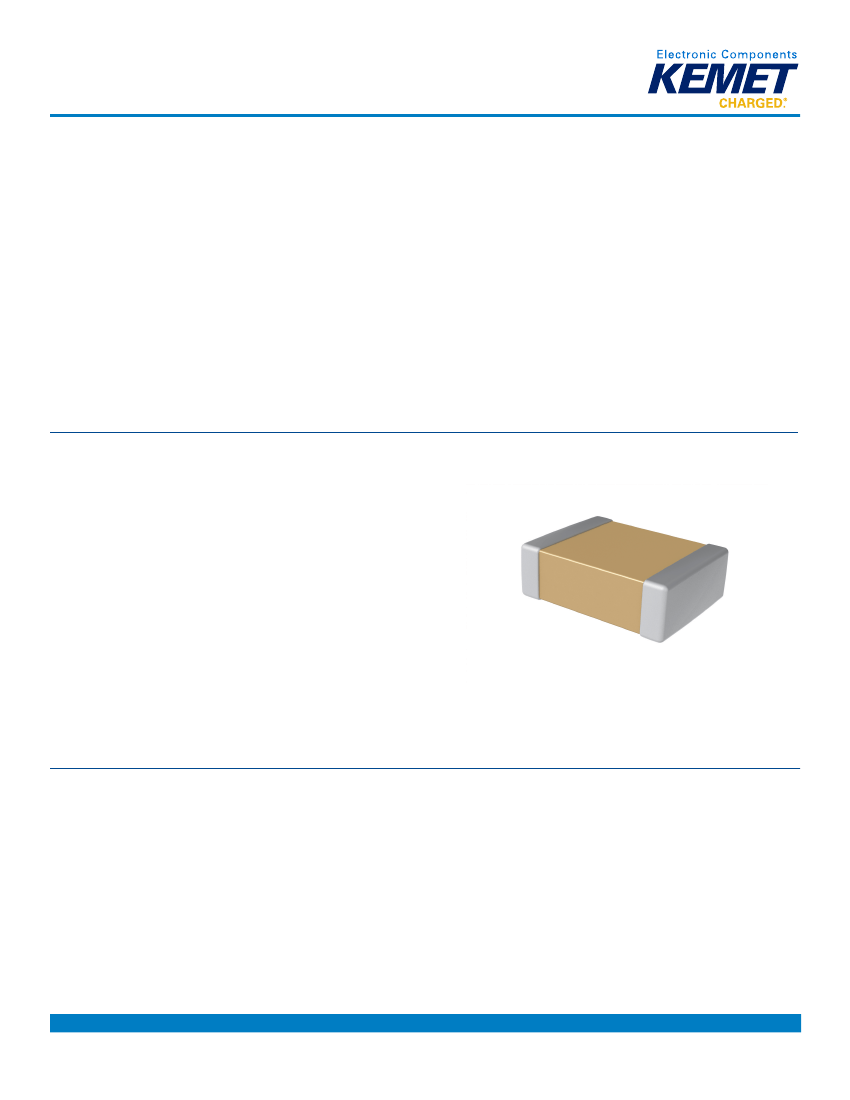

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)

Overview

The KEMET Automotive Grade Surface Mount Capacitors

in X7R dielectric are suited for a variety of applications

requiring proven, reliable performance in harsh

environments. Whether underhood or in-cabin, these

devices emphasize the vital and robust nature of capacitors

required for mission and safety of critical automotive

circuits. Stricter testing protocol and inspection criteria

have been established for automotive grade products in

recognition of potentially harsh environmental conditions.

KEMET automotive grade capacitors meet the demanding

Automotive Electronics Council's AEC-Q200 qualification

requirements.

X7R dielectric features a 125°C maximum operating

temperature and is considered temperature stable. The

Electronics Industries Alliance (EIA) characterizes X7R

dielectric as a Class II material. Components of this

classification are fixed, ceramic dielectric capacitors, suited

for bypass and decoupling applications, or for frequency

discriminating circuits, where Q and stability of capacitance

characteristics are not critical. X7R exhibits a predictable

change in capacitance with respect to time and voltage,

and boasts a minimal change in capacitance with reference

to ambient temperature. Capacitance change is limited to

±15% from −55°C to +125°C.

Benefits

• AEC–Q200 automotive qualified

• −55°C to +125°C operating temperature range

• Lead (Pb)-free, RoHS and REACH compliant

• Temperature stable dielectric

• EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, and

2220 case sizes

• DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 50 V, 100 V,

200 V and 250 V

• Capacitance offerings ranging from 10 pF to 22 μF

• Available capacitance tolerances of ±5%, ±10% and ±20%

• Non-polar device, minimizing installation concerns

• 100% pure matte tin-plated termination finish, allowing for

excellent solderability

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

Typical applications include decoupling, bypass, filtering and transient voltage suppression.

One world. One KEMET

C1023_X7R_AUTO_SMD • 4/26/2018

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

X7R Dielectric, 6.3 – 250 VDC (Automotive Grade)

Automotive C-Spec Information

KEMET automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council.

Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process

warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”

This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade

component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a

KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET OEM automotive customers and are

not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited

(see details below.)

Product Change Notification (PCN)

The KEMET product change notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit, function, and/or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

AUTO

Customer Notification Due To:

Process/Product change

Yes (with approval and sign off)

Yes (without approval)

Obsolescence*

Yes

Days Prior To

Implementation

180 days minimum

90 days minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design records and specification requirements are properly

understood and fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part.

KEMET Automotive

C-Spec

KEMET assigned

AUTO

PPAP (Product Part Approval Process) Level

●

○

●

○

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

● Part number specifi

c PPAP available

○ Product family PPAP only

C1023_X7R_AUTO_SMD • 4/26/2018
