General Purpose ESD Protection - SM24CANA
SM24CANA Series 200W TVS Diode Array
Description
RoHS
Pb
GREEN
The SM24CANA TVS Diode Array is designed to protect
automotive Controller Area Network (CAN) lines from
damage due to electrostatic discharge (ESD), electrical fast
transient (EFT), and other overvoltage transients.
The SM24CANA Series can absorb repetitive ESD strikes
above the maximum level specified in the IEC 61000-4-2
international standard without performance degradation
and safely dissipate 3A of 8/20s surge current (IEC 61000-
4-5, 2
nd
Edition) with very low clamping voltages.

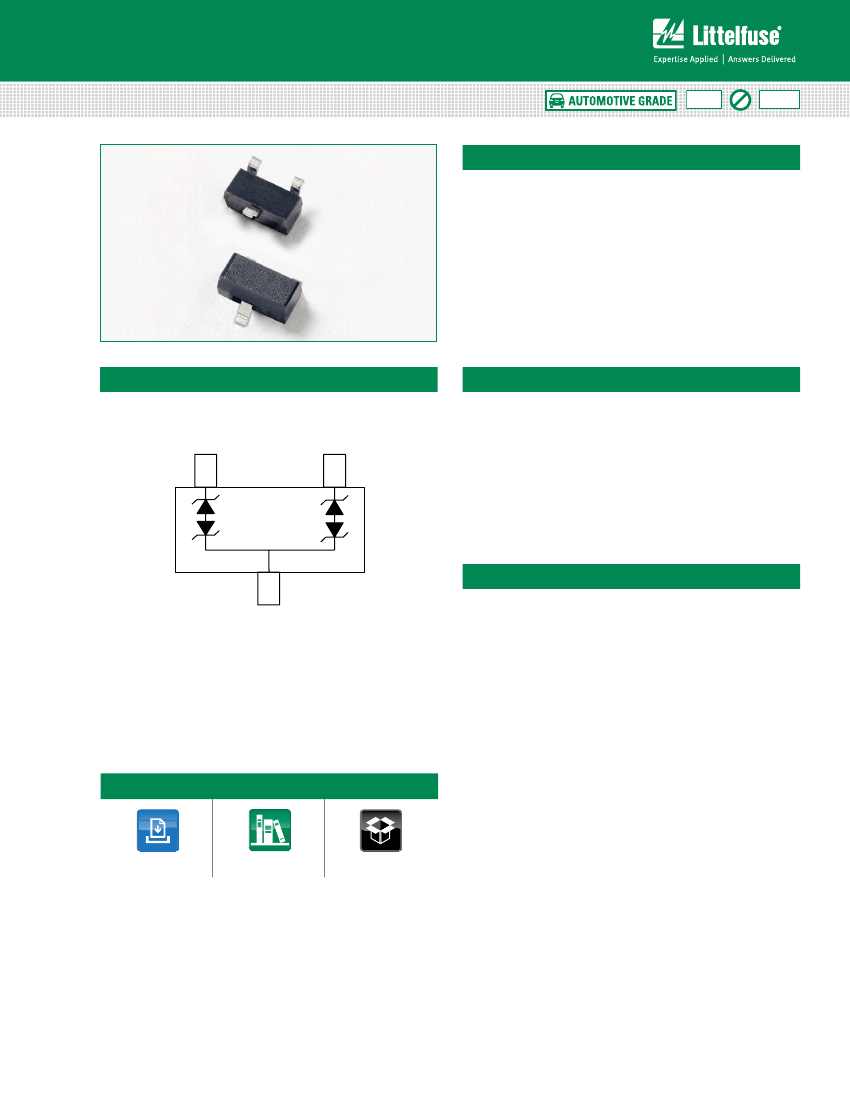

Pinout and Functional Block Diagram
Features
• RoHS compliant and
lead-free
• Low clamping voltage
• Low leakage current
• AEC-Q101 qualified
• Moisture Sensitivity
Level (MSL-1)
2
1
• ESD, IEC 61000-4-2,
±24kV contact, ±30kV air
• EFT, IEC 61000-4-4, 50A
(5/50ns)
• Lightning, IEC 61000-
4-5, 2
nd
Edition, 3A
(tp=8/20μs)
Applications
3
• Automotive Applications
• CAN Bus
• Electronic Control Units
• ADAS Control Units
• PowerTrain Control Units
• Factory Automation
• Lightning Control (DALI)
Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.
• Body Control Units
Additional Information
Datasheet
Resources
Samples
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/06/17
TVS Diode Arrays
(SPA
®
Diodes)
Diodes)
General Purpose ESD Protection - SM24CANA
Absolute Maximum Ratings
Symbol
P
Pk
I
PP
T
OP
T
STOR
Notes:
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the component. This is a stress only rating and
operation of the component at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Parameter
Peak Pulse Power (t
p
=8/20μs)
Peak Pulse Current (t
p
=8/20μs)
Operating Temperature
Storage Temperature
Value
200
3.0
-40 to 125
-55 to 150
Units
W
A
°C
°C
SM24CANA Electrical Characteristics
(T
OP
=25ºC)
Parameter
Reverse Standoff Voltage
Reverse Breakdown Voltage
Leakage Current
Clamp Voltage
1
Dynamic Resistance
2
ESD Withstand Voltage
1
Diode Capacitance
1
Note:
1
2
Symbol
V
RWM
V
BR
I
LEAK
V
C
R
DYN
V
ESD
C
I/O-GND
Test Conditions
I
R
≤1μA, Pin 1 or Pin 2 to Pin 3
I
R
=1mA, Pin 1 or Pin 2 to Pin 3
V
R
=24V
I
PP
=1A, t
p
=8/20µs, Pin 1 or Pin 2 to Pin 3
I
PP
=3A, t
p
=8/20µs, Pin 1 or Pin 2 to Pin 3
TLP t
p
=100ns, I/O to GND
,
IEC 61000-4-2 (Contact Discharge)
IEC 61000-4-2 (Air Discharge)
Reverse Bias=0V, f=1MHz;
Pin 1 or Pin 2 to Pin 3
Min
26.7
Typ
Max
24.0
1.0
36.0
50.0
Units
V
V
μA
V
V
Ω
kV
kV
0.7
±24
±30
11
17
pF
Parameter is guaranteed by design and/or component characterization.
Transmission Line Pulse (TLP) with 100ns width and 200ps rise time.
Transmission Line Pulsing(TLP) Plot
20
18
16
14
Pulse Waveform
110%
100%
90%
80%
TLP Current (A)
12
10
8
6
4
2
0
Percent of I
PP
70%
60%
50%
40%
30%
20%
10%
0%
0.0
5.0
10.0
15.0
20.0
25.0
30.0
0
5
10
15
20
25
30
35
40
45
50
TLP Voltage (V)
Time ( s)
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/06/17
TVS Diode Arrays
(SPA
®
Diodes)
Diodes)
General Purpose ESD Protection - SM24CANA
Non-Repetitive Peak Pulse Power vs. Pulse Time
10
pk (kW)
Power Derating Curve
110
100
90
% of Rated Power I
PP
80
70
60
50
40
30
20
10
0
Peak Pulse Power - P
1
0.1
0.01
0.1
1
Pulse Duration - t p (µs)
10
100
1000
0
25
50
75
100
125
150
Ambient Temperature - T
A
C)
(
o
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus) Temp (T
L
)
to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
Pb – Free assembly
Temperature
T
P
T
L
T
S(max)
Preheat
Ramp-up
t
P
Critical Zone
T
L
to T
P
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
t
L
Ramp-do
Ramp-down
T
S(min)
t
S
time to peak temperature
25
Time
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/06/17
TVS Diode Arrays
(SPA
®
Diodes)
Diodes)
General Purpose ESD Protection - SM24CANA
Part Marking System
Part Numbering System
SM 24 CAN A
–
02 H T G
M24C
TVS Diode Arrays
(SPA
®
Diodes)
Series
Working
Voltage
CAN BUS
Wattage
A: 200W
G= Green
T= Tape & Reel
Package
H: SOT23-3
Number of
Channels
Ordering Information
Part Number
SM24CANA-02HTG
Package
SOT23-3
Marking
M24C
Min. Order Qty.
3000
Package Dimensions — SOT23-3
b
3
Package
Pins
JEDEC
E1
2
E
SOT23-3
3
TO-236
Millimeters
Min
Max
1.12
0.10
0.50
0.2
3.04
2.64
1.40
0.95 BSC
1.90 BSC
0.54 REF
2.29
0.95
0.78
0.78
Min
0.035
0.0004
0.012
0.003
0.110
0.083
0.047
Inches
Max
0.044
0.004
0.020
0.008
0.120
0.104
0.055
502B
1
e
e1
D
Recommended Pad Layout
P
A
A1
b
c
D
E
E1
e
e1
L1
M
N
O
P
M
0.89
0.01
0.30
A
A1
P
M
N
0
0.08
2.80
2.10
1.20
C
L1
N
0
0.038 BSC
0.075 BSC
0.021 REF
0.090
0.038
0.030TYP
0.030TYP
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/06/17
TVS Diode Arrays
(SPA
®
Diodes)
Diodes)
General Purpose ESD Protection - SM24CANA

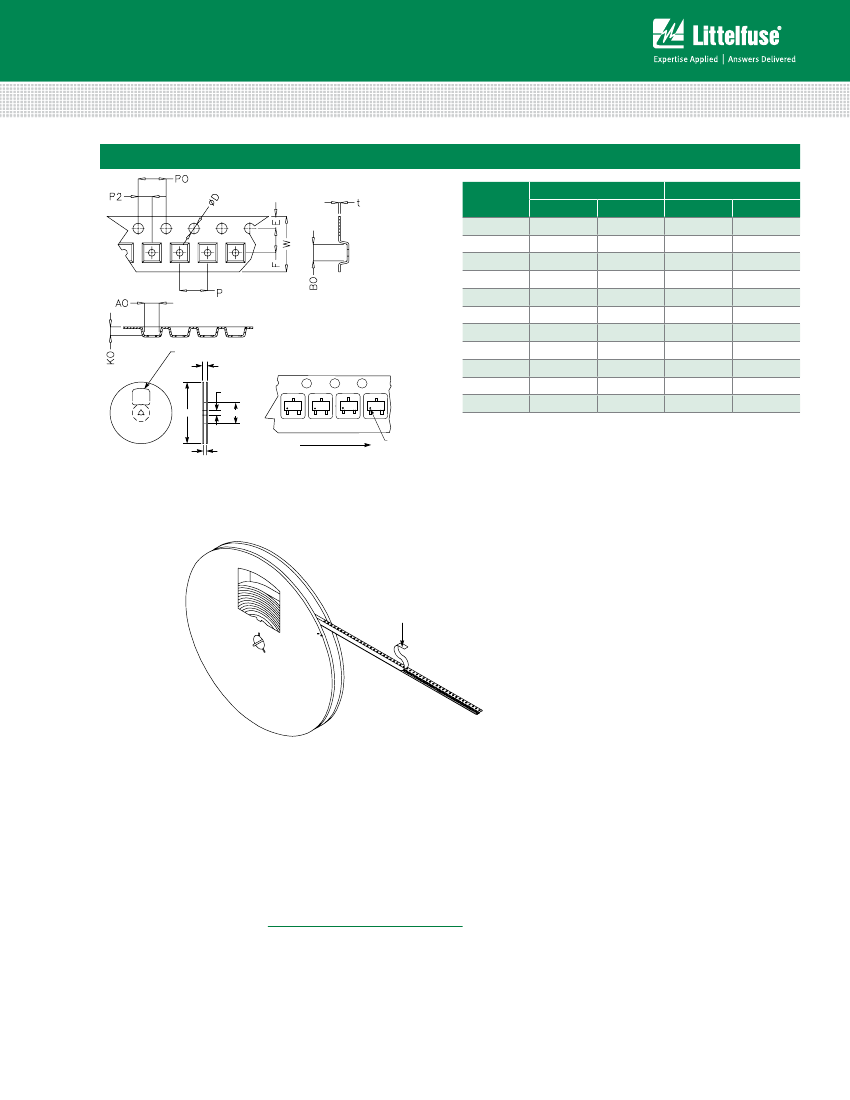

Embossed Carrier Tape & Reel Specification — SOT23-3
Symbol
E
F
P2
D
8mm TAPE AND REEL
GENERAL INFORMATION
1. 3000 PIECES PER REEL.
2. ORDER IN MULTIPLES OF FULL REELS ONLY.
3. MEETS EIA-481 REVISION "A" SPECIFICATIONS.
ACCESS HOLE
14.4mm
Millimetres
Min
1.65
3.40
1.90
1.40
3.90
7
.70
3.90
3.05
2.67
1.12
0.22
Max
1.85
3.60
2.10
1.60
4.10
8.30
4.10
3.25
2.87
1.32
0.24
Min
0.065
0.134
0.075
0.055
0.154
0.303
0.154
0.120
0.105
0.044
0.009
Inches
Max
0.073
0.142
0.083
0.063
0.161
0.327
0.161
0.128
0.113
0.052
0.009
P0
W
P
A0
B0
K0
t
SOT23-3 (8mm POCKET PITCH)
13mm
180mm
60mm
USER DIRECTION OF FEED
8.4mm
PIN 1
COVER TAPE
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at
www.littelfuse.com/disclaimer-electronics.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/06/17
