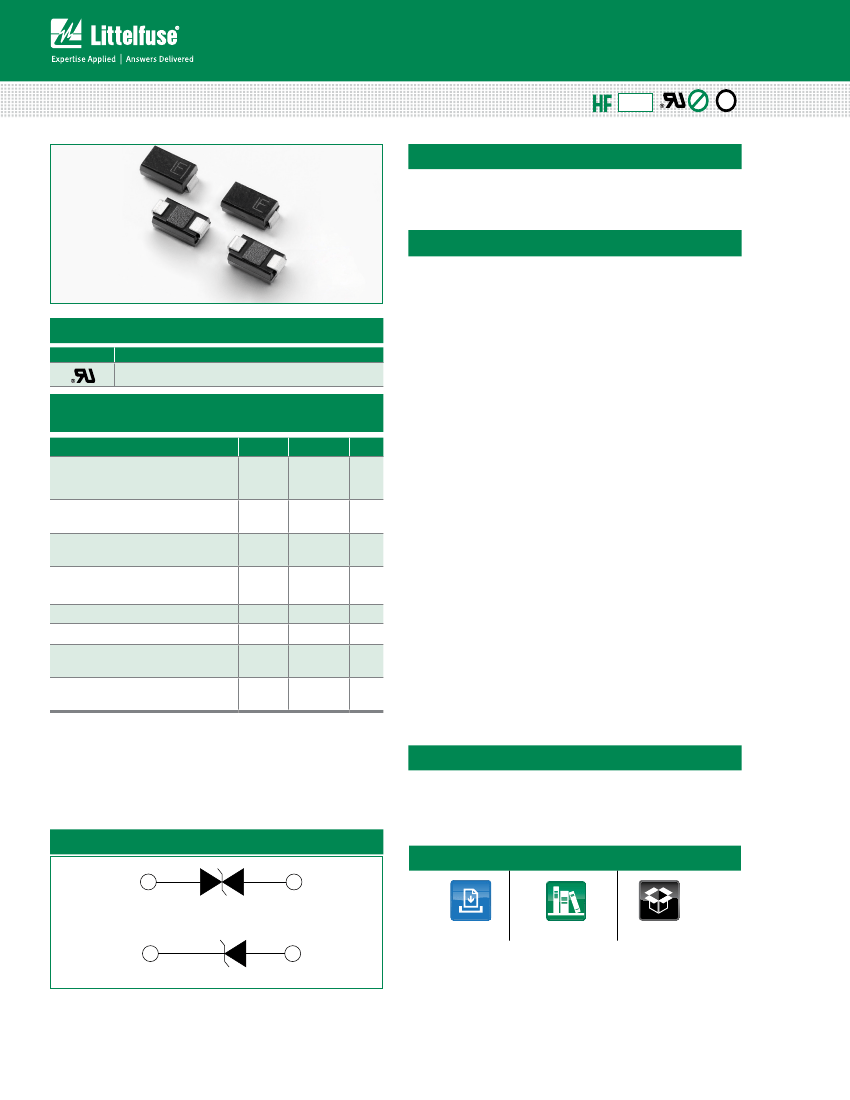

Transient Voltage Suppression Diodes
Surface Mount – 400W > P4SMA series
P4SMA Series
Uni-directional
Description
RoHS
Pb
e3
Bi-directional
The P4SMA series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• 400W peak pulse power
capability at 10/1000µs
waveform, repetition rate
(duty cycles):0.01%
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 1μA
when V
BR
min>12V
• Optimized surface mount
footprint for minimal PCB
space impact
• Low profile package
• Typical failure mode due
to exceeding maximum
ratings is a short circuit
condition
• Whisker test conducted
based on Table 4a and 4c
of JEDEC JESD201A
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
• Fast response time:
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Additional Infomarion
typically less than 1.0ps
from 0V to BV min
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• UL Recognized epoxy
meeting flammability
classification V-0
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free Plated
• Halogen-free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2), (Note 5)
Power Dissipation on Infinite Heat
Sink at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 25A for Unidirectional
Only (Note 4)
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
T
STG
R
θJL
R
θJA
Value
400
3.3
60
3.5/5.0
-65 to 150
-65 to 175
30
120
Unit
W
W
A
V
°C
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse, per Fig.4 and derated above T
J
(initial) =25ºC per Fig. 3.
2. Mounted on 5.0x5.0mm copper pad to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only.
4. V
F
< 3.5V for single die parts and V
F
< 5.0V for stacked-die parts.
5. The P
PPM
of stacked-die parts is 600W and please contact littelfuse for the detail
stacked-die parts.
®
Functional Diagram
Bi-directional
Datasheet
Cathode
Uni-directional
Anode
Resources
Samples
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/06/17
Transient Voltage Suppression Diodes
Surface Mount – 400W > P4SMA series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
P4SMA6.8A
P4SMA7
.5A
P4SMA8.2A
P4SMA9.1A
P4SMA10A
P4SMA11A
P4SMA12A
P4SMA13A
P4SMA15A
P4SMA16A
P4SMA18A
P4SMA20A
P4SMA22A
P4SMA24A
P4SMA27A
P4SMA30A
P4SMA33A
P4SMA36A
P4SMA39A
P4SMA43A
P4SMA47A
P4SMA51A
P4SMA56A
P4SMA62A
P4SMA68A
P4SMA75A
P4SMA82A
P4SMA91A
P4SMA100A
P4SMA110A
P4SMA120A
P4SMA130A
P4SMA150A
P4SMA160A
P4SMA170A
P4SMA180A
P4SMA200A
P4SMA220A
P4SMA250A
P4SMA300A
P4SMA350A*
P4SMA400A*
P4SMA440A*
P4SMA480A*
P4SMA510A*
P4SMA530A*
P4SMA540A*
P4SMA550A*
Part
Number
(Bi)
P4SMA6.8CA
P4SMA7
.5CA
P4SMA8.2CA
P4SMA9.1CA
P4SMA10CA
P4SMA11CA
P4SMA12CA
P4SMA13CA
P4SMA15CA
P4SMA16CA
P4SMA18CA
P4SMA20CA
P4SMA22CA
P4SMA24CA
P4SMA27CA
P4SMA30CA
P4SMA33CA
P4SMA36CA
P4SMA39CA
P4SMA43CA
P4SMA47CA
P4SMA51CA
P4SMA56CA
P4SMA62CA
P4SMA68CA
P4SMA75CA
P4SMA82CA
P4SMA91CA
P4SMA100CA
P4SMA110CA
P4SMA120CA
P4SMA130CA
P4SMA150CA
P4SMA160CA
P4SMA170CA
P4SMA180CA
P4SMA200CA
P4SMA220CA
-
P4SMA250CA*
-
P4SMA300CA*
P4SMA350CA*
P4SMA400CA*
P4SMA440CA*
P4SMA480CA*
P4SMA510CA*
P4SMA530CA*
P4SMA540CA*
P4SMA550CA*
Marking
UNI
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
16A
18A
20A
22A
24A
27A
30A
33A
36A
39A
43A
47A
51A
56A
62A
68A
75A
82A
91A
100A
110A
120A
130A
150A
160A
170A
180A
200A
220A
250A
300A
350A
400A
440A
480A
510A
530A
540A
550A
BI
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13C
15C
16C
18C
20C
22C
24C
27C
30C
33C
36C
39C
43C
47C
51C
56C
62C
68C
75C
82C
91C
100C
110C
120C
130C
150C
160C
170C
180C
200C
220C
-
250C
-
300C
350C
400C
440C
480C
510C
530C
540C
550C
Reverse
Stand off
Voltage V
R
(Volts)
5.80
6.40
7
.02
7
.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17
.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47
.80
53.00
58.10
64.10
70.10
77
.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
214.00
256.00
256.00
300.00
342.00
376.00
408.00
434.00
451.00
460.00
468.00
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.45
7
.13
7
.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17
.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37
.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77
.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237
.00
237
.00
285.00
285.00
332.00
380.00
418.00
456.00
485.00
503.50
513.00
522.50
MAX
7
.14
7
.88
8.61
9.55
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37
.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137
.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
263.00
315.00
315.00
368.00
420.00
462.00
504.00
535.00
556.50
567
.00
577
.50
Test Maximum Maximum Maximum Maximum Agency
Peak
Reverse Temperature
Current Clamping
Approval
Voltage V
C
Pulse
Leakage I
R
Coefficient
I
T
@ I
pp
Current I
pp
@ V
R
of V
BR
(mA)
(V)
(A)
(µA)
(%/C)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.5
27
.7
30.6
33.2
37
.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
.0
85.0
92.0
103.0
113.0
125.0
137
.0
152.0
165.0
179.0
207
.0
219.0
234.0
246.0
274.0
328.0
344.0
344.0
414.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
39.0
36.3
33.9
30.6
28.3
26.3
24.6
22.5
19.3
18.2
16.1
14.8
13.4
12.3
10.9
9.9
9.0
8.2
7
.6
6.9
6.3
5.8
5.3
4.8
4.5
4.0
3.6
3.3
3.0
2.7
2.5
2.3
2.0
1.9
1.8
1.7
1.5
1.3
1.2
2.2
1.0
1.8
0.9
0.8
0.7
0.6
0.6
0.6
0.5
0.5
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.041
0.052
0.058
0.063
0.066
0.069
0.071
0.074
0.076
0.080
0.083
0.085
0.088
0.091
0.092
0.093
0.094
0.096
0.097
0.098
0.099
0.100
0.101
0.102
0.103
0.104
0.105
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.112
0.112
0.112
0.112
0.112
0.112
0.112
0.112
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
For parts without A , the V
BR
is ± 10% and V
C
is 5% higher than with A parts
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/06/17
Transient Voltage Suppression Diodes
Surface Mount – 400W > P4SMA series
I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

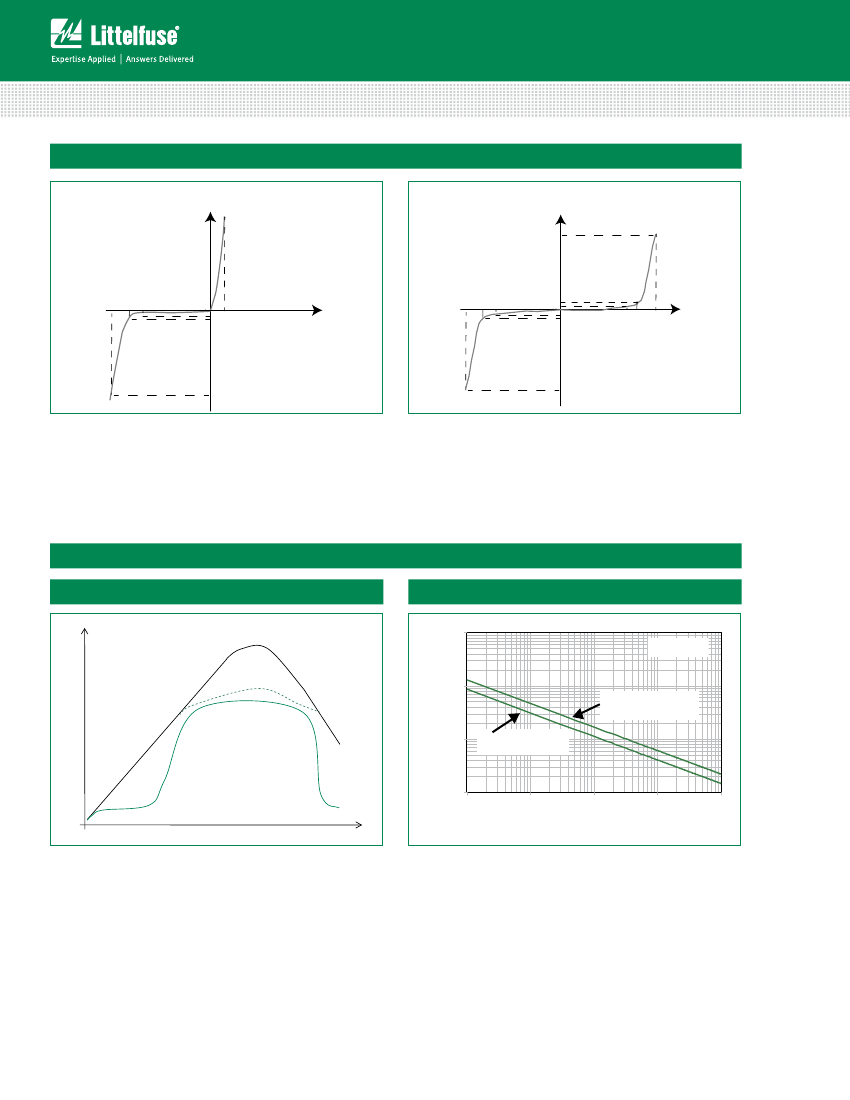

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating Curve
100
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (kW)
TJ initial = Tamb
10
stacked-die, 600W
at 10/1000µs, 25°C
1
Single die,400W
at 10/1000µs, 25°C
Current Through TVS
0.1
0.001
0.01
0.1
1
10
Time
t
d
-Pulse Width (ms)
continues on next page.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/06/17
Transient Voltage Suppression Diodes
Surface Mount – 400W > P4SMA series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
Figure 4 - Pulse Waveform
150
tr=10µsec
Peak Value
IPPM
I
PPM
- Peak Pulse Current, % I
RSM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100
125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
10000
Uni-direc onal V=0V
1000
Bi-direc onal V=0V
Figure 6 - Typical Transient Thermal Impedance
1000
Transient Thermal Impedance (
°
C/W)
100
Cj (pF)
100
10
10
Uni/Bi-direc onal
V=V
R
1
1
1
10
100
1000
0.1
0.001
0.01
0.1
1
10
100
1000
V
BR
- Reverse Breakdown Voltage (V)
T
P
- Pulse Duration (s)
Figure 7 - Maximum Non-Repetitive Forward Surge
Current Uni-Directional Only
70
IFSM
-
Peak Forward Surve Current (A)
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
100.0
60
I F- Peak Forward Current (A)
Single die
50
40
30
20
10
0
1
10
Number of Cycles at 60 Hz
10.0
Stacked-die
1.0
0.1
100
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
VF - Peak Forward Voltage
(V)
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/06/17
Transient Voltage Suppression Diodes
Surface Mount – 400W > P4SMA series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
A
)
to peak
T
S(max)
to T
A
- Ramp-up Rate
Reflow
- Temperature (T
A
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free
assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
High Temp. Storage
HTRB
Temperature Cycling
MSL
H3TRB
RSH
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-A111
Physical Specifications
Weight
Case
Polarity
Terminal
0.002 ounce, 0.061 gram
JEDEC DO-214AC. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except bidirectional
Matte Tin-plated leads, Solderable per
JESD22-B102
Dimensions
DO-214AC (SMA)
(for uni-directional products only)
Cathode Band
Dimensions
A
B
C
D
Inches
Min
0.049
0.157
0.095
0.075
0.030
-
0.189
0.006
0.070
0.082
-
0.082
Max
0.065
0.181
0.110
0.090
0.060
0.008
0.208
0.012
-
-
0.090
-
Millimeters
Min
1.250
3.990
2.400
1.900
0.780
-
4.800
0.152
1.800
2.100
-
2.100
Max
1.650
4.600
2.790
2.290
1.520
0.203
5.280
0.305
-
-
2.300
-
A
B
H
D
F
J
K
C
E
F
G
H
E
G
L
I
J
K
L
I
Solder Pads
(all dimensions in mm)
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/06/17
京公网安备 11010802033920号
EEWORLD
