39214000440: DescriptionFUSE 250V IEC TL TE5 SL 4A; CategoryCircuit protection Circuit protection; File Size748KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

39214000440 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39214000440	-	-	View	Buy Now

39214000440 Overview

FUSE 250V IEC TL TE5 SL 4A

39214000440 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body width	4 mm
body height	8 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	TE5
JESD-609 code	e3
Joule integral nominal	100 J
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	8.5mm x 4mm x 8mm
Pre-discharge rating	100 A2/s
Rated breaking capacity	40 A
Rated current	4 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CQC; KTL; PSE; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Radial Lead Fuses

TE5 > Time-Lag Fuse > 392 Series

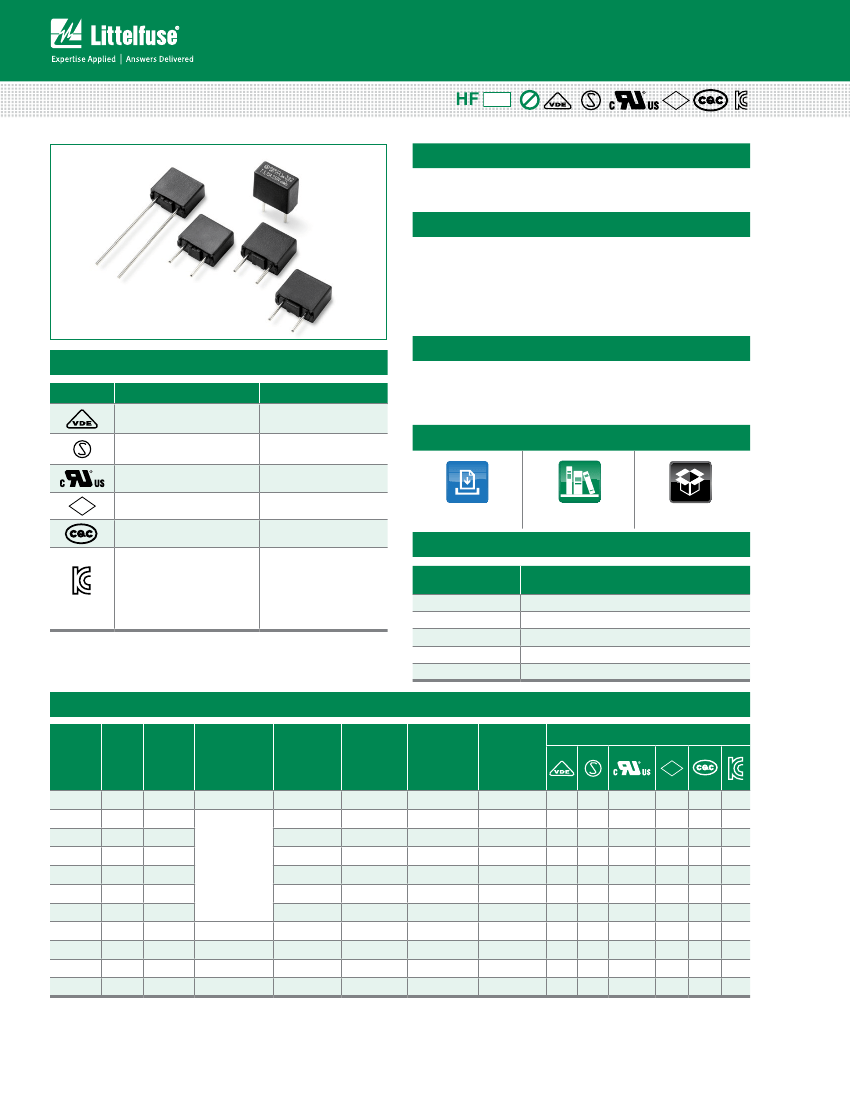

392 Series, TE5 Time-Lag Fuse

RoHS

Pb

PS

E

Description

TE5 Fuse, Time-Lag type, 250V rated, designed in

accordance to IEC 60127-3.

Features

• Reduced PCB space

requirements

• Direct solderable or

plug-in versions

• Internationally approved

• Low internal resistance

Agency Approvals

Agency

Agency File Number

Ampere Range

• Shock safe casing

• Vibration resistant

• Halogen free, Lead-free

and RoHS compliant

• Red Phosphorus Free

Applications

• Battery Chargers

• Consumer Electronics

• Power supplies

Additional Information

• Industrial Controllers

• Chargers

126983

1410866

1026673

E67006

PS

E

0.28A - 6.3A*

0.8A - 4A

5A - 6.3A

0.28A - 6.3A

1A - 5A

0.8A - 6.3A

JET1896-31007-2002

CQC07012021162

SU05024 - 7013A

SU05024 - 7014A

SU05024 - 7015A

SU05024 - 7016A

SU05024 - 7017A

SU05024 - 7018A

Datasheet

Resources

Samples

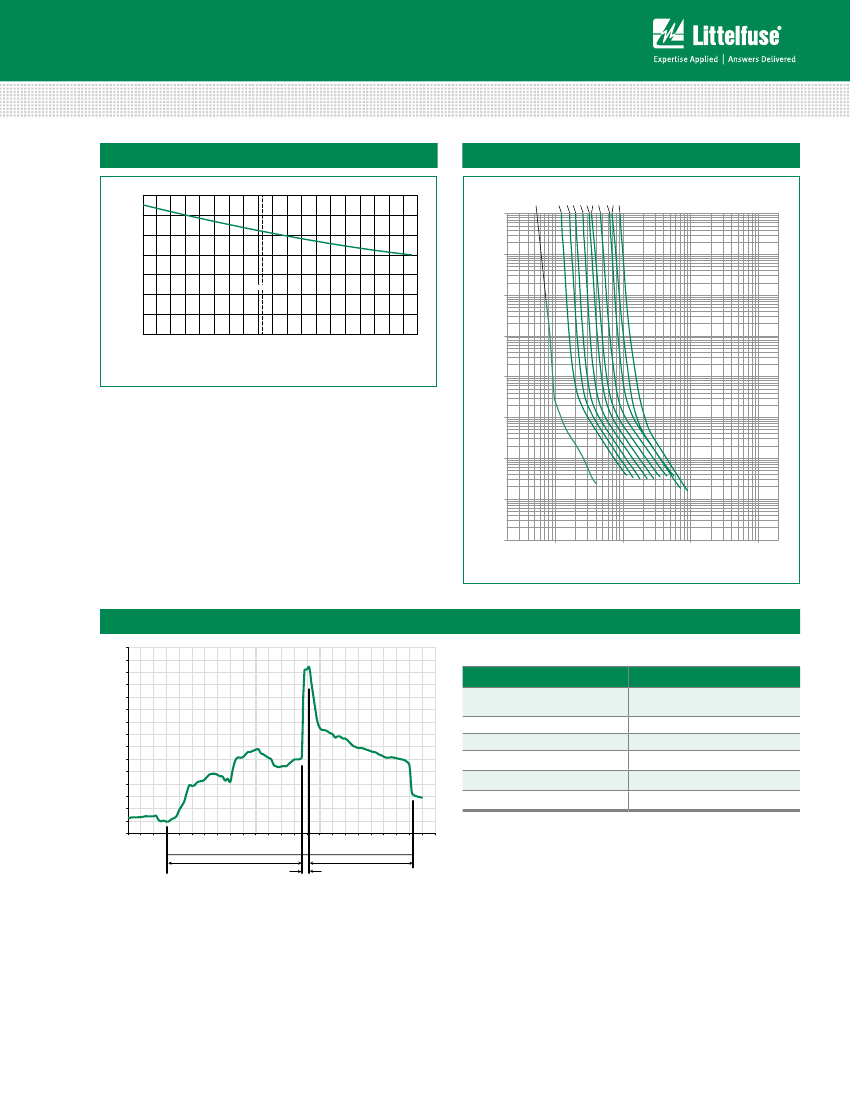

Electrical Characteristics for Series

% of Ampere

Rating

150%

210%

275%

400%

1000%

Opening Time

1 Hour,

Min.

120 s,

Max.

400 ms

Min.

; 10 Sec.

Max.

150 ms

Min.

; 3 Sec.

Max.

20 ms

Min.

; 150 ms

Max.

0.8A - 6.3A

*Red Phosphorus Free from 0.28A to 5A.

Electrical Characteristic Specifications by Item

Rated

Current

280 mA

800 mA

1.00 A

1.25 A

1.60 A

2.00 A

2.50 A

3.15 A

4.00 A

5.00 A

6.30 A

Amp

Code

0280

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

Voltage

Rating

250V

Breaking

Capacity

35A@250VAC

Nominal

Cold

Resistance

(Ohms)

0.3300

0.0960

0.0715

0.0569

Voltage

Drop

1.0×I

N

max. (mV)

115

110

115

100

95

90

85

80

75

70

65

Power

Dissipation

1.5×I

N

max. (mW)

168

280

400

500

600

700

750

1100

1200

1000

1200

Melting

Integral

10×I

N

max. (A

2

s)

0.048

5.120

8.00

11.95

18.43

29.00

47

.81

78.39

126.40

106.25

160.74

x

Agency Approvals

PS

E

x

25A@250VAC

0.0400

0.0298

0.0240

32A@250VAC

40A@250VAC

50A@250VAC

63A@250VAC

0.0170

0.0128

0.0101

0.0077

Notes:

1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

2) Resistance is measured at 10% of rated current, 25ºC.

Application testing is strongly recommended. Specifications are subject to change without notice.

Revised: 02/14/18
