39601250000 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 39601250000

Preview

39601250000: DescriptionTE5 subminiature fuse; CategoryCircuit protection Circuit protection; File Size675KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

39601250000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39601250000	-	-	View	Buy Now

39601250000 Overview

TE5 subminiature fuse

39601250000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body width	4 mm
body height	8 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	TE5
JESD-609 code	e3
Joule integral nominal
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	AMMO PACK; TAPE AND REEL
physical size	8.5mm x 4mm x 8mm
Pre-discharge rating	0.044 A2/s
Rated breaking capacity	100 A
Rated current	0.125 A
Rated voltage	125 V
Rated voltage (AC)	125 V
Guideline	UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

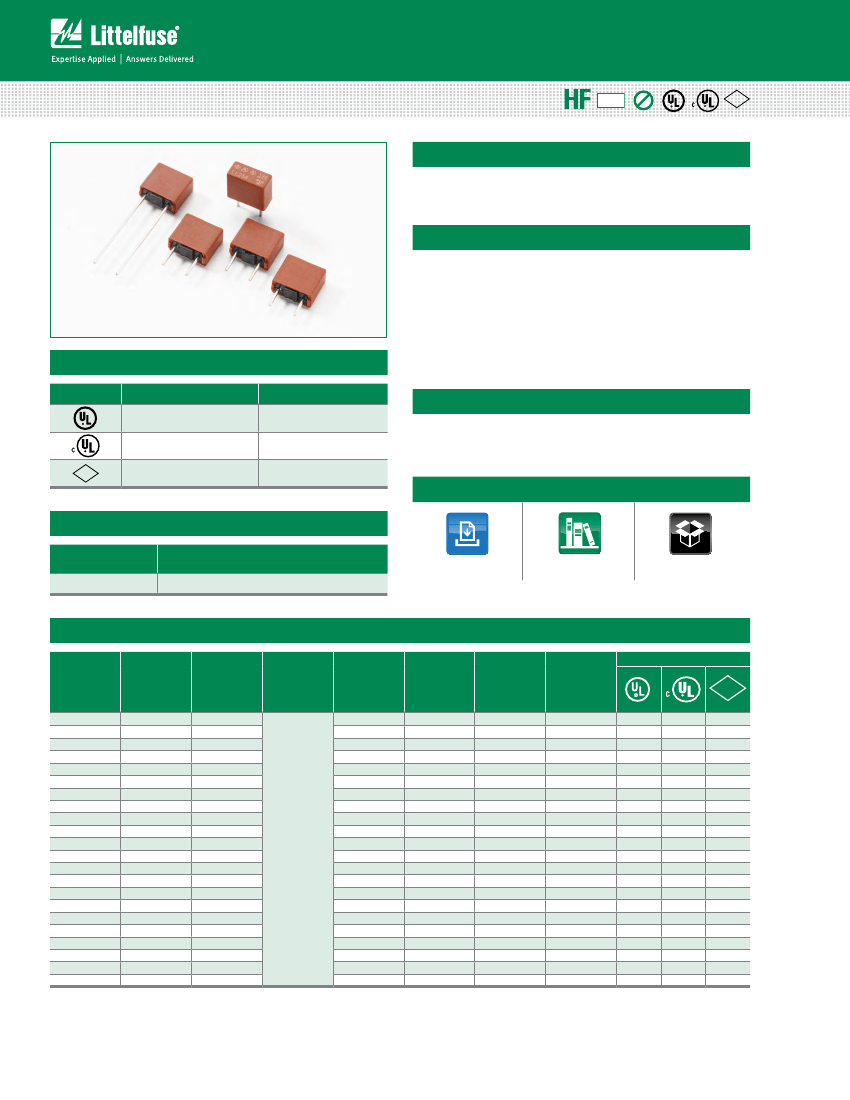

Radial Lead Fuses

TE5

®

> Time-Lag Fuse > 396 Series

396 Series, TE5

®

Time-Lag Fuse

Description

RoHS

Pb

PS

E

The 396 Series TE5

®

fuses are time-lag type, 125V rated,

and are designed in accordance to UL 248-14.

Features

• Halogen free, Lead-free

and RoHS compliant

• Reduced PCB space

requirements

• Direct solderable or

plug-in versions

Ampere Range

• Internationally approved

• Low internal resistance

• Shock safe casing

• Vibration resistant

• Available from 0.05A

to 6.3A

Agency Approvals

Agency

Agency File Number

Applications

• Battery chargers

• Consumer Electronics

Additional Information

• Power supplies

• Industrial controllers

E67006

PS

E

0.05A - 6.3A

1A - 5A

JET1896-31007-1005

Electrical Characteristics

% of Ampere

Rating

200%

Opening Time

60 Seconds,

Max.

Datasheet

Resources

Samples

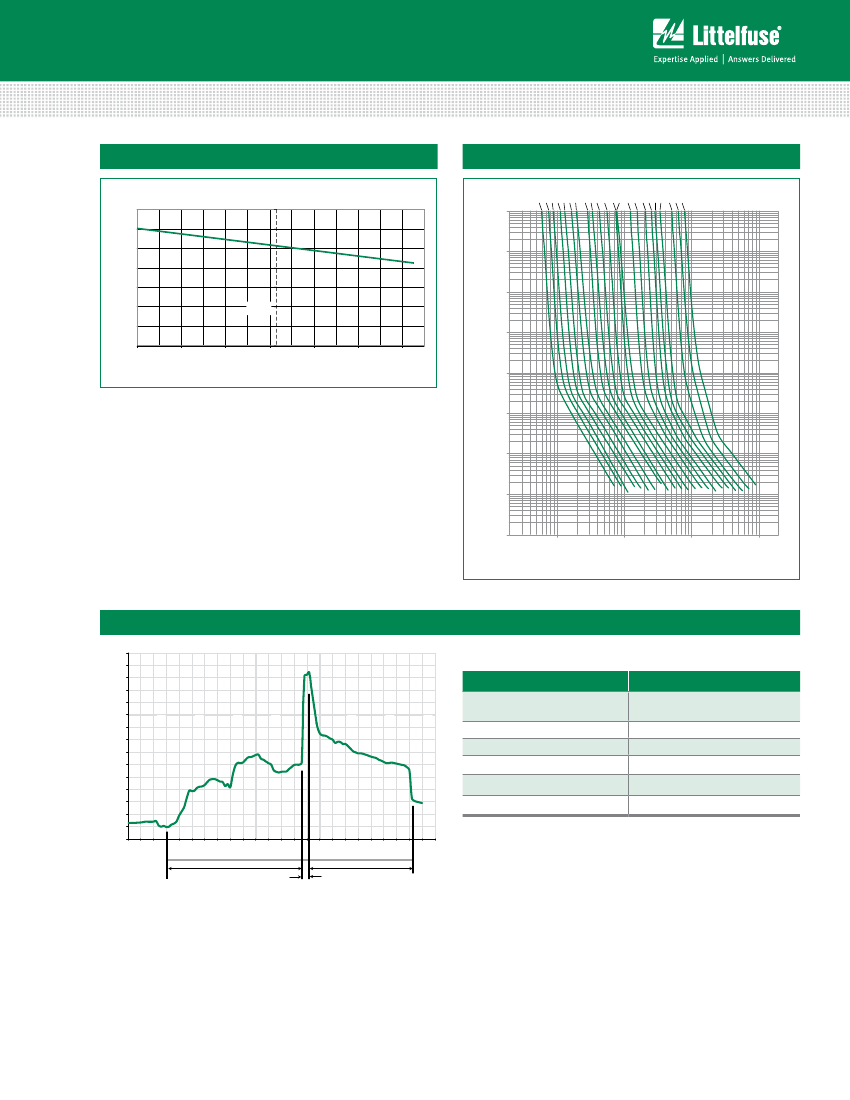

Electrical Characteristics

Rated

Current

50mA

63mA

80mA

100mA

125mA

160mA

200mA

250mA

315mA

400mA

500mA

630mA

800mA

1.00A

1.25A

1.60A

2.00A

2.50A

3.15A

4.00A

5.00A

6.30A

Voltage

Rating

125V

Breaking

Capacity

Nominal

Cold

Resistance

(Ohms)

12.5000

8.7900

6.0090

3.8400

2.9000

1.7700

1.2000

0.7500

0.5450

0.3750

0.2470

0.1850

0.1250

0.0868

0.0666

0.0502

0.0398

0.0297

0.0216

0.0164

0.0112

0.0087

Voltage

Drop

1.0×I

N

max. (mV)

900

800

700

600

550

480

390

350

300

250

220

210

160

155

145

130

125

120

110

95

Power

Dissipation

1.0×I

N

max. (mW)

45

50

55

60

70

80

90

95

100

110

135

130

155

185

210

250

300

350

400

475

570

Melting

Integral

10×I

N

max. (A

2

s)

0.011

0.017

0.02

0.04

0.05

0.09

0.14

0.26

0.32

0.58

0.86

1.15

1.92

3.25

4.69

6.76

11.90

17

.81

26.29

38.40

71.25

144.87

Agency Approvals

PS

E

Amp Code

0050

0063

0080

0100

0125

0160

0200

0250

0315

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

100A@125

VAC

x

Notes:

1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

2) Resistance is measured at 10% of rated current, 25ºC.

Application testing is strongly recommended. Specifications are subject to change without notice.

Revised: 01/06/16

39601250000 Related Products

	39601250000	PR135A52940FDGWS	PR135A72641BWGT0
Description	TE5 subminiature fuse	Array/Network Resistor, Isolated, Thin Film, 0.125W, 294ohm, 75V, 1% +/-Tol, -10,10ppm/Cel, 2707,	Array/Network Resistor, Isolated, Thin Film, 0.125W, 2640ohm, 75V, 0.1% +/-Tol, -10,10ppm/Cel, 3707,
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
JESD-609 code	e3	e4	e4
Maximum operating temperature	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C
method of packing	AMMO PACK; TAPE AND REEL	Waffle Pack	TR
Terminal surface	Tin (Sn)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Objectid	-	707321705	707521899
Country Of Origin	-	USA	USA
YTEOL	-	7.2	7.2
structure	-	Chip	Chip
Network Type	-	Isolated	Isolated
Number of terminals	-	10	14
Package height	-	0.381 mm	0.381 mm
Package length	-	6.769 mm	9.476 mm
Package form	-	SMT	SMT
Package width	-	1.828 mm	1.828 mm
Rated power dissipation(P)	-	0.125 W	0.125 W
resistance	-	294 Ω	2640 Ω
Resistor type	-	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
series	-	PR135	PR135
size code	-	2707	3707
technology	-	THIN FILM	THIN FILM
Temperature Coefficient	-	10 ppm/°C	10 ppm/°C
Tolerance	-	1%	0.1%
Operating Voltage	-	75 V	75 V
