Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 382 Series
382 Series, TR5
®
Fuse, Time-Lag
RoHS
Pb
PS
E

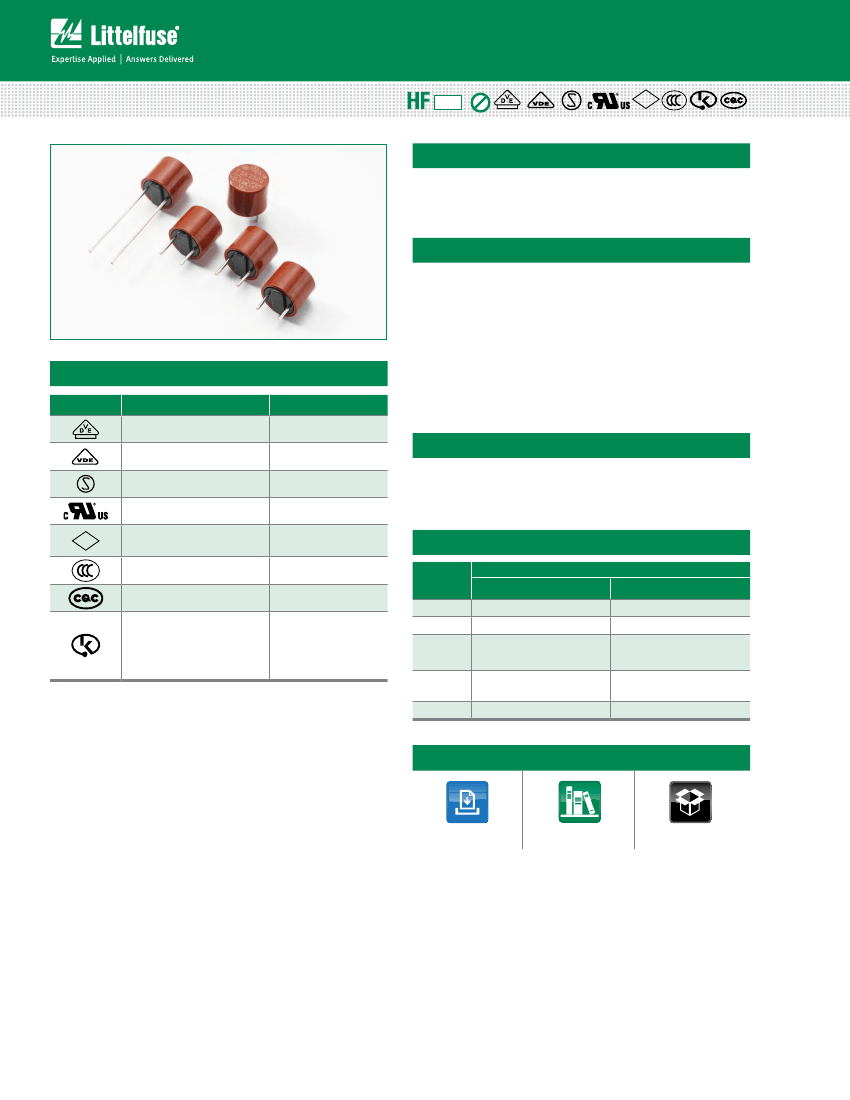

Description
The 382 Series are TE5 Time-Lag type Fuses, 250V
rated, with enhanced breaking capacity and designed in
accordance to IEC 60127-3.
Features
• Halogen free, Lead-free
and RoHS compliant
• Reduced PCB space
requirements
Agency Approvals
Agency
Agency File Number
Ampere Range
• Low internal resistance
• Shock safe casing
• Vibration resistant
• Available from 1A to 10A
• Direct solderable or
plug-in versions
• 100A breaking capacity
• Internationally approved
Applications
• Battery Chargers
• Consumer Electronics
40018249
40018250
1609346
E67006
1A - 4A
5A - 6.3A
1A - 6.3A
1A - 10A
1 - 5A
6.3 - 10A
1A - 4A
5A - 6.3A
1-2.5A
3.15A
4A
5A
6.3A
• Power supplies
• Industrial Controllers
PS
E
JET1896-31007-2001
JET1896-31007-1006
2007010207240344
CQC07012020713
SU05024-7003
SU05024-7002
SU05024-7001
SU05024-7004
SU05024-7005
Electrical Characteristics
% of
Ampere
Rating
150%
210%
275%
400%
1000%
Opening Time
1A - 6.3A
1 Hour,
Min.
2 Minutes,
Max.
400 ms,
Min.
;
10 Sec.,
Max.
150 ms,
Min.
;
3 Sec.,
Max.
20 ms,
Min.
; 150 ms,
Max.
8A - 10A
1 Hour,
Min.
300 s,
Max.
1 s,
Min.
; 20 s,
Max.
150 ms,
Min.
;
3 Sec.,
Max.
20 ms,
Min.
; 150 ms,
Max.
Additional Information
Datasheet
Resources
Samples
© 2016 Littelfuse, Inc.
Application testing is strongly recommended. Specifications are subject to change without notice.
Revised: 05/09/16
Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 382 Series

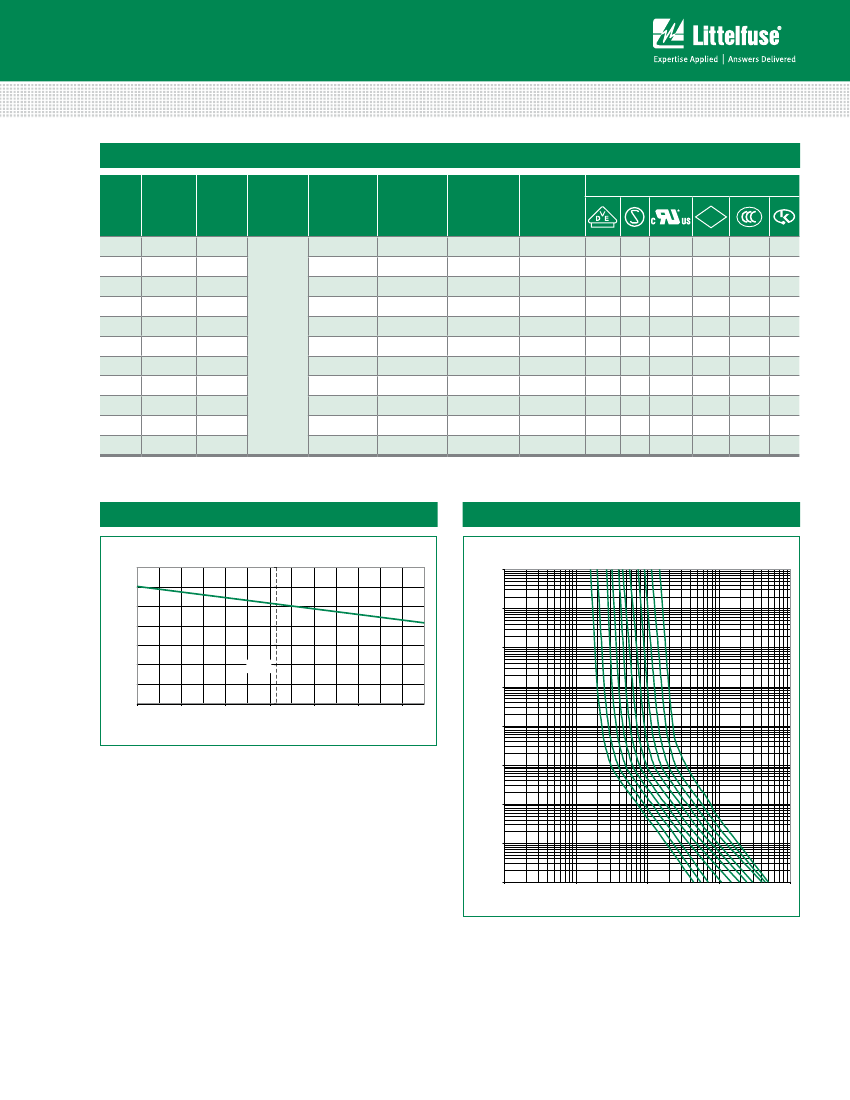

Electrical Characteristics
Amp
Code
1100
1125
1160
1200
1250
1315
1400
1500
1630
1800
2100
Notes:
1. 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
2. Resistance is measured at 10% of rated current, 25°C.
Rated
Current
1.00 A
1.25 A
1.60 A
2.00 A
2.50 A
3.15 A
4.00 A
5.00 A
6.30 A
8.00 A
10.00 A
Voltage
Rating
250 V
250 V
250 V
250 V
250 V
250 V
250 V
250 V
250 V
250 V
250 V
Breaking
Capacity
Nominal
Cold
Resistance
(Ohms)
0.0625
0.0500
0.0377
0.0280
0.0215
Voltage
Drop
1.0×I
N
max. (mV)
100
95
90
85
80
75
70
65
65
63
57
Power
Dissipation
1.5×I
N
max. (mW)
400
465
490
670
750
900
1200
1250
1400
1600
1600
Melting
Integral
10×I
N
min. (A
2
s)
4.85
6.88
12.67
17
.80
29.69
45.35
72.00
121.25
148.84
233.60
365.00
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Agency Approvals
PS
E
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
CQC
CQC
X
X
X
X
X
X
X
X
X
100A
@250VAC
0.0176
0.0138
0.0108
0.0076
0.0059
0.0042
Temperature
Re-rating
Curve
Temperature
Rerating
Curve
140
140
120
120
PERCENT OF RATING
PERCENT OF RATING
Average
Time Current Curves
Average
Time Current Curves
10A
8A
6.3A
5A
4A
3.15A
2.5A
2A
1.6A
1.25A
1A
100000
100
100
80
80
60
60
40
40
20
20
0
0
-40°C
-40
-20°C
-20
0°C
0
20°C
20
40°C
40
60°C
60
80°C
80
10000
1000
23°C
23°C
100
TIME IN SECONDS
AMBIENT TEMPERATURE
AMBIENT TEMPERATURE (°C)
10
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/09/16
Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 382 Series
Soldering Parameters - Wave Soldering
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
Product Characteristics
Materials
Lead Pull Strength
Solderability
Soldering Heat
Resistance
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6, UL 94 V-0
Round Pins: Copper, Tin-plated
10 N (IEC 60068-2-21)
260ºC, ≤ 3s. (Wave)
350ºC, ≤ 1s. (Soldering Iron)
260ºC, 10s. (IEC 60068-2-20)
350ºC, 3s. (Soldering Iron)
Stock Conditions
Operating Temperature
Climatic Category
-40ºC to +85ºC (consider re-rating)
-40ºC to +85ºC /21 days
(IEC 60068-1,-2-1,-2-2,-2-78)
+10ºC to +60ºC
RH ≤ 75% yearly average, without
dew, maximum value for 30
days–95%
24 cycles at 15 min. each
(IEC 60068-2-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10 g acceleration
Vibration Resistance
Dimensions
∅
8.5
max. 8
Part Numbering System
382 xxxx 0000
Series
0.5 min
L
∅
0.6
Long Leads (L=18.8mm)
Short Leads (L=4.3mm)
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Packaging Code
5.08
0000 Tape/Ammopack (1,000 pcs.)
0410 Short Leads - Bulk (1,000 pcs.)
0430 Short Leads - Bulk (200 pcs.)
Löcher in der Leiterplatte
Holes in PCB
Holes in the printed circuit board
Packaging
Packaging Option
382 Series
Tape & Ammopack
Short Leads
Short Leads
Packaging Specification
N/A
N/A
N/A
Quantity
1,000
1,000
200
Quantity &
Packaging Code
0000
0410
0430
Taping Width
N/A
N/A
N/A
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/09/16
1 +0.1
