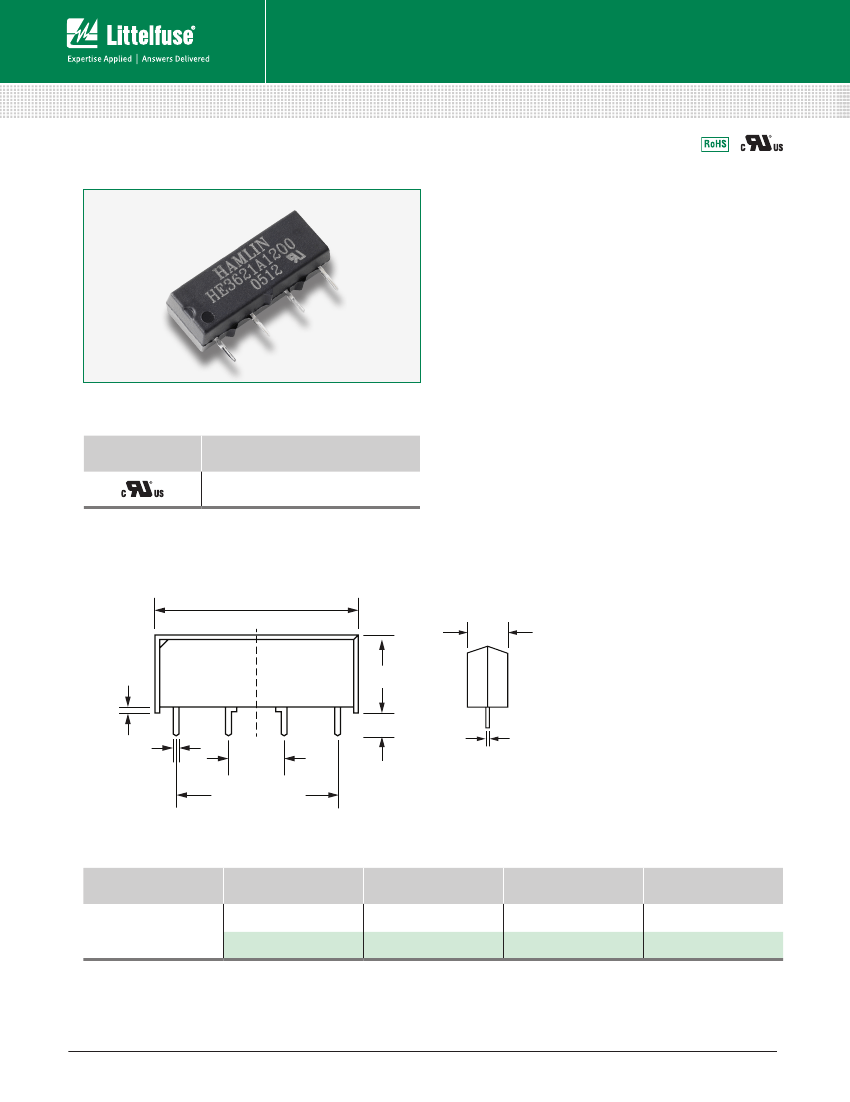

HE3600 Miniature Single In-line Reed Relay
Description
The HE3600 is a miniature reed relay in a SIL package with a normally open
contacts capable of switching up to 200Vdc at 10W. It is available with 5V, 12V,
and 24V coils and has external magnetic shield and diode suppressed
coil options.
Features
• Miniature single in-line package
• Optional coil suppression diode to
protect coil drive circuits
• Normally open contact version
• RoHS Compliant
• External magnetic shield option
• Diode suppression option
Agency Approvals
Agency
Agency File Number
E47258
Note: Contact Littelfuse for specific agency approval ratings.
Benefits
• Sub-miniature size and single in line
configuration allows very high
packing densities, minimizing space
and cost
• Transfer molded package gives
maximum component protection
• Lower power coil consumption than
competing electromechanical
devices
• Hermetically sealed switching
contact is immune to the effects of
its environment
Dimensions
Dimensions in mm (inch)
Applications
19.70
19.70
(.776)
(.776)
• Security Systems
• Telecom Equipment
• Process Control Systems
W
• Automatic Test Equipment
• Instrumentation
W
0.51
0.51
(0.020)
(0.020)
H
H
0.51 NOM.
(0.020)
(0.020)
0.51 NOM.
3 PITCHES OF
5.08 NOM.
3 PITCHES OF
(.200)
3.00NOM.
(.118)
3.00NOM.
(.118)
0.25 NOM.
(.010)
0.25 NOM.
(.010)
5.08 NOM.
(.200)
Table 1: Dimension
Relay Type
HE3600
Body Type
Transfer Molded
External Shield
L
19.05 (.750)
19.70 (.776)
W
5.08 (.200)
5.65 (.222)
H
7.45 (.293)
7.87 (.310)
© 2016 Littelfuse
Revised: 03/04/16
Specifications are subject to change without notice.
littelfuse.com
Reed Relays
SIL Packaged > HE3600
HE3600 Miniature Single In-line Reed Relay
Table 2: Electrical and Operating Characteristics @ 25°C
Column Number
Contact Type
Relay Types
Power, Switching
Voltage, Switching
Current, Switching
Current, Carry
4
1
Form A
SPST-NO
Standard
HE3621A
Watt - max.
Vdc - max.
A - max.
A - max.
Vdc - min.
Vac - min.
Vac - min.
Ω max.
Ω min.
Ω min.
ms - max.
ms - max.
°C
°C
G - max. 10-2000 Hz.
G - max. 11 ms ½ sine
10
200
0.5
1.2
250
1500
1500
0.150
10
10
10
10
1.0
1.0
-40 to +85
-40 to +105
20
50
Contact Rating
1
Voltage Hold-off
Across Open Contacts
Contacts to Coil
Between Isolated Terminals
Contact, Initial
Insulation Across Open Contacts
Insulation Between Isolated Terminals
Operate Time
Release Time
Temperature, Operating
Temperature, Storage
Vibration Resistance
Shock Resistance
Resistance
Timing
5
Environmental
Table 3: Coil Characteristics @ 25°C
Contact
Form and Type
Electrical and
Operating
Characteristics
Dimensions
Part Number
Nominal
Coil Voltage
Vdc
Coil
Resistance
±10% Ohms
Must
Operate
Vdc
Must
Release
Vdc
Maximum
Coil Voltage
Vdc
Top View 2.54mm (0.1") Grid
Dot on Case: Pin 1
Numbers not printed on case.
5
1A
SPST-NO
See Table 2
See Table 1
HE3621
12
24
500
1000
2150
3.75
8.0
16.0
0.5
1.0
2.0
14
22
31
1
2
3
4
+
© 2016 Littelfuse
Revised: 03/04/16
Specifications are subject to change without notice.
littelfuse.com
SIL Packaged > HE3600
Reed Relays
HE3600 Miniature Single In-line Reed Relay
HE3600 PCB LAYOUT (Bottom View)
Ø0.80
(.032) HOLE
Part Numbering System
HE3600 - X - XX - X
5.08 TYP
(.200)
10.16
(.400)
Model Number
HE3621 - Standard
15.24
(.600)
Contact Type
A - Form A (SPST-NO)
Standard Coil
05 - 5 Volt
12 - 12 Volt
24 - 24 Volt
General Options
00 - No Options
10 - Diode Supressed Coil
40 - External Magnetic Shield
50 - Ext. Magnetic Shield and Diode
Note: Not all combinations of Part Number suffixes are available. Contact Littelfuse for details.
Packaging
Packaging Option
Bulk
Packaging Specification
Bulk
Quantity
1000/5000
Quantity & Packaging Code
N/A
Taping Width
N/A
© 2016 Littelfuse
Revised: 03/04/16
Specifications are subject to change without notice.
littelfuse.com
