LP3986-25B3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> Low dropout linear regulator (they)> LP3986-25B3F

LP3986-25B3F: DescriptionOutput type: Fixed Maximum input voltage: 6V Output current: 300mA Output voltage (minimum value/fixed value): 2.5V Three-terminal voltage regulator IC outputs 2.5V; CategoryPower/power management Low dropout linear regulator (they); File Size633KB，6 Pages; ManufacturerLowPower Semiconductor ( LPS); Websitehttp://www.lowpowersemi.com/html/EN/ABOUT/

Download Datasheet Parametric View All

LP3986-25B3F Overview

Output type: Fixed Maximum input voltage: 6V Output current: 300mA Output voltage (minimum value/fixed value): 2.5V Three-terminal voltage regulator IC outputs 2.5V

LP3986-25B3F Parametric

Parameter Name	Attribute value
Output type	fixed
Maximum input voltage	6V
Output current	300mA
Output configuration	just
Number of voltage regulators	1
Output voltage (maximum)	-
PSRR/ripple suppression	-
Output voltage (minimum/fixed value)	2.5V
Pressure drop (maximum)	-
Operating power current (maximum)	-
Operating temperature	-40℃ ~ 125℃(TJ)

Preview

Download Datasheet

View All

Preliminary Datasheet

LP3986

300mA,Ultra-low Noise LDO Regulator

General Description

The LP3986 is designed for portable applications with

demanding performance and space requirements. The

LP3986 performance is optimized for battery-powered

systems to deliver ultra low noise and low quiescent

current. Regulator ground current increases only

slightly in dropout, further prolonging the battery life.

The LP3986 also works with low-ESR ceramic

capacitors, reducing the amount of board space

necessary for power applications, critical in hand-held

wireless devices. The other features include ultra low

dropout voltage, high output accuracy, current limiting

protection, and high ripple rejection ratio. Available in

the 3-lead of SOT-23 packages

Features



Ultra-Low-Noise for RF Application

2.5V- 6V Input Voltage Range

Low Dropout : 220mV @ 300mA

Ultra-Fast Response in Line/Load Transient

Current Limiting and Thermal Shutdown

Protection

Applications



PMP/PDA/MP3 players

Cellular and Mobile phone

RF Module

Sensor Module

Order Information

LP3986

□ □ □ □ □

F: Pb-Free

Package Type

B3: SOT23

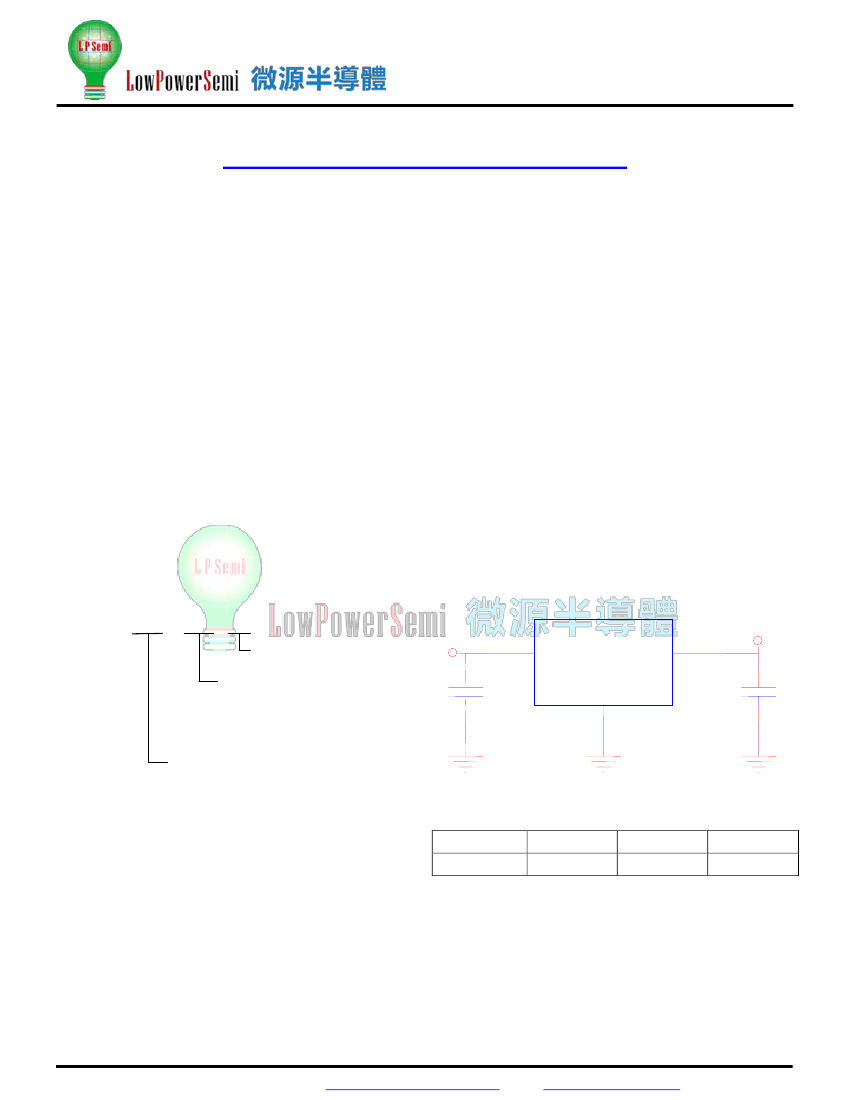

Typical Application Circuit

VIN

LP3986

OUT

GND

2.2uF

Vout

Output Type

12: 1.2V

15: 1.5V

18: 1.8V

25: 2.5V

28: 2.8V

30: 3.0V

33: 3.3V

36: 3.6V

50: 5.0V

Marking Information

Device

LP3986B3F

Marking

Package

SOT23-3

Shipping

3K/REEL

LP3986-05

Oct.-2014

Email:

marketing@lowpowersemi.com

www.lowpowersemi.com

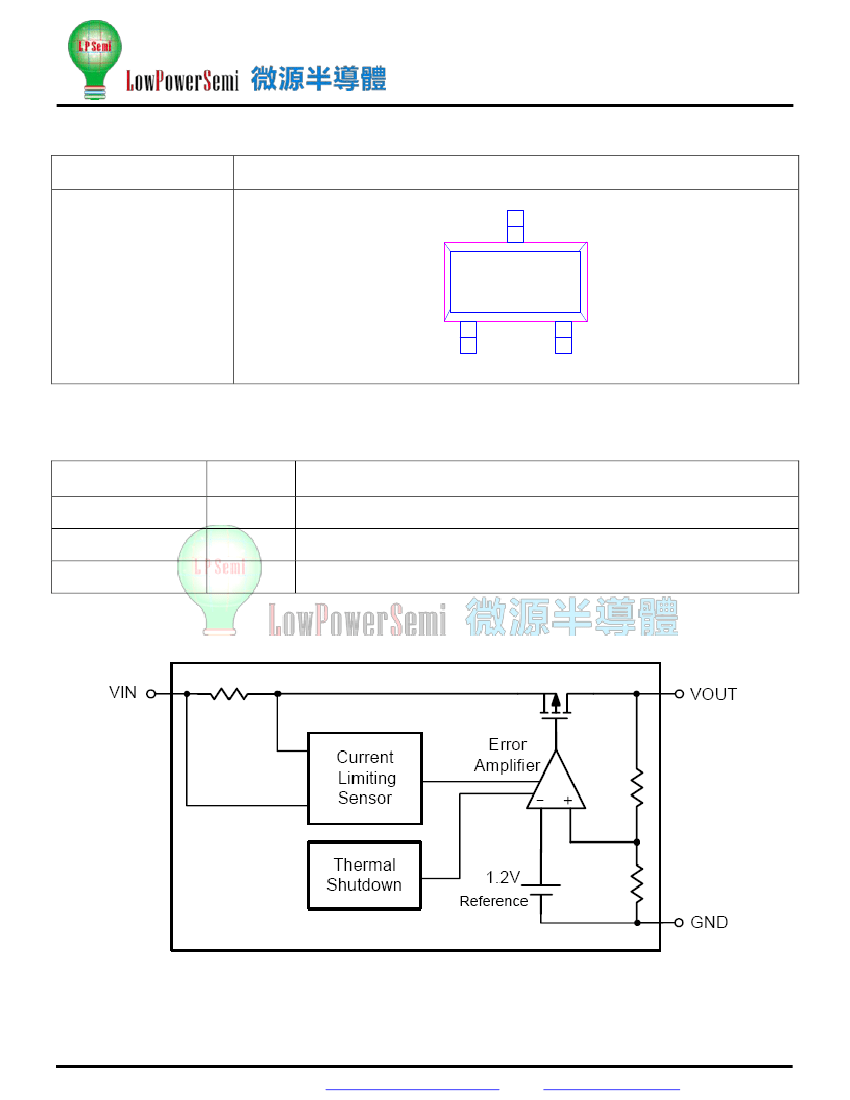

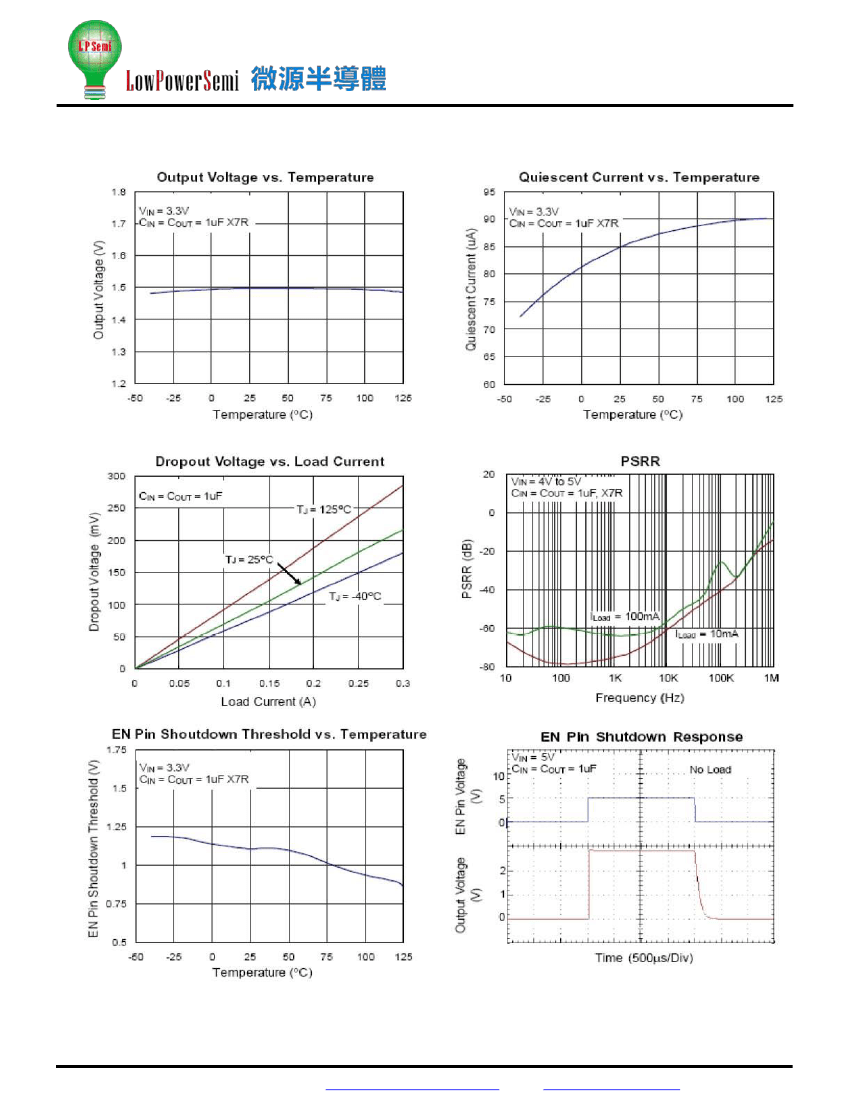

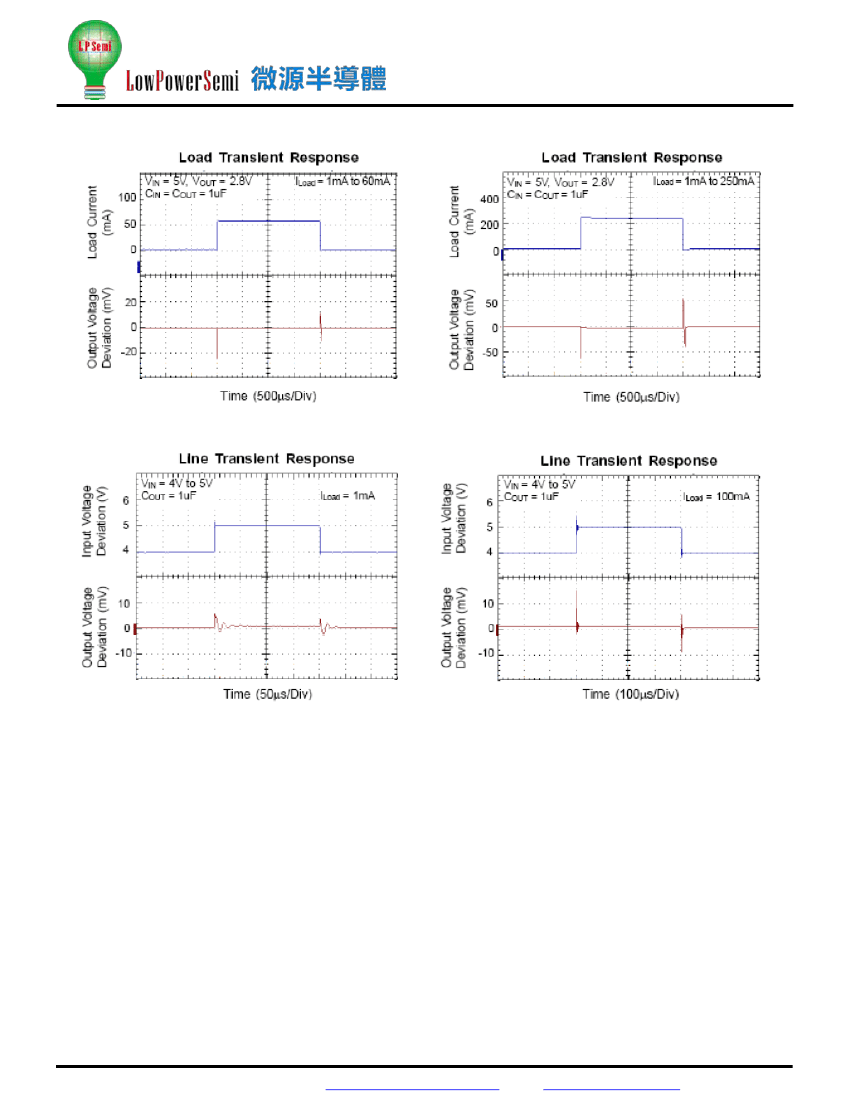

Page 1 of 6
