ATMEGA649V-8AU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA649V-8AU

ATMEGA649V-8AU: DescriptionWorking voltage: 1.8V ~ 5.5V CPU bits: 8-Bit CPU core: AVR Main frequency (MAX): 8MHz ROM type: FLASH; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，375 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

ATMEGA649V-8AU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA649V-8AU	-	-	View	Buy Now

ATMEGA649V-8AU Overview

Working voltage: 1.8V ~ 5.5V CPU bits: 8-Bit CPU core: AVR Main frequency (MAX): 8MHz ROM type: FLASH

ATMEGA649V-8AU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	TQFP, TQFP64,.63SQ,32
Reach Compliance Code	compliant
Factory Lead Time	15 weeks
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V SUPPLY AT 4 MHZ
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
JESD-609 code	e3
length	14 mm
Humidity sensitivity level	3
Number of I/O lines	53
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP64,.63SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	4096
rom(word)	32768
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	8 MHz
Maximum slew rate	12 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

Non-volatile Program and Data Memories

– In-System Self-Programmable Flash, Endurance: 10,000 Write/Erase Cycles

32K bytes (ATmega329/ATmega3290)

64K bytes (ATmega649/ATmega6490)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– EEPROM, Endurance: 100,000 Write/Erase Cycles

1K bytes (ATmega329/ATmega3290)

2K bytes (ATmega649/ATmega6490)

– Internal SRAM

2K bytes (ATmega329/ATmega3290)

4K bytes (ATmega649/ATmega6490)

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– 4 x 25 Segment LCD Driver (ATmega329/ATmega649)

– 4 x 40 Segment LCD Driver (ATmega3290/ATmega6490)

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 53/68 Programmable I/O Lines

– 64-lead TQFP, 64-pad QFN/MLF, and 100-lead TQFP

Speed Grade:

– ATmega329V/ATmega3290V/ATmega649V/ATmega6490V:

0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega329/3290/649/6490:

0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V

Temperature range:

– -40°C to 85°C Industrial

•

8-bit

Microcontroller

with In-System

Programmable

Flash

ATmega329/V

ATmega3290/V

ATmega649/V

ATmega6490/V

Preliminary

•

2552H–AVR–11/06

ATmega329/3290/649/6490

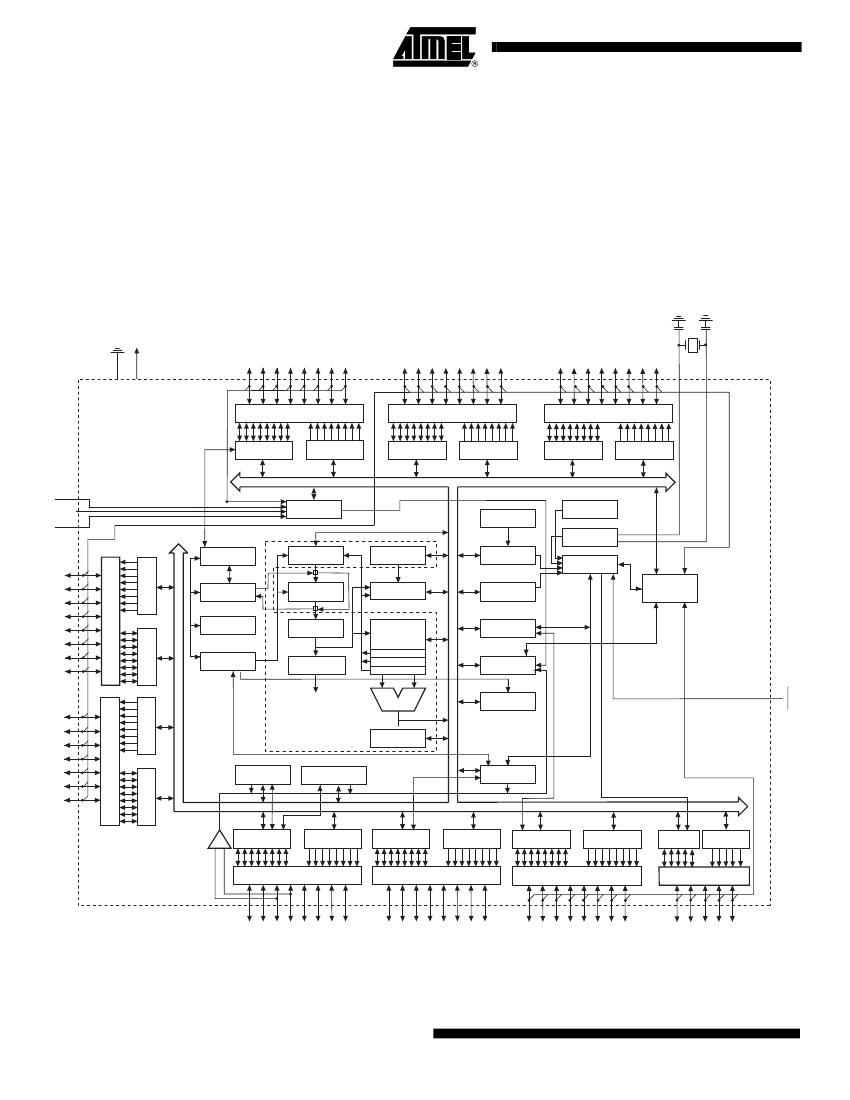

The AVR core combines a rich instruction set with 32 general purpose working registers.

All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing

two independent registers to be accessed in one single instruction executed in one clock

cycle. The resulting architecture is more code efficient while achieving throughputs up to

ten times faster than conventional CISC microcontrollers.

The ATmega329/3290/649/6490 provides the following features: 32/64K bytes of In-

System Programmable Flash with Read-While-Write capabilities, 1/2K bytes EEPROM,

2/4K byte SRAM, 54/69 general purpose I/O lines, 32 general purpose working regis-

ters, a JTAG interface for Boundary-scan, On-chip Debugging support and

programming, a complete On-chip LCD controller with internal contrast control, three

flexible Timer/Counters with compare modes, internal and external interrupts, a serial

programmable USART, Universal Serial Interface with Start Condition Detector, an 8-

channel, 10-bit ADC, a programmable Watchdog Timer with internal Oscillator, an SPI

serial port, and five software selectable power saving modes. The Idle mode stops the

CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to con-

tinue functioning. The Power-down mode saves the register contents but freezes the

Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In

Power-save mode, the asynchronous timer and the LCD controller continues to run,

allowing the user to maintain a timer base and operate the LCD display while the rest of

the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O mod-

ules except asynchronous timer, LCD controller and ADC, to minimize switching noise

during ADC conversions. In Standby mode, the crystal/resonator Oscillator is running

while the rest of the device is sleeping. This allows very fast start-up combined with low-

power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology.

The On-chip In-System re-Programmable (ISP) Flash allows the program memory to be

reprogrammed In-System through an SPI serial interface, by a conventional non-volatile

memory programmer, or by an On-chip Boot program running on the AVR core. The

Boot program can use any interface to download the application program in the Applica-

tion Flash memory. Software in the Boot Flash section will continue to run while the

Application Flash section is updated, providing true Read-While-Write operation. By

combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic

chip, the Atmel ATmega329/3290/649/6490 is a powerful microcontroller that provides a

highly flexible and cost effective solution to many embedded control applications.

The ATmega329/3290/649/6490 AVR is supported with a full suite of program and sys-

tem development tools including: C Compilers, Macro Assemblers, Program

Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.

2552H–AVR–11/06
