5023511500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5023511500

5023511500: DescriptionNumber of pins: 15 Number of rows: 1 Series: - Male and female: Male spacing: 0.079" (2.00mm) Row spacing: - 15-pin rectangular housing connector socket spacing 2.00mm Other names: 502351-1500 5023511500-ND WM11913 5023511500; CategoryThe connector The connector; File Size293KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5023511500 Overview

Number of pins: 15 Number of rows: 1 Series: - Male and female: Male spacing: 0.079" (2.00mm) Row spacing: - 15-pin rectangular housing connector socket spacing 2.00mm Other names: 502351-1500 5023511500-ND WM11913 5023511500

5023511500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.244 inch
subject depth	0.256 inch
body length	1.264 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

(5.6)

NOTES

１．材質：PBT UL94V-0

MATERIAL: PBT UL94V-0

２．色：½、黒

COLOR: WHITE, BLACK

３．適合端子：50212, 50372, 56161, 560085シリーズ

APPLICABLE TERMINAL: 50212, 50372, 56161, 560085 SERIES

４．嵌合相手：502352, 560020シリーズ

MATES WITH: 502352, 560020 SERIES

５．ELV及びRoHS適合品

ELV AND RoHS COMPLIANT

６．一般公差

　　GENERAL TOLERANCES

　　10 UNDER: 0.2

　　10 OVER 30 UNDER: 0.25

　　30 OVER: 0.3

　　ANGULAR:

CIRCUIT NO.

10.2

6.2

5.2

TRADE MARK

& SERIES NO.

MCD 502351

CIRCUIT NO.

6.1

0.4

(PITCH)

32.1

30.1

28.1

26.1

24.1

22.1

BLACK

20.1

18.1

16.1

14.1

12.1

10.1

8.1

8.0

>PBT<

MATERIAL

8CKTS

COLOR

502351-1501

502351-1401

502351-1301

502351-1201

502351-1101

502351-1001

502351-0901

502351-0801

502351-0701

502351-0601

502351-0501

502351-0401

502351-0301

502351-0201

MATERIAL NO.

DIMENSION UNITS

CKTS

32.1

30.1

28.1

26.1

24.1

22.1

NATURAL

20.1

18.1

16.1

14.1

12.1

10.1

8.1

8.0

COLOR

502351-1500

502351-1400

502351-1300

502351-1200

502351-1100

502351-1000

502351-0900

502351-0800

502351-0700

502351-0600

502351-0500

502351-0400

502351-0300

502351-0200

MATERIAL NO.

CKTS

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

SCALE

CURRENT REV DESC:

ANGULAR TOL

4:1

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

177053

4 PLACES

3 PLACES

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

RELEASE DATE

2018/05/23

09:22:49

INITIAL REVISION:

DRWN SHSHIBATA

2007/12/18

CHECK

HKOMATSU

APPR

MAYAMAMOTO

2010/12/02

2 PLACES

1 PLACE

0 PLACES

DRWN:

RHORI

CHK'D: HKOMATSU

APPR:

TOSADA

INITIAL REVISION:

DRWN:

SHSHIBATA

APPR:

AKANESHIGE

THIRD ANGLE PROJECTION

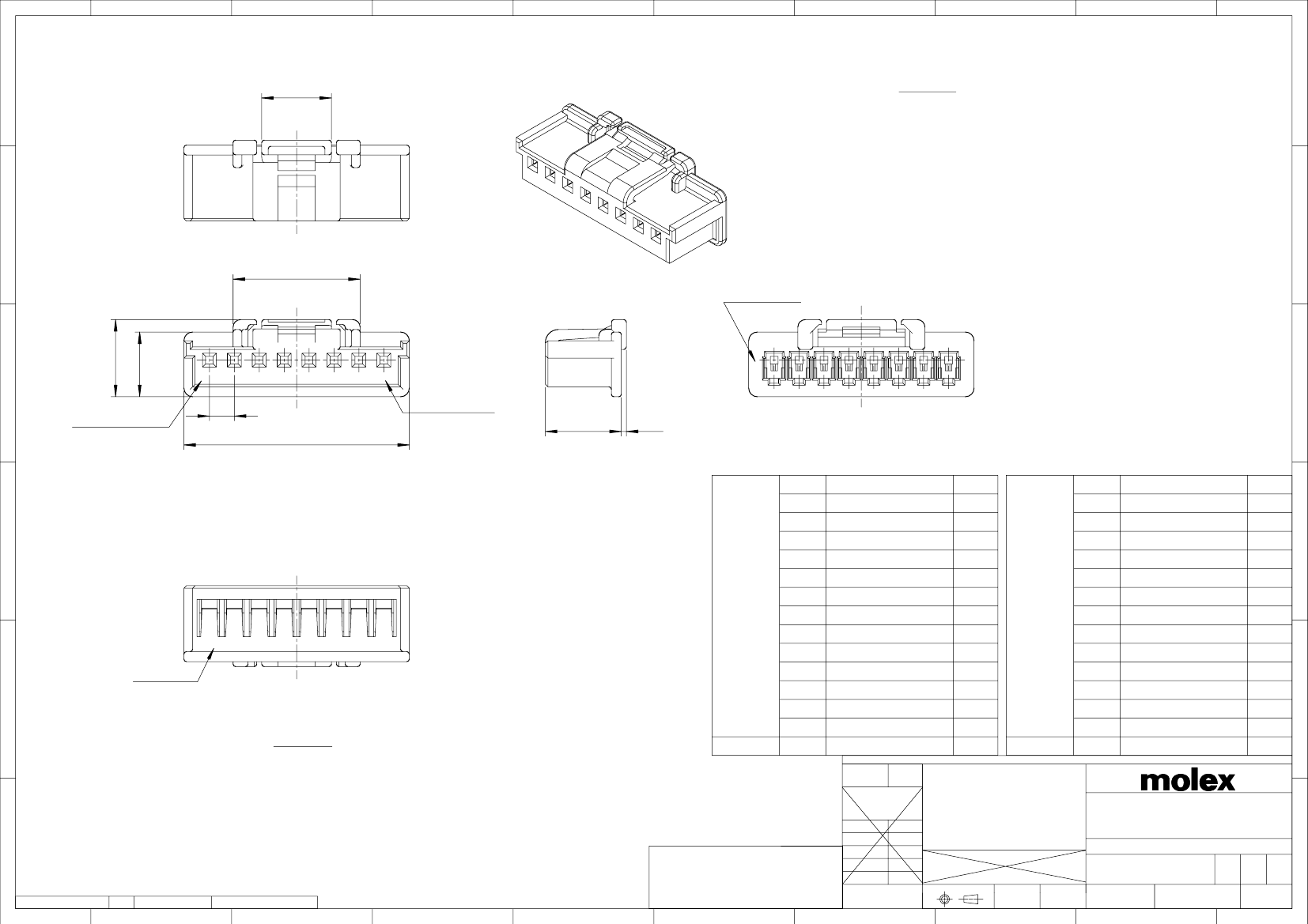

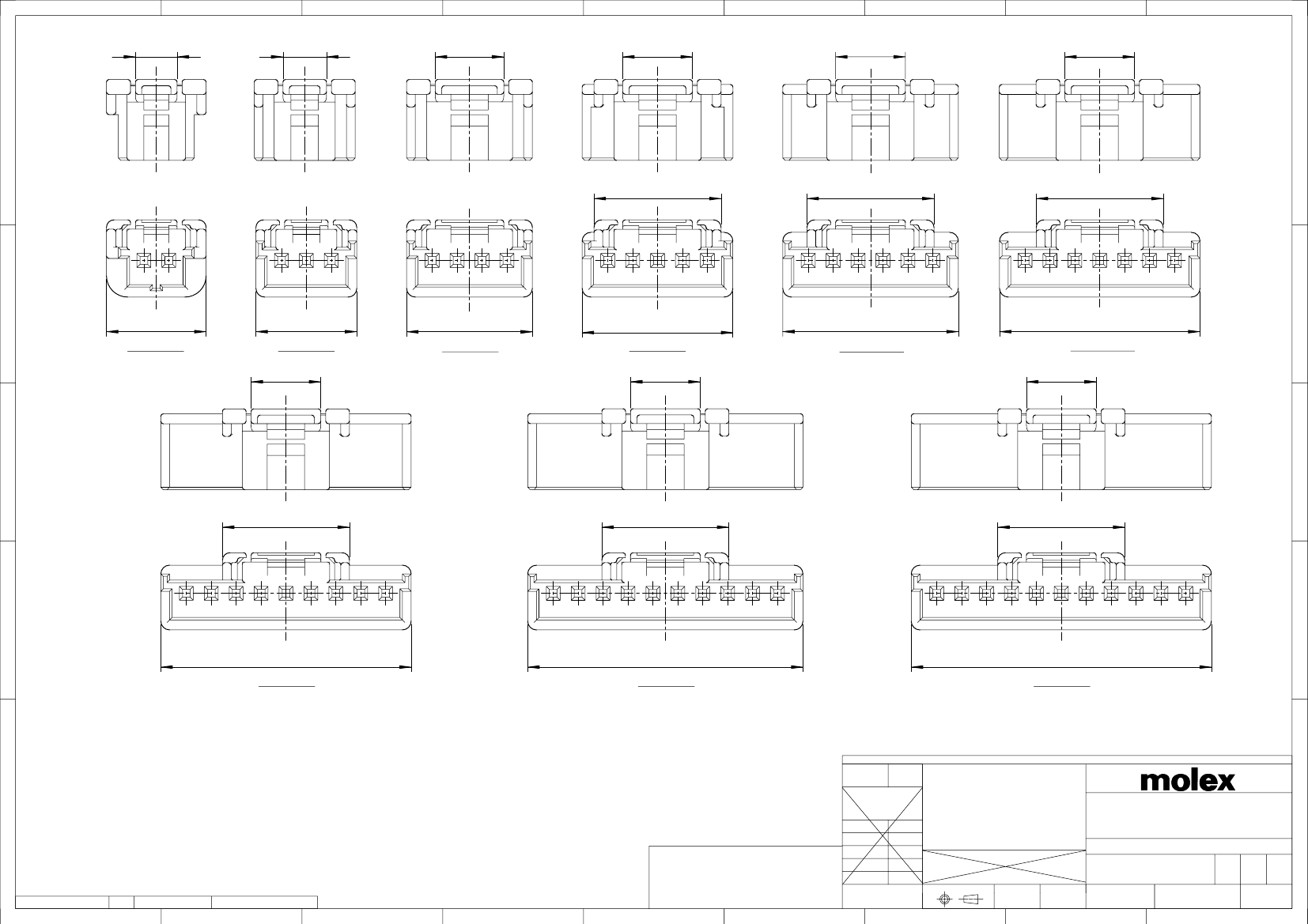

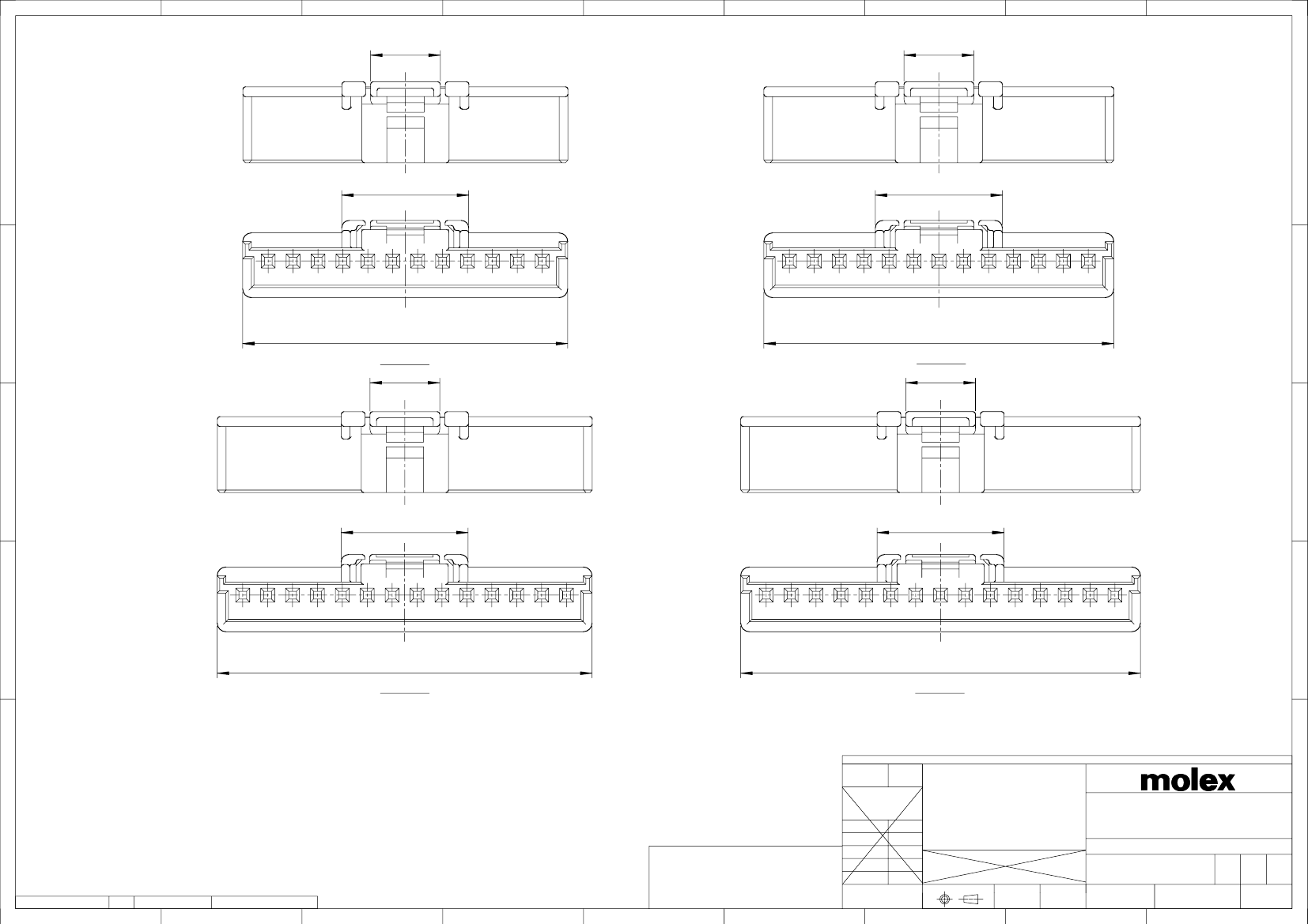

DRAWING

2018/05/21

2018/05/23

2008/01/23

SERIES

2.0MM PITCH

WIRE TO BOARD CONN. RECEPTACLE HOUSING

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-502351-001

MATERIAL NUMBER

CUSTOMER

PSD

001

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

502351

SEE CHART

GENERAL MARKET

1 OF 3
