NOTES: VALID UNLESS OTHERWISE SPECIFIED
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-34791-020
b. PRODUCT SPECIFICATION SEE: PS-34971-020
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: PK-31301-538
d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-301
e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID#13255)
f. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191
1. BURN RATE 100 mm/MIN MAXIMUM
2. MATERIAL MUST BE SELF EXTINGUISHING
g. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)
h. FOR TERMINAL USAGE, REFER TO MOLEX SALES DRAWING SD-560023-002.
2. DESIGN - MATERIALS:
a. MATERIAL: UNFILLED PBT
3. DESIGN - GEOMETRY:
a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA
IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION
NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994
c. GENERAL TOLERANCES:
LINEAR: PER DIN 16901 CODE B FOR PRECISION ENGINEERING
ANGULAR:
±
3
°
d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
e. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX
f. LETTERING SHALL BE 0.1 MAX RAISED IN 0.15 MAX RECESS PAD AND NOT
PROTRUDE THE SURFACE. THIS INCLUDES RECYCLING CODE, PLANT AND
CAVITY ID, VENDOR ID, CIRCUIT ID, AND PART SERIES NUMBER.
4. DESIGN - FUNCTIONALITY
a. HINGE DOES NOT AFFECT FUNCTION OF THE PART.
K
K
J
J

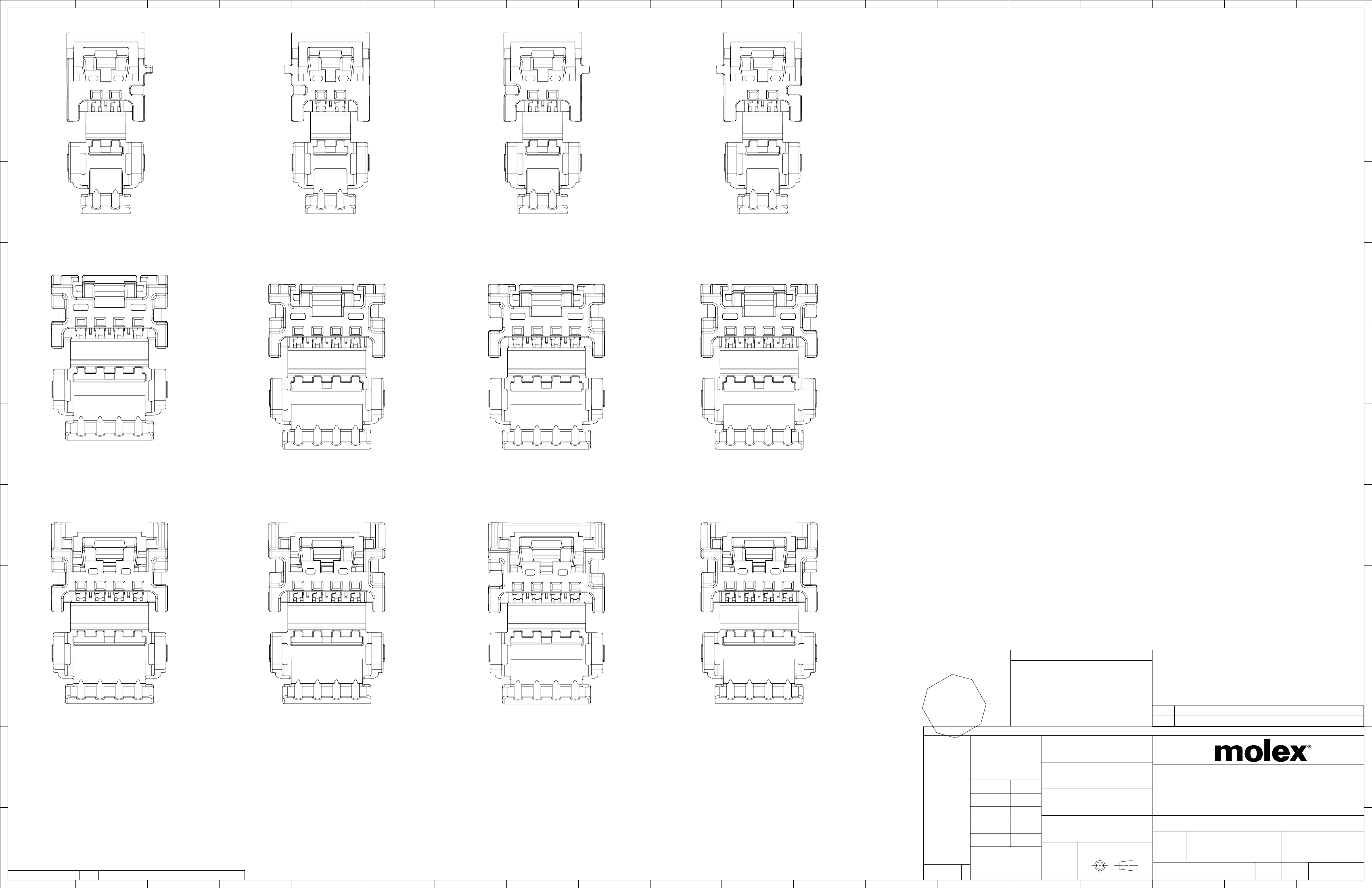

2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE
POLARIZATION OPTION A
2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE
POLARIZATION OPTION B
2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE
POLARIZATION OPTION C
2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE
POLARIZATION OPTION D
H
H
G
G
F
F
4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION A
4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION B
4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION C
4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION D
E
E
D
D
INSPECTION BALLON NUMBER LOG
PER DRAWING REVISION: L2
C
4 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION A
4 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION B
4 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION C
4 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION D
B
2018/11/29
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
TOLERANCES
6:1
MM ONLY
(UNLESS SPECIFIED)
DRWN BY
DATE
E
AS
E
EL
CE
-R
N
RE
ERE
LY
P
F
N
RE
E O
US
LAST BALLOON USED: 16
C
ADDED BALLOON NUMBERS:
REMOVED BALLOON NUMBERS:
L2
REV
NX REMASTERING
DESCRIPTION
ANGULAR TOL ±
°
B
4 PLACES
3 PLACES
EC NO:
608500
DRWN:
JJOYA
CHK'D:
APPR:
±
±
±
±
±
JDUNAJ
CHK'D BY
DATE
2010/06/24
2010/06/24
DATE
-
MINI50 SINGLE ROW
RECEPTACLE SALES DRAWING
2 PLACES
1 PLACE
0 PLACES
BDICK
APPR BY
SMARCEAU
DRAWING SIZE
2011/11/21
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
A
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
RELEASE DATE
18
17
16
15
14
13
12
11
10
9
8
7
L5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34791
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
6
SD-34791-001
3
2
PSD
000
1 OF 5
1
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
L

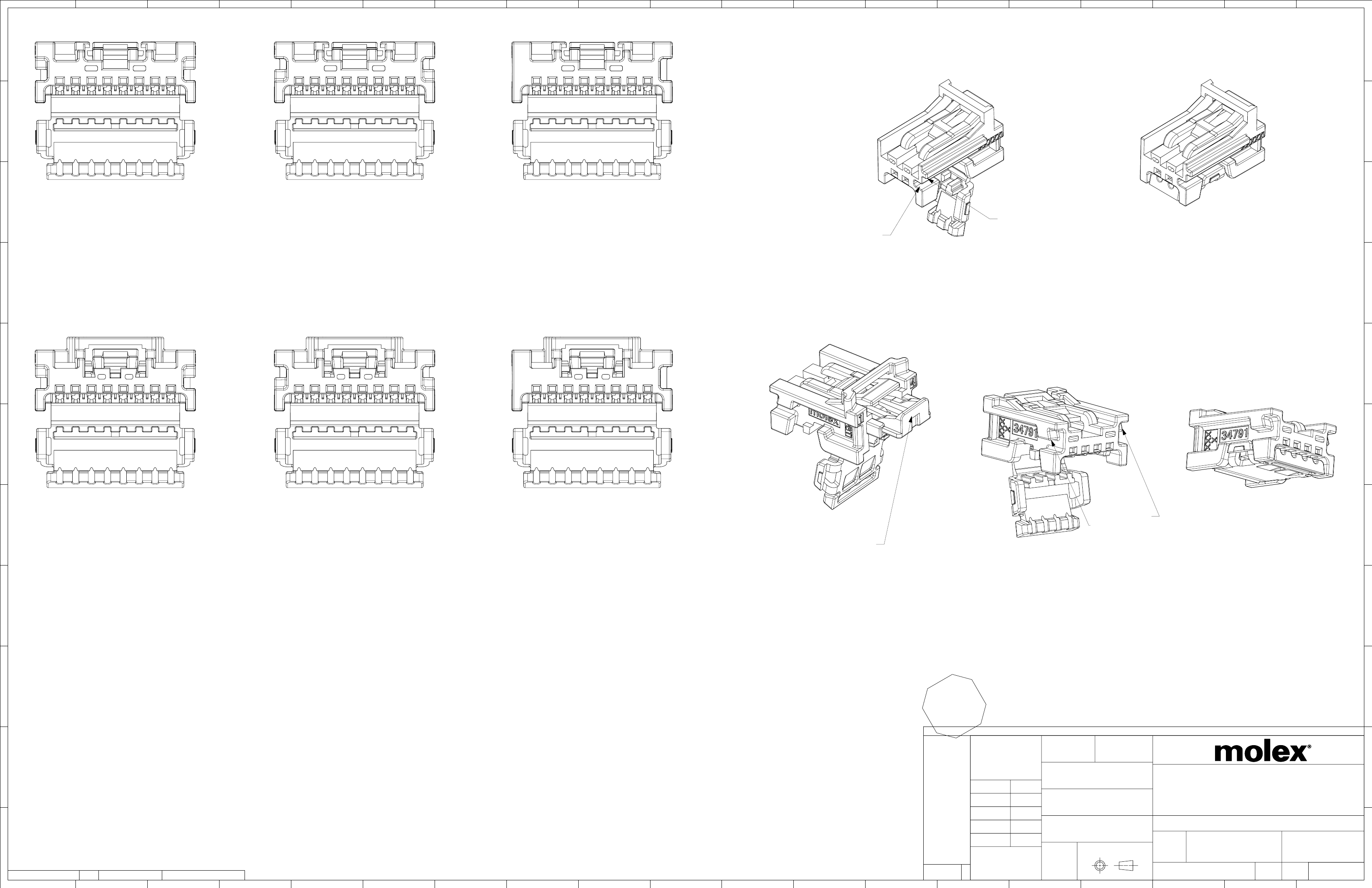

HINGE OPEN
2 CIRCUIT RECEPTACLE SHOWN
(AS SHIPPED)
HINGE CLOSED
2 CIRCUIT RECEPTACLE SHOWN
(AS ASSEMBLED)
L
K
K
J
8 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION A
8 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION B
8 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE
POLARIZATION OPTION C
POLARIZATION
FEATURE
LOCATION
J
POLARIZATION
FEATURE
LOCATION
H
H
HINGE OPEN
G
HINGE CLOSED
4 CIRCUIT RECEPTACLE SHOWN
(AS ASSEMBLED)
G
4 CIRCUIT RECEPTACLE SHOWN
(AS SHIPPED)
F
F
8 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION A
E
8 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION B
8 CIRCUIT RECEPTACLE BRIDGED
POLARIZATION OPTION C
POLARIZATION
FEATURE
LOCATIONS
E
MINI50 WITH BRIDGE OPTION
COMES WITH CPA TRAY
*REFER TO SD-34824-003 FOR
CPA-RECEPTACLE ASSEMBLIES
D
D
C
B
2018/11/29
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
TOLERANCES
5:1
MM ONLY
(UNLESS SPECIFIED)
DRWN BY
DATE
E
AS
E
EL
CE
-R
N
RE
ERE
LY
P
F
N
RE
E O
US
C
ANGULAR TOL ±
°
B
4 PLACES
3 PLACES
EC NO:
608500
DRWN:
JJOYA
CHK'D:
APPR:
±
±
±
±
±
JDUNAJ
CHK'D BY
DATE
2010/06/24
2010/06/24
DATE
-
MINI50 SINGLE ROW
RECEPTACLE SALES DRAWING
2 PLACES
1 PLACE
0 PLACES
BDICK
APPR BY
SMARCEAU
DRAWING SIZE
2011/11/21
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
A
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
RELEASE DATE
18
17
16
15
14
13
12
11
10
9
8
7
L5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34791
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
6
SD-34791-001
3
2
PSD
000
2 OF 5
1
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

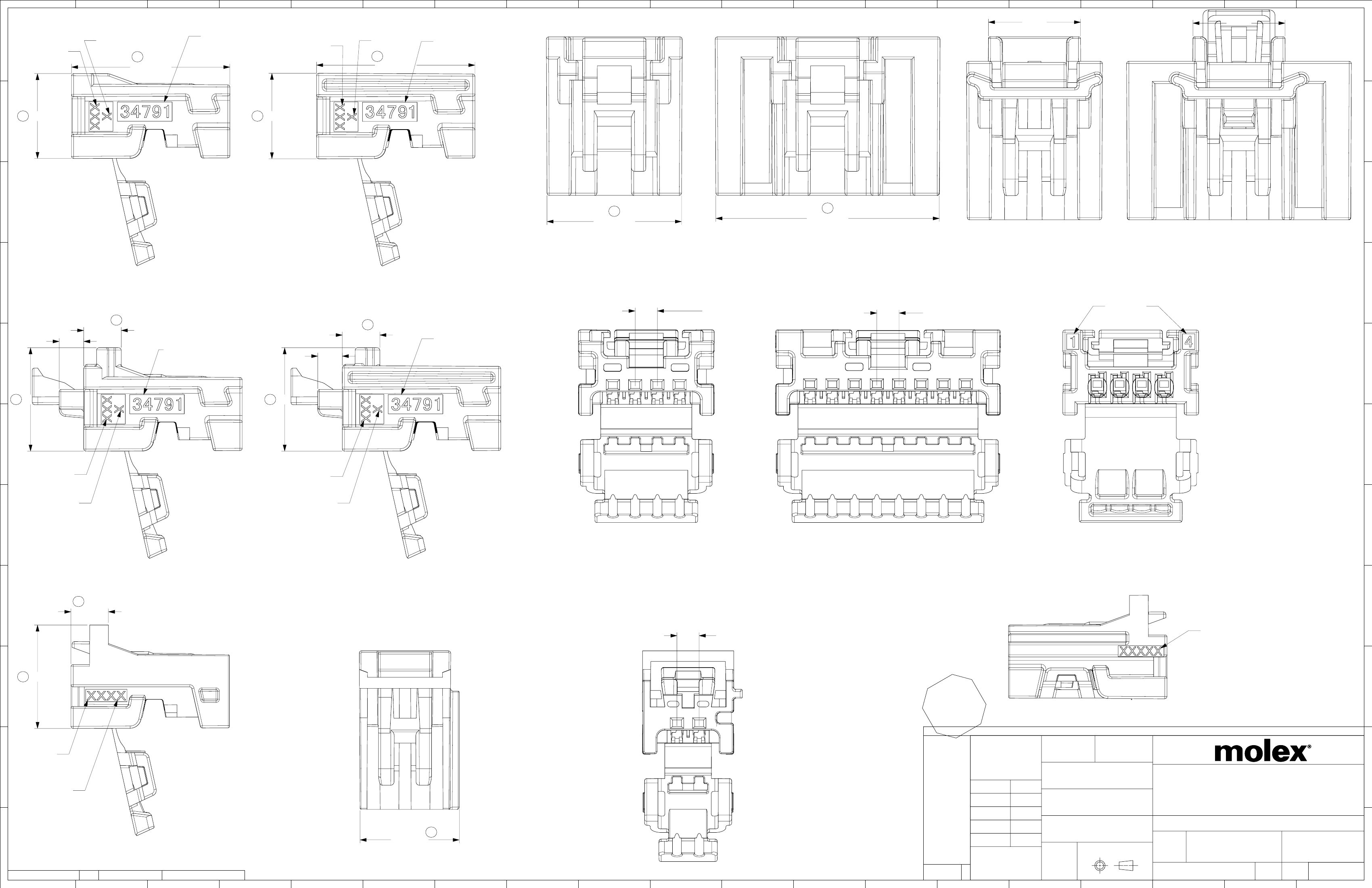

(NON-BRIDGED 4 CKT
OPTION SHOWN BELOW)
L
(NON-BRIDGED 8 CKT
OPTION SHOWN BELOW)
PART SERIES NUMBER
PLANT ID
CAVITY ID
½
8.29
½
PART SERIES NUMBER
½
8.29
½
L
CAVITY ID
PLANT ID
3
14.25
±
0.15
9
14.25
±
0.15
K
4
7.64
±
0.15
8
7.69
±
0.15
K
J
1
12.10
±
0.10
2
20.10
±
0.10
J
H
H
(BRIDGED 4 CKT OPTION SHOWN BELOW)
(BRIDGED 8 CKT OPTION SHOWN BELOW)
7
3.37
±
0.15
½
2.00 TYP
½
½
2.00 TYP
½
CIRCUIT ID
½
2.20
½
G
11
3.37
±
0.15
PART SERIES NUMBER
PART SERIES NUMBER
½
2.20
½
4 CKT RECEPTACLE SHOWN BELOW.
8 CKT RECEPTACLE HAS SIMILAR
CIRCUIT ID LOCATION.
G
6
9.31
±
0.15
10
9.31
±
0.15
F
F
PLANT ID
PLANT ID
CAVITY ID
E
CAVITY ID
E
(2 CKT SHOWN BELOW - NO CPA TRAY)
D
13
3.37
±
0.15
D
½
2.00 TYP
½
PART SERIES
NUMBER
C
14
9.31
±
0.15
E
AS
E
EL
CE
-R
N
RE
ERE
LY
P
F
N
RE
E O
US
2018/11/29
C
PLANT ID
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
TOLERANCES
7:1
MM ONLY
(UNLESS SPECIFIED)
DRWN BY
DATE
ANGULAR TOL ±
°
B
CAVITY ID
-
4 PLACES
3 PLACES
EC NO:
608500
DRWN:
JJOYA
CHK'D:
APPR:
±
±
±
±
±
JDUNAJ
CHK'D BY
DATE
2010/06/24
2010/06/24
DATE
MINI50 SINGLE ROW
RECEPTACLE SALES DRAWING
2 PLACES
1 PLACE
0 PLACES
BDICK
APPR BY
A
8.93
±
0.10
15
SMARCEAU
DRAWING SIZE
2011/11/21
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
RELEASE DATE
18
17
16
15
14
13
12
11
10
9
8
7
L5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34791
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
6
SD-34791-001
3
2
PSD
000
3 OF 5
1
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
L
L
MINI50 RECEPTACLES
K
MATERIAL NUMBER
LOCK BRIDGE
BULK PACKAGING
OPTION
PK-31301-538
CONFIGURATION
CIRCUIT
POL
COLOR
BLACK
GRAY
DARK GRAY
GREEN
BLACK
GRAY
DARK GRAY
BLACK
GRAY
DARK GRAY
GREEN
BLACK
GRAY
DARK GRAY
BLACK
GRAY
DARK GRAY
GREEN
MATING COMPONENT
SURFACE MOUNT TECHNOLOGY (SMT) HEADER-TIN SURFACE MOUNT TECHNOLOGY (SMT) HEADER-GOLD
VERTICAL THRU HOLE HEADER
RIGHT ANGLE THRU HOLE HEADERS
TAPE AND REEL PACKAGING
TUBE PACKAGING
TAPE AND REEL PACKAGING
TUBE PACKAGING
TRAY PACKAGING TUBE PACKAGING TRAY PACKAGING TUBE PACKAGING
PK-31301-786
PK-31301-688
PK-31301-786
PK-31301-688
PK-31301-440
PK-31301-688
PK-31301-440
PK-31301-688
K
J
H
34791-0040
34791-0041
34791-0042
34791-0043
34791-0080
34791-0081
34791-0082
34791-0140
34791-0141
34791-0142
34791-0143
34791-0180
34791-0181
34791-0182
34791-0020
34791-0021
34791-0022
34791-0023
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
USCAR COMPATIBLE
MOLEX
MOLEX
MOLEX
MOLEX
4
4
4
4
8
8
8
4
4
4
4
8
8
8
2
2
2
2
A
B
C
D
A
B
C
A
B
C
D
A
B
C
A
B
C
D
34912-8040
34912-8041
34912-8042
34912-8043
34912-8080
34912-8081
34912-8082
34912-8040
34912-8041
34912-8042
34912-8043
34912-8080
34912-8081
34912-8082
34912-8020
34912-8021
34912-8022
34912-8023
34912-9040
34912-9041
34912-9042
34912-9043
34912-9080
34912-9081
34912-9082
34912-9040
34912-9041
34912-9042
34912-9043
34912-9080
34912-9081
34912-9082
34912-9020
34912-9021
34912-9022
34912-9023
34912-6040
34912-6041
34912-6042
34912-6043
34912-6080
34912-6081
34912-6082
34912-6040
34912-6041
34912-6042
34912-6043
34912-6080
34912-6081
34912-6082
34912-6020
34912-6021
34912-6022
34912-6023
34912-5040
34912-5041
34912-5042
34912-5043
34912-5080
34912-5081
34912-5082
34912-5040
34912-5041
34912-5042
34912-5043
34912-5080
34912-5081
34912-5082
34912-5020
34912-5021
34912-5022
34912-5023
34792-0040
34792-0041
34792-0042
34792-0043
34792-0080
34792-0081
34792-0082
34792-0040
34792-0041
34792-0042
34792-0043
34792-0080
34792-0081
34792-0082
N/A
N/A
N/A
N/A
34792-9040
34792-9041
34792-9042
34792-9043
34792-9080
34792-9081
34792-9082
34792-9040
34792-9041
34792-9042
34792-9043
34792-9080
34792-9081
34792-9082
N/A
N/A
N/A
N/A
34793-0040
34793-0041
34793-0042
34793-0043
34793-0080
34793-0081
34793-0082
34793-0040
34793-0041
34793-0042
34793-0043
34793-0080
34793-0081
34793-0082
N/A
N/A
N/A
N/A
34793-9040
34793-9041
34793-9042
34793-9043
34793-9080
34793-9081
34793-9082
34793-9040
34793-9041
34793-9042
34793-9043
34793-9080
34793-9081
34793-9082
N/A
N/A
N/A
N/A
J
H
G
G
F
F
E
E
D
D
C
CTX50 UNSEALED RECEPTACLE TERMINALS
PART NUMBER
D-WIND
(LEFT PAYOFF)
B-WIND
(RIGHT PAYOFF)
MATERIAL
COPPER ALLOY
COPPER ALLOY
COPPER ALLOY
WIRE GAGE
(mm
2
)
GRIP
560023-0448
B
560023-0450
560023-0423
560023-0424
0.35
0.22
0.13
LARGE
MEDIUM
SMALL
560023-0421
560023-0422
2018/11/29
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
TOLERANCES
5:1
MM ONLY
(UNLESS SPECIFIED)
DRWN BY
DATE
E
AS
E
EL
CE
-R
N
RE
ERE
LY
P
F
N
RE
E O
US
C
ANGULAR TOL ±
°
B
4 PLACES
3 PLACES
EC NO:
608500
DRWN:
JJOYA
CHK'D:
APPR:
±
±
±
±
±
JDUNAJ
CHK'D BY
DATE
2010/06/24
2010/06/24
DATE
-
MINI50 SINGLE ROW
RECEPTACLE SALES DRAWING
2 PLACES
1 PLACE
0 PLACES
BDICK
APPR BY
SMARCEAU
DRAWING SIZE
2011/11/21
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
A
THIRD ANGLE PROJECTION
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
RELEASE DATE
18
17
16
15
14
13
12
11
10
9
8
7
L5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34791
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
A
D
5
4
6
SD-34791-001
3
2
PSD
000
5 OF 5
1
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NOTES: VALID UNLESS OTHERWISE SPECIFIED
L
K
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-34791-020
b. PRODUCT SPECIFICATION SEE: PS-34791-020
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: SEE CHART
d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR PRODUCTS AND
PACKAGING SPECIFICATION: QEHS-699000-301
e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS (COMPANY ID#13255)
f. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191
1. BURN RATE 100 mm/MIN MAXIMUM
2. MATERIAL MUST BE SELF EXTINGUISHING
g. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)
f. FOR TERMINAL USAGE, REFER TO MOLEX SALES DRAWING SD-560023-002
2. DESIGN - MATERIALS:
a. MATERIAL (4,8CKT): UNFILLED PBT
b. MATERIAL (12,16,20,24CKT): PA410 25% GF
4 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION A
4 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION B
4 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION C
4 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION D
L
K
J
H
3. DESIGN - GEOMETRY:
a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA IS THE MASTER FOR THIS
PART. FOR DIMENSIONAL OR ANY INFORMATION NOT SHOWN ON THIS DRAWING,
ANALYZE THE CAD MODEL.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5 - 2009
c. GENERAL TOLERANCES:
LINEAR: PER DIN 16901 CODE B FOR PRECISION ENGINEERING (SEE TABLE)
ANGULAR:
±
3
°
d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
e. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX
f. LETTERING SHALL BE 0.1 MAX RAISED IN 0.15 MAX RECESS PAD AND NOT PROTRUDE THE SURFACE.
THIS INCLUDES RECYCLING CODE,
PLANT ID, CAVITY ID, VENDOR ID, CIRCUIT ID, AND PART SERIES NUMBER.
g. DIMENSION APPLIES ONLY TO RECEPTACLES WITH LOCK BRIDGE OPTION.
4. DESIGN - FUNCTIONALITY:
a. HINGE DOES NOT AFFECT FUNCTION OF THE PART.
J
H
G
8 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION A
8 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION B
8 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION C
CPA
HINGES OPEN
4 CKT RECEPTACLE SHOWN
(AS SHIPPED)
G
F
F
POLARIZATION
FEATURE LOCATION
POLARIZATION
FEATURE LOCATION
E
E
12 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION A
12 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION B
12 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION C
D
HINGES OPEN
4 CKT RECEPTACLE SHOWN
(AS ASSEMBLED)
D
C
C
E
AS
E
EL
CE
-R
N
RE
ERE
LY
P
F
N
RE
E O
US
B
24 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION C
M6
M5
M2
REV
2018/11/30
ADDED DATUMS AND DATUM NOTE
REMASTERING DRAWING
UPDATED 24 CKT
DESCRIPTION
QUALITY
SYMBOLS
=
=
=
0
0
0
0
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
B
TOLERANCES
5:1
MM ONLY
(UNLESS SPECIFIED)
DRWN BY
DATE
24 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION A
24 CKT BRIDGED RECEPTACLE W/CPA
POLARIZATION OPTION B
ANGULAR TOL ±
1.0
°
MYOUNG01
CHK'D BY
DATE
2013/01/31
4 PLACES
3 PLACES
EC NO:
608500
DRWN:
JJOYA
CHK'D:
APPR:
±
±
±
±
±
24CKT POLARIZATIONS SHOWN ARE REPRESENTATIVE FOR 16 AND 20CKT
A
INSPECTION BALLOON NUMBER
PER DRAWING REVISION: M2
LAST BALLOON USED: 21
=
=
=
=
C
MINI 50 SINGLE/DUAL ROW

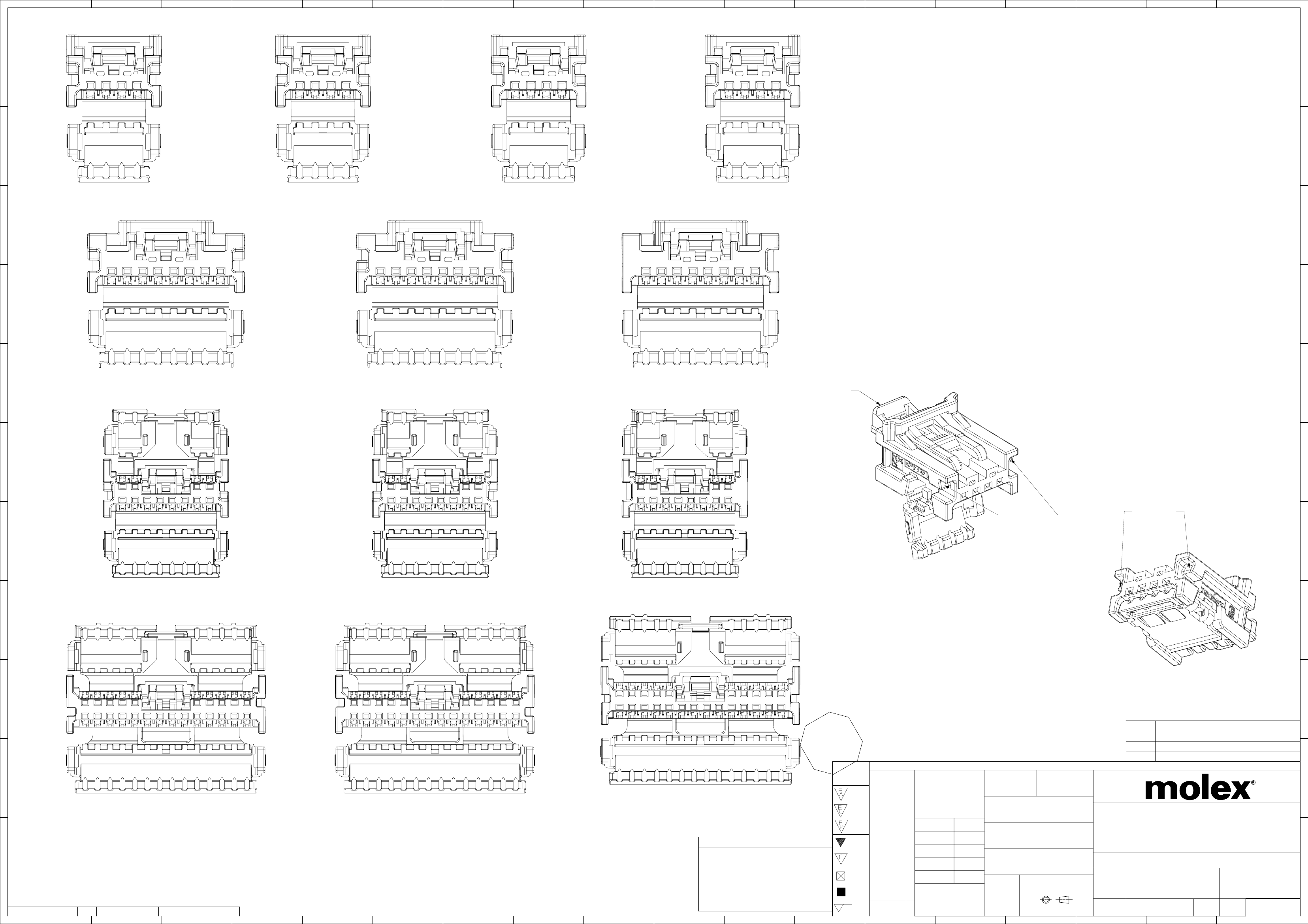

CPA-RECEPTACLE ASSEMBLY SALES DRAWING
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
-
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
0.1
0.2
APPR BY
DATE
RBAUMAN
DRAWING SIZE
2013/11/13
THIRD ANGLE PROJECTION
A
ADDED BALLOON NUMBERS:
RELEASE STATUS
18
RQ
RELEASE DATE
17
REV
FORMAT: master-tb-prod-A1
REVISION: G
DATE: 2017/02/06
2018/11/30
16
21:11:00
REMOVED BALLOON NUMBERS: 22-33
15
14
13
12
11
10
9
8
7
=
M7
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
A1
4
34824
DOCUMENT NUMBER
SEE TABLE
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
6
5
3
SD-34824-003
2
PSD
001
1
1 OF 4
京公网安备 11010802033920号
EEWORLD
