39014030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Wire terminal plastic shell> 39014030

39014030: DescriptionNumber of pins: 3 Number of rows: 1 Series: - Male and female: Male spacing: 0.165" (4.20mm) Row spacing: - Supporting use: 39-00-0038, 39-00-0039, 0039000077, 0039014036, 0039301039, 0039014032 Available models: 0039014031 Other names: 0039-01-4030 0039-01-4030-P 003903030-P 39-01-4030 39-01-4030-P 39014030-P 5557-03R2 003901403030; CategoryThe connector Wire terminal plastic shell; File Size156KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39014030 Overview

Number of pins: 3 Number of rows: 1 Series: - Male and female: Male spacing: 0.165" (4.20mm) Row spacing: - Supporting use: 39-00-0038, 39-00-0039, 0039000077, 0039014036, 0039301039, 0039014032 Available models: 0039014031 Other names: 0039-01-4030 0039-01-4030-P 003903030-P 39-01-4030 39-01-4030-P 39014030-P 5557-03R2 003901403030

39014030 Parametric

Parameter Name	Attribute value
Number of needles	3
Number of rows	1
series	-
gender	male head
spacing	0.165"(4.20mm)
line spacing	-

Preview

Download Datasheet

View All

PART NO.

ENG. NO.

CKT

SIZE

MATERIAL

(SEE NOTE 1)

39-01-4030

39-01-4031

39-01-5039

46999-0287

5557-03R2

5557-03R2-210

5557-03R2-BL

5557-03R2-400

UL 94V-2

UL 94V-0

UL 94V-2, BLACK

UL 94V-0, BLACK

LEGEND

5557-03R2-***

CKT SIZE

RECEPTACLE

MATERIAL OPTION:

(SEE NOTE 1)

SEE NOTE 11

MOLEX I.D.,

ENGINEERING NO.,

CAVITY NO.

NOTES:

1. MATERIAL:

"BLANK"=NYLON 6/6, UL94V-2, LOW HALOGEN, COLOR: NATURAL

"210"=NYLON 6/6, UL94V-0, LOW HALOGEN, COLOR: NATURAL

"BL"=NYLON 6/6, UL94V-2, LOW HALOGEN, COLOR: BLACK

"400"=NYLON 6/6, UL94V-0, LOW HALOGEN, COLOR: BLACK

2. FINISH: NOT APPLICABLE

3. PRODUCT SPECIFICATION: PS-5556-001

4. PACKAGING: PK-5557-002

5. PART MATES WITH MOLEX RIGHT ANGLE HEADER #5569-03A*,

VERTICAL HEADER #5566-03A3* AND PLUG #5559-03P*.

6. PART TO BE USED WITH MOLEX FEMALE TERMINAL #5556.

7. WHEN MATING WITH ANOTHER CONNECTOR, THE CENTER

CIRCUIT WILL "MAKE FIRST AND BREAK LAST".

8. PART IS NOT DESIGNED FOR CURRENT SHARING.

9. CONNECTOR ASSEMBLIES ARE NOT TO BE MATED OR

UNMATED WHILE CIRCUITS ARE LIVE.

10. WIRES ARE TO BE DRESSED IN SUCH A MANNER TO

ALLOW THE TERMINALS TO FLOAT FREELY IN THE POCKET.

11. "MX" TRADEMARK MAY BE LOCATED ON LATCH OR SURFACE

INDICATED. CAVITY NO. MAY BE LOCATED ON EITHER SIDE

OF ENGINEERING NO. ON LATCH.

12. PART CONFORMS TO CLASS "B" REQUIREMENTS OF

COSMETIC SPECIFICATION PS-45499-002.

.24

.03

6.0

0.8

.29

7.4

.33

8.5

.76

19.3

.81

20.6

.25

6.3

.45

11.5

.130

3.30

.12

3.0

.165 TYP.

4.20

.15

3.8

.21

5.4

RIB INDICATES

CIRCUIT #1

.54

13.8

.04

1.0

SYMBOLS

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: MIGRATE TO ECTR

IN/MM

4:1

INCH

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

172489

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0.01

0.25

0.38

0.015

0.5 °

FORMAT: Eng-lega-master-tb-prod-C

REVISION: D

DATE: 2017/10/06

0 PLACES

ANGULAR TOL

DRWN:

AZAHIROVIC

CHK'D:

JBELL

APPR:

FSMITH

INITIAL REVISION:

DRWN:

GEP

APPR:

RAS

THIRD ANGLE PROJECTION

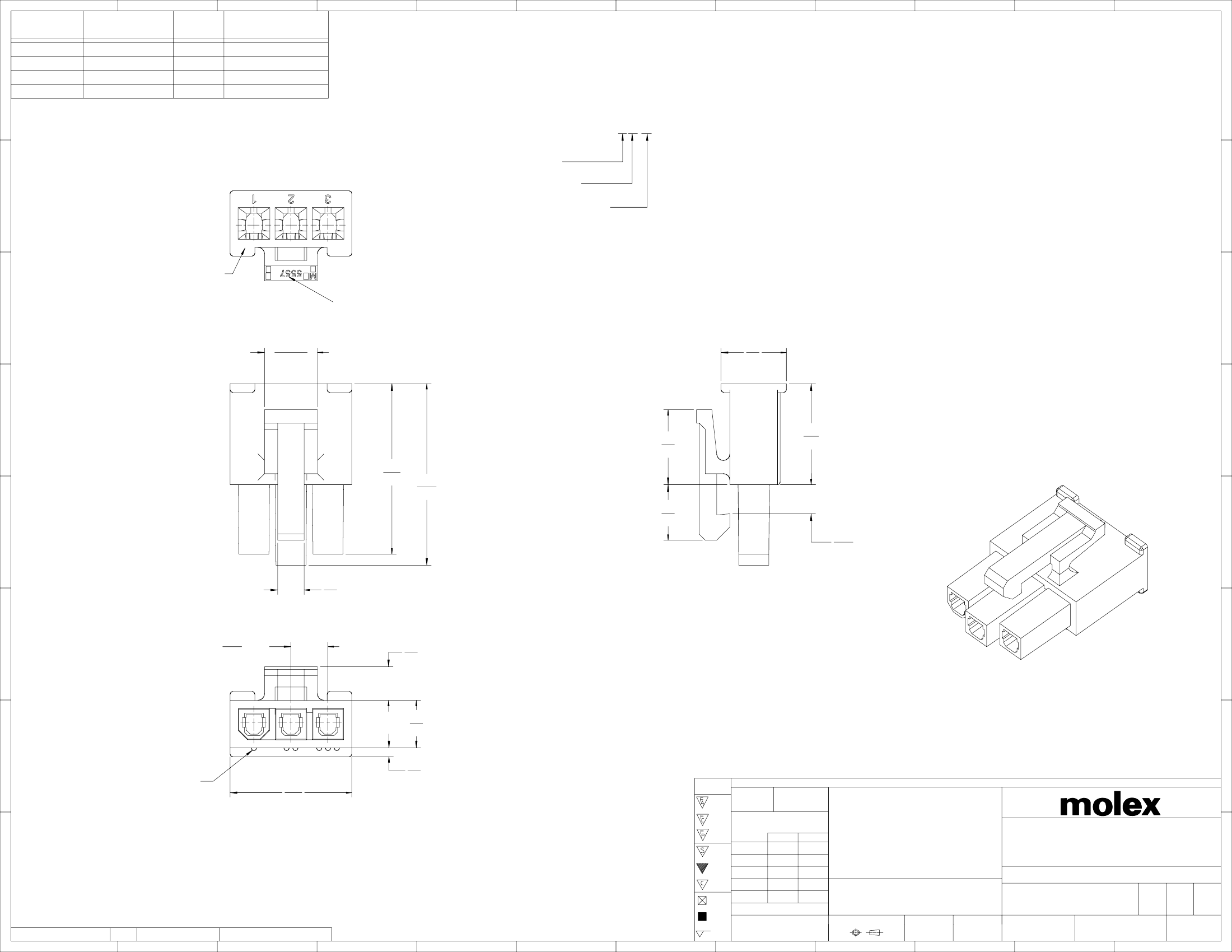

DRAWING

2018/01/24

2018/02/20

2018/02/22

1990/10/02

SERIES

3 CIRCUIT RECEPTACLE,

(MINI-FIT JR.) (MAKE-FIRST/BREAK-LAST)

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

55570302-SD

MATERIAL NUMBER

CUSTOMER

PSD

000

DOCUMENT STATUS

RELEASE DATE

2018/02/22

21:31:12

THIS DRAWING REPLACES DRAWING SD-5557-03R2*

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

C-SIZE

5557

SEE CHART

GENERAL MARKET

1 OF 1
