52435-3071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52435-3071

52435-3071: DescriptionPin Count: 30 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Top Flex Type: FFC, FPC Other Names: 0524353071; CategoryThe connector The connector; File Size367KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52435-3071 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52435-3071	-	-	View	Buy Now

52435-3071 Overview

Pin Count: 30 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Top Flex Type: FFC, FPC Other Names: 0524353071

52435-3071 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Other features	EASY-ON, POLARIZED
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.204 inch
body length	0.85 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	NYLON46
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

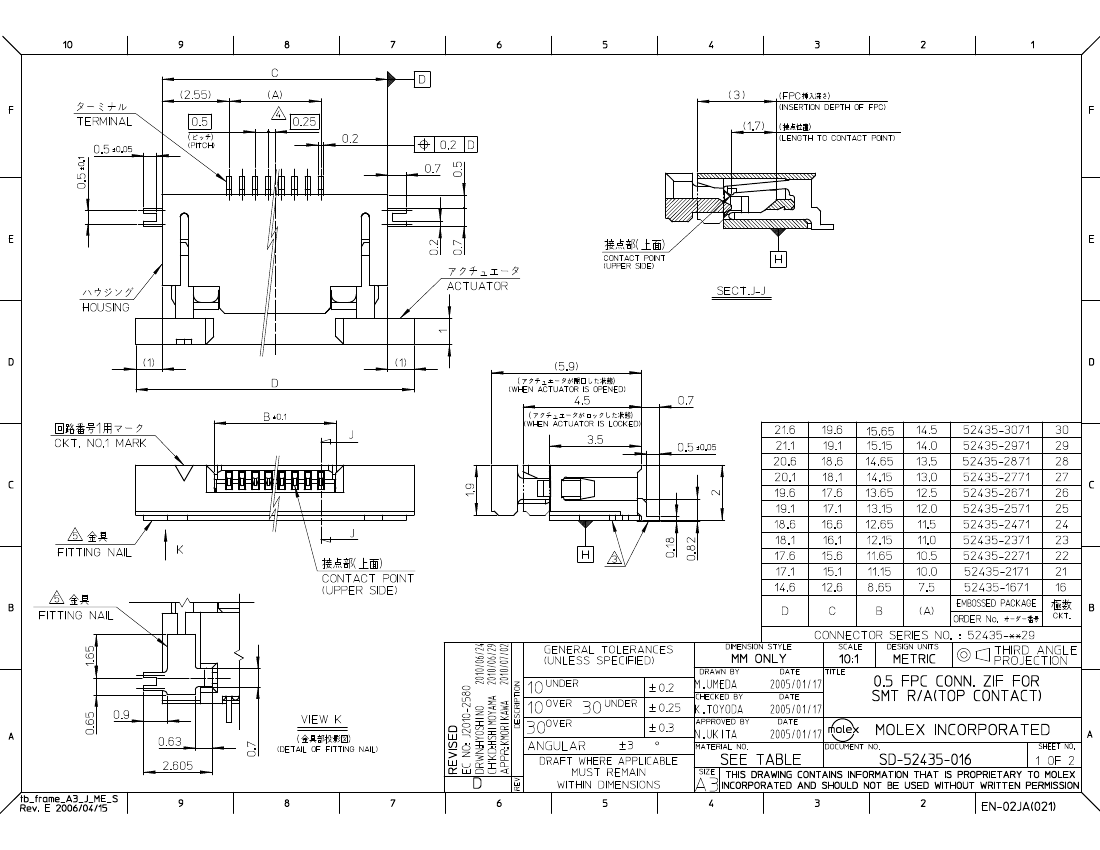

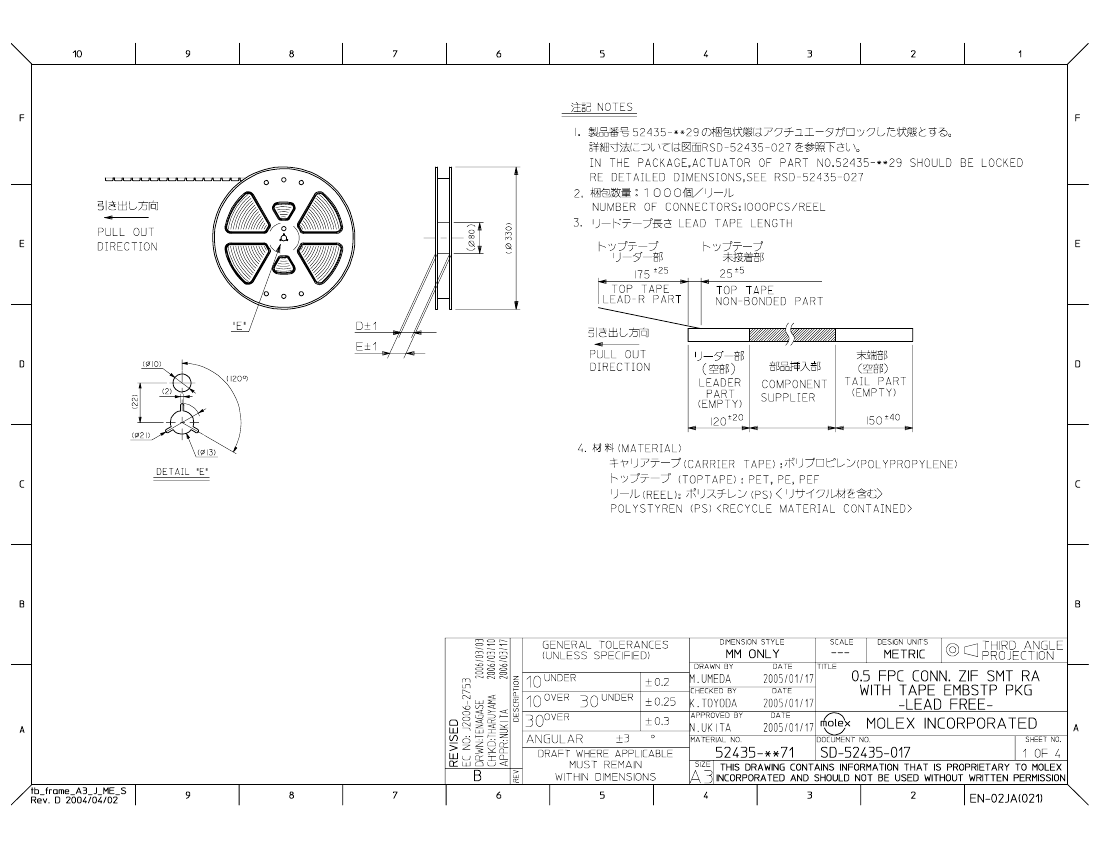

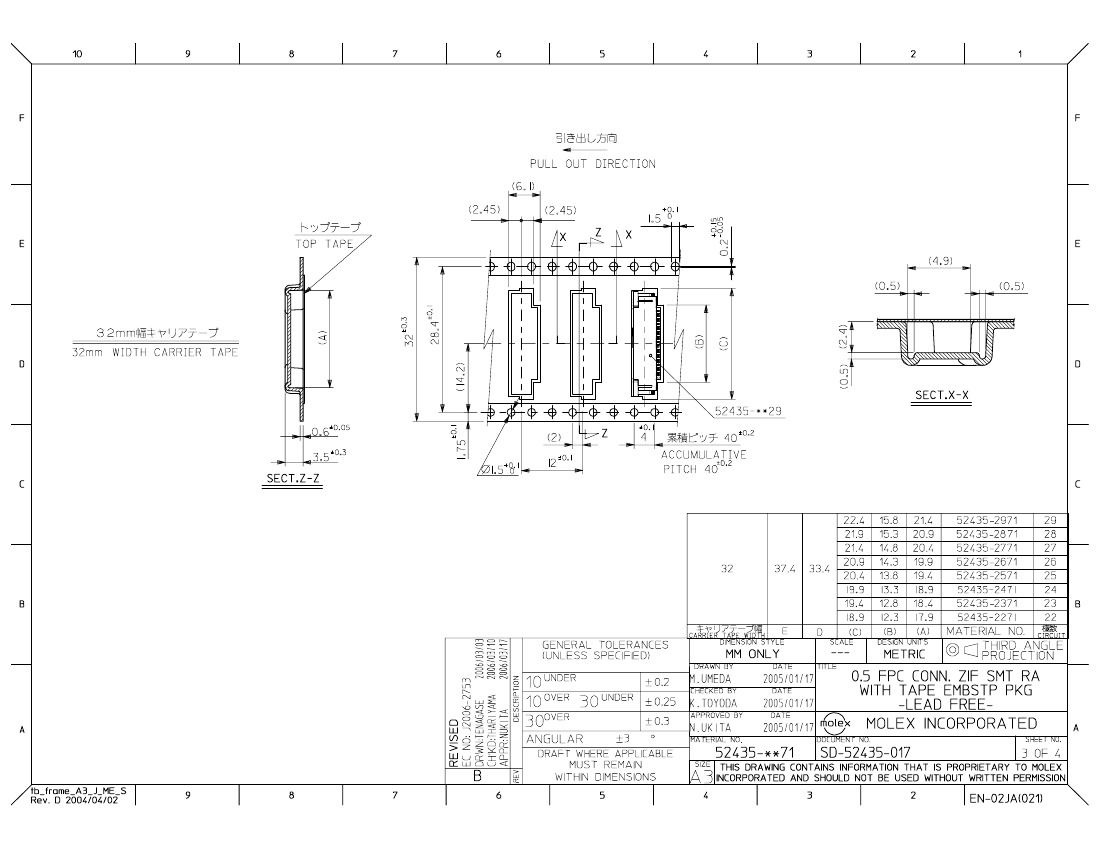

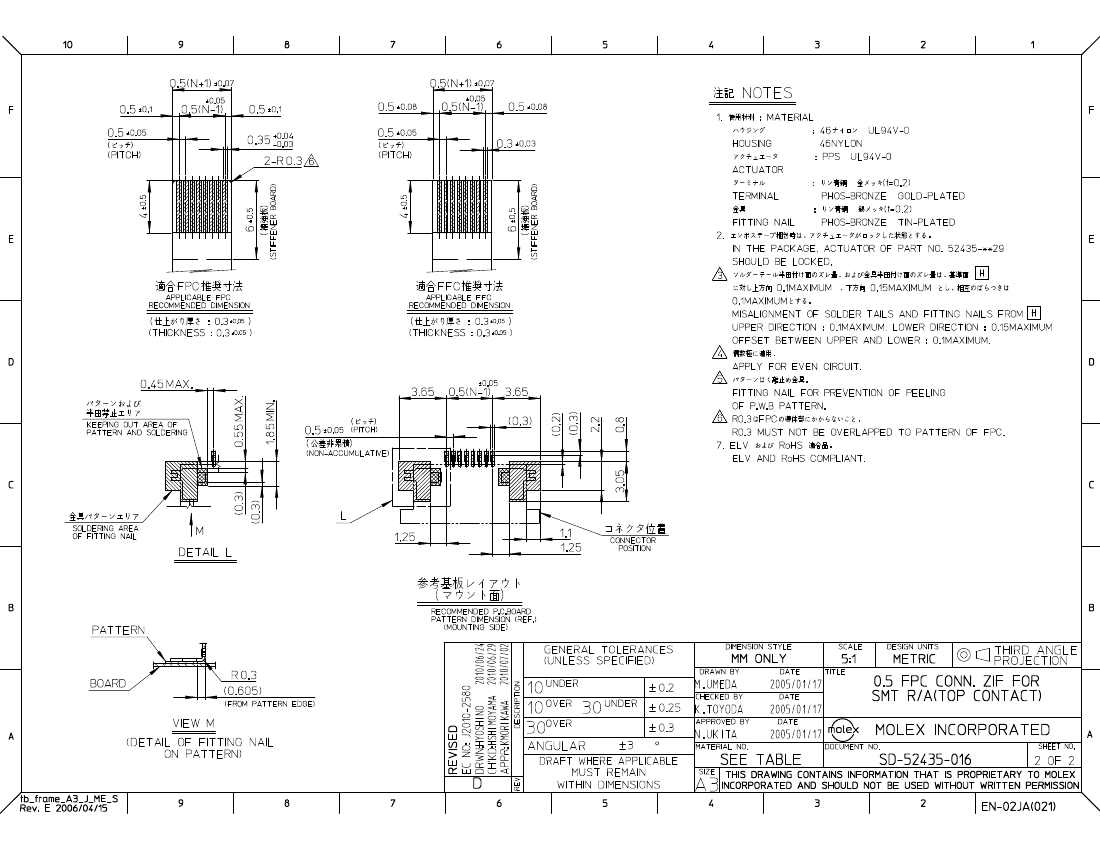

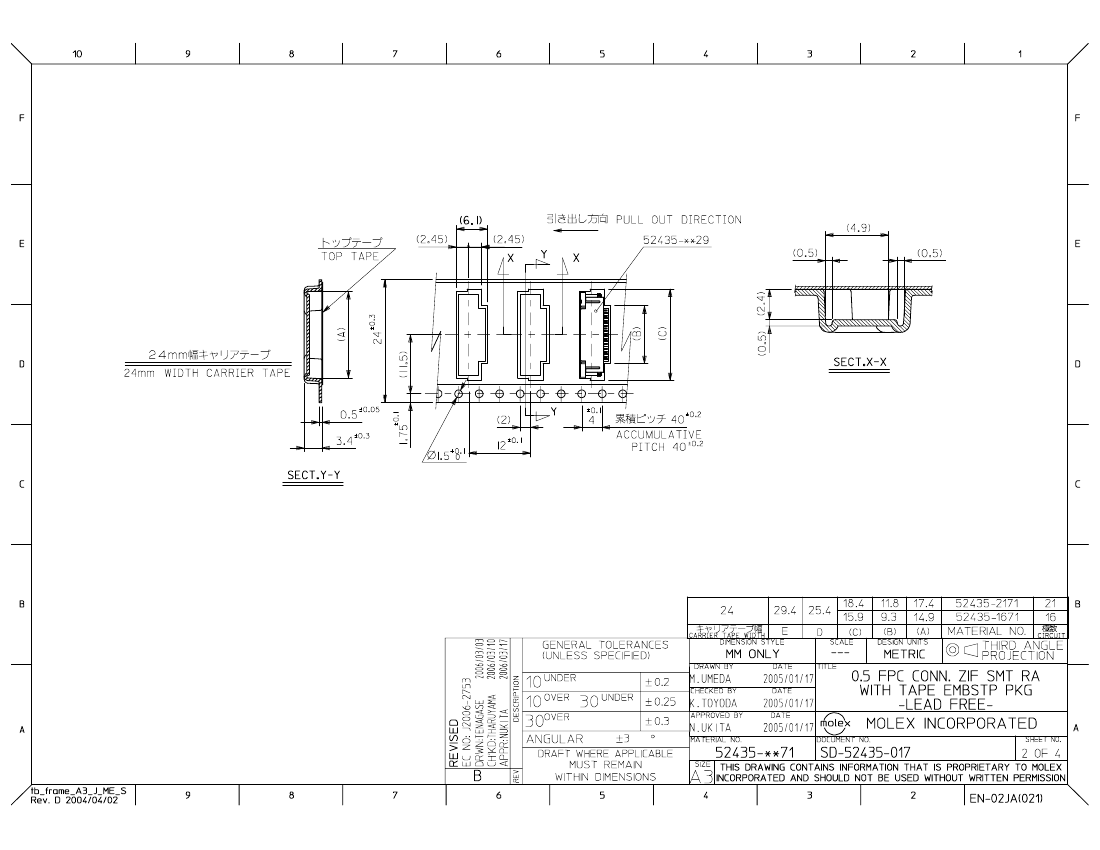

Preview

Download Datasheet

View All

52435-3071 Related Products

	52435-3071	52435-2471
Description	Pin Count: 30 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Top Flex Type: FFC, FPC Other Names: 0524353071	Pin Count: 24 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Top Flex Type: FFC, FPC Other Names: 0524352471
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	14 weeks	14 weeks
Other features	EASY-ON, POLARIZED	EASY-ON, POLARIZED
Board mount options	FITTING NAIL	FITTING NAIL
body width	0.079 inch	0.079 inch
subject depth	0.204 inch	0.204 inch
body length	0.85 inch	0.732 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
Durability	20 Cycles	20 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω
insulator material	NYLON46	NYLON46
JESD-609 code	e4	e4
MIL compliance	NO	NO
Plug contact pitch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	24
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N
Base Number Matches	1	1
