22041031 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Line of plate/line of wire connector> 22041031

22041031: DescriptionNumber of pins: 3 Connector type: Header series: - Pitch: 0.098" (2.50mm) Contact type: Male pins Matching use: 0022011032, 0511910300; CategoryThe connector Line of plate/line of wire connector; File Size176KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

22041031 Overview

Number of pins: 3 Connector type: Header series: - Pitch: 0.098" (2.50mm) Contact type: Male pins Matching use: 0022011032, 0511910300

22041031 Parametric

Parameter Name	Attribute value
Number of pins	3
Contact material	brass
Number of rows	1
Connector type	Needle seat
series	-
spacing	0.098"(2.50mm)
Contact type	Male pin
Installation type	Through hole
line spacing	-

Preview

Download Datasheet

View All

注：

NOTE

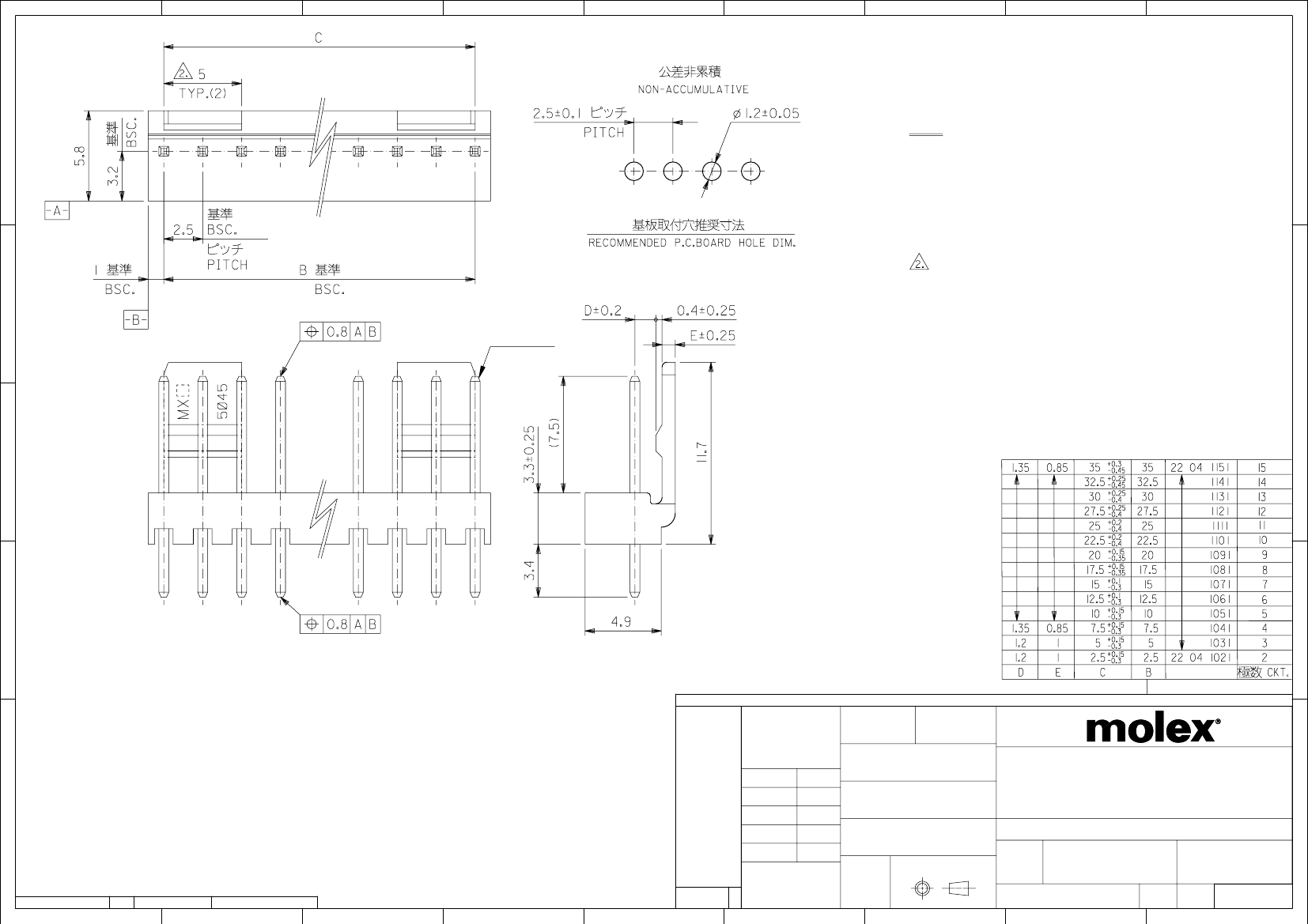

1. 材料

MATERIAL

ピン：□0.635×14.2黄銅、銅下地錫めっき

PIN：□0.635×14.2 BRASS TIN OVER COPPER PLATING

ウエハー：ポリアミド、UL94V-0

WAFER: POLYAMIDE,UL94V-0

6極以上に適応

TO BE APPLIED FOR 6 CKT.AND MORE THAN 6 CKT.

回路番号１

CIRCUIT NO.1

3. 5極以下はロック部スリットなし

NO SLIT IS PROVIDED FOR 5 CKT.AND LESS THAN 5 CKT.

ELV 及び RoHS 適合品

ELV AND RoHS COMPLIANT

ORDER No.

MODEL No. : 5045-**A

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2017/10/18

2017/10/26

GENERAL

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

3.0

DIMENSION UNITS

SCALE

DRWN BY

DATE

5:1

2000/03/27

DATE

REVISED

4 PLACES

0.4

KKOHAMA

CHK'D BY

167225

KYAMADA02

SAKIYAMA

TKANEKO

3 PLACES

2 PLACES

1 PLACE

0 PLACES

MINI-LATCH 2.5 HEADER ASS'Y ST

WITH LOCK

KASAKAWA

APPR BY

DATE

2012/01/30

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

NUKITA

DRAWING SIZE

2013/06/13

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

RELEASE STATUS

FORMAT: master-tb-prod-A3

REVISION: G

DATE: 2017/02/06

RELEASE DATE

26.10.2017

10:47:45

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

5045

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

SD-5045-NA

PSD

001

1 OF 1

22041031 Related Products

	22041031	22041021	22041061	22041071	22041101
Description	Number of pins: 3 Connector type: Header series: - Pitch: 0.098" (2.50mm) Contact type: Male pins Matching use: 0022011032, 0511910300	Number of pins: 2 Connector type: Header series: - Pitch: 0.098" (2.50mm) Contact type: Male pins Matching use: 0022011022	Number of Pins: 6 Connector Type: Header Series: - Pitch: 0.098" (2.50mm) Contact Type: Male Pin 6 Position Header Connector Pitch 2.50mm Through Hole Tin	Number of Pins: 7 Connector Type: Header Series: - Pitch: 0.098" (2.50mm) Contact Type: Male Pin 7 Position Header Connector Pitch 2.50mm Through Hole Tin	Pin Count: 10 Connector Type: Header Series: - Pitch: 0.098" (2.50mm) Contact Type: Male Pin 10 Position Header 0.098" (2.50mm) Through Hole Tin
Number of pins	3	2	6	7	10
Contact material	brass	brass	brass	brass	brass
Number of rows	1	1	1	1	1
Connector type	Needle seat	Needle seat	Needle seat	Needle seat	Needle seat
spacing	0.098"(2.50mm)	0.098"(2.50mm)	0.098"(2.50mm)	0.098"(2.50mm)	0.098"(2.50mm)
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole
