NOTES: VALID UNLESS OTHERWISE SPECIFIED

1. GENERAL:

a. APPLICATION SPECIFICATION SEE: AS-34791-020

b. PRODUCT SPECIFICATION SEE: PS-34971-020

c. PACKAGING SPECIFICATION PER MOLEX DRAWING: PK-31301-538

d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR

PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-301

e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS

(COMPANY ID#13255)

f. FLAMMABILITY REQUIREMENT: PER ISO3795 OR GM3191

1. BURN RATE 100 mm/MIN MAXIMUM

2. MATERIAL MUST BE SELF EXTINGUISHING

g. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)

h. FOR TERMINAL USAGE, REFER TO MOLEX SALES DRAWING SD-560023-002.

2. DESIGN - MATERIALS:

a. MATERIAL: UNFILLED PBT

3. DESIGN - GEOMETRY:

a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA

IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION

NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL.

b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994

c. GENERAL TOLERANCES:

LINEAR: PER DIN 16901 CODE B FOR PRECISION ENGINEERING

ANGULAR:

d. EDGES AND UNDIMENSIONED DETAILS PER ISO13715

e. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX

f. LETTERING SHALL BE 0.1 MAX RAISED IN 0.15 MAX RECESS PAD AND NOT

PROTRUDE THE SURFACE. THIS INCLUDES RECYCLING CODE, PLANT AND

CAVITY ID, VENDOR ID, CIRCUIT ID, AND PART SERIES NUMBER.

4. DESIGN - FUNCTIONALITY

a. HINGE DOES NOT AFFECT FUNCTION OF THE PART.

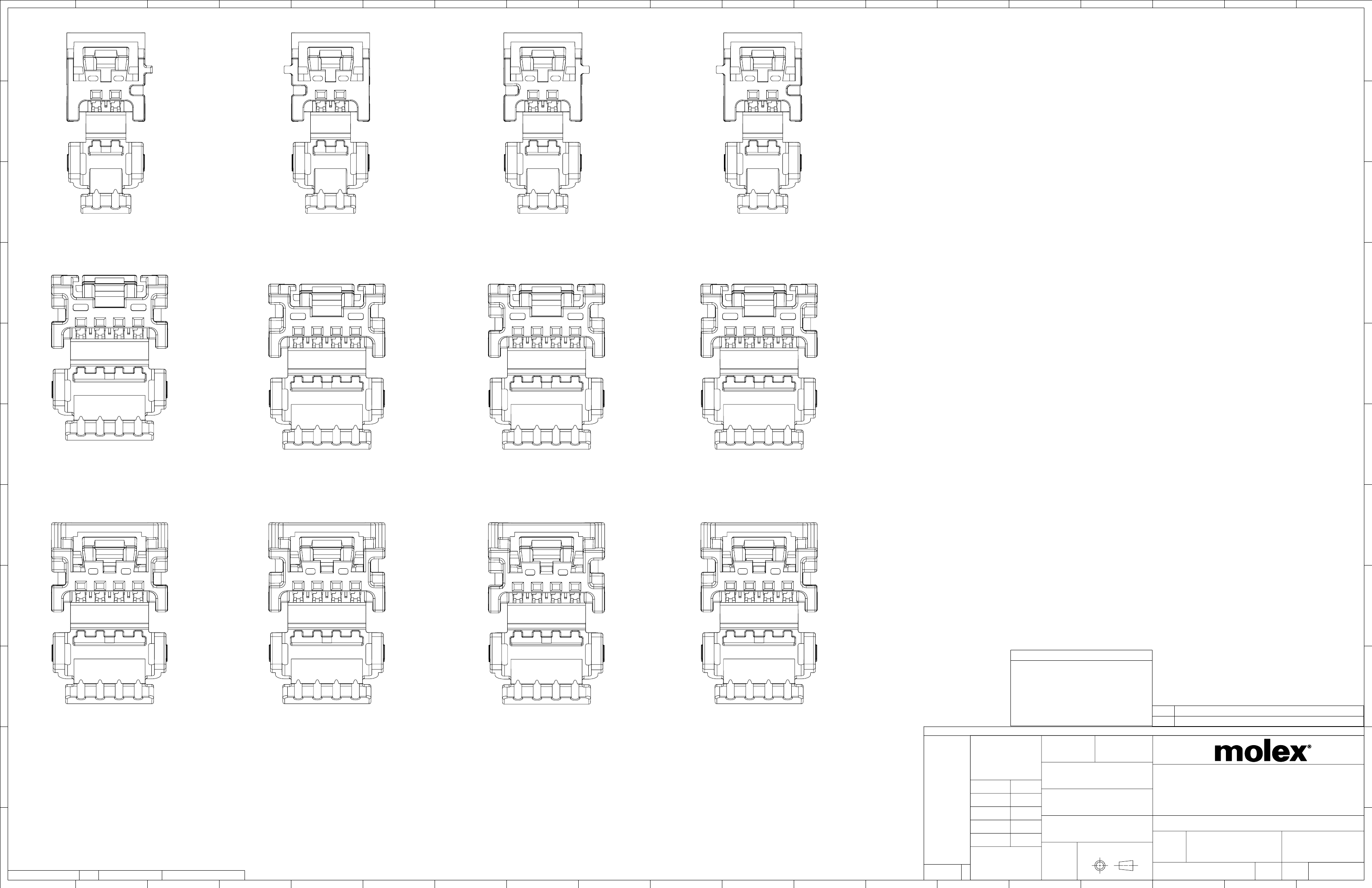

2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE

POLARIZATION OPTION A

2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE

POLARIZATION OPTION B

2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE

POLARIZATION OPTION C

2 CIRCUIT RECEPTACLE WITH LOCK BRIDGE

POLARIZATION OPTION D

4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE

POLARIZATION OPTION A

4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE

POLARIZATION OPTION B

4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE

POLARIZATION OPTION C

4 CIRCUIT RECEPTACLE WITHOUT LOCK BRIDGE

POLARIZATION OPTION D

INSPECTION BALLON NUMBER LOG

PER DRAWING REVISION: L2

LAST BALLOON USED: 16

ADDED BALLOON NUMBERS:

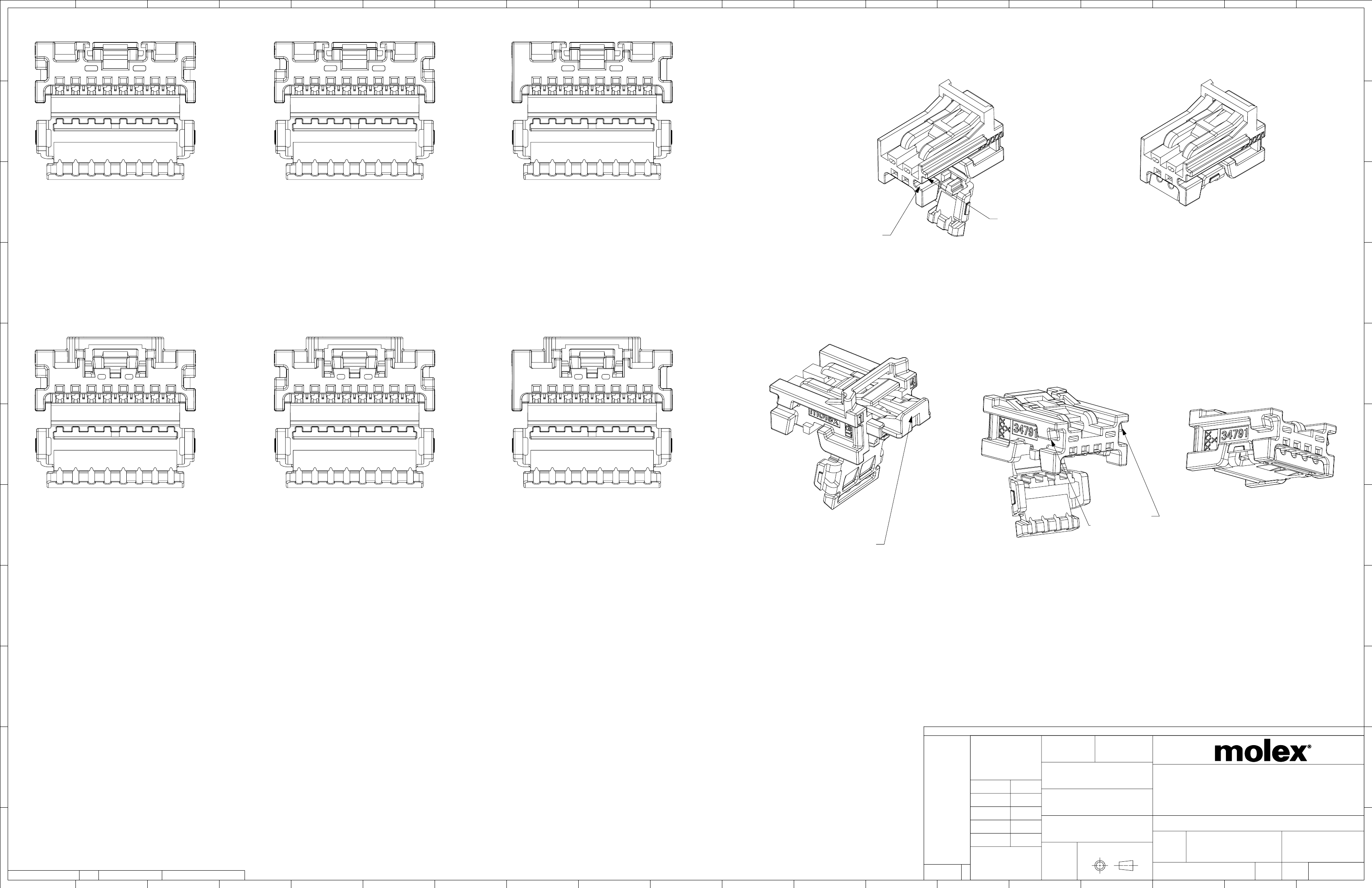

4 CIRCUIT RECEPTACLE BRIDGED

POLARIZATION OPTION A

4 CIRCUIT RECEPTACLE BRIDGED

POLARIZATION OPTION B

4 CIRCUIT RECEPTACLE BRIDGED

POLARIZATION OPTION C

4 CIRCUIT RECEPTACLE BRIDGED

POLARIZATION OPTION D

2018/11/29

2018/12/03

REMOVED BALLOON NUMBERS:

REV

NX REMASTERING

DESCRIPTION

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

GENERAL

TOLERANCES

6:1

MM ONLY

(UNLESS SPECIFIED)

DRWN BY

DATE

ANGULAR TOL ±

4 PLACES

3 PLACES

JDUNAJ

CHK'D BY

DATE

2010/06/24

DATE

MINI50 SINGLE ROW

RECEPTACLE SALES DRAWING

608500

JJOYA

JDUNAJ

2 PLACES

1 PLACE

0 PLACES

BDICK

APPR BY

PRODUCT CUSTOMER DRAWING

2011/11/21

SERIES

MATERIAL NUMBER

CUSTOMER

SMARCEAU

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

THIRD ANGLE PROJECTION

FORMAT: master-tb-prod-D

REVISION: G

DATE: 2017/02/06

RELEASE STATUS

RELEASE DATE

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

34791

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

SD-34791-001

PSD

000

1 OF 5
