52986-2079 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52986-2079

52986-2079: DescriptionI/O input and output connector other names: 529862079; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52986-2079 Overview

I/O input and output connector other names: 529862079

52986-2079 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.394 inch
subject depth	0.459 inch
body length	1.313 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	M2.6X0.45
Installation option 2	LATCHING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

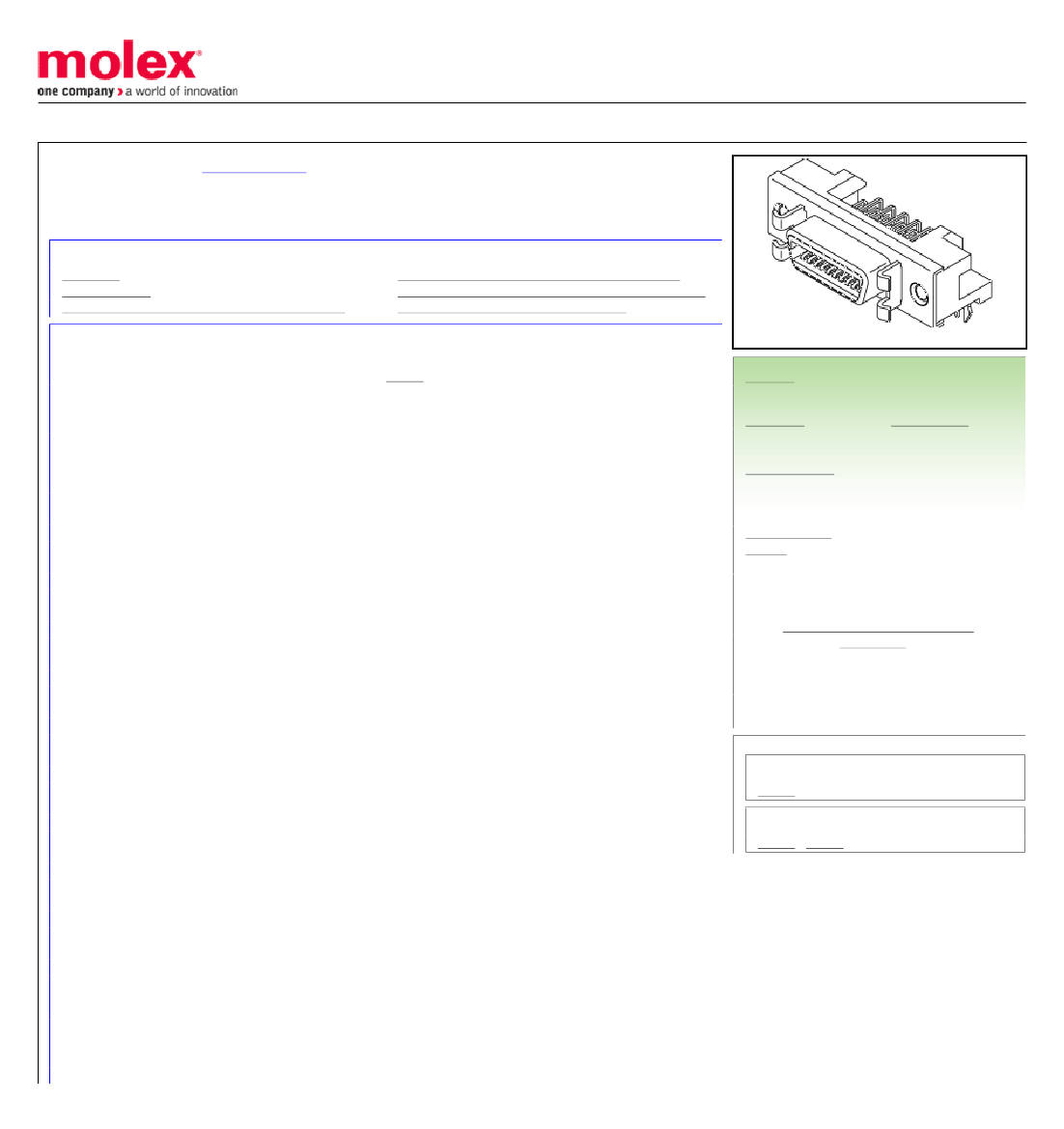

Preview

Download Datasheet

View All

This document was generated on 07/03/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0529862079

Active

1.27mm Pitch Wire-to-Board Shielded Receptacle, Right Angle, Dual Row, with Insert

Nut for Screw Locks, 20 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52986-001-001 (PDF)

General

Product Family

Series

Application

Component Type

Product Name

Type

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

Electrical

Current - Maximum per Contact

Shield Type

Shielded

Voltage - Maximum

Product Specification PS-52986-016-001 (PDF)

Packaging Specification SPK-52986-016-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

I/O Connectors

52986

Wire-to-Board

Receptacle

Leaf Style Contact

N/A

822348207855

Black

500

Receptacle

Yes

Phosphor Bronze, Steel

Gold

Tin

Polyester

6546.302/mg

Right Angle

3.18mm

Yes

1.60mm

Tray

Yes

1.27mm

0.305µm

1.016µm

Yes

-55°C to +85°C

Through Hole

N/A

1.0A

Full Shield

Yes

250V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant with

Exemption 6(c)

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

50 Image

Not Relevant

Not Contained

Search Parts in this Series

52986 Series

Mates With

54306 , 52316
