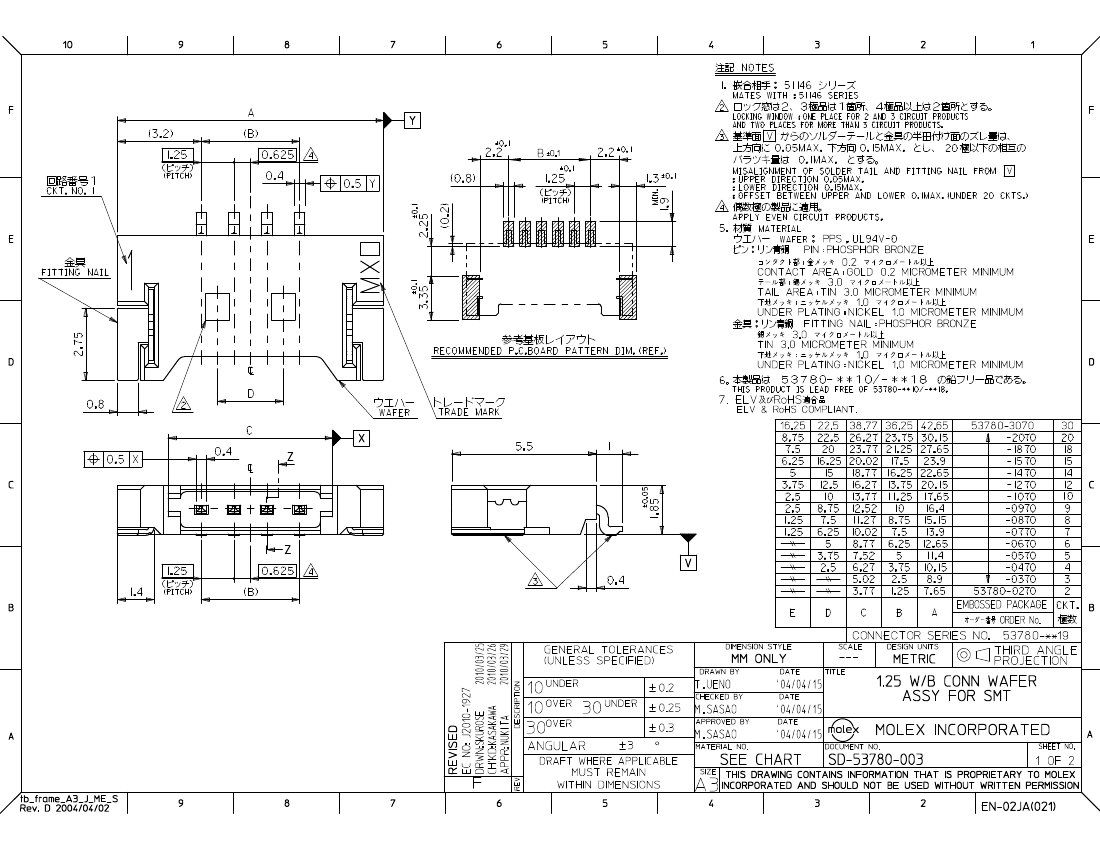

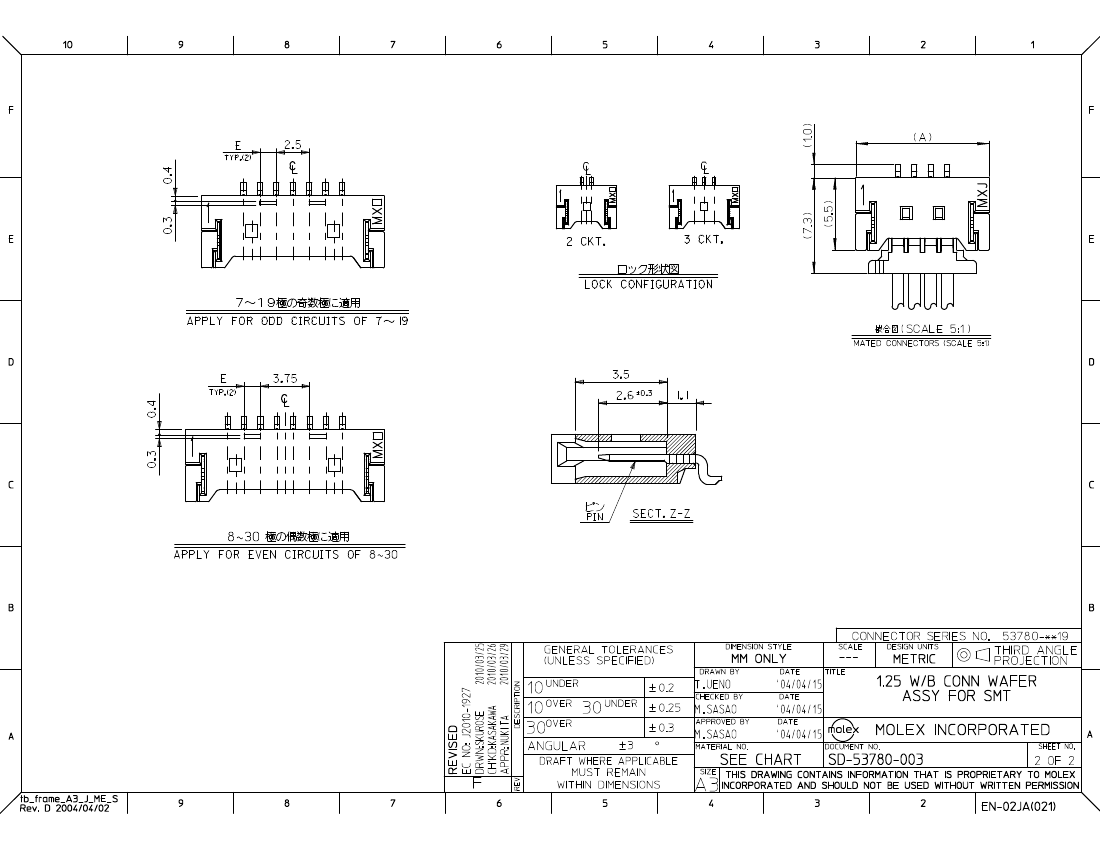

53780-0870 |
53780-0670 |
| Description |
Number of Pins: 8 Connector Type: Header Series: - Pitch: 0.049" (1.25mm) Contact Type: Male Pins Other Names: 537800870 |
Number of Pins: 6 Connector Type: Header Series: - Pitch: 0.049" (1.25mm) Contact Type: Male Pins Other Names: 537800670 |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| Maker |
Molex |
Molex |
| package instruction |
ROHS COMPLIANT |
ROHS COMPLIANT |
| Reach Compliance Code |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |
| Factory Lead Time |
9 weeks |
16 weeks |
| Samacsys Description |
Headers & Wire Housings 1.25 WtB Wafer Assy Assy 8Ckt EmbsTp Pkg |
Molex 53780 Series, 1.25mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 1A |
| Other features |

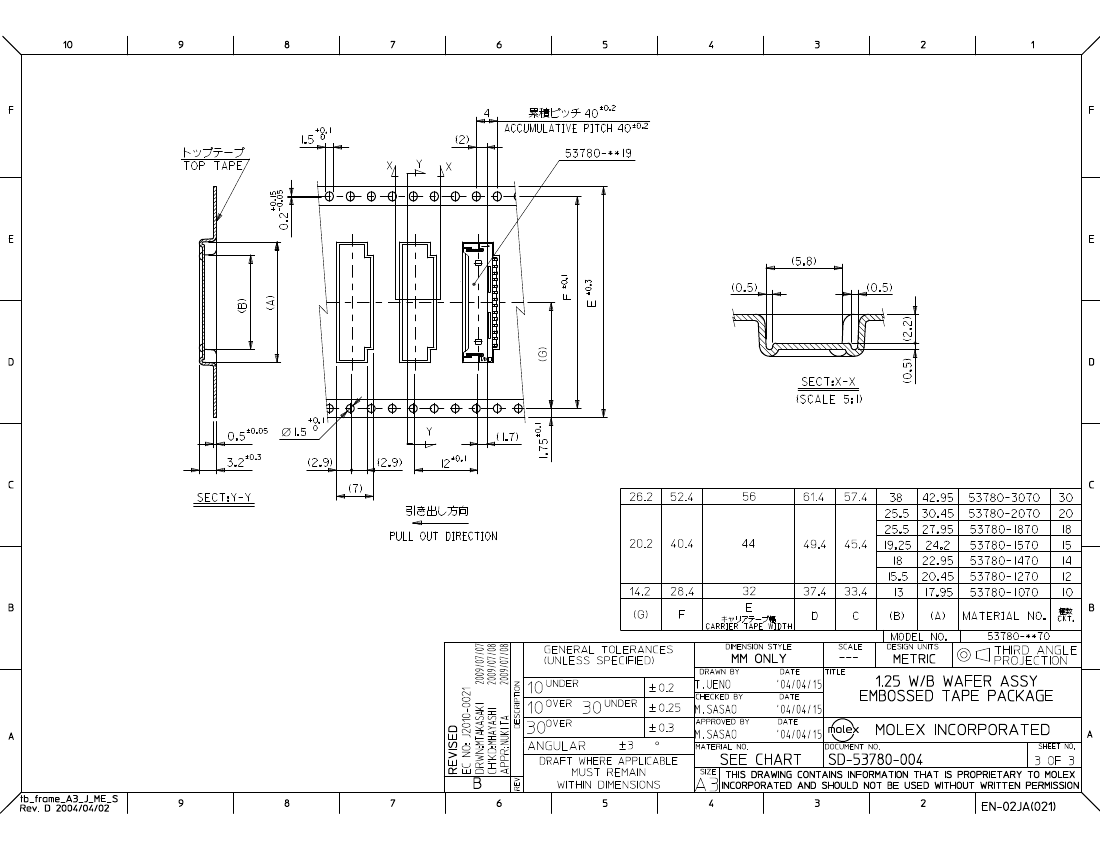

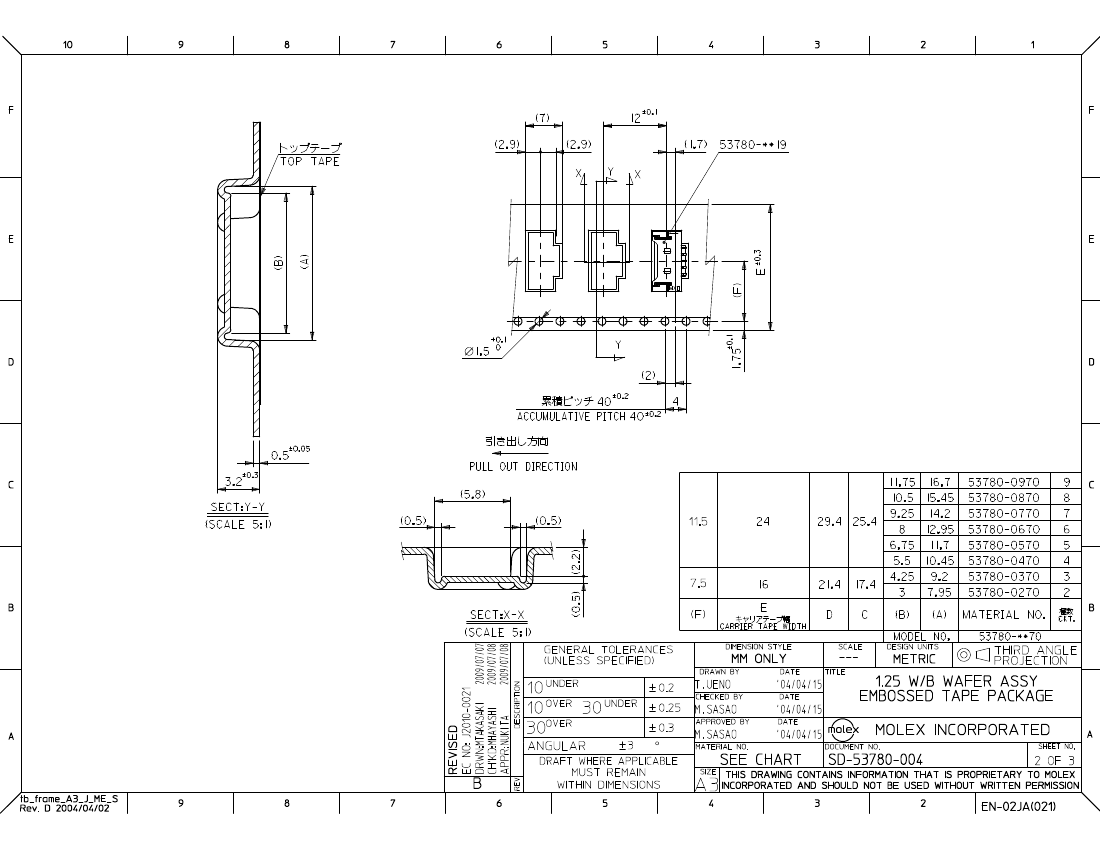

ROHS COMPLIANT & T/R PACKAGE |
ROHS COMPLIANT & T/R PACKAGE |
| body width |
0.073 inch |
0.073 inch |
| subject depth |
0.256 inch |
0.217 inch |
| body length |
0.596 inch |
0.498 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact point gender |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
20 mΩ |
20 mΩ |
| Contact style |
SQ PIN-SKT |
BLADE PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
700VAC V |
250VAC V |
| Durability |
50 Cycles |
50 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
2.085 N |
2.085 N |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
| insulator material |
POLYPHENYLENE SULPHIDE |
POLYPHENYLENE SULPHIDE |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
53780 |
53780 |
| Plug contact pitch |
0.049 inch |
0.049 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
DETENT |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
1 |
1 |
| Number of rows loaded |
1 |
1 |
| Maximum operating temperature |
85 °C |
85 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| polarization key |
POLARIZED HOUSING |
POLARIZED HOUSING |
| Rated current (signal) |
1 A |
1 A |
| Guideline |
UL, CSA |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal pitch |
1.25 mm |
1.25 mm |
| Termination type |
SURFACE MOUNT |
SURFACE MOUNT |
| Total number of contacts |
8 |
6 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.199882 N |
.1946 N |
| Base Number Matches |
1 |
1 |
