GRM0335C1H220GA01D: DescriptionAccuracy: ±2% Capacitance: 22pF Rated voltage: 50V Temperature drift coefficient (dielectric material): C0G Material: C0G; CategoryPassive components capacitor; File Size3MB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM0335C1H220GA01D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GRM0335C1H220GA01D	-	-	View	Buy Now

GRM0335C1H220GA01D Overview

Accuracy: ±2% Capacitance: 22pF Rated voltage: 50V Temperature drift coefficient (dielectric material): C0G Material: C0G

GRM0335C1H220GA01D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
Parts packaging code	0201
package instruction	, 0201
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Samacsys Description	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0201 22pF 50volts C0G +/-2%
capacitance	0.000022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.3 mm
JESD-609 code	e3
length	0.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	2%
Rated (DC) voltage (URdc)	50 V
size code	0201
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

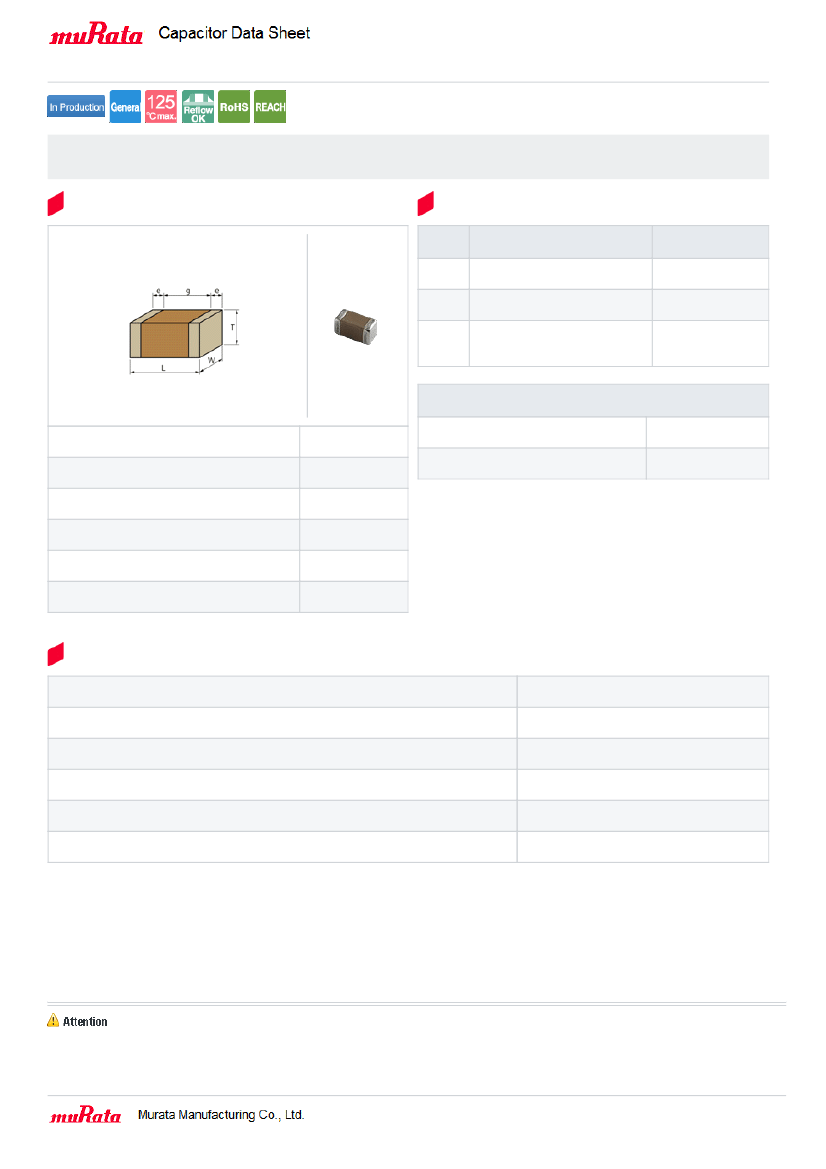

GRM0335C1H220GA01#

< List of part numbers with package codes >

“#” indicates a package specification code.

GRM0335C1H220GA01D , GRM0335C1H220GA01W , GRM0335C1H220GA01J

Shape

References

Packaging

D

J

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

φ180mm

Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

15000

50000

W

30000

Mass (typ.)

1 piece

φ180mm

Reel

0.33mg

118g

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.6 ±0.03mm

0.3 ±0.03mm

0.1 to 0.2mm

0.2mm min.

0201 (0603M)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

22pF ±2%

50Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 2

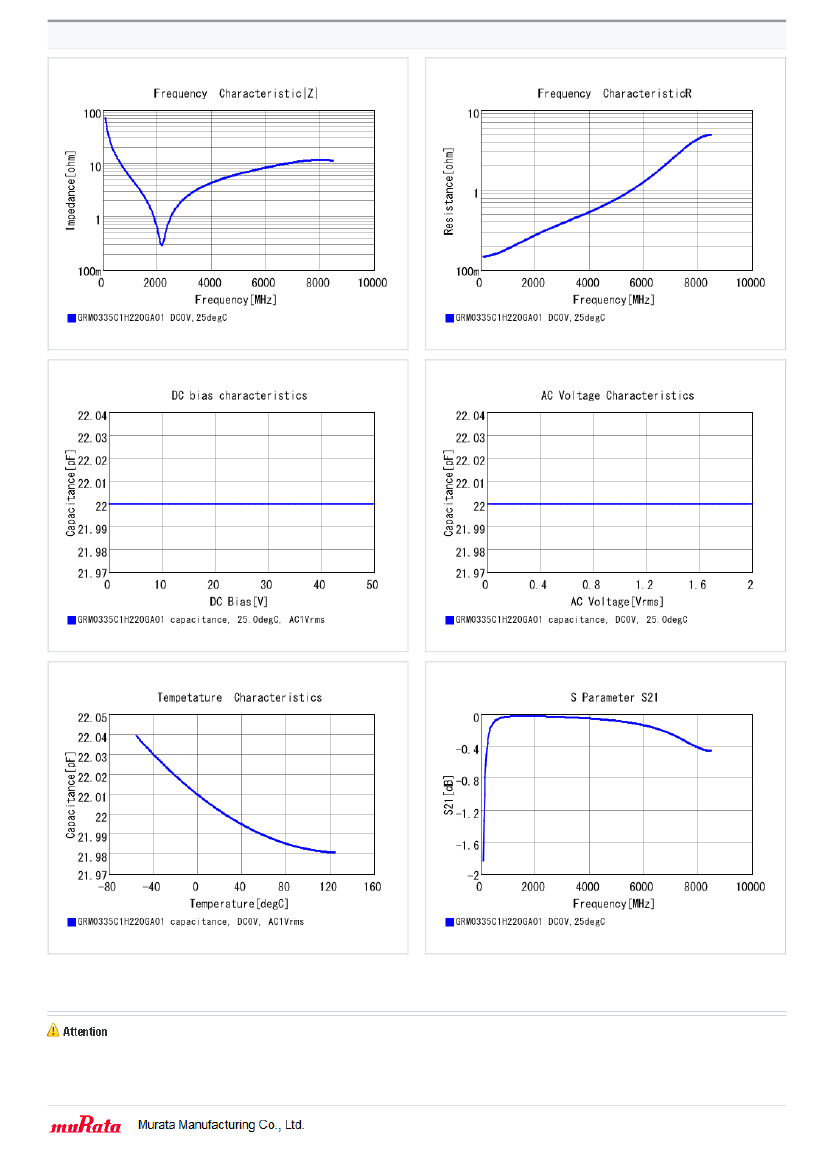

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/10/11
