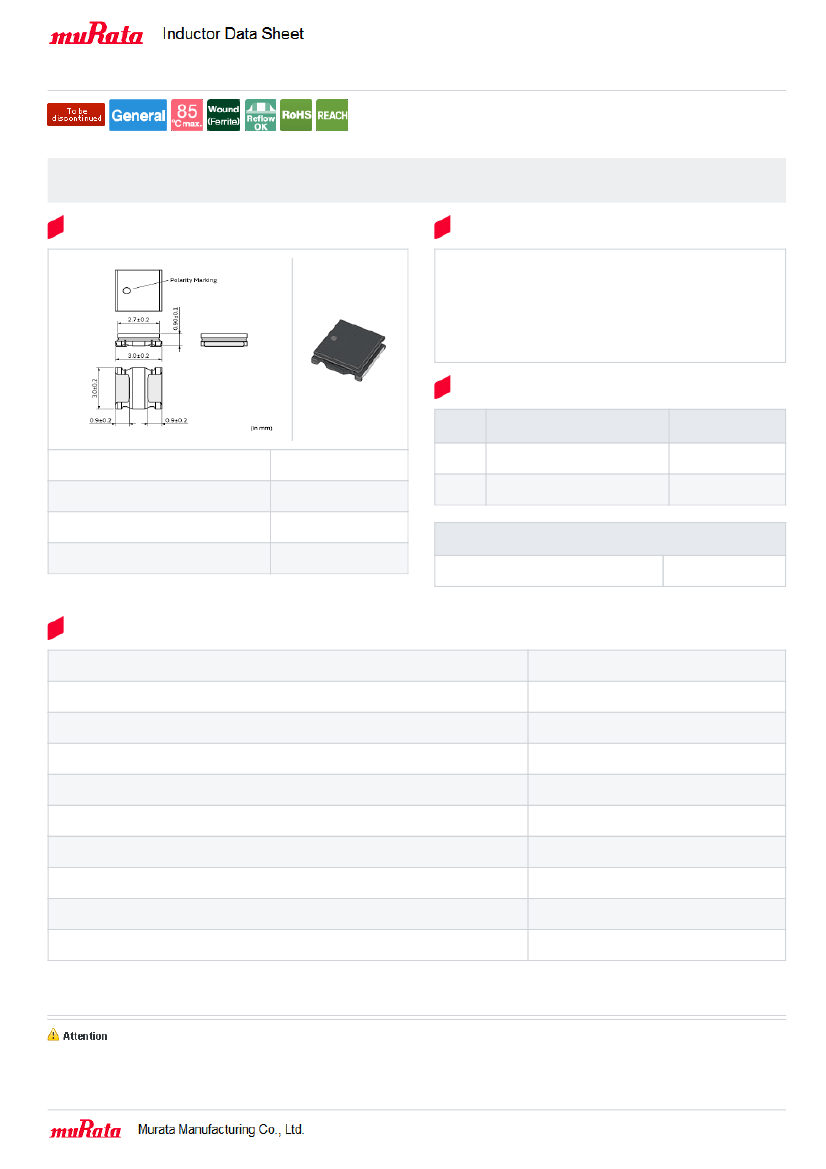

LQH3NPN3R3NG0#
Last Time Buy Date: 31 Mar 2018
< List of part numbers with package codes >
“#” indicates a package specification code.
Date of discontinuation: 30 Sep 2018
LQH3NPN3R3NG0L , LQH3NPN3R3NG0K
Shape
Notes
When applied Rated current to the Products, Inductance will be within
±30% of nomonal Inductance value.
When applied Rated current to the Products, temperature rise caused by
self-generated heat shall be limited to 40℃ max.
Keep the temperature (ambient temperature plus self-generation of heat)
under 125℃.
References
Packaging
code
L size
W size
T size
Size code in inch (mm)
3.0 ±0.2mm
3.0 ±0.2mm
0.9 ±0.1mm
1212 (3030)
1 piece
0.034g
L
K
Specifications
φ180mm
Embossed taping
φ330mm
Embossed taping
Minimum quantity
1500
6000
Mass (Typ.)
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is not included)
Class of magnetic shield
Series
3.3µH ±30%
1MHz
850mA
1130mA
0.216Ω
0.18Ω ±20%
75MHz
-40〜85℃
Magnetic Resin
LQH3NPN_G0
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/05/24

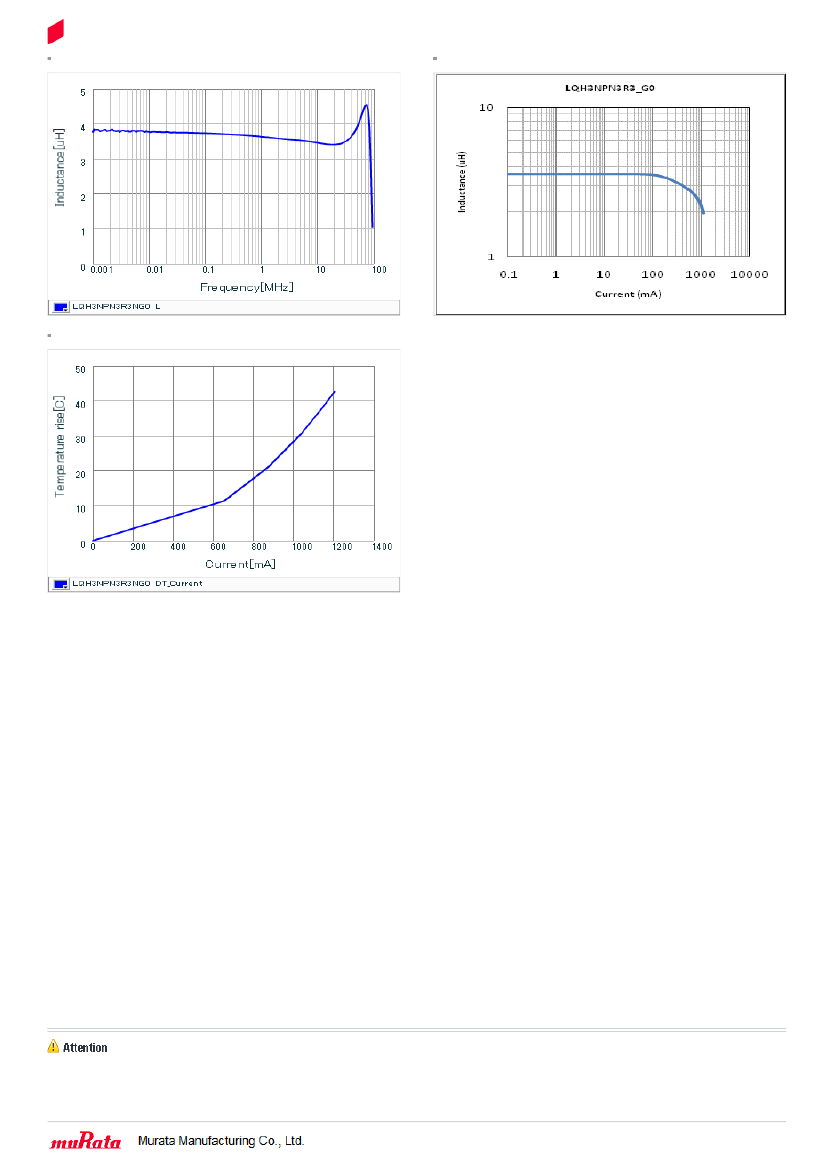

Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Frequency characteristics (Typ.)
Inductance-Current characteristics (Typ.)
Temperature rise characteristics (Typ.)
2 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
Last updated: 2018/05/24
