Datasheet> All Categories > Analog mixed-signal IC> filter> BLM18KG102SN1D

Preview

BLM18KG102SN1D: DescriptionImpedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 1A DC Resistance (DCR) (Max): 200mΩ; CategoryAnalog mixed-signal IC filter; File Size212KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM18KG102SN1D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BLM18KG102SN1D	-	-	View	Buy Now

BLM18KG102SN1D Overview

Impedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 1A DC Resistance (DCR) (Max): 200mΩ

BLM18KG102SN1D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Maximum DC resistance	0.2 Ω
filter type	FERRITE CHIP
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	1000 OHM Ω
method of packing	TR, PAPER, 7 INCH
Rated current	0.8 A
Terminal surface	Tin (Sn)
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of BLM18KG102SN1# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-us/products/productdetail?partno=BLM18KG102SN1%23

BLM18KG102SN1#

“#” indicates a package specification code.

< List of part numbers with package codes >

BLM18KG102SN1B BLM18KG102SN1D BLM18KG102SN1J

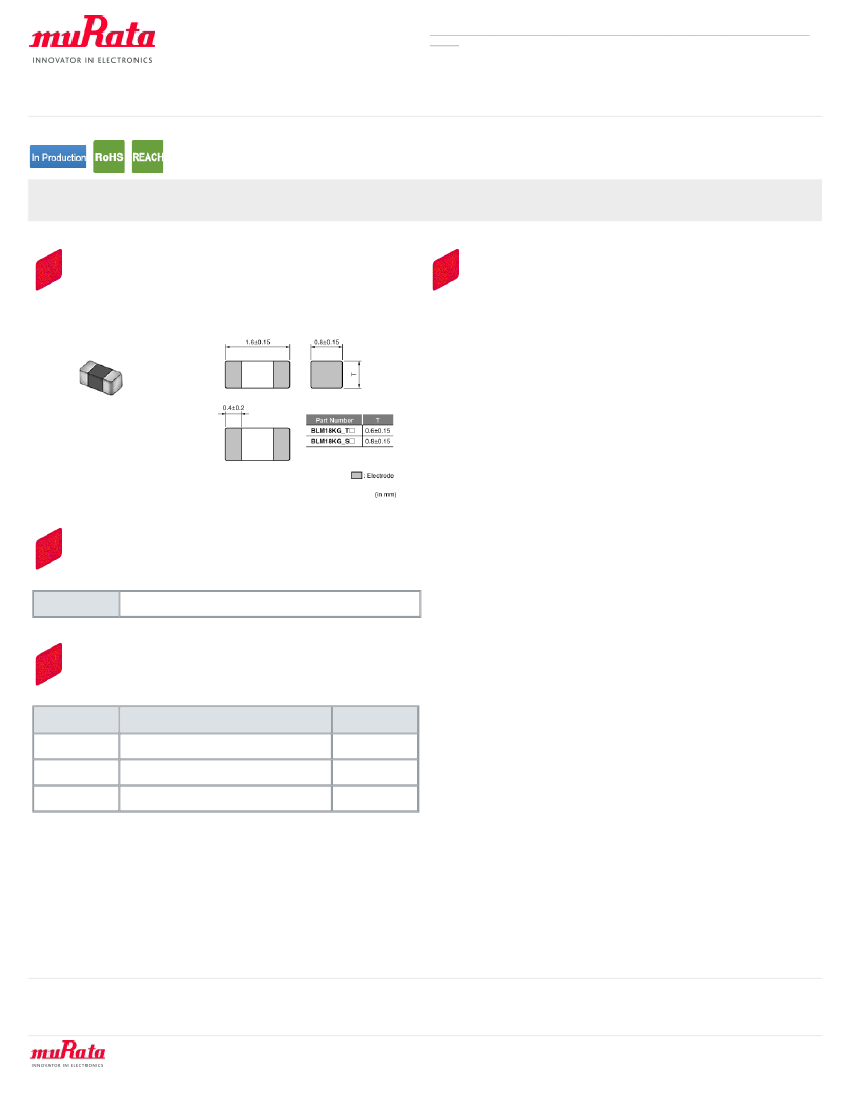

Appearance & Shape

Features

The chip ferrite beads BLM series is designed to

function nearly as a resistor at noise frequencies,

which greatly reduces the possibility of resonance and

leaves signal wave forms undistorted.

BLM series is effective in circuits without stable

ground lines because BLM series does not need a

connection to ground.

The nickel barrier structure of the external

electrodes provides excellent solder heat resistance.

BLM_K series can be used in high current circuits

due to its low DC resistance. It can match power lines

to a maximum of 6A DC.

Applications

Other Usage

For general

Packaging Information

Packaging

B

D

J

Specifications

Bulk(Bag)

180mm Paper Tape

330mm Paper Tape

Minimum

Order Quantity

1000

4000

10000

1 of 3

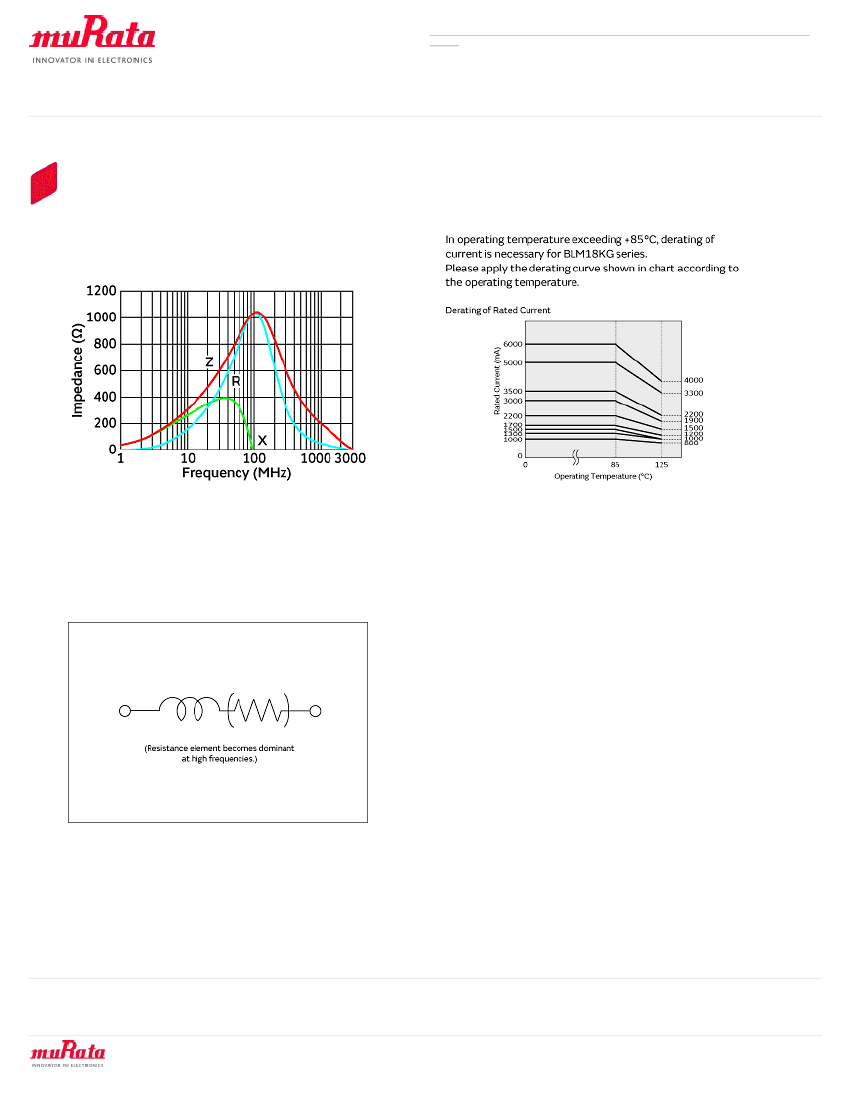

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/03/12
