BLM21BD102SN1D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BLM21BD102SN1D

BLM21BD102SN1D: DescriptionImpedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 250mA DC Resistance (DCR) (Max): 400mΩ; CategoryAnalog mixed-signal IC filter; File Size246KB，6 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM21BD102SN1D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BLM21BD102SN1D	-	-	View	Buy Now

BLM21BD102SN1D Overview

Impedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 250mA DC Resistance (DCR) (Max): 400mΩ

BLM21BD102SN1D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Other features	MONOLITHIC TYPE
shell code	0805
structure	Chip Bead
Maximum DC resistance	0.4 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.85 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	1000 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	0.2 A
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

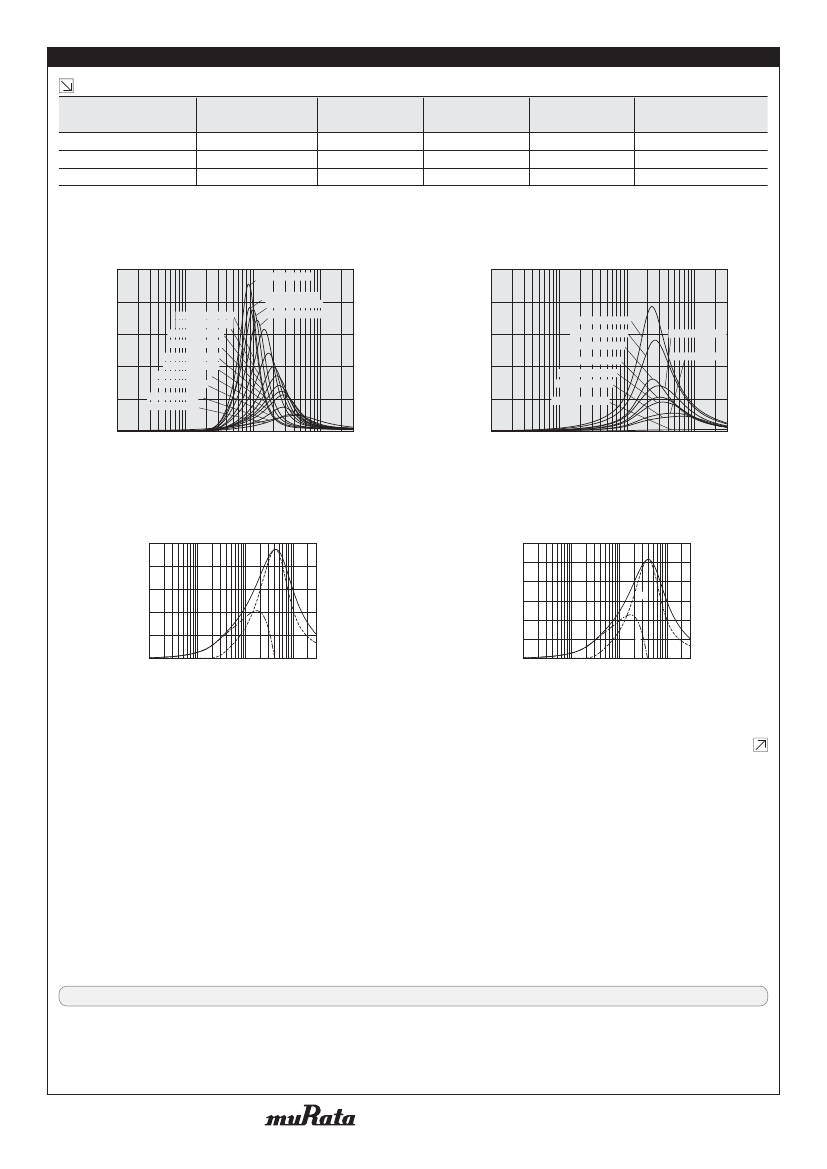

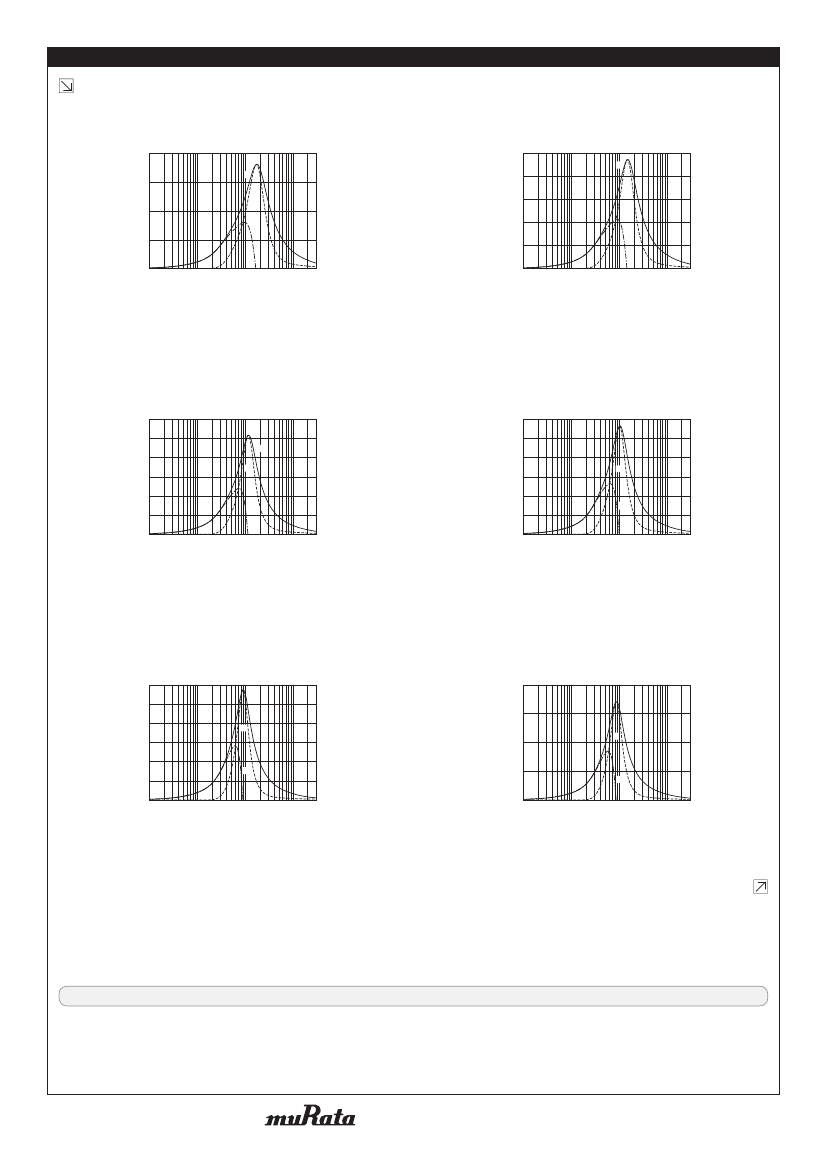

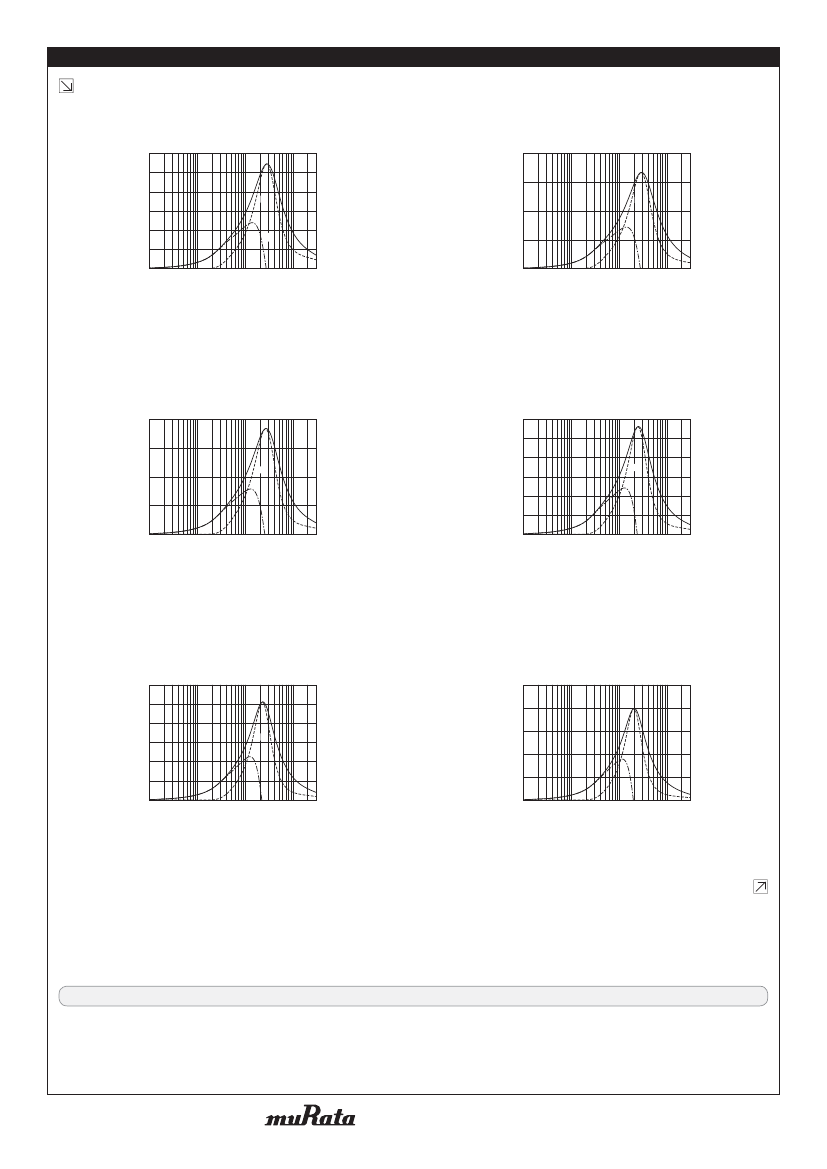

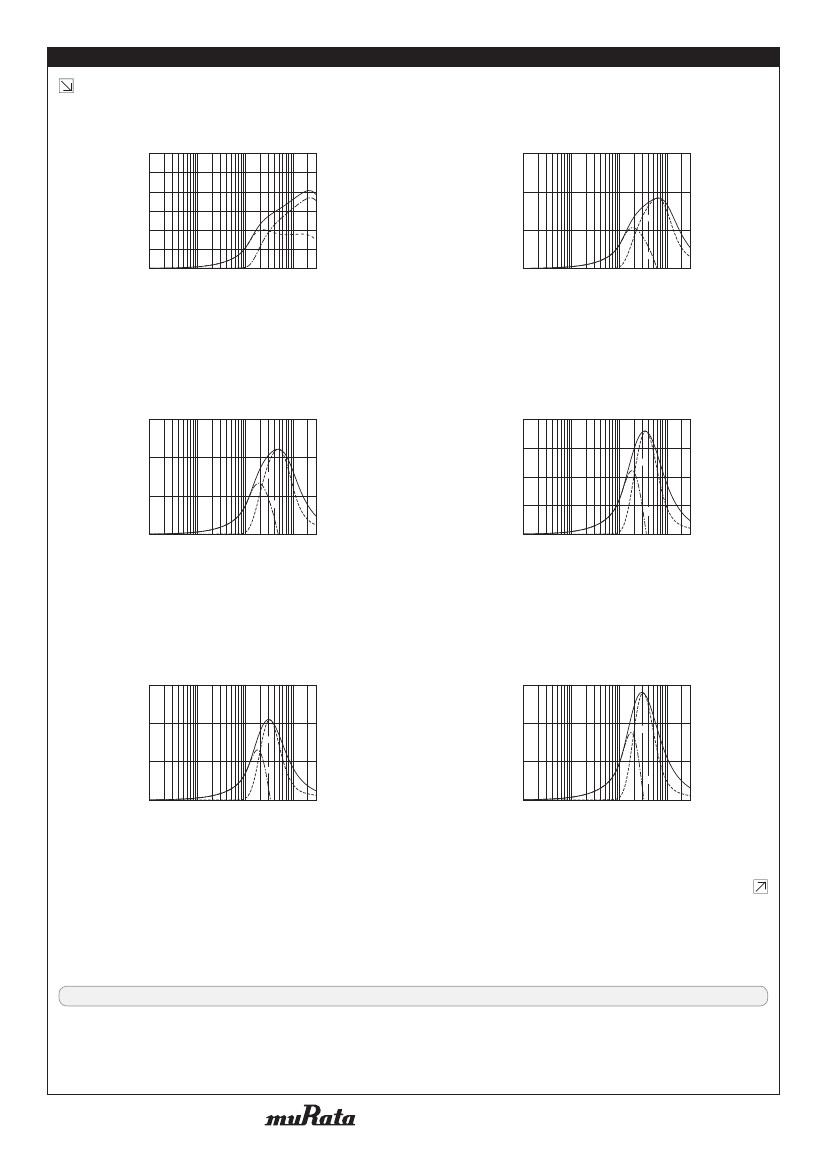

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead

Data Sheet

EMIFIL

(Inductor type)

Chip Ferrite Bead

BLM21B Series (0805 Size)

Dimensions

Equivalent Circuit

2.0±0.2

1.25±0.2

Part Number

BLM21B

0.85±0.2 0.5±0.2

(exclude items below)

BLM21BD222Sp1

1.25±0.2 0.5±0.2

BLM21BD272Sp1

1.25±0.2 0.3±0.2

: Electrode

(in mm)

(Resistance element becomes dominant

at high frequencies.)

Packaging

Code

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

4000

10000

1000

BLM21BD222SN1/21BD272SN1

Code

180mm Plastic Tape

330mm Plastic Tape

Bulk(Bag)

3000

10000

1000

Rated Value (p: packaging code)

Part Number

BLM21BD121SN1p

BLM21BD151SN1p

BLM21BD221SN1p

BLM21BD331SN1p

BLM21BD421SN1p

BLM21BD471SN1p

BLM21BD601SN1p

BLM21BD751SN1p

BLM21BD102SN1p

BLM21BD152SN1p

BLM21BD182SN1p

BLM21BD222TN1p

BLM21BD222SN1p

BLM21BD272SN1p

BLM21BB050SN1p

BLM21BB600SN1p

BLM21BB750SN1p

BLM21BB121SN1p

BLM21BB151SN1p

BLM21BB201SN1p

Number of Circuits: 1

Continued on the following page.

Impedance

(at 100MHz/20°C)

120ohm ±25%

150ohm ±25%

220ohm ±25%

330ohm ±25%

420ohm ±25%

470ohm ±25%

600ohm ±25%

750ohm ±25%

1000ohm ±25%

1500ohm ±25%

1800ohm ±25%

2200ohm ±25%

2250ohm (Typ.)

2700ohm ±25%

5ohm ±25%

60ohm ±25%

75ohm ±25%

120ohm ±25%

150ohm ±25%

200ohm ±25%

Impedance

(at 1GHz/20°C)

Rated Current

200mA

1000mA

800mA

700mA

600mA

500mA

DC Resistance

0.25ohm max.

0.30ohm max.

0.35ohm max.

0.40ohm max.

0.45ohm max.

0.50ohm max.

0.60ohm max.

0.80ohm max.

0.02ohm max.

0.13ohm max.

0.16ohm max.

0.19ohm max.

0.21ohm max.

0.26ohm max.

Operating

Temperature Range

-55 to +125°C

oThis

data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our products in it

may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2014.9.8

Murata Manufacturing Co., Ltd.

http://www.murata.com/
