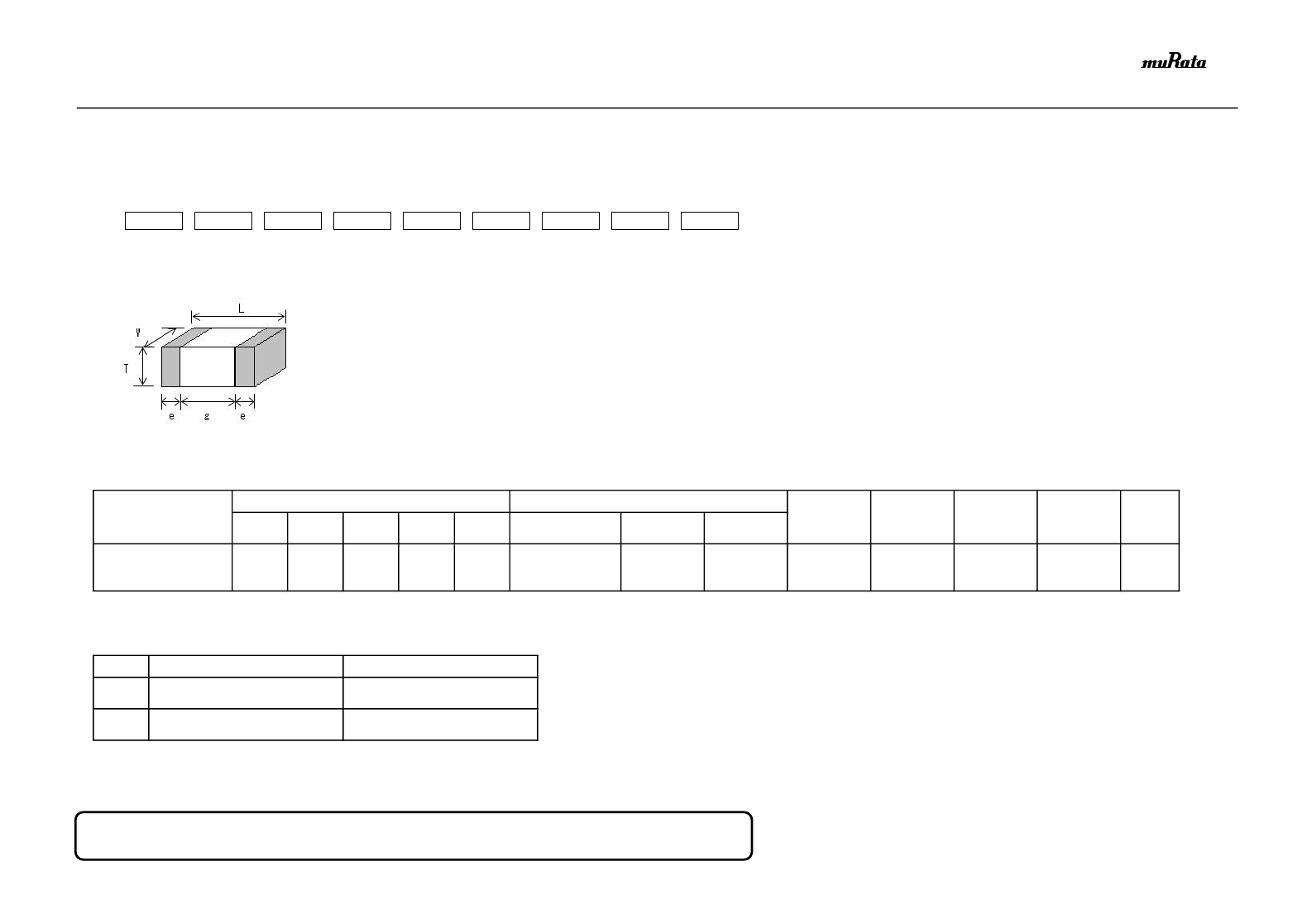

GRM1885C1H682JA01-01A
■
Specifications and Test Methods
Item
No.
1 Rated Voltage
Specification
Shown in Rated value.
Test Method (Ref. Standard:JIS C 5101, IEC60384)
The rated voltage is defined as the maximum voltage which may be applied continuously to the capacitor.
When AC voltage is superimposed on DC voltage, V
P-P
or V
O-P
, whichever is larger, should be maintained
within the rated voltage range.
Visual inspection.
Using Measuring instrument of dimension.
Measurement Point :
Between the terminations
Test Voltage :
300% of the rated voltage
Applied Time :
1s to 5s
Charge/Discharge Current : 50mA max.
Measurement Temperature: Room Temperature
Measurement Point :
Between the terminations
Measurement Voltage :
Rated Voltage
Charging Time :
2min
Charge/Discharge Current : 50mA max.
Measurement Temperature: Room Temperature
Measurement Frequency : 1.0+/-0.1kHz
Measurement Voltage :
1.0+/-0.2Vrms
2 Appearance
3 Dimension
4 Voltage Proof
No defects or abnormalities.
Shown in Rated value.
No defects or abnormalities.
5 Insulation Resistance(I.R.)
More than 10000MΩ
6 Capacitance
Shown in Rated value.
7 Q or Dissipation Factor (D.F.)
Q≧1000
Measurement Temperature : Room Temperature
Measurement Frequency : 1.0+/-0.1kHz
Measurement Voltage :
1.0+/-0.2Vrms
The capacitance change should be measured after 5 minutes at each specified temperature stage.
Capacitance value as a reference is the value in "*" marked step.
The capacitance drift is calculated by dividing the differences between the maximum and minimum measured values in the step 1,3 and 5 by the capacitance
value in step 3.
8 Capacitance
Temperature
Characteristics
No bias
Nominal value of the temperature coefficient is shown in Rated value.
But, the Capacitance Change under Reference Temperature is shown in
Table A.
Capacitance Drift:Within +/-0.2% or +/-0.05pF (Whichever is larger)
Measurement Voltage :
Less than 1.0Vrms (Refer to the individual data sheet)
Step
1
2
3
*
4
5
Temperature(°C)
Reference Temp. +/-2
Min. Operating Temp. +/-3
Reference Temp. +/-2
Max. Operating Temp. ±3
Reference Temp. +/-2
Applying Voltage
No bias
GRM1885C1H682JA01-01A
Item
No.
9 Adhesive Strength of
Termination
Specification
No removal of the terminations or other defect should occur.
Test Method (Ref. Standard:JIS C 5101, IEC60384)
Solder the capacitor on the test substrate shown in Fig.3.
Applied Force :
5N
Holding Time :
10+/-1½
Applied Direction :
In parallel with the test substrate and vertical with the capacitor side
Solder the capacitor on the test substrate shown in Fig.3.
Kind of Vibration :
A simple harmonic motion 10Hz to 55Hz to 10Hz
Vibration Time :
1min
Total Amplitude :
1.5mm
This motion should be applied for a period of 2hours in each 3 mutually perpendicular directions(total of 6hours).
10 Vibration
Appearance
No defects or abnormalities.
Capacitance Within the specified initial value.
Q or D.F.
Within the specified initial value.
11 Substrate
Bending Test
Appearance
No defects or abnormalities.
Capacitance Within +/-5% or +/-0.5pF (Whichever is larger)
Change
Solder the capacitor on the test substrate shown in Fig.1.
Pressurization Method :
Shown in Fig.2.
Flexure :
1mm
Holding Time :
5+/-1s
Soldering Method :
Reflow soldering
Test Method :
Flux :
Preheat :
Solder :
Test Temp. :
Test Time :
Test Method :
Solder :
Solder Temp. :
Test Time :
Preheat Temp. :
Preheat Time :
Solder bath method
Solution of rosin ethanol 25(mass)%
80℃ to 120℃、10s to 30s
Sn-3.0Ag-0.5Cu(Lead Free Solder)
245+/-5℃
2+/-0.5s
Solder bath method
Sn-3.0Ag-0.5Cu(Lead Free Solder)
270+/-5℃
10+/-0.5s
120℃ to 150℃
1min
12 Solderability
95% of the terminations is to be soldered evenly and continuously.
13 Resistance
to Soldering
Heat
Appearance
No defects or abnormalities.
Capacitance Within +/-2.5% or +/-0.25pF (Whichever is larger)
Change
Q or D.F.
Within the specified initial value.
I.R.
Voltage
Proof
Within the specified initial value.
No defects.
Post-treatment :
Let sit for 24+/-2hours at room temperature, then measure.
14 Temperature
Sudden
Change
Appearance
No defects or abnormalities.
Solder the capacitor on the test substrate shown in Fig.3.
5 cycles
Cycles :
Step
1
2
3
4
Temperature(℃)
Min.Operating Temp. +0/-3
Reference Temp.
Max.Operating Temp. +3/-0
Reference Temp.
Time (min)
30+/-3
2 to 3
30+/-3
2 to 3
Capacitance Within +/-2.5% or +/-0.25pF (Whichever is larger)
Change
Q or D.F.
Within the specified initial value.
I.R.
Voltage
Proof
Within the specified initial value.
No defects.
Post-treatment :
Let sit for 24+/-2hours at room temperature, then measure.
GRM1885C1H682JA01-01A
Item
Specification
No.
15 High
Appearance No defects or abnormalities.
Temperature
High Humidity
Capacitance Within +/-7.5% or +/-0.75pF (Whichever is larger)
(Steady)
Change
Q or D.F.
Q≧200
I.R.
More than 500MΩ or 25Ω½F (Whichever is smaller)
Test Method (Ref. Standard:JIS C 5101, IEC60384)
Solder the capacitor on the test substrate shown in Fig.3.
40+/-2℃
Test Temperature :
Test Humidity :
90%RH to 95%RH
Test Time :
500+/-12h
Test Voltage :
Rated Voltage
Charge/Discharge Current : 50mA max.
Post-treatment :
Let sit for 24+/-2hours at room temperature, then measure.
16 Durability
Appearance
No defects or abnormalities.
Capacitance Within +/-3% or +/-0.3pF (Whichever is larger)
Change
Q or D.F.
Q≧350
I.R.
More than 1000MΩ or 50Ω½F (Whichever is smaller)
Solder the capacitor on the test substrate shown in Fig.3.
Test Temperature :
Maximum Operating Temperature+/-3℃
Test Time :
1000+/-12h
Test Voltage :
200% of the rated voltage
Charge/Discharge Current : 50mA max.
Post-treatment :
Let sit for 24+/-2hours at room temperature, then measure.
Table A Capacitance Change between at Reference Temp. and at each Temp. (%)
-55℃
-30℃
-10℃
Char.
Max.
Max.
Min.
Min.
Max.
Min.
5C
0.58
-0.24
0.4
-0.17
0.25
-0.11
GRM1885C1H682JA01-01A
Substrate Bending Test
・Test
Substrate
Material : JIS C 6484 Copper-clad laminated sheets for PCBs (Glass fabric base, epoxy resin)
Thickness :
1.6mm
Copper Foil Thickness: 0.035mm
Kind of Solder : Sn-3.0Ag-0.5Cu
Land
b
4.5
40
c
c
Series
GRM18
Dimension(mm)
a
1.0
b
3.0
c
1.2
a
100
Solder Resist (Coat with heat resistant resin for solder)
・Pressurization
Method
20
50min.
Pressurization speed
1.0mm/s
Pressurize
R5
Support
Capacitance meter
45
45
Flexure
Fig.2 (in mm)
Adhesive Strength of Termination, Vibration, Temperature Sudden Change, High Temperature High Humidity(Steady), Durability
・Test
Substrate
Material : JIS C 6484 Copper-clad laminated sheets for PCBs (Glass fabric base, epoxy resin)
PCB layout design
