74HC4514PW,118 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC4514PW,118

74HC4514PW,118: Categorylogic logic; File Size244KB，19 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com; Environmental Compliance

Download Datasheet Parametric Compare View All

74HC4514PW,118 Parametric

Parameter Name	Attribute value
Brand Name	Nexperia
Is it Rohs certified?	conform to
Maker	Nexperia
Parts packaging code	TSSOP2
package instruction	SOT-355, 24 PIN
Contacts	24
Manufacturer packaging code	SOT355-1
Reach Compliance Code	compliant
Samacsys Description	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us
Other features	ADDRESS LATCHES
series	HC/UH
Input adjustment	LATCHED
JESD-30 code	R-PDSO-G24
JESD-609 code	e4
length	7.8 mm
Logic integrated circuit type	OTHER DECODER/DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	69 ns
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74HC4514; 74HCT4514

Rev. 3 — 20 February 2018

4-to-16 line decoder/demultiplexer with input latches

Product data sheet

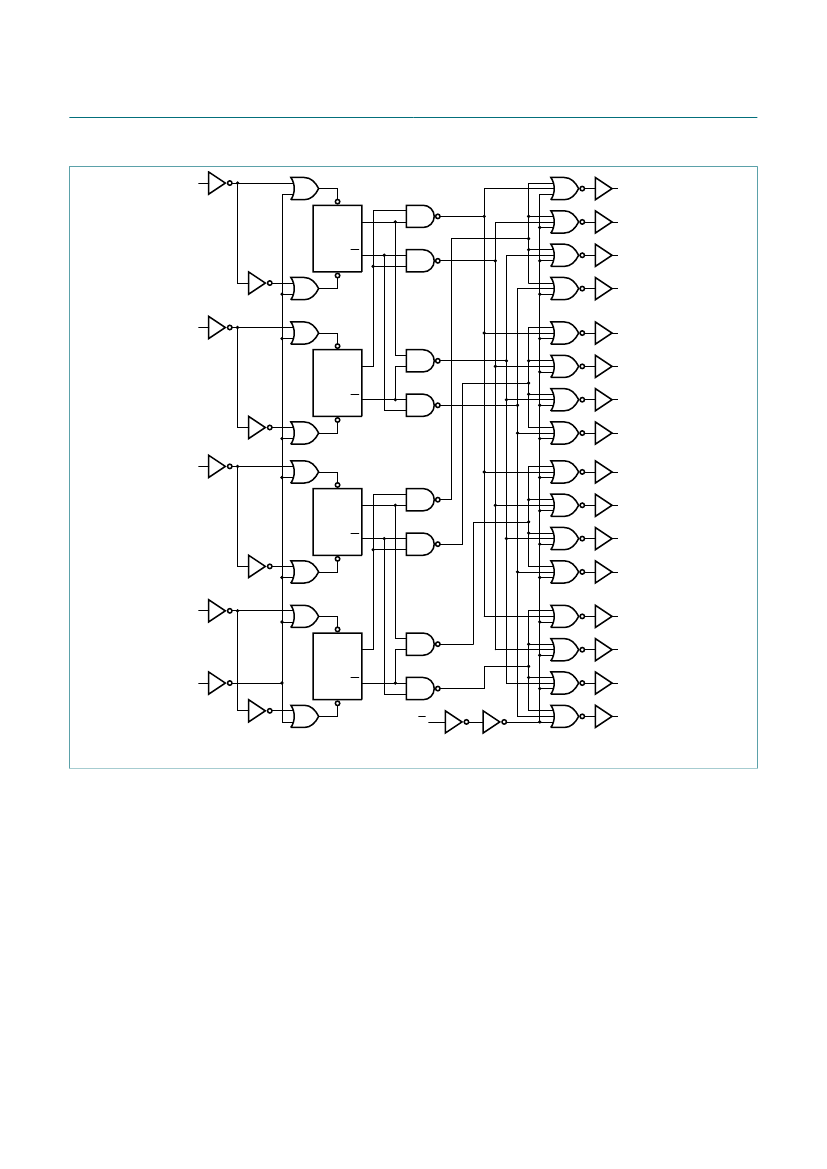

General description

The 74HC4514; 74HCT4514 is a 4-to-16 line decoder/demultiplexer having four

binary weighted address inputs (A0 to A3), with latches, a latch enable input (LE), an

enable input (E) and 16 outputs (Q0 to Q15). When LE is HIGH, the selected output

is determined by the data on An. When LE goes LOW, the last data present at An are

stored in the latches and the outputs remain stable. When E is LOW, the selected output,

determined by the contents of the latch, is HIGH. At E HIGH, all outputs are LOW.

The enable input E does not affect the state of the latch. When the device is used as a

demultiplexer, E is the data input and A0 to A3 are the address inputs. Inputs include

clamp diodes. This enables the use of current limiting resistors to interface inputs to

voltages in excess of V

The 74HCT4514 features reduced input threshold levels to allow interfacing to TTL logic

levels.

Features and benefits

•

Input levels:

–

For 74HC4514: CMOS level

–

For 74HCT4514: TTL level

•

16-line demultiplexing capability

•

Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs

•

Complies with JEDEC standard no. 7 A

•

ESD protection:

–

HBM JESD22-A114F exceeds 2000 V

–

MM JESD22-A115-A exceeds 200 V

•

Multiple package options

•

Specified from -40 °C to +85 °C and -40 °C to +125 °C

Applications

•

Digital multiplexing

•

Address decoding

•

Hexadecimal/BCD decoding

74HC4514PW,118 Related Products

	74HC4514PW,118	74HCT4514D,652	74HCT4514PW,112	74HC4514DB,118	74HCT4514D,653	74HC4514D,653	74HC4514PW,112
Description		74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches SOP 24-Pin	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches TSSOP2 24-Pin	IC DECODR/DEMUX 4-16 LINE 24SSOP	IC 4-16 LINE DECOD/DEMUX 24SOIC	4 to 16 line decoders/multiplexers with input locks	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches TSSOP2 24-Pin
Brand Name	Nexperia	Nexperia	Nexperia	Nexperia	Nexperia	Nexperia	Nexperia
Parts packaging code	TSSOP2	SOP	TSSOP2	SSOP2	SOP	SOP	TSSOP2
package instruction	SOT-355, 24 PIN	SO-24	SOT-355, 24 PIN	SSOP-24	SO-24	SOP,	SOT-355, 24 PIN
Contacts	24	24	24	24	24	24	24
Manufacturer packaging code	SOT355-1	SOT137-1	SOT355-1	SOT340-1	SOT137-1	SOT137-1	SOT355-1
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ADDRESS LATCHES	ADDRESS LATCHES	ADDRESS LATCHES	ADDRESS LATCHES	ADDRESS LATCHES	ADDRESS LATCHES	ADDRESS LATCHES
series	HC/UH	HCT	HCT	HC/UH	HCT	HC/UH	HC/UH
Input adjustment	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
length	7.8 mm	15.4 mm	7.8 mm	8.2 mm	15.4 mm	15.4 mm	7.8 mm
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Humidity sensitivity level	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	TSSOP	SSOP	SOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	260	NOT SPECIFIED	NOT SPECIFIED	260	NOT SPECIFIED
propagation delay (tpd)	69 ns	83 ns	83 ns	69 ns	83 ns	69 ns	69 ns
Maximum seat height	1.1 mm	2.65 mm	1.1 mm	2 mm	2.65 mm	2.65 mm	1.1 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	5.5 V	6 V	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	4.5 V	4.5 V	2 V	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	30	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
width	4.4 mm	7.5 mm	4.4 mm	5.3 mm	7.5 mm	7.5 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to
Maker	Nexperia	Nexperia	Nexperia	Nexperia	Nexperia	-	Nexperia
Samacsys Description	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us	Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/MUX W/LATCHES	-	74HC(T)4514 - 4-to-16 line decoder/demultiplexer with input latches@en-us
