D2SW-P2L1B BY OMZ

Description
Circuit structure: SPDT Force: - Switch function: Mom-On-Mom
Categoryaccessories    Travel switch
File Size254KB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric Compare View All

D2SW-P2L1B BY OMZ Overview

Circuit structure: SPDT Force: - Switch function: Mom-On-Mom

D2SW-P2L1B BY OMZ Parametric

Parameter NameAttribute value
Circuit configurationSPDT
force-
Rated voltage DC250V (AC)
Rated current2A
switch functionMom-On-Mom

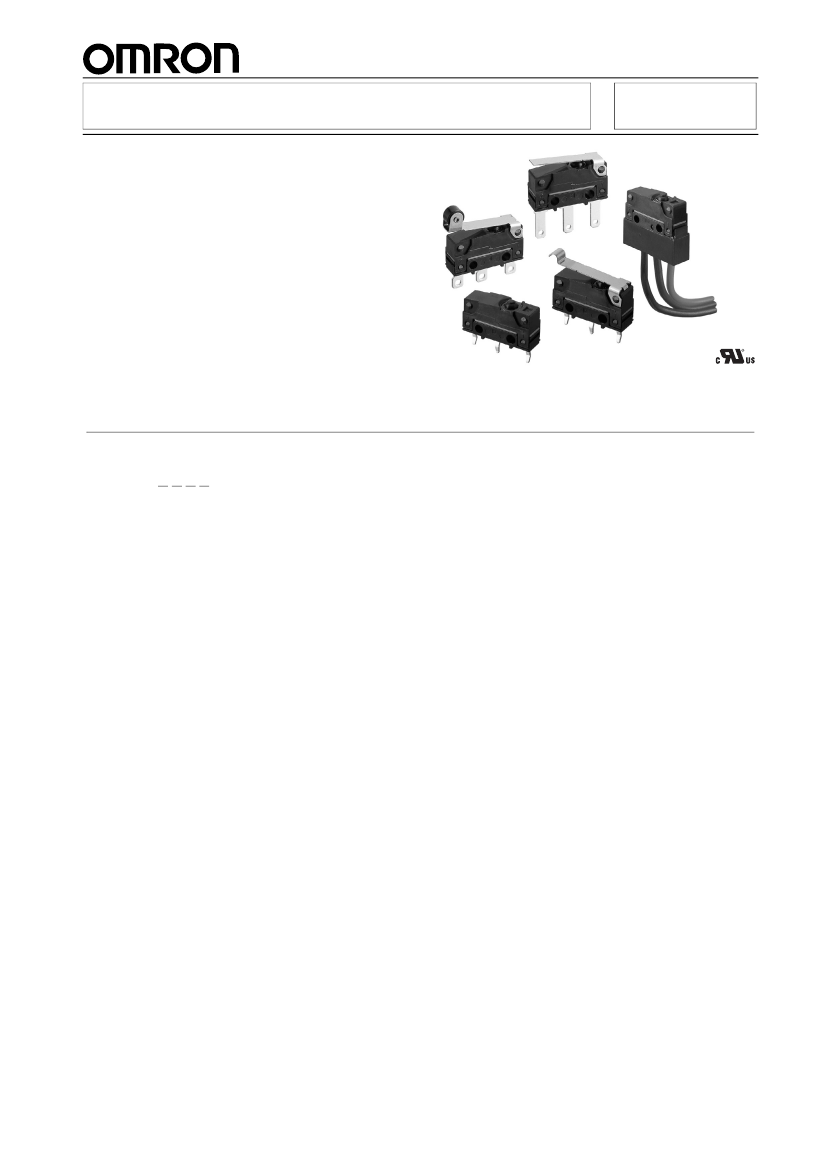

Sealed Subminiature Basic Switch
Sealed Basic Switch with Simplified
Construction, Mounting Compatible with
SS and D2SW Series.
D2SW-P
Sealing by using rubber packing means the switch
can be used in dust-proof or in temporary water-
proof environments (IEC IP67).
Switch rating of 2A at 250 VAC possible with a
single-leaf movable spring. Models for micro loads
are also available.
Solder, quick-connect terminals (#110), PCB ter-
minals and molded lead wires are available.
Even-pitched PCB terminals are also standard-
ized.
Ordering Information
Model Number Legend
D2SW-P @@@@
1 2 3 4
1. Ratings
2:
01:
None:
L1:
L2:
L3:
2A at 250 VAC
0.1A at 30 VDC

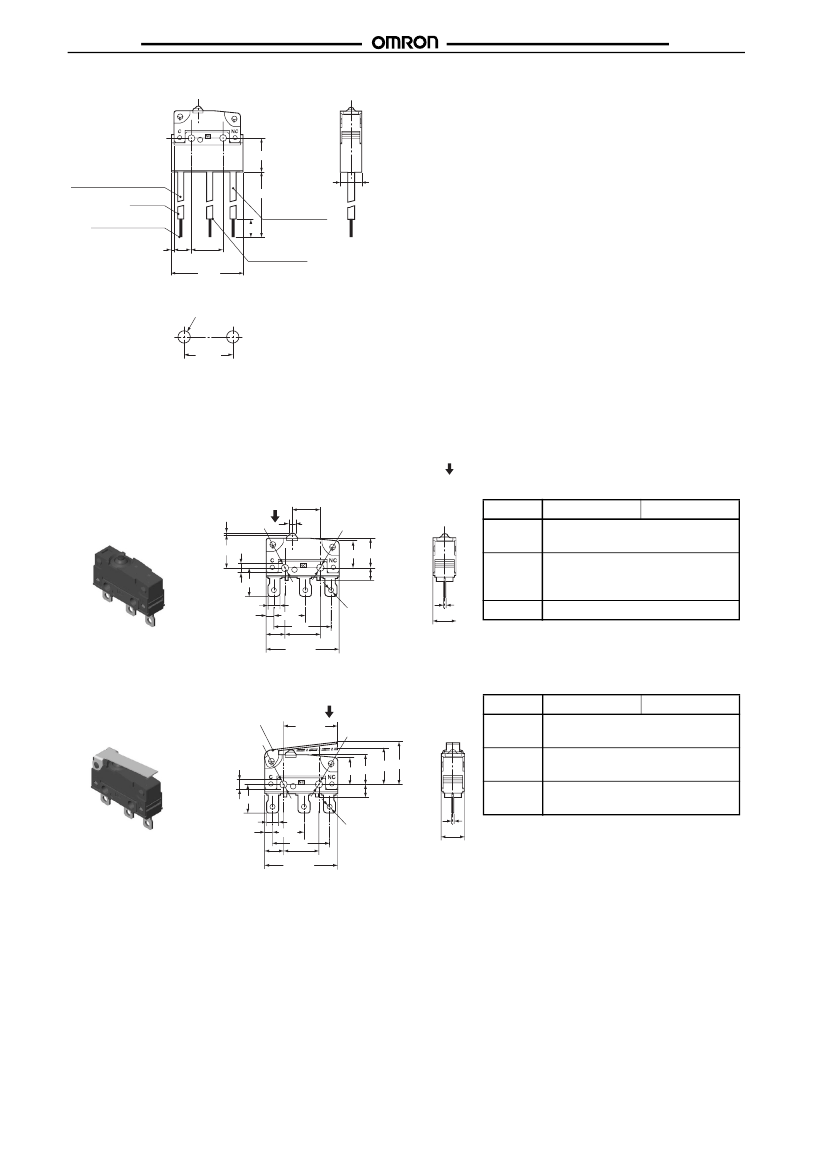

Pin plunger
Hinge lever

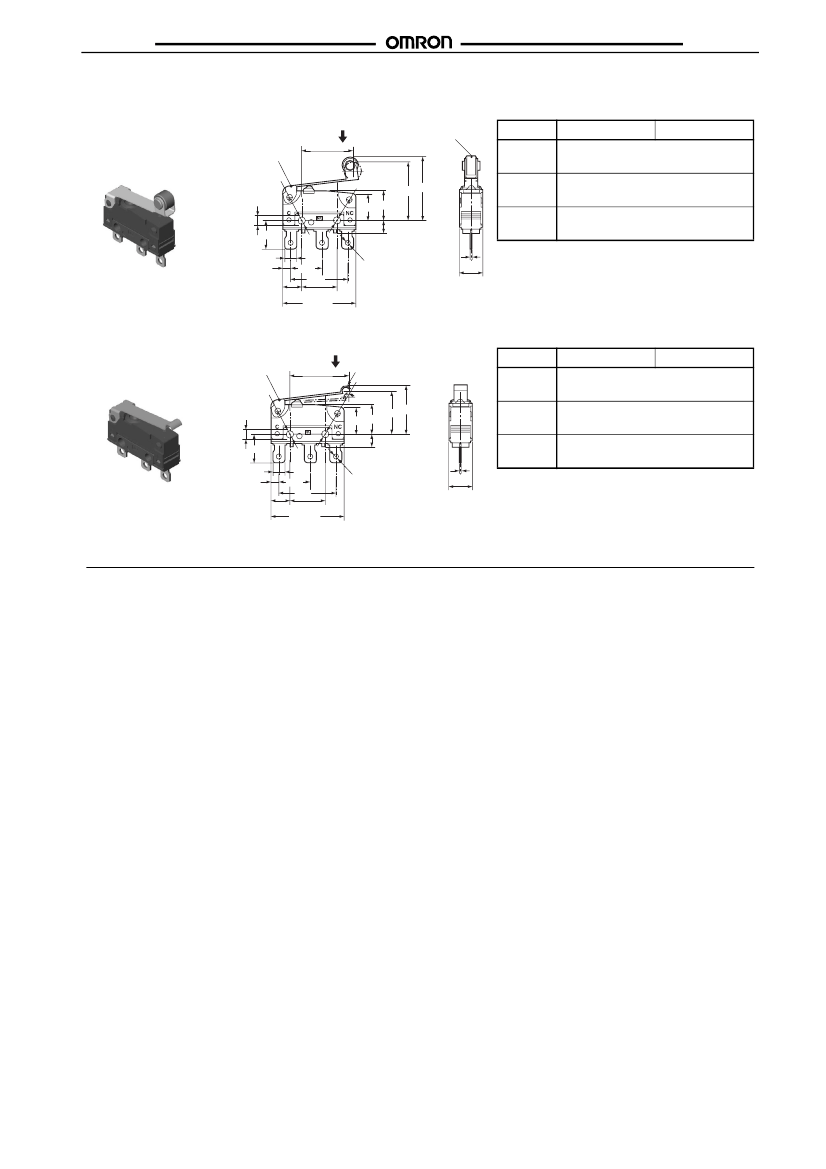

Hinge roller lever
Simulated roller lever
2. Actuator
3. Contact Form
None: SPDT
-2:
SPST-NC (Molded lead wire models only)
-3:
SPST-NO (Molded lead wire models only)

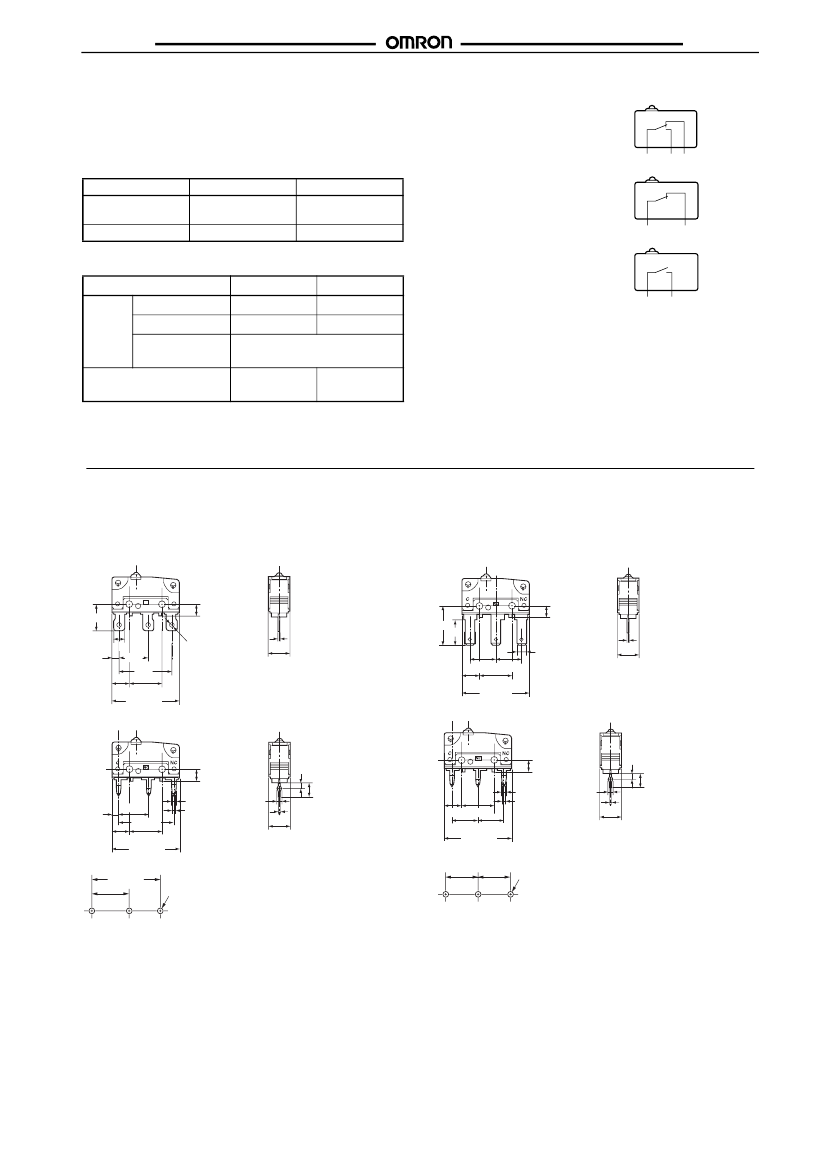

4. Terminals
H:
T:
D:
B:
M:
Solder terminals
Quick-connect terminals (#110)
PCB terminals (Uneven pitch)
PCB terminals (Even pitch)
Molded lead wires
227
