TinyLogic HS Inverter with
Schmitt Trigger Input
NC7S14
Description
The NC7S14 is a single high performance CMOS Inverter with
Schmitt Trigger input. The circuit design provides hysteresis between
the positive−going and negative going input thresholds thereby
improving noise margins.
Advanced Silicon Gate CMOS fabrication assures high speed and
low power circuit operation over a broad V
CC
range. ESD protection
diodes inherently guard both input and output with respect to the V
CC
and GND rails.
Features
www.onsemi.com
MARKING
DIAGRAMS
SIP6
CASE 127EB
Pin 1
UUKK
XYZ
•
•
•
•
•
•
•
•
•
•
Space Saving SC−74A and SC−88A 5−Lead Package
Ultra Small MicroPak™ Leadless Package
Schmitt Input Hysteresis: >1 V Typ
High Speed: t
PD
= 4.5 ns Typ
Low Quiescent Power: I
CC
< 1
mA
Balanced Output Drive: 2 mA I
OL
,
−2
mA I
OH
Broad V
CC
Operating Range: 2 V – 6 V
Balanced Propagation Delays
Specified for 3 V Operation
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
IEEE / IEC
A
1
Y
UU, 7S14, S14
KK
XY
Z
M
SC−74A
CASE 318BQ
7S14MG
G
SC−88A
CASE 419A−02
S14MG
G
= Specific Device Code
= 2−Digit Lot Run Traceability Code
= 2−Digit Date Code Format
= Assembly Plant Code
= Date Code*

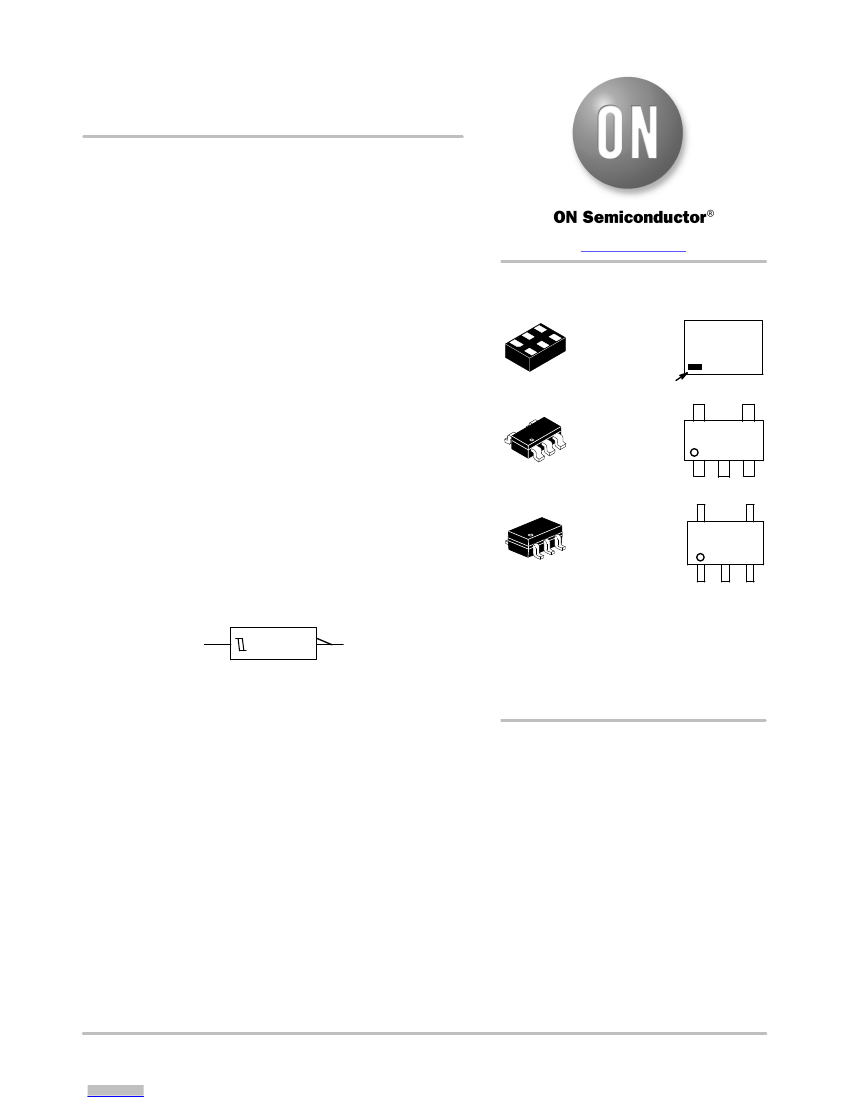

Figure 1. Logic Symbol
*Date Code orientation and/or position may
vary depending upon manufacturing location.
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 5 of this data sheet.
