74LCX125MX

Description
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N T/R
CategoryBuffer and line drives
File Size999KB,14 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

74LCX125MX Online Shopping

Suppliers Part Number Price MOQ In stock
74LCX125MX - - View Buy Now

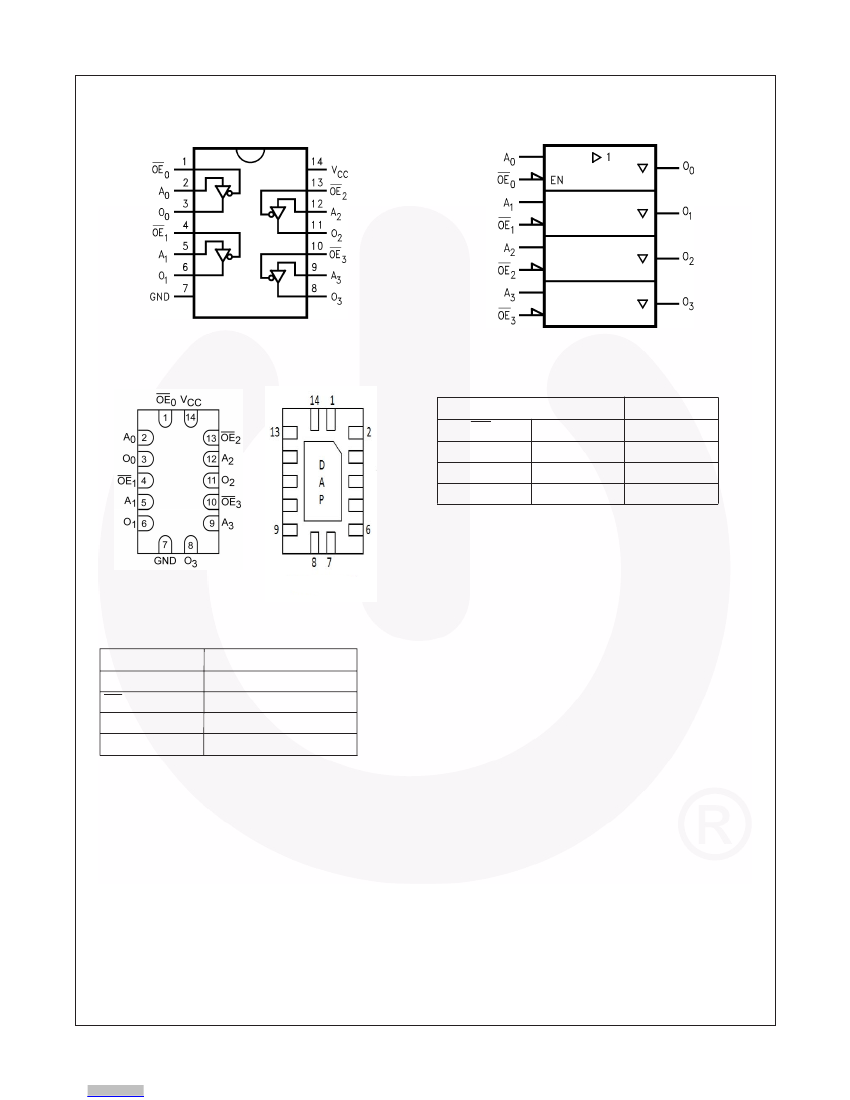

74LCX125MX Overview

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N T/R

74LCX125MX Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8542.39.00.01
Logic FamilyLCX
Logic FunctionBuffer/Line Driver
Number of Elements per Chip4
Number of Channels per Chip4
Number of Inputs per Chip4
Number of Input Enables per Chip0
Number of Outputs per Chip4
Number of Output Enables per Chip4 Low
Bus HoldNo
PolarityNon-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)6.5@2.7V|6@3.3V
Absolute Propagation Delay Time (ns)9.1
Process TechnologyCMOS
Input Signal TypeSingle-Ended
Output Type3-State
Maximum Low Level Output Current (mA)24
Maximum High Level Output Current (mA)-24
Minimum Operating Supply Voltage (V)2
Typical Operating Supply Voltage (V)2.5|3.3
Maximum Operating Supply Voltage (V)3.6
Tolerant I/Os (V)5
Maximum Quiescent Current (uA)10
Propagation Delay Test Condition (pF)50
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
PackagingTape and Reel
Standard Package NameSOP
Pin Count14
Supplier PackageSOIC N
MountingSurface Mount
Package Height1.5(Max)
Package Length8.75(Max)
Package Width4(Max)
PCB changed14
Lead ShapeGull-wing
Is Now Part of
To learn more about ON Semiconductor, please visit our website at
www.onsemi.com
Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers
will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor
product management systems do not have the ability to manage part nomenclature that utilizes an underscore
(_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain
device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated
device numbers. The most current and up-to-date ordering information can be found at
www.onsemi.com.
Please
email any questions regarding the system integration to
Fairchild_questions@onsemi.com.
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number
of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right
to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON
Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON
Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA
Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended
or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor
is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

74LCX125MX Related Products

74LCX125MX 74LCX125M 74LCX125BQX 74LCX125MTCX 74LCX125MTC
Description Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N T/R Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N Tube Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin DQFN EP T/R Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W Tube
EU restricts the use of certain hazardous substances Compliant - - Compliant Compliant
ECCN (US) EAR99 - - EAR99 EAR99
Part Status Active - - Active Active
HTS 8542.39.00.01 - - 8542.39.00.01 8542.39.00.01
Logic Family LCX - - LCX LCX
Logic Function Buffer/Line Driver - - Buffer/Line Driver Buffer/Line Driver
Number of Elements per Chip 4 - - 4 4
Number of Channels per Chip 4 - - 4 4
Number of Inputs per Chip 4 - - 4 4
Number of Outputs per Chip 4 - - 4 4
Number of Output Enables per Chip 4 Low - - 4 Low 4 Low
Bus Hold No - - No No
Polarity Non-Inverting - - Non-Inverting Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns) 6.5@2.7V|6@3.3V - - 6@3.3V|6.5@2.7V 6@3.3V|6.5@2.7V
Absolute Propagation Delay Time (ns) 9.1 - - 9.1 9.1
Process Technology CMOS - - CMOS CMOS
Input Signal Type Single-Ended - - Single-Ended Single-Ended
Output Type 3-State - - 3-State 3-State
Maximum Low Level Output Current (mA) 24 - - 24 24
Maximum High Level Output Current (mA) -24 - - -24 -24
Minimum Operating Supply Voltage (V) 2 - - 2 2
Typical Operating Supply Voltage (V) 2.5|3.3 - - 3.3|2.5 3.3|2.5
Maximum Operating Supply Voltage (V) 3.6 - - 3.6 3.6
Tolerant I/Os (V) 5 - - 5 5
Maximum Quiescent Current (uA) 10 - - 10 10
Propagation Delay Test Condition (pF) 50 - - 50 50
Minimum Operating Temperature (°C) -40 - - -40 -40
Maximum Operating Temperature (°C) 85 - - 85 85
Packaging Tape and Reel - - Tape and Reel Tube
Standard Package Name SOP - - SOP SOP
Pin Count 14 - - 14 14
Supplier Package SOIC N - - TSSOP W TSSOP W
Mounting Surface Mount - - Surface Mount Surface Mount
Package Height 1.5(Max) - - 1.05(Max) 1.05(Max)
Package Length 8.75(Max) - - 5.1(Max) 5.1(Max)
Package Width 4(Max) - - 4.5(Max) 4.5(Max)
PCB changed 14 - - 14 14
Lead Shape Gull-wing - - Gull-wing Gull-wing
