NCP706AMX300TAG datasheet, PDF

Datasheet> All Categories > Power/power management> Linear regulator chip> NCP706AMX300TAG

NCP706AMX300TAG: DescriptionOutput type: Fixed Maximum input voltage: 5.5V Output current: 1A Output voltage (minimum/fixed): 3V; CategoryPower/power management Linear regulator chip; File Size325KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

NCP706AMX300TAG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NCP706AMX300TAG	-	-	View	Buy Now

NCP706AMX300TAG Overview

Output type: Fixed Maximum input voltage: 5.5V Output current: 1A Output voltage (minimum/fixed): 3V

NCP706AMX300TAG Parametric

Parameter Name	Attribute value
Output type	fixed
Maximum input voltage	5.5V
Output current	1A
Output configuration	just
Number of voltage regulators	1
Output voltage (maximum)	-
PSRR/ripple suppression	65dB ~ 52dB(100Hz ~ 10kHz)
Output voltage (minimum/fixed value)	3V
Pressure drop (maximum)	230mV @ 1A
Operating power current (maximum)	-
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

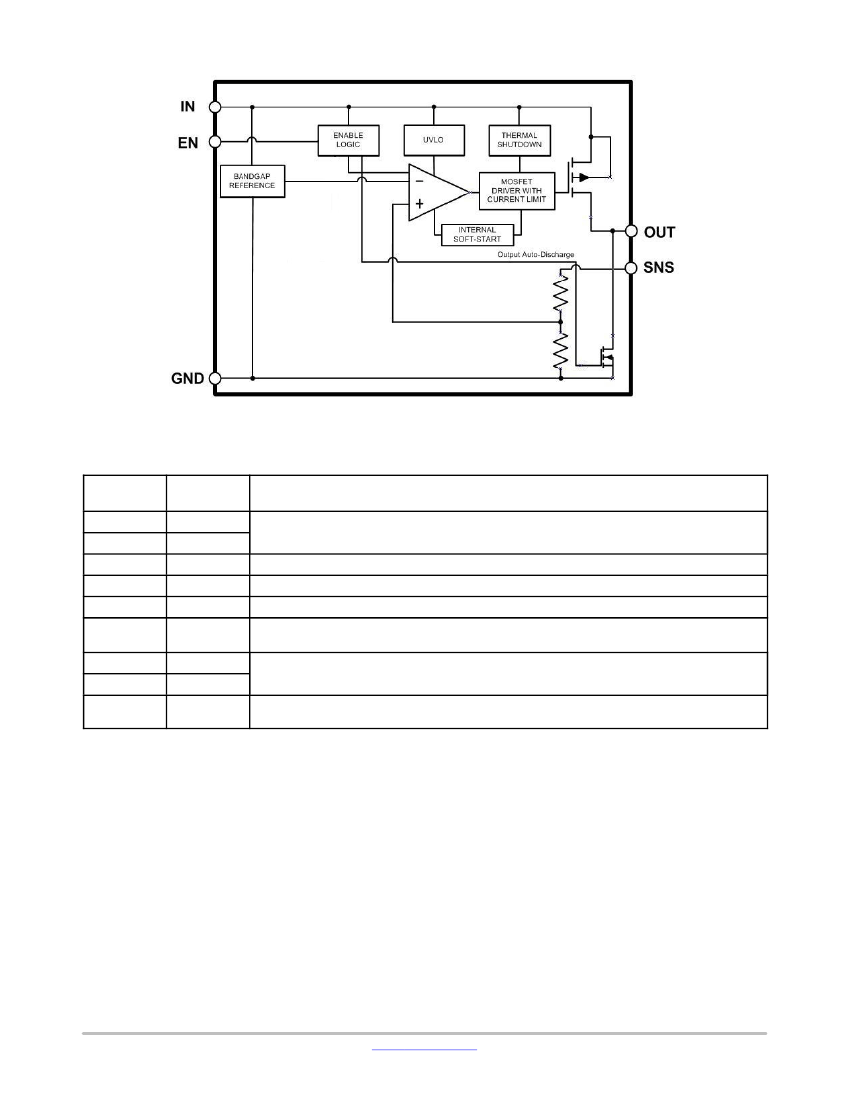

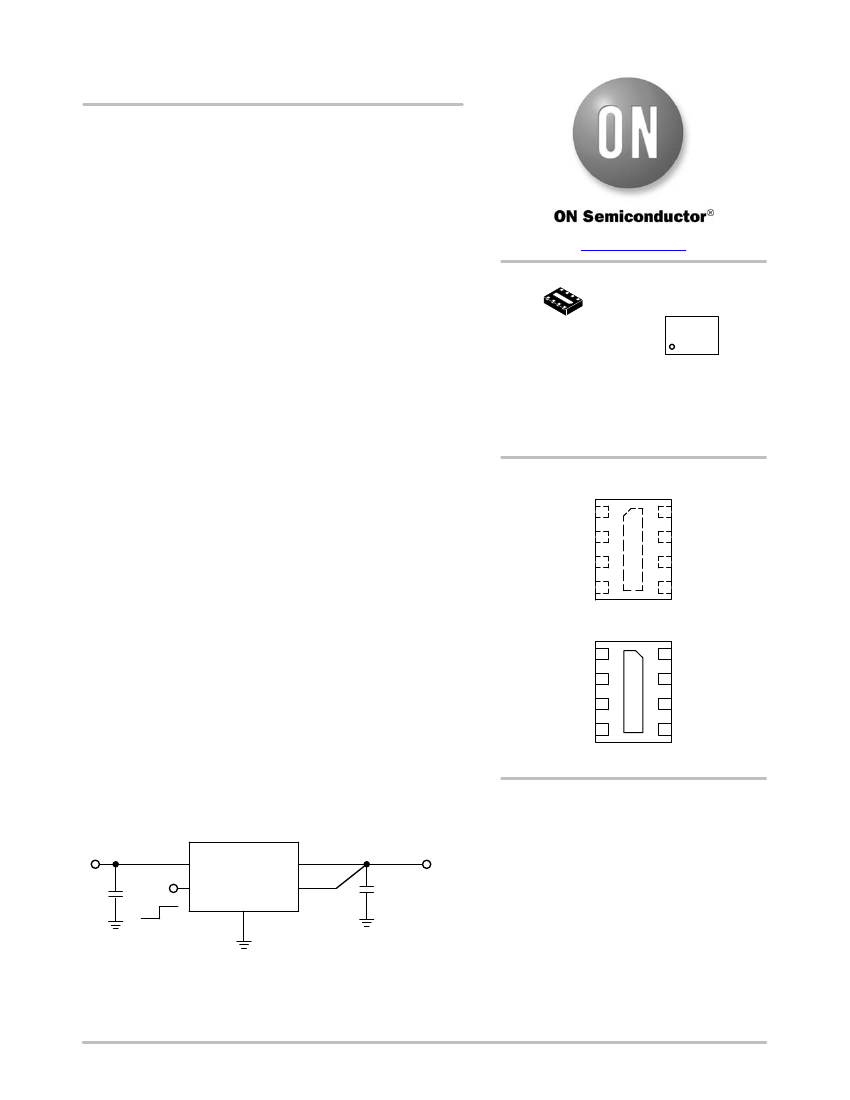

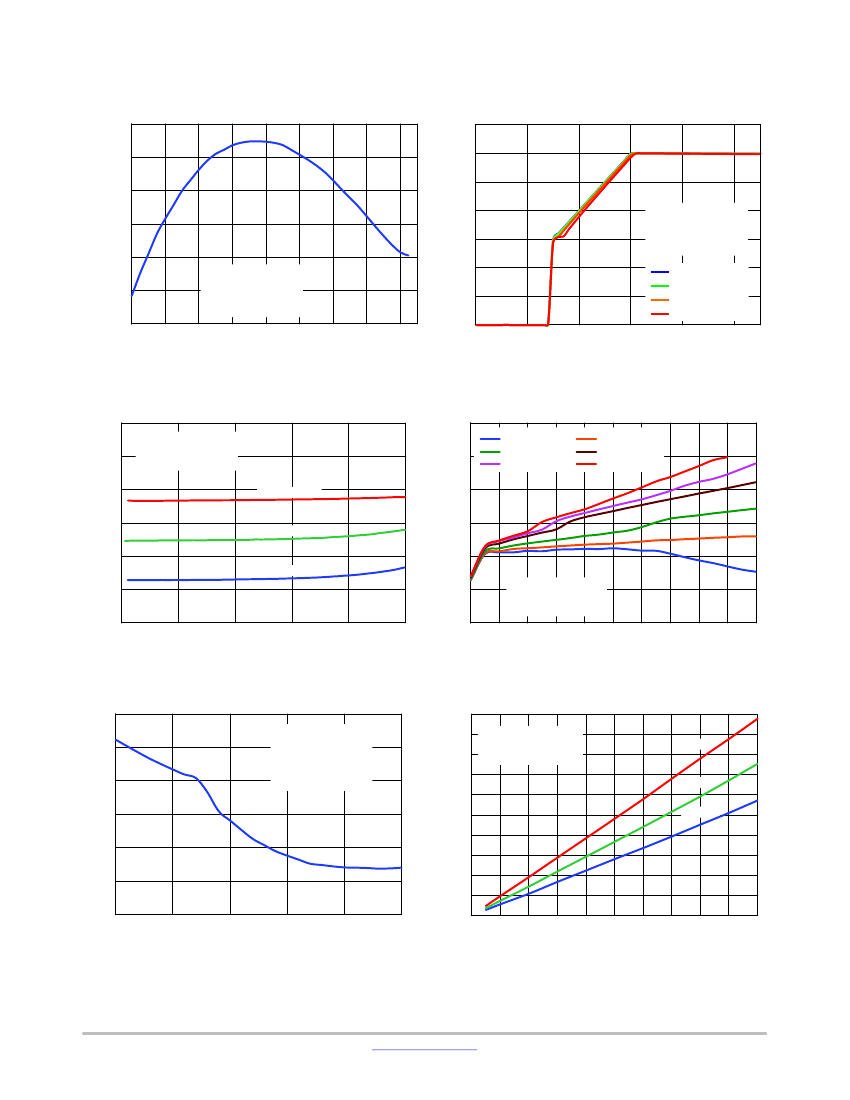

NCP706A

1 A, 1% Precision Very Low

Dropout Voltage Regulator

with Enable and Active

Discharge

The NCP706A is a Very Low Dropout Regulator which provides up

to 1 A of load current and maintains excellent output voltage accuracy

of 1% including line, load and temperature variations. The operating

input voltage range from 2.4 V up to 5.5 V makes this device suitable

for Li−ion battery powered products as well as post−regulation

applications. The product is available in 3.0 V fixed output voltage

option. NCP706A is fully protected against overheating and output

short circuit.

Very small 8−pin XDFN8 1.6 x 1.2, 04P package makes the device

especially suitable for space constrained portable applications such as

tablets and smartphones. Parts feature active output discharge

function.

Features

www.onsemi.com

MARKING

DIAGRAM

XDFN8

CASE 711AS

AEMG

AE = Specific Device Code

M = Date Code

= Pb−Free Package

(Note: Microdot may be in either location)

•

Operating Input Voltage Range: 2.4 V to 5.5 V

•

Fixed Output Voltage Option: 3.0 V

•

Other Output Voltage Options Available on Request.

Low Quiescent Current of Typ. 200

Very Low Dropout: 155 mV Max. at I

OUT

= 1 A

±1%

Accuracy Over Load/Line/Temperature

High PSRR: 60 dB at 1 kHz

Internal Soft−Start to Limit the Inrush Current

Thermal Shutdown and Current Limit Protections

Stable with a 1.0

Ceramic Output Capacitor

Available in XDFN8 1.6 x 1.2, 04P 8−pin Package

Active Output Discharge

These are Pb−Free Devices

Tablets, Smartphones,

Wireless Handsets, Portable Media Players

Portable Medical Equipment

Other Battery Powered Applications

= 2.4 (3.3) − 5.5 V

OFF

NCP706A

GND

SNS

OUT

1.0

Ceramic

OUT

= 3.0 V @ 1 A

PIN CONNECTION

OUT 1

OUT 2

N/C 3

SNS 4

(Top View)

8 IN

7 IN

6 EN

5 GND

IN 8

IN 7

EN 6

GND 5

1 OUT

2 OUT

3 N/C

4 SNS

Typical Applications

(Bottom View)

ORDERING INFORMATION

See detailed ordering, marking and shipping information on

page 8 of this data sheet.

Figure 1. Typical Application Schematic

Semiconductor Components Industries, LLC, 2016

May, 2016 − Rev. 1

Publication Order Number:

NCP706A/D
