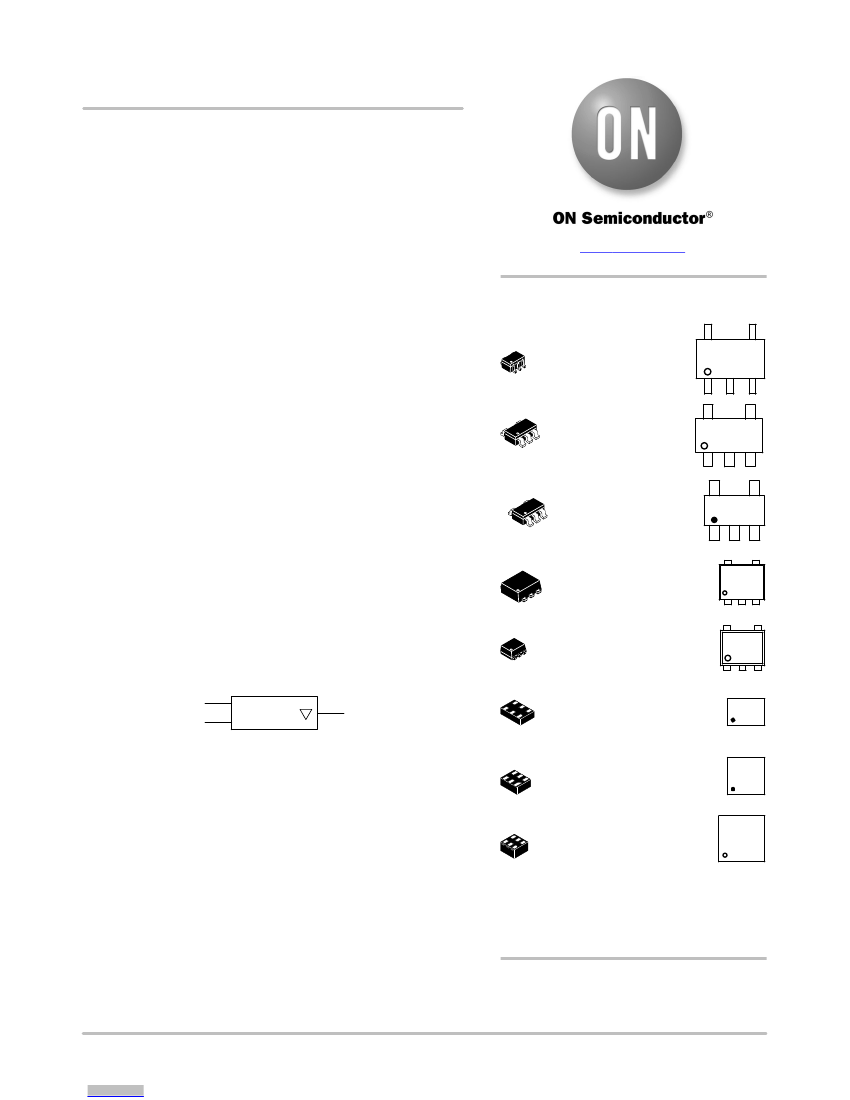

Noninverting 3-State Buffer
MC74VHC1G126,
MC74VHC1GT126
The MC74VHC1G126 / MC74VHC1GT126 is a single gate
noninverting 3−state buffer in tiny footprint packages. The
MC74VHC1G126 has CMOS−level input thresholds while the
MC74VHC1GT126 has TTL−level input thresholds.
The internal circuit is composed of three stages, including a buffered
3−state output which provides high noise immunity and stable output.
The input structures provide protection when voltages up to 5.5 V
are applied, regardless of the supply voltage. This allows the device to
be used to interface 5 V circuits to 3 V circuits. The output structures
also provide protection when V
CC
= 0 V and when the output voltage
exceeds V
CC
. These input and output structures help prevent device
destruction caused by supply voltage
−
input/output voltage mismatch,
battery backup, hot insertion, etc.
Features
www.onsemi.com
MARKING
DIAGRAMS
SC−88A
DF SUFFIX
CASE 419A
XX MG
G
•
•
•
•
•
•
Designed for 2.0 V to 5.5 V V
CC
Operation
3.5 ns t
PD
at 5 V (typ)
Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
I
OFF
Supports Partial Power Down Protection
Source/Sink 8 mA at 3.0 V
Available in SC−88A, SC−74A, TSOP−5, SOT−553, SOT−953 and
UDFN6 Packages
•
Chip Complexity < 100 FETs
•
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
OE
A
EN
Y
SC−74A
DBV SUFFIX
CASE 318BQ
5
5
1
TSOP−5
DT SUFFIX
CASE 483
XXX MG
G
XX MG
G
1
XX MG
G
SOT−553
XV5 SUFFIX
CASE 463B
SOT−953
P5 SUFFIX
CASE 527AE
UDFN6
1.45 x 1.0
CASE 517AQ
UDFN6
1.2 x 1.0
CASE 517AA
UDFN6
1.0 x 1.0
CASE 517BX
XX
M
G
= Specific Device Code
= Date Code*
= Pb−Free Package
XM
1
XM
1
Figure 1. Logic Symbol
XM
XM
1
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 8 of this data sheet.
