Type: Bus Switch Voltage - Power Supply: 1.65V ~ 5.5V Circuit: 1 x 1:1 Voltage Source: Single Power Supply Logic Circuit Family: 7SZ Low Voltage Single Channel SPST Normally Open Bus Switch
Type: Bus Switch Voltage - Power Supply: 1.65V ~ 5.5V Circuit: 1 x 1:1 Voltage Source: Single Power Supply Logic Circuit Family: 7SZ Low Voltage Single Channel SPST Normally Open Bus Switch
To learn more about ON Semiconductor, please visit our website at
www.onsemi.com
Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers
will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor
product management systems do not have the ability to manage part nomenclature that utilizes an underscore
(_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain
device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated
device numbers. The most current and up-to-date ordering information can be found at
www.onsemi.com.
Please
email any questions regarding the system integration to
Fairchild_questions@onsemi.com.
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number
of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right
to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON
Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON
Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA
Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended
or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor
is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch
September 2013
NC7SZ66
Low Voltage Single SPST Normally Open Bus Switch
Features
Broad V
CC
Operating Range: 1.65 V to 5.5 V
Rail-to-Rail Signal Handling
Power Down High-Impedance Inputs/Outputs
5
Ω
Switch Connection between Two Ports
Minimal Propagation Delay through the Switch
Low I
CC
Zero Bounce in Flow-Through Mode
Control Input Compatible with CMOS Input Levels
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages
Description
The NC7SZ66 is a ultra high-speed (UHS) CMOS
compatible single-pole/single-throw (SPST) bus switch.
The LOW on resistance of the switch allows inputs to be
connected to outputs with minimal propagation delay
and without generating additional ground bounce noise.

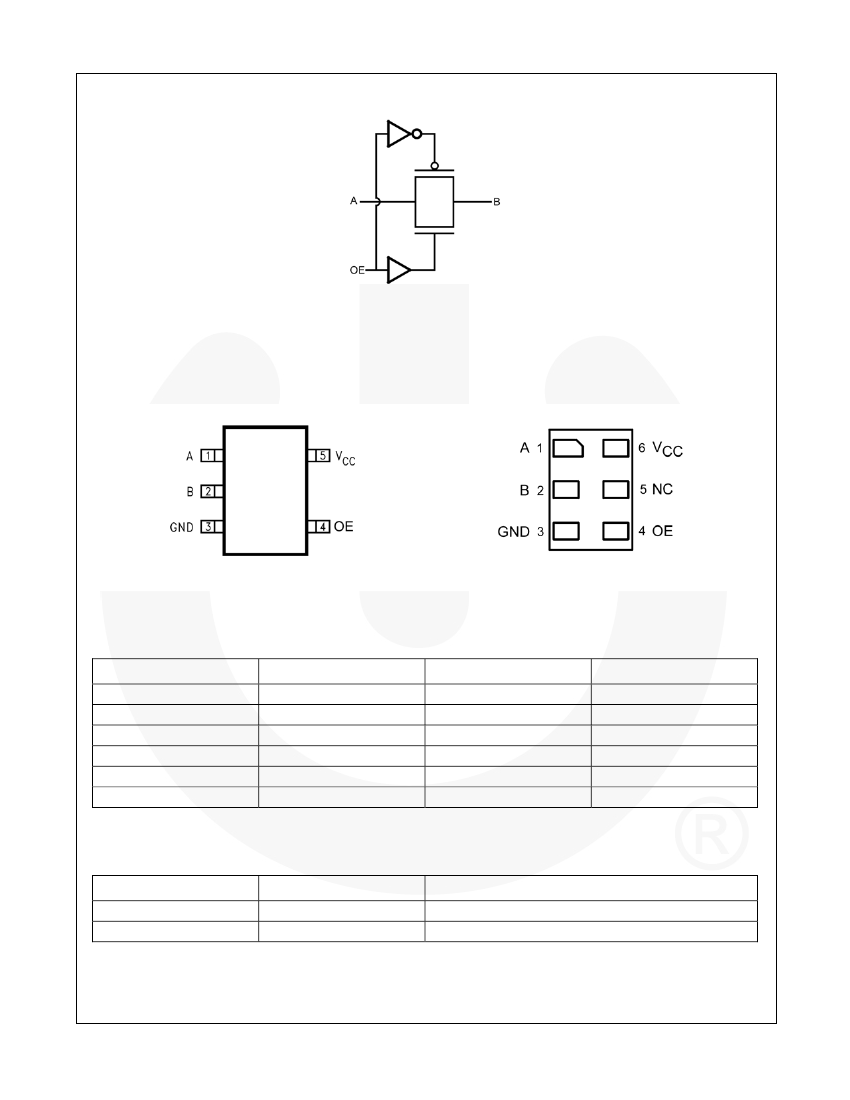

The device is organized as a 1-bit switch with a switch
enable (OE) signal. When OE is HIGH, the switch is on
and port A is connected to port B. When OE is LOW, the
