MUR1610CTG, MUR1615CTG,
MUR1620CTG, MUR1640CTG,
MUR1660CTG
Switch Mode
Power Rectifiers
These state−of−the−art devices are a series designed for use in
switching power supplies, inverters and as free wheeling diodes.
Features
www.onsemi.com
•
•
•
•
•
•
•
•
•
Ultrafast 35 and 60 Nanosecond Recovery Times
175°C Operating Junction Temperature
Popular TO−220 Package
Epoxy Meets UL 94 V−0 @ 0.125 in
High Temperature Glass Passivated Junction
High Voltage Capability to 600 V
Low Leakage Specified @ 150°C Case Temperature
Current Derating @ Both Case and Ambient Temperatures
These are Pb−Free Devices*

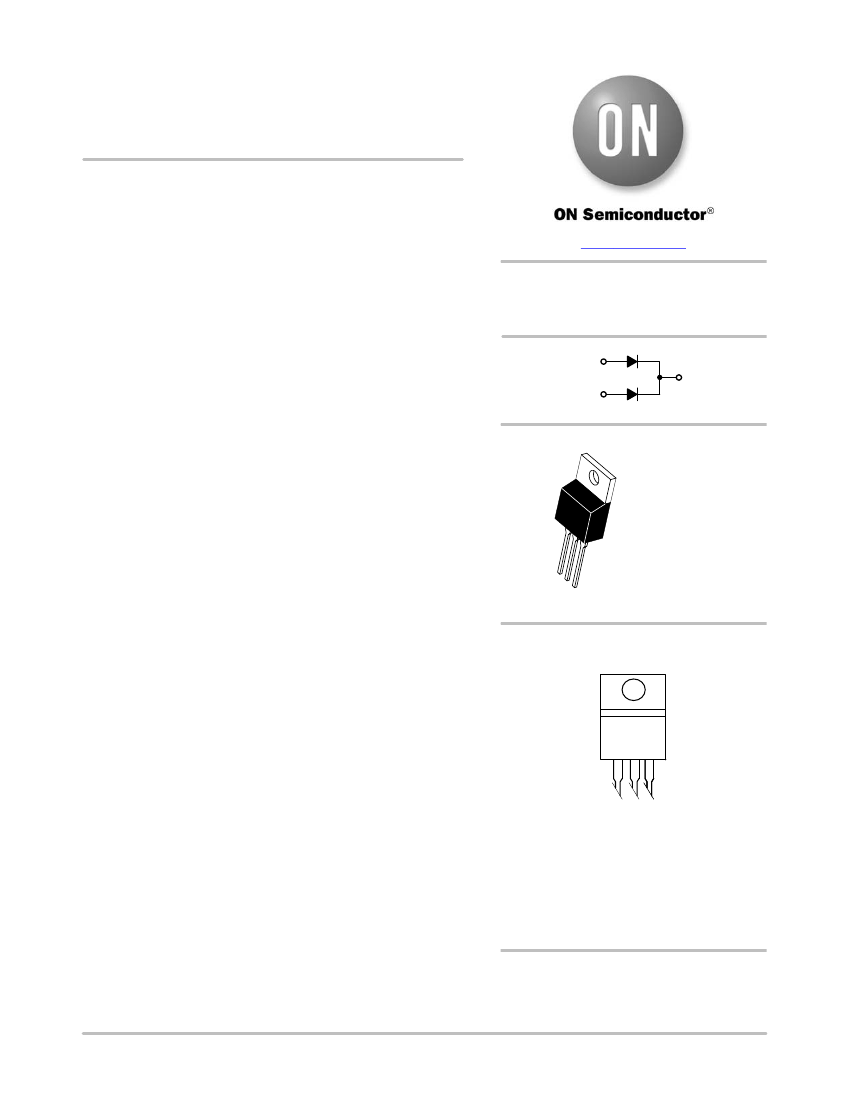

ULTRAFAST RECTIFIERS
16 AMPERES, 100−600 VOLTS
1
2, 4
3
4
Mechanical Characteristics:
•
Case: Epoxy, Molded
•
Weight: 1.9 Grams (Approximately)
•
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
•
Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
1
2
3
TO−220AB
CASE 221A−09
MARKING DIAGRAM
AY WW
U16xxG
AKA
A
Y
WW
U16xx
G
KA
=
=
=
=
Assembly Location
Year
Work Week
Device Code
xx = 10, 15, 20, 40 or 60
= Pb−Free Package
= Diode Polarity
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
©
Semiconductor Components Industries, LLC, 2015
1
January, 2015 − Rev. 8
Publication Order Number:
MUR1620CT/D
MUR1610CTG, MUR1615CTG, MUR1620CTG, MUR1640CTG, MUR1660CTG
MAXIMUM RATINGS
MUR16
Rating
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Total Device, (Rated V
R
), T
C
= 150°C
Peak Rectified Forward Current
(Rated V
R
, Square Wave, 20 kHz), T
C
= 150°C
Per Leg
Total Device
Per Diode Leg
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FM
I
FSM
T
J
, T
stg
10CT
100
15CT
150
20CT
200
40CT
400
60CT
600
Unit
V
8.0
16
16
100
*65
to +175
A
A
A
°C
Nonrepetitive Peak Surge Current
(Surge applied at rated load conditions halfwave, single phase, 60 Hz)
Operating Junction Temperature and Storage Temperature
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS
(Per Diode Leg)
Parameter
Maximum Thermal Resistance, Junction−to−Case
Symbol
R
qJC
3.0
Value
2.0
Unit
°C/W
ELECTRICAL CHARACTERISTICS
(Per Diode Leg)
Characteristic
Maximum Instantaneous Forward Voltage (Note 1)
(i
F
= 8.0 A, T
C
= 150°C)
(i
F
= 8.0 A, T
C
= 25°C)
Maximum Instantaneous Reverse Current (Note 1)
(Rated DC Voltage, T
C
= 150°C)
(Rated DC Voltage, T
C
= 25°C)
Maximum Reverse Recovery Time
(I
F
= 1.0 A, di/dt = 50 A/ms)
(I
F
= 0.5 A, I
R
= 1.0 A, I
REC
= 0.25 A)
Symbol
v
F
0.895
0.975
i
R
250
5.0
t
rr
35
25
60
50
500
10
ns
1.00
1.30
1.20
1.50
mA
1620
1640
1660
Unit
V
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
1. Pulse Test: Pulse Width = 300
ms,
Duty Cycle
≤
2.0%
www.onsemi.com
2
MUR1610CTG, MUR1615CTG, MUR1620CTG, MUR1640CTG, MUR1660CTG
MUR1610CT, MUR1615CT, MUR1620CT
100
IR, REVERSE CURRENT (
m
A)
70
50
30
20
i F , INSTANTANEOUS FORWARD CURRENT (AMPS)
T
J
= 175°C
10
7.0
25°C
5.0
100°C
800
400
200
80
40
20
8.0
4.0
2.0
0.8
0.4
0.2
0.08
0.04
0.02
0
20
40
60
T
J
= 175°C
100°C
25°C
80
100
120
140
160
180 200
V
R
, REVERSE VOLTAGE (VOLTS)

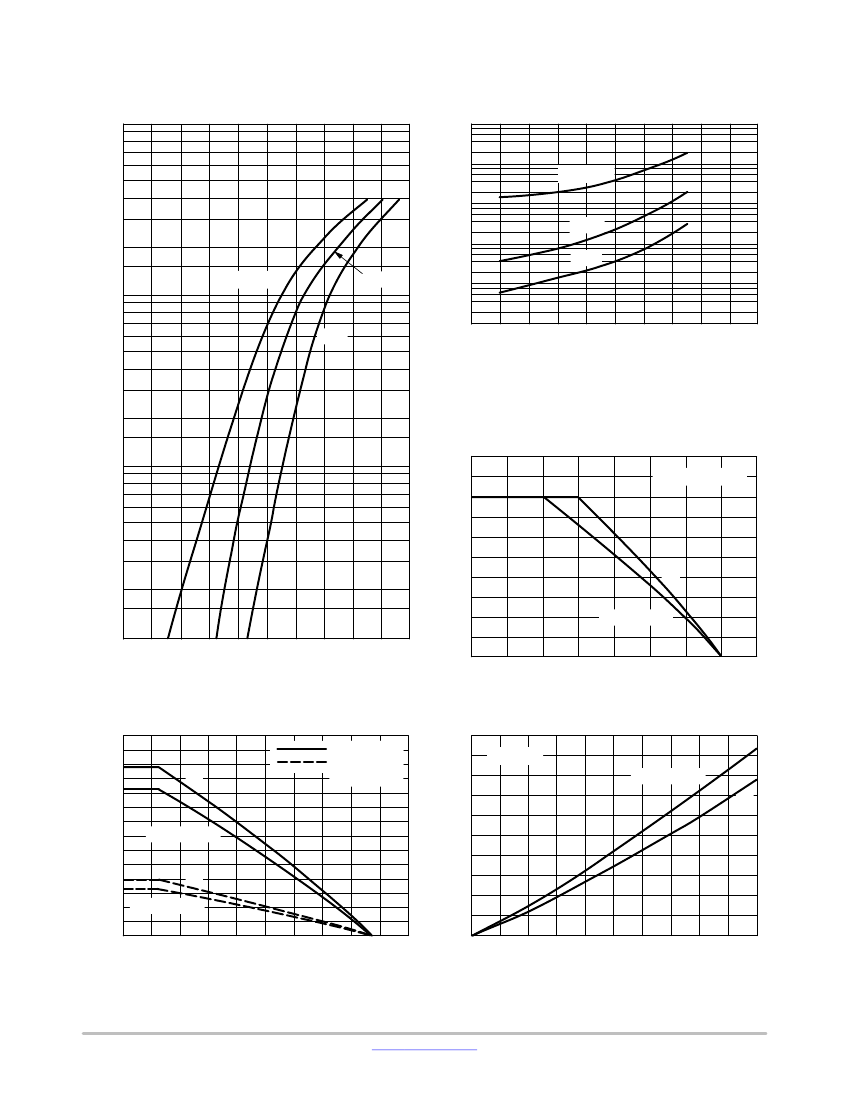

Figure 2. Typical Reverse Current, Per Leg*
3.0
2.0
* The curves shown are typical for the highest voltage device in the
voltage grouping. Typical reverse current for lower voltage selections
can be estimated from these same curves if V
R
is sufficiently below
rated V
R
.
IF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
140
145
150
155
160
165
170
175
180
T
C
, CASE TEMPERATURE (°C)
SQUARE WAVE
dc
RATED V
R
APPLIED
1.0
0.7
0.5
0.3
0.2
0.1
0.2 0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
v
F,
INSTANTANEOUS VOLTAGE (VOLTS)
Figure 1. Typical Forward Voltage, Per Leg
Figure 3. Current Derating, Case, Per Leg
IF(AV) , AVERAGE FORWARD CURRENT (AMPS)
14
12
dc
10
8.0
SQUARE WAVE
6.0
4.0
2.0
0
0
20
40
60
80
100
120
140
160
180
200
T
A
, AMBIENT TEMPERATURE (°C)
dc
SQUARE WAVE
R
qJA
= 16°C/W
R
qJA
= 60°C/W
(NO HEATSINK)
PF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10
I
F(AV)
, AVERAGE FORWARD CURRENT (AMPS)
T
J
= 175°C
SQUARE WAVE
dc
Figure 4. Current Derating, Ambient, Per Leg
Figure 5. Power Dissipation, Per Leg
www.onsemi.com
3
MUR1610CTG, MUR1615CTG, MUR1620CTG, MUR1640CTG, MUR1660CTG
MUR1640CT
100
IR, REVERSE CURRENT (
m
A)
70
50
800
400
200
80
40
20
8.0
4.0
2.0
0.8
0.4
0.2
0.08
0.04
0.02
0
50
100
T
J
= 175°C
150°C
100°C
30
i F , INSTANTANEOUS FORWARD CURRENT (AMPS)
20
T
J
= 175°C
100°C
25°C
10
7.0
5.0
25°C
150
200
250
300
350
400
450 500
V
R
, REVERSE VOLTAGE (VOLTS)

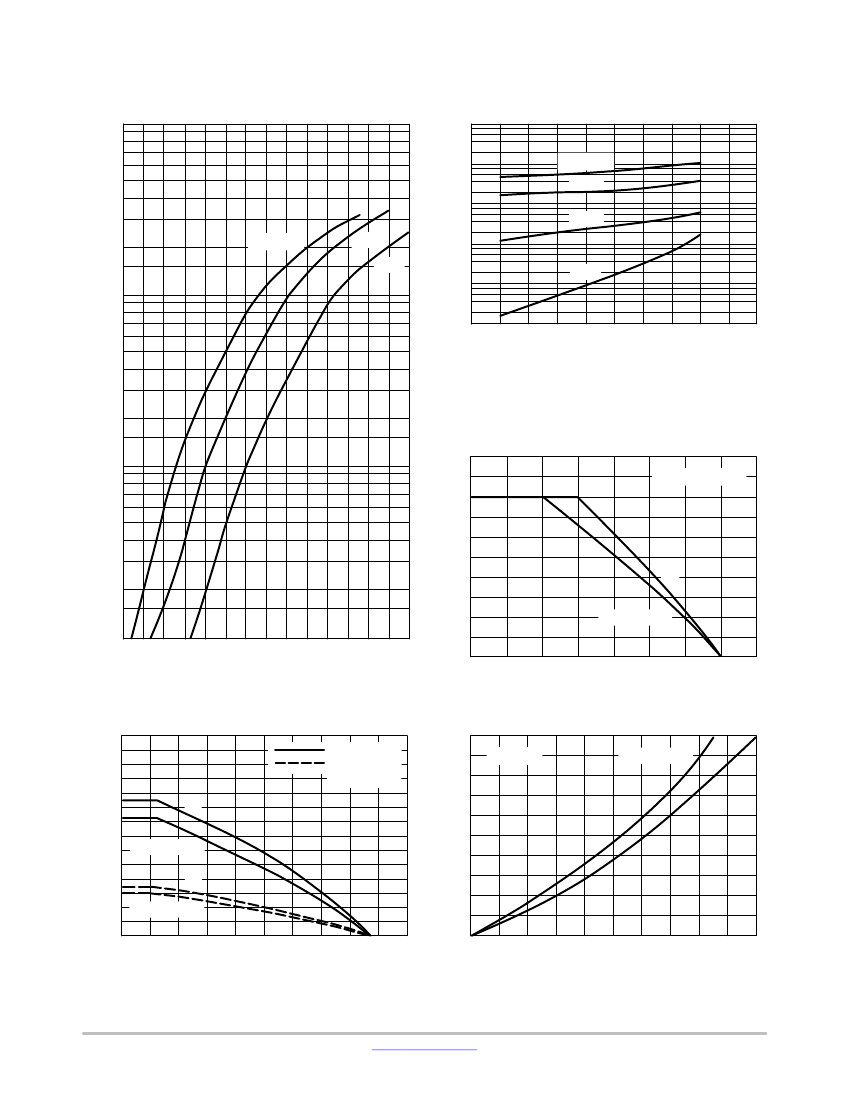

Figure 7. Typical Reverse Current, Per Leg*
3.0
2.0
* The curves shown are typical for the highest voltage device in the
voltage grouping. Typical reverse current for lower voltage selections
can be estimated from these curves if V
R
is sufficiently below rated
V
R
.
IF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
140
145
150
155
160
165
170
175
180
T
C
, CASE TEMPERATURE (°C)
SQUARE WAVE
dc
RATED V
R
APPLIED
1.0
0.7
0.5
0.3
0.2
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
v
F,
INSTANTANEOUS VOLTAGE (VOLTS)
Figure 6. Typical Forward Voltage, Per Leg
Figure 8. Current Derating, Case, Per Leg
IF(AV) , AVERAGE FORWARD CURRENT (AMPS)
14
12
10
dc
8.0
6.0
4.0
2.0
0
0
20
40
60
80
100
120
140
160
180
200
T
A
, AMBIENT TEMPERATURE (°C)
SQUARE WAVE
dc
SQUARE WAVE
R
qJA
= 16°C/W
R
qJA
= 60°C/W
(NO HEATSINK)
PF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10
I
F(AV)
, AVERAGE FORWARD CURRENT (AMPS)
T
J
= 175°C
SQUARE WAVE
dc
Figure 9. Current Derating, Ambient, Per Leg
Figure 10. Power Dissipation, Per Leg
www.onsemi.com
4
MUR1610CTG, MUR1615CTG, MUR1620CTG, MUR1640CTG, MUR1660CTG
MUR1660CT
100
IR, REVERSE CURRENT (
m
A)
70
50
30
T
J
= 150°C
i F , INSTANTANEOUS FORWARD CURRENT (AMPS)
20
100°C
10
7.0
5.0
25°C
800
400
200
80
40
20
8.0
4.0
2.0
0.8
0.4
0.2
0.08
0.04
0.02
100
200
T
J
= 150°C
100°C
25°C
300
400
500
600
V
R
, REVERSE VOLTAGE (VOLTS)

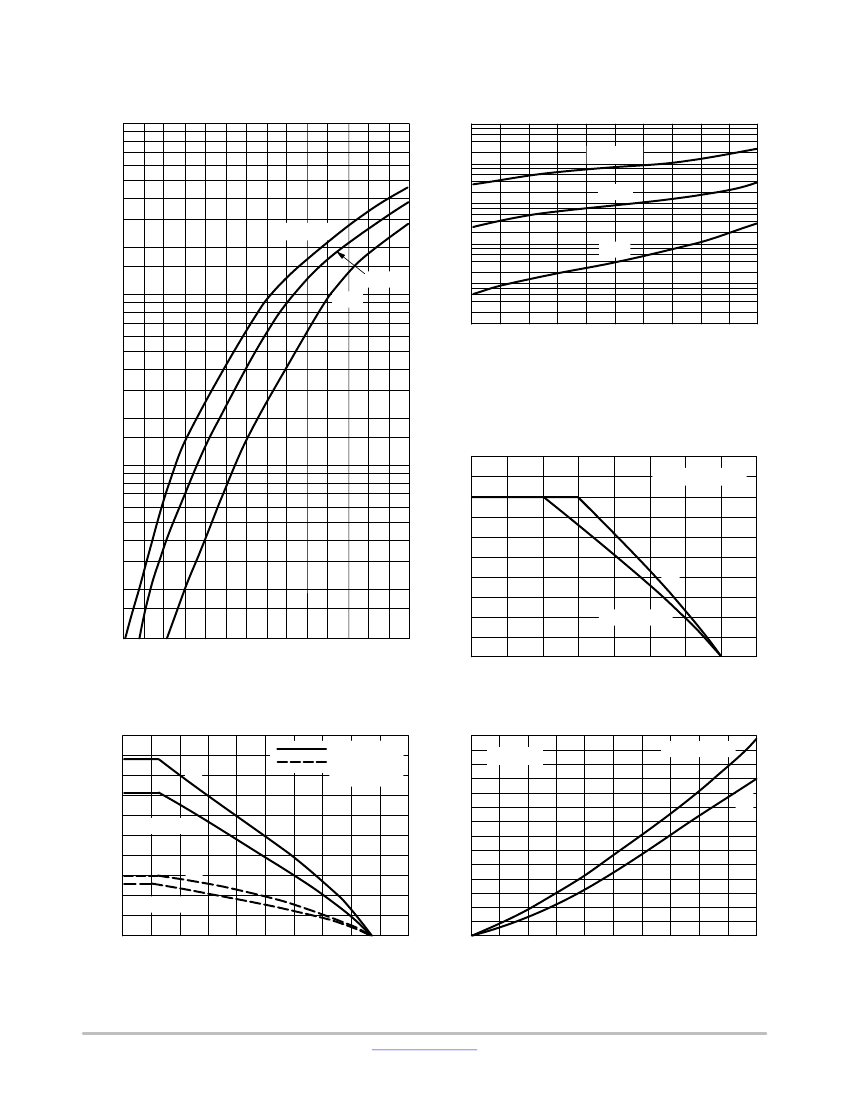

Figure 12. Typical Reverse Current, Per Leg*
3.0
2.0
* The curves shown are typical for the highest voltage device in the
voltage grouping. Typical reverse current for lower voltage selections
can be estimated from these same curves if V
R
is sufficiently below
rated V
R
.
IF(AV) , AVERAGE POWER DISSIPATION (WATTS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
140
145
150
155
160
165
170
175
180
T
C
, CASE TEMPERATURE (°C)
SQUARE WAVE
dc
RATED V
R
APPLIED
1.0
0.7
0.5
0.3
0.2
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
v
F,
INSTANTANEOUS VOLTAGE (VOLTS)
Figure 11. Typical Forward Voltage, Per Leg
Figure 13. Current Derating, Case, Per Leg
IF(AV) , AVERAGE FORWARD CURRENT (AMPS)
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
20
40
60
80
100
120
140
160
180
200
T
A
, AMBIENT TEMPERATURE (°C)
dc
SQUARE WAVE
SQUARE WAVE
dc
R
qJA
= 16°C/W
R
qJA
= 60°C/W
(NO HEATSINK)
PF(AV) , AVERAGE POWER DISSIPATION (WATTS)
14
13
12
11
10
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
T
J
= 175°C
SQUARE WAVE
dc
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10
I
F(AV)
, AVERAGE FORWARD CURRENT (AMPS)
Figure 14. Current Derating, Ambient, Per Leg
Figure 15. Power Dissipation, Per Leg
www.onsemi.com
5
