NC7WV07 — TinyLogic
®
ULP-A Dual Buffer (Open-Drain Output)
July 2012

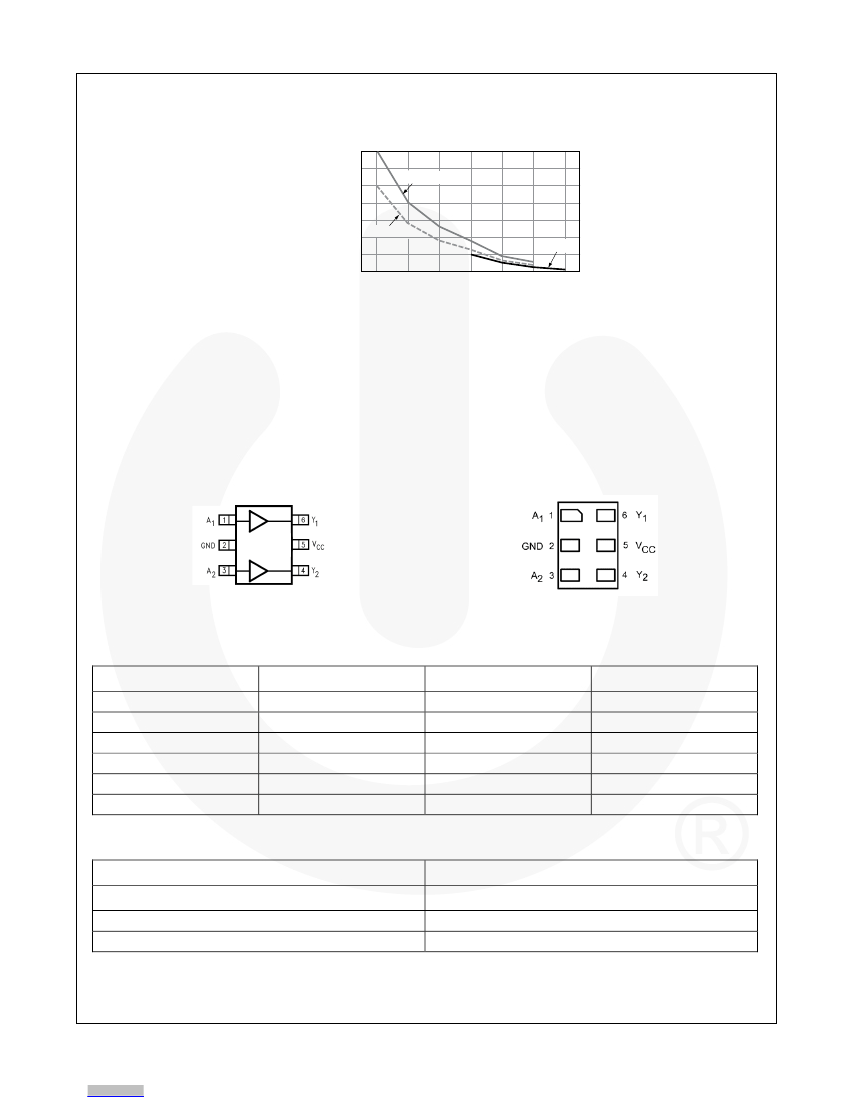

NC7WV07
TinyLogic
®
ULP-A Bual Buffer (Open-Drain Output)
Features
0.9V to 3.6V V
CC
Supply Operation
3.6V Over-Voltage Tolerant I/Os at V
CC
from
0.9V to 3.6V
Extremely High Speed t
PD
- 1.0ns: Typical for 2.7V to 3.6V V
CC
- 1.2ns: Typical for 2.3V to 2.7V V
CC
- 2.0ns: Typical for 1.65V to 1.95V V
CC
- 3.2ns: Typical for 1.4V to 1.6V V
CC
- 6.0ns: Typical for 1.1V to 1.3V V
CC
- 13.0ns: Typical for 0.9V V
CC
Power-Off High-Impedance Inputs and Outputs
High Static Drive (I
OH
/I
OL
)
-
24mA
at 3.00V V
CC
-18mA at 2.30V V
CC
-6mA at 1.65V V
CC
-
4mA
at 1.4V V
CC
-
2mA
at 1.1V V
CC
-
0.1mA
at 0.9V V
CC
Description
The NC7WV07 is a dual buffer with open drain output
from Fairchild's Ultra Low Power-A series of TinyLogic®
ULP-A is ideal for applications that require extreme high
speed, high drive and low power. This product is
designed for a wide low voltage operating range (0.9V to
3.6V V
CC
) and applications that require more drive and
speed than the TinyLogic ULP series, but still offer best
in class low power operation.
The NC7WV07 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS
technology to achieve high-speed operation while
maintaining low CMOS power dissipation.
Uses Proprietary Quiet Series™ Noise/EMI
Reduction Circuitry
Ultra-Small MicroPak™ Packages
Ultra-Low Dynamic Power
Ordering Information
Part Number
NC7WV07P6X
NC7WV07L6X
Top Mark
V07
BC
Package
6-Lead SC70, EIAJ SC-88a, 1.25mm Wide
6-Lead MicroPak™, 1.00mm Wide
Packing Method
3000 Units on Tape & Reel
5000 Units on Tape & Reel
TinyLogic®is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak™and Quiet Series™are trademarks of Fairchild Semiconductor Corporation.
