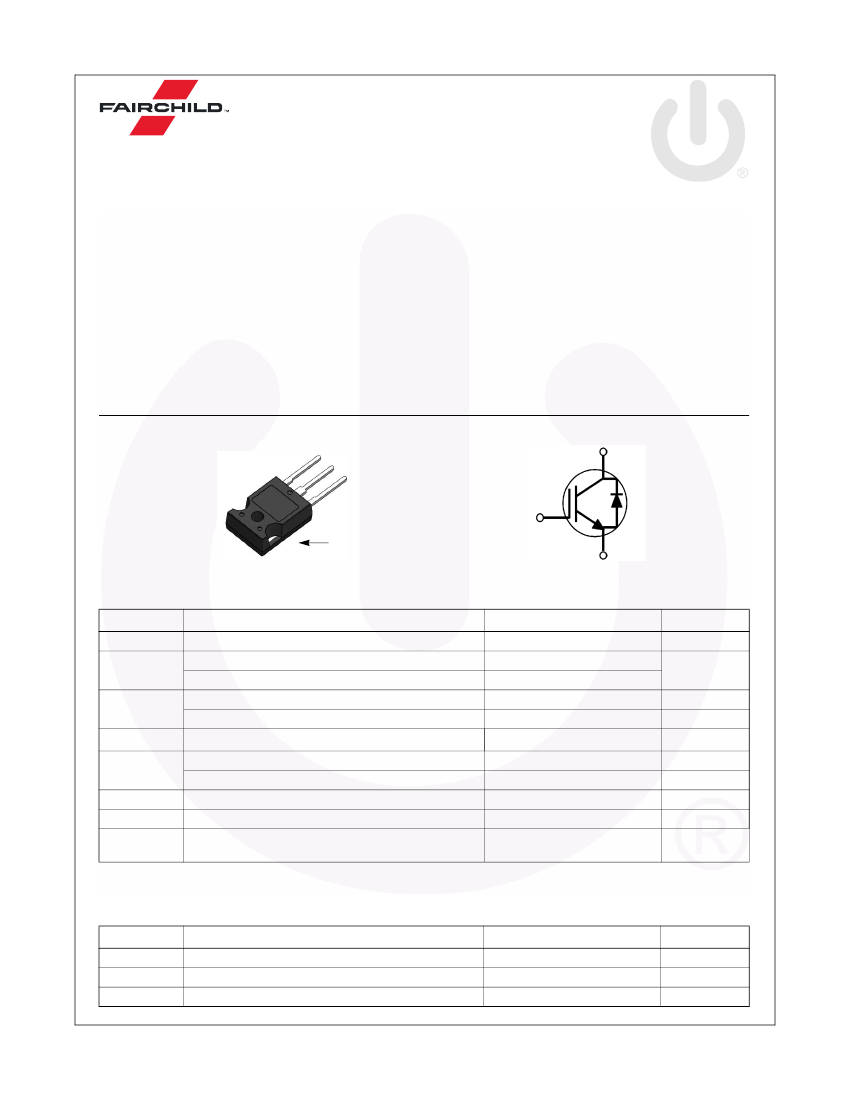

FGH60N60UFDTU_F085 — 600V, 60A Field Stop IGBT
April 2015
FGH60N60UFDTU_F085
600V, 60A Field Stop IGBT
Features
• High Current Capability
• Low Saturation Voltage: V
CE(sat)
= 1.8 V @ I
C
= 60 A
• High Input Impedance
• Fast Switching
• RoHS Compliant
• Qualified to Automotive Requirements of AEC-Q101
General Description
Using Novel Field Stop IGBT Technology, Fairchild’s new series
of Field Stop IGBTs offer the optimum performance for Automo-
tive Chargers, Inverter, and other applications where low con-
duction and switching losses are essential.
Applications
• Automotive chargers, Converters, High Voltage Auxiliaries
• Inverters, PFC, UPS
E
C
G
C
G
COLLECTOR
(FLANGE)
E
Absolute Maximum Ratings
Symbol
V
CES
V
GES
I
C
I
CM (1)
P
D
T
J
T
stg
T
L
Description
Collector to Emitter Voltage
Gate to Emitter Voltage
Transient Gate-to-Emitter Voltage
Collector Current
Collector Current
Pulsed Collector Current
Maximum Power Dissipation
Maximum Power Dissipation
Operating Junction Temperature
Storage Temperature Range
Maximum Lead Temp. for soldering
Purposes, 1/8” from case for 5 seconds
@ T
C
= 25
o
C
@ T
C
= 100
o
C
@ T
C
= 25
o
C
@ T
C
= 25
o
C
@ T
C
= 100
o
C
Ratings
600
±20
±30
120
60
180
298
119
-55 to +150
-55 to +150
300
Unit
V
V
A
A
A
W
W
o
C
o
C
o
C
Notes:

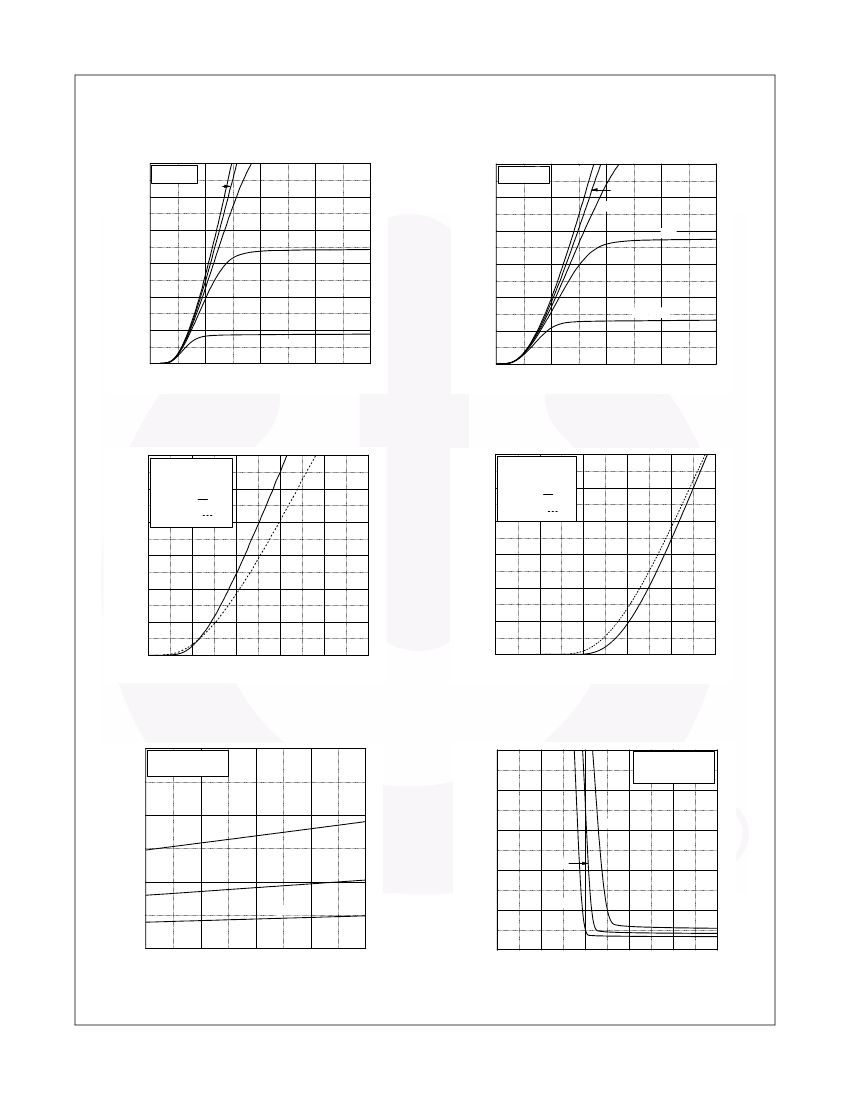

1: Repetitive test , Pulse width limited by max. junction temperature
