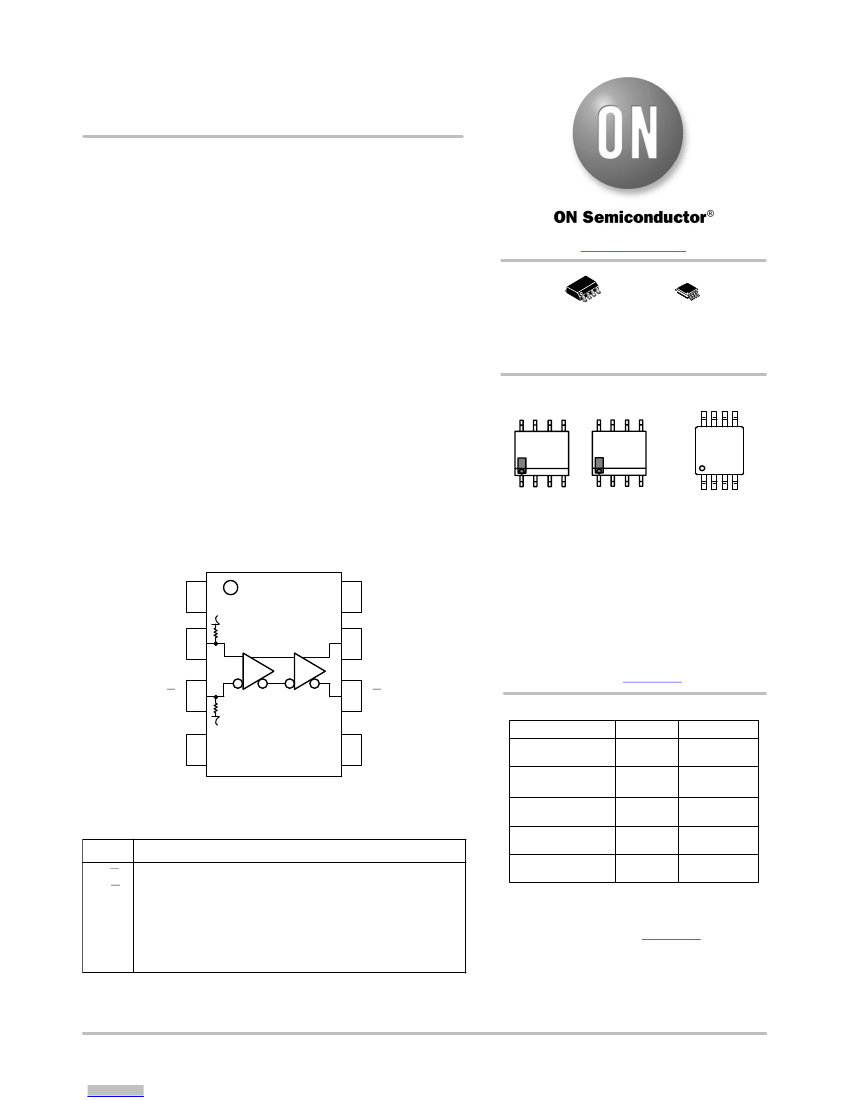

5.0 V ECL Differential
Receiver
MC10EL16, MC100EL16
Description
The MC10EL/100EL16 is a differential receiver. The device is
functionally equivalent to the E116 device with higher performance
capabilities. With output transition times significantly faster than the
E116, the EL16 is ideally suited for interfacing with high frequency
sources.
The V
BB
pin, an internally generated voltage supply, is available to
this device only. For single-ended input conditions, the unused
differential input is connected to V
BB
as a switching reference voltage.
V
BB
may also rebias AC coupled inputs. When used, decouple V
BB
and V
CC
via a 0.01
mF
capacitor and limit current sourcing or sinking
to 0.5 mA. When not used, V
BB
should be left open.
Under open input conditions (pulled to V
EE
) internal input clamps
will force the Q output LOW.
The 100 Series contains temperature compensation.
Features
www.onsemi.com
8
1
SOIC−8 NB
D SUFFIX
CASE 751−07
8
1
TSSOP−8
DT SUFFIX
CASE 948R−02
MARKING DIAGRAMS*
8
HEL16
ALYW
G
1
1
SOIC−8 NB
H
K
A
L
Y
W
G
8
KEL16
ALYW
G
1
8
KL16
ALYWG
G
•
•
•
•
•
190 ps Propagation Delay
PECL Mode Operating Range: V
CC
= 4.2 V to 5.7 V with V
EE
= 0 V
NECL Mode Operating Range: V
CC
= 0 V with V
EE
=
−4.2
V to
−5.7
V
Internal Input Pulldown Resistors
These Devices are Pb-Free, Halogen Free and are RoHS Compliant
