Product Specification
PE42742
Product Description
The PE42742 is an SPDT UltraCMOS™ switch designed
for broadband applications such as CATV, DTV, Multi-
Tuner DVR (Digital Video Recorder), Set-top Box, PCTV
and Game Boxes. It meets FCC 15.115 spec of 80 dB
isolation @ 216 MHz and offers high isolation and low
insertion loss in both a powered and a unique unpowered
default state. The PE42742 covers a broad frequency
range from 5 MHz to beyond 2200 MHz with a single
positive supply and CMOS control. It provides a smaller,
cost effective, more reliable and manufacturable
alternative to mechanical relays in set-top box
applications.
The PE42742 is manufactured on Peregrine’s
UltraCMOS™ process, a patented variation of silicon-on-
insulator (SOI) technology on a sapphire substrate,
offering the performance of GaAs with the economy and
integration of conventional CMOS.
75
Ω
Terminated, 5 - 2200 MHz SPDT
CATV UltraCMOS™ Switch
Featuring Unpowered Operation
Features
Meets FCC 15.115 spec of 80 dB
isolation @ 216 MHz
Unpowered operational state
3500 V HBM ESD tolerance, all pins
CTB performance of 90 dBc
High isolation: 63 dB @ 1000 MHz
Low insertion loss: typically 0.5 dB @
5 MHz, 0.8 dB @ 1000 MHz
CMOS single-pin control with logic
select
Single +3 volt supply operation
Low current consumption: 8
μA

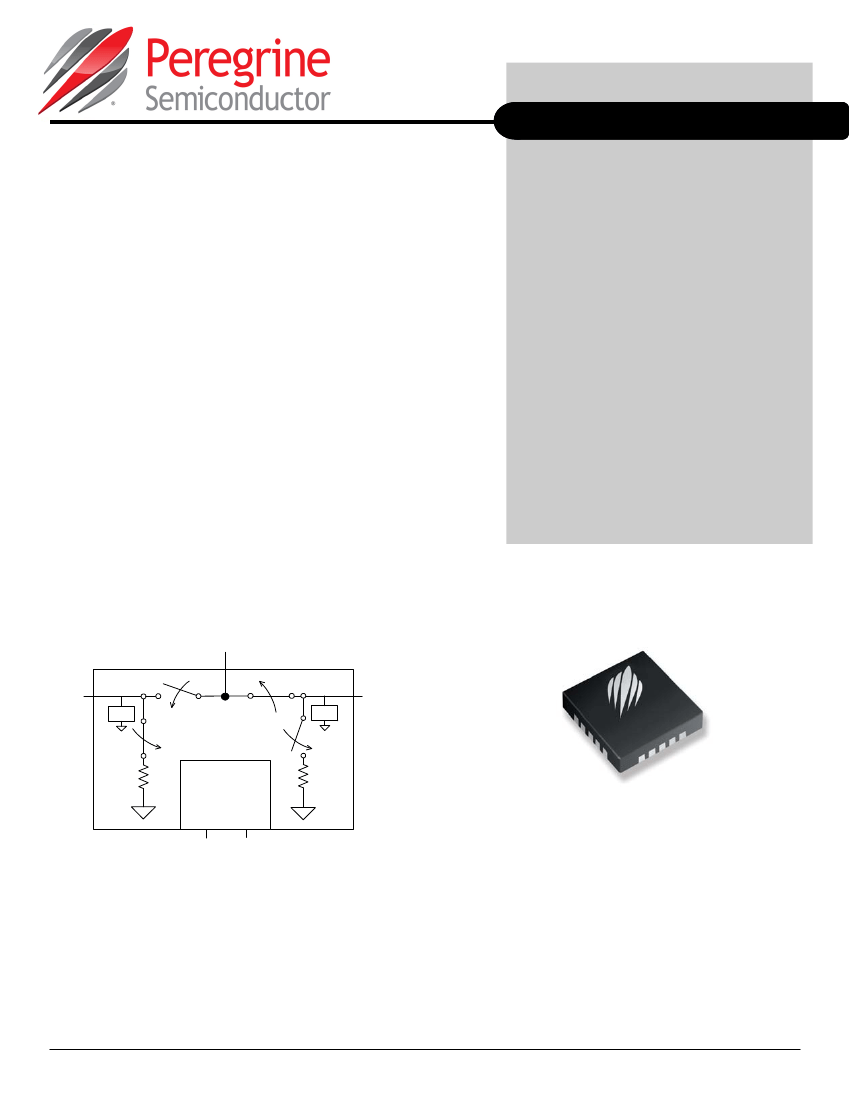

Figure 1. Functional Diagram
RFC
RF1
ESD
ESD
Figure 2. Package Type
20-lead 4x4mm QFN
RF2
75
CMOS
Control
Driver
75
C1
C2
71-0040-01
Document No. 70-0203-07
│
www.psemi.com
©2006-2012 Peregrine Semiconductor Corp. All rights reserved.
Page 1 of 10
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE42742
Product Specification
Table 1. Electrical Specifications @ +25°C, V
DD
= +3V
(Z
S
= Z
L
= 75
Ω)
Parameter
Operating Frequency
220 MHz
550 MHz
810 MHz
1000 MHz
2200 MHz
220 MHz
550 MHz
810 MHz
1000 MHz
2200 MHz
220 MHz
550 MHz
810 MHz
2200 MHz
220 MHz
550 MHz
810 MHz
2200 MHz
220 MHz
550 MHz
810 MHz
2200 MHz
220 MHz
550 MHz
810 MHz
2200 MHz
5 MHz – 1000 MHz
5 MHz – 1000 MHz
1000 MHz
77 & 110 channels;
Power Out = 44 dBmV
50 % CTRL to 10 / 90 RF
5 MHz – 1000 MHz
30/24.5
81
77
71.5
50
81
75
70.5
50
71
64
62
52
70.5
64
61.5
51
Condition
Minimum
5
Typical
0.45
0.55
0.7
0.75
1.7
0.7
0.8
0.9
1.0
1.8
94
82
76
53.6
92
79
75
53
74
66
64
57
73
66
63
55
90/90
53/53
32/26.5
-90 / -77
3
20
Maximum
2200
0.55
0.65
0.8
0.85
1.8
0.8
0.9
1
1.1
1.9
Units
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBc
µs
mVpp
RF1-RFC Insertion Loss
RF2-RFC Insertion Loss
Isolation RF1 to RF2 (RFC-RF1 ON)
Isolation RF1 to RF2 (RFC-RF2 ON)
Isolation RF1 to RFC (RFC-RF2 ON)
Isolation RF2 to RFC (RFC-RF1 ON)
IP2 RF1/RF2
2
IIP3 RF1/RF2
2
Input 1 dB Compression RF1/RF2
2
CTB / CSO
(Powered/Unpowered)
Switching time
Video Feedthrough
3
Table 2. Electrical Characterization (Unpowered Operation)
5
Parameter
Operating Frequency
1
Condition
220 MHz
550 MHz
810 MHz
2200 MHz
Minimum
5
81
77
70.5
49
Typical
90.5
81.5
77
52.5
Maximum
2200
-
-
-
-
Units
MHz
dB
dB
dB
dB
Isolation RF1 to RF2
4
Notes:
1. Device linearity will begin to degrade with input signals below 5 MHz
2. Measured in a 50
Ω
system
3. Measured with a 1 ns risetime, 0/3 V pulse and 500 MHz bandwidth
4. Minimum per FCC 15.115 spec
5. See
Figure 9
for Power-Off insertion loss of RFC-RF1
©2006-2012 Peregrine Semiconductor Corp. All rights reserved.
Page 2 of 10
Document No. 70-0203-07
│
UltraCMOS™ RFIC Solutions
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE42742
Product Specification
Figure 3. Pin Configuration (Top View)
19 GND
GND
VDD
17 C1
16 C2
20
18
Table 4. Operating Conditions @ 25°C
Parameter
V
DD
Power Supply
I
DD
Power Supply Current
(V
DD
= 3V, V
CNTL
= 3V)
Control Voltage High
Control Voltage Low
0.7 x V
DD
0
Min
2.7
Typ
3.0
8
Max
3.3
Unit
V
μA
GND
GND
RF1
GND
GND
1
GND
2
3
4
5
75
75
15 GND
14 GND
13
RF2
V
DD
0.3 x V
DD
V
V
12 GND
11 GND
Table 5. Absolute Maximum Ratings
Symbol
V
DD
V
I
P
RF
Parameter/Condition
Power supply voltage
Voltage on any DC input
RF power on RFC, RF1, RF2
Terminated/Through
Storage temperature
Operating temperature
HBM
1
ESD Voltage RF Pins
Min
-0.3
-0.3
Max
4.0
V
DD
+
0.3
24/33
Unit
V
V
dBm
°C
°C
GND
GND
GND
Table 3. Pin Descriptions
No.
1, 2, 4-7, 9-12,
14, 15, 18, 19
3
8
13
16
17
20
Pad
Notes:
GND
RFC
10
6
7
8
9
Name
GND
RF1
1
RFC
1
RF2
1
C2
2
C1
2
VDD
GND
Description
RF Ground
RF I/O
RF Common
RF I/O
Control 2 (or logic select)
Control 1 (or logic select)
Supply
RF Ground Pad
T
ST
T
OP
-65
-40
+150
+85
3500
3500
150
V
ESD
HBM
1
ESD Voltage Digital Pins
MM
2
ESD Voltage all pins
V
Notes: 1. ML_STD 883 Method 3015.7
2. JEDEC JESD22-A114-B
Exceeding absolute maximum ratings may cause
permanent damage. Operation should be restricted to
the limits in the Operating Ranges table. Operation
between operating range maximum and absolute
maximum for extended periods may reduce reliability.
1. RF pins 3, 8, and 13 must be at 0 VDC. The RF pins do not require DC
blocking capacitors for proper operation if the 0V DC requirement is met.
2. Pins 16 and 17 can be set for single pin or complementary
pin control.
Electrostatic Discharge (ESD) Precautions
When handling this UltraCMOS™ device, observe the
same precautions that you would use with other ESD-
sensitive devices. Although this device contains
circuitry to protect it from damage due to ESD,
precautions should be taken to avoid exceeding the
rating specified.
Moisture Sensitivity Level
The Moisture Sensitivity Level rating for the PE42742 in
the 20-lead QFN package is MSL1.
Latch-Up Avoidance
Unlike conventional CMOS devices, UltraCMOS™
devices are immune to latch-up.
Switching Frequency
The PE42742 has a maximum 25 kHz switching rate.
Document No. 70-0203-07
│
www.psemi.com
©2006-2012 Peregrine Semiconductor Corp. All rights reserved.
Page 3 of 10
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE42742
Product Specification
Table 6. Truth Table
V
DD
OFF
ON
ON
ON
ON
Typical Applications
RFC – RF1
ON
ON
OFF
OFF
ON
C1 (pin 17)
Low
Low
Low
High
High
C2 (pin 16)
Low
Low
High
Low
High
RFC – RF2
OFF
OFF
ON
ON
OFF
Note: A versatile logic table has been established to allow either C1 or C2 act
as a single pin control and in either polarity.
Figure 4. Typical Application (1 of 4)
Antenna Input
The PE42742 provides the high isolation required
by FCC part 15.115 regulation between the
television antenna and the cable plant. The
advantage of the PE42742 is that device
isolation / thru performance is maintained when
power is removed. This unique feature makes the
PE42742 ideal for set-top box and VCR
applications. The PE42742 supports signal flow
from RFC to RF1 and RF2 termination in the
unpowered state; similar to the powered state with
C1=C2 (both high or low).
80dB 54 – 216MHz
60dB 216 – 550MHz
55dB 550 – 806MHz
PE42742
SPDT
DTV-Tuner
CATV Input
Figure 5. Typical Application (2 of 4)
TV Set / Cable Set-top Box
PE42742 SPDT
Tuner
CATV Input
75Ω
OFF – Terminated
Figure 6. Typical Application (3 of 4)
Antenna Input
Power
Splitter
Dual Tuner DTV / DVR / Set-top Box
PE42742
SPDT
DTV Tuner
80dB 54 – 216MHz
60dB 216 – 550MHz
55dB 550 – 806MHz
Power
Splitter
CATV Input
PE42742
SPDT
DTV-Tuner
Figure 7. Typical Application (4 of 4)
PVR/VCR/Game Box
RF
Splitter
PE42742
Antenna/Cable
Input
SPDT
Tuner/
Modulator
Television
OFF – Pass Through
©2006-2012 Peregrine Semiconductor Corp. All rights reserved.
Page 4 of 10
Document No. 70-0203-07
│
UltraCMOS™ RFIC Solutions
Logo updated under non-rev change. Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
PE42742
Product Specification
Typical Performance Data @ 25°C, 75
Ω

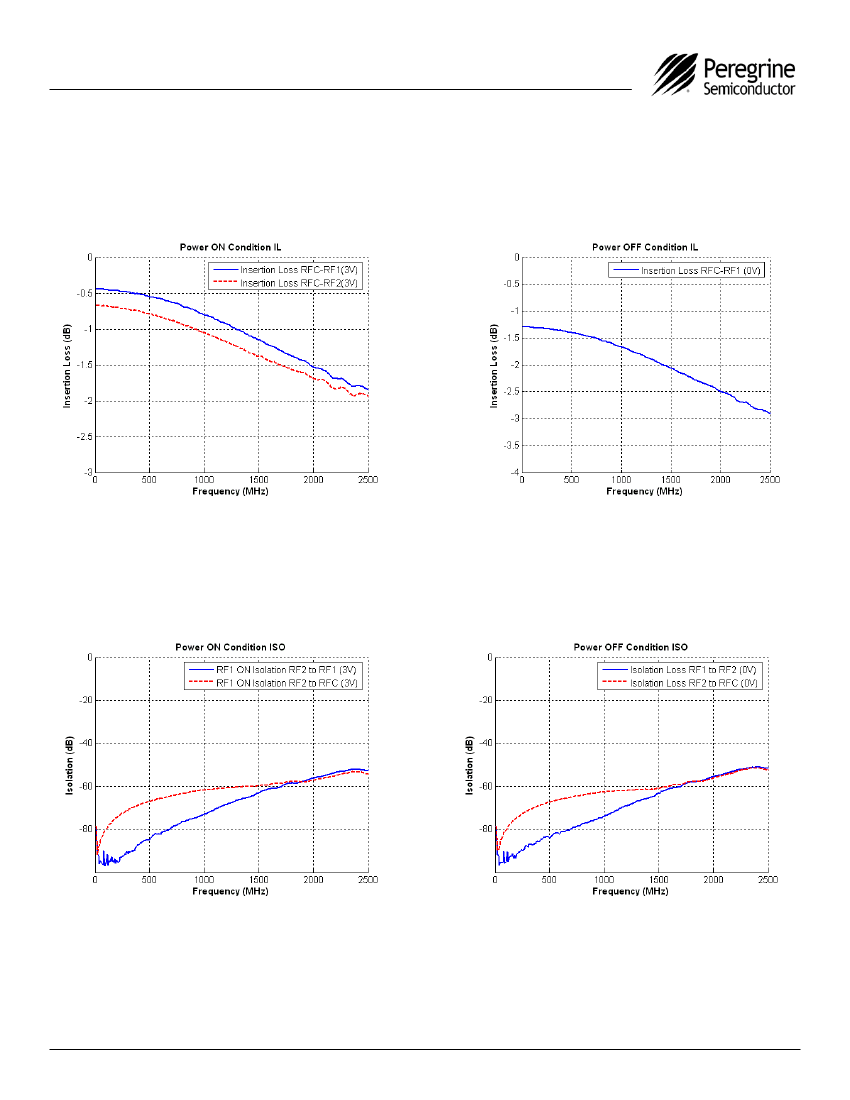

Figure 8. Insertion Loss – Power On
