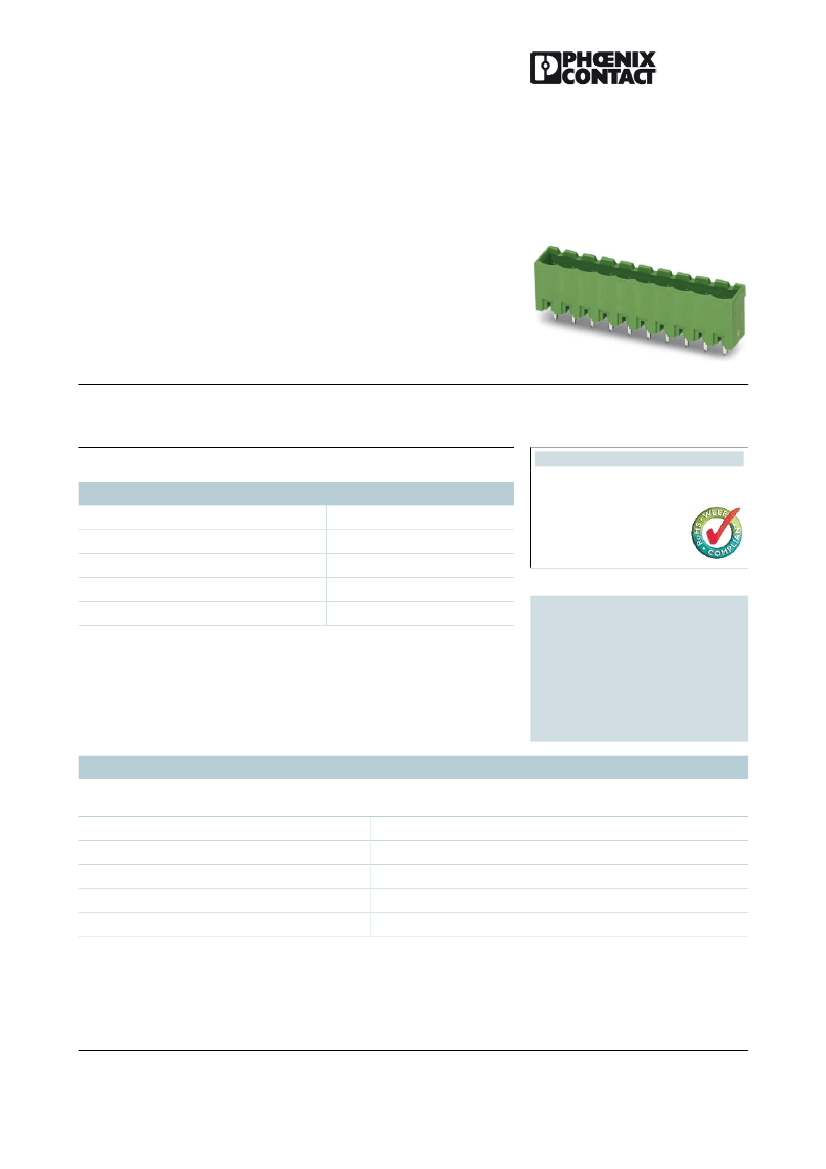

MSTBVA 2,5/ 4-G-5,08
Order No.: 1755752
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755752
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm,
Number of positions: 4, Color: green, Assembly: Soldering
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918029333
50 pcs.
85366990
0.00216 KG
Page 251 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Length
Pitch
Dimension a
Number of positions
Pin dimensions
8.6 mm
5.08 mm
15.24 mm
4
1 x 1 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Feb 24, 2010
MSTBVA 2,5/ 4-G-5,08
Order No.: 1755752
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755752
Hole diameter
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Certificates / Approvals
1.4 mm
IIIa
4 kV
4 kV
4 kV
320 V
400 V
EN-VDE
12 A
250 V
12 A
PBT
V0
Certification
CSA
Nominal voltage U
N
Nominal current I
N
CUL
Nominal voltage U
N
Nominal current I
N
UL
Nominal voltage U
N
Nominal current I
N
CB, CSA, CUL, GOST, UL, VDE-PZI
300 V
10 A
300 V
10 A
300 V
10 A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Feb 24, 2010
MSTBVA 2,5/ 4-G-5,08
Order No.: 1755752
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755752
Accessories
Item
Assembly
1755477
MSTB-BL
Keying cap, for forming sections, plugs onto header pin, green
insulating material
Designation
Description
Marking
0804293
SK 5,08/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Plug/Adapter
1734401
CR-MSTB
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Additional products
Item
General
1872716
A-ICV 2,5/ 4-G-5,08
Base strip, Nominal current: 12 A, Nominal voltage: 250 V,
Mounting type: DIN rail mounting, Number of positions: 4,
Pitch: 5.08 mm, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Spring-
cage conn.
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Spring-
cage conn.
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 4, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 4, Color: green, Assembly: Soldering
Designation
Description
1873074
FKC 2,5/ 4-ST-5,08
1902136
FKCT 2,5/ 4-ST-5,08
1873977
FKCVR 2,5/ 4-ST-5,08
1873676
FKCVW 2,5/ 4-ST-5,08
1777303
FRONT-MSTB 2,5/ 4-ST-5,08
1786420
1785968
IC 2,5/ 4-G-5,08
ICV 2,5/ 4-G-5,08
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Feb 24, 2010
MSTBVA 2,5/ 4-G-5,08
Order No.: 1755752
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755752
1757035
MSTB 2,5/ 4-ST-5,08
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Crimp
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Crimp
connection
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Assembly: Direct mounting, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 10 A, Nom. voltage: 500
V, Pitch: 5.08 mm, Number of positions: 4, Connection type:
Insulation displacement connection QUICKON, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw
connection, Color: green
Feed-through modular terminal block, Connection method: Special
and hybrid connection, Cross section: 0.2 mm² - 2.5 mm²,
Width: 5.1 mm, Color: gray
1776155
MSTB 2,5/ 4-STZ-5,08
1808832
MSTBC 2,5/ 4-ST-5,08
1809527
MSTBC 2,5/ 4-STZ-5,08
1769036
MSTBP 2,5/ 4-ST-5,08
1780002
MSTBT 2,5/ 4-ST-5,08
1824146
MSTBU 2,5/ 4-STD-5,08
1792265
MVSTBR 2,5/ 4-ST-5,08
1792773
MVSTBW 2,5/ 4-ST-5,08
1883271
QC 1/ 4-ST-5,08
1826306
SMSTB 2,5/ 4-ST-5,08
1853036
TMSTBP 2,5/ 4-ST-5,08
1873029
ZFKK 1,5-ICV-5,08
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Feb 24, 2010
MSTBVA 2,5/ 4-G-5,08
Order No.: 1755752
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1755752

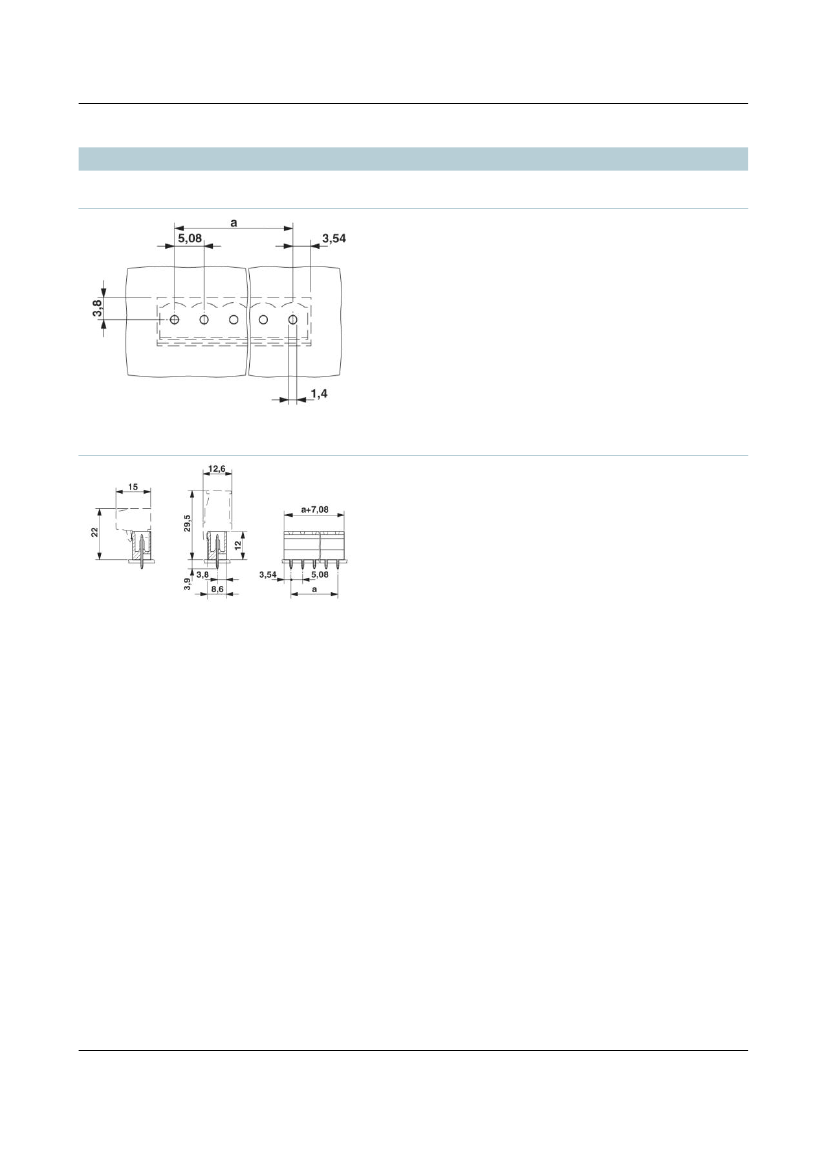

Diagrams/Drawings
Drilling plan/solder pad geometry
Dimensioned drawing
