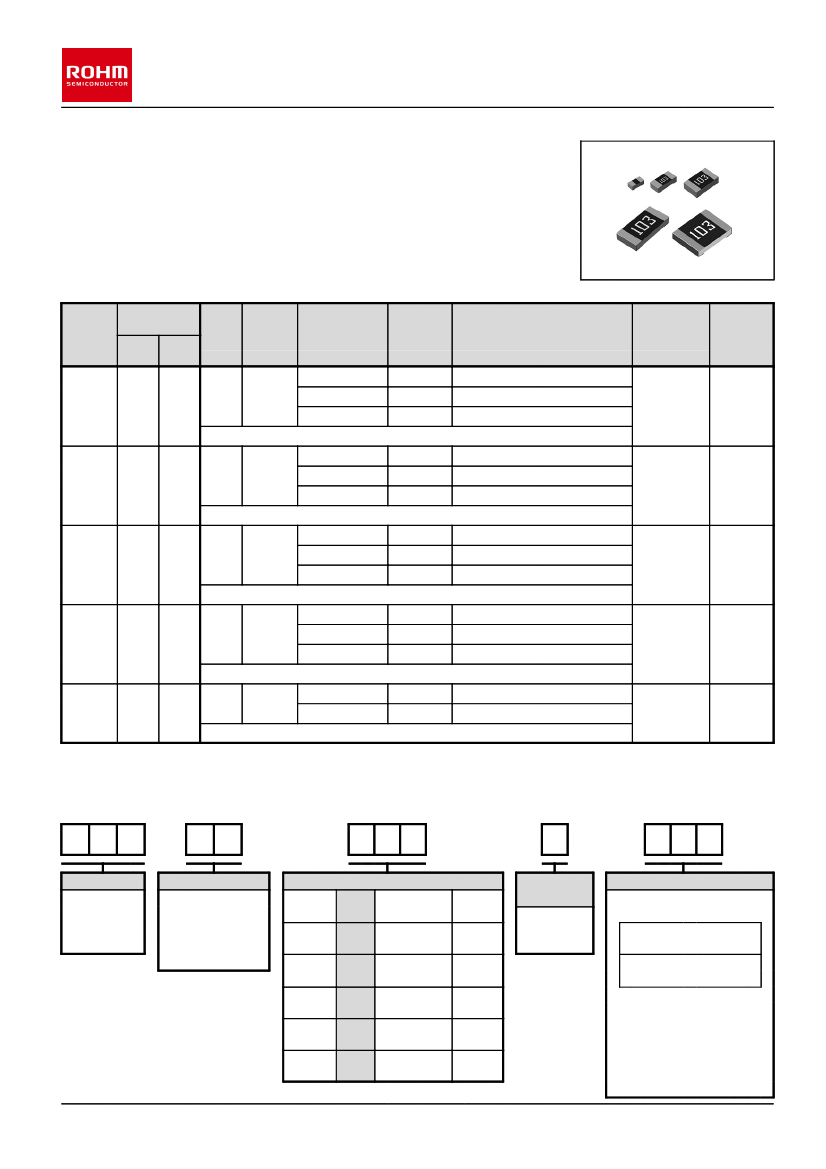

Sulfur tolerant chip resistors
●
SFR series
Datasheet
Features
1)Special construction prevents sulfur gas penetration, significantly increasing reliability.
2)ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.
●
Products list
Size
(mm)
Rated
power
(70
℃
)
(inch)
(W)
0.063
Limiting
element
voltage
(V)
50
T
emperature
coefficient
Resistance
tolerance
Resistance range
Operating
temperature
range
(
℃
)
Automotive
grade
available
Part No.
SFR01
1005
0402
SFR03
1608
0603
0.10
50
SFR10
2012
0805
0.125
150
SFR18
3216
1206
0.25
200
SFR25
3225
1210
0.5
200
(ppm /
℃
)
(Ω)
±100
F ( ±1% )
10
≦Ｒ≦
2.2M (E24/96 series)
+500 / -250
J ( ±5% )
1.0
≦Ｒ＜
10 (E24 series)
±200
J ( ±5% )
10
≦Ｒ≦
10M (E24 series)
Jumper type) Rmax = 50mΩ MAX. / Imax = 1A
±100
F ( ±1% )
10
≦Ｒ≦
10M (E24/96 series)
±400
J ( ±5% )
1
≦Ｒ＜
10 (E24 series)
±200
J ( ±5% )
10
≦Ｒ≦
10M (E24 series)
Jumper type) Rmax = 50mΩ MAX. / Imax = 1A
±100
F ( ±1% )
10
≦Ｒ≦
2.2M (E24/96 series)
±400
J ( ±5% )
1
≦Ｒ＜
10 (E24 series)
±200
J ( ±5% )
10
≦Ｒ≦
10M (E24 series)
Jumper type) Rmax = 50mΩ MAX. / Imax = 2A
±100
F ( ±1% )
10
≦Ｒ≦
2.2M (E24/96 series)
±400
J ( ±5% )
1
≦Ｒ＜
10 (E24 series)
±200
J ( ±5% )
10
≦Ｒ≦
10M (E24 series)
Jumper type) Rmax = 50mΩ MAX. / Imax = 2A
±100
F ( ±1% )
10
≦
R
≦
1M (E24/96 series)
±200
J ( ±5% )
1
≦
R
≦
1M (E24 series)
Jumper type) Rmax = 50mΩ MAX. / Imax = 2A
-55
½
+155
Yes
-55
½
+155
Yes
-55
½
+155
Yes
-55
½
+155
Yes
-55
½
+155
Yes
* Design and specifications are subject to change without notice.
Carefully check the specification sheet supplied with the product before using or ordering it.
* E24 : Standard products, E96 : Custom products.
●
Part Number Description
S F R
0 1
MZ P
J
1 0 5
Part No.
Size
(mm [inch])
01(1005 [0402])
03(1608 [0603])
10(2012 [0805])
18(3216 [1206])
25(3225 [1210])
Packaging specifications code
Packaging Quantity
Part No. Code specifications / Reel
SFR01
SFR03
SFR10
SFR18
SFR25
SFR
(Sulfur tolerant
chip resistors)
Resistance
tolerance
F ( ±1% )
J ( ±5% )
Nominal resistance
Resistance code, 3 or 4 digits.
000 denotes jumper type.
MZP
EZP
EZP
EZP
JZP
Paper tape
( 2mm Pitch)
Paper tape
( 4mm Pitch)
Paper tape
( 4mm Pitch)
Paper tape
( 4mm Pitch)
Embossed tape
( 4mm Pitch)
10,000
5,000
5,000
5,000
4,000
Resistance Resistance
tolerance
code
4 digits
F
：
：
J
3 digits
EX.)
1Ω = 1R0 ( ±5% )
9.1Ω = 9R1 ( ±5% )
10Ω = 10R0 ( ±1% )
100 ( ±5% )
1MΩ = 1004 ( ±1% )
105 ( ±5% )
www.rohm.com
© 2019 ROHM Co., Ltd. All rights reserved.
1/4
2019.01 - Rev.C

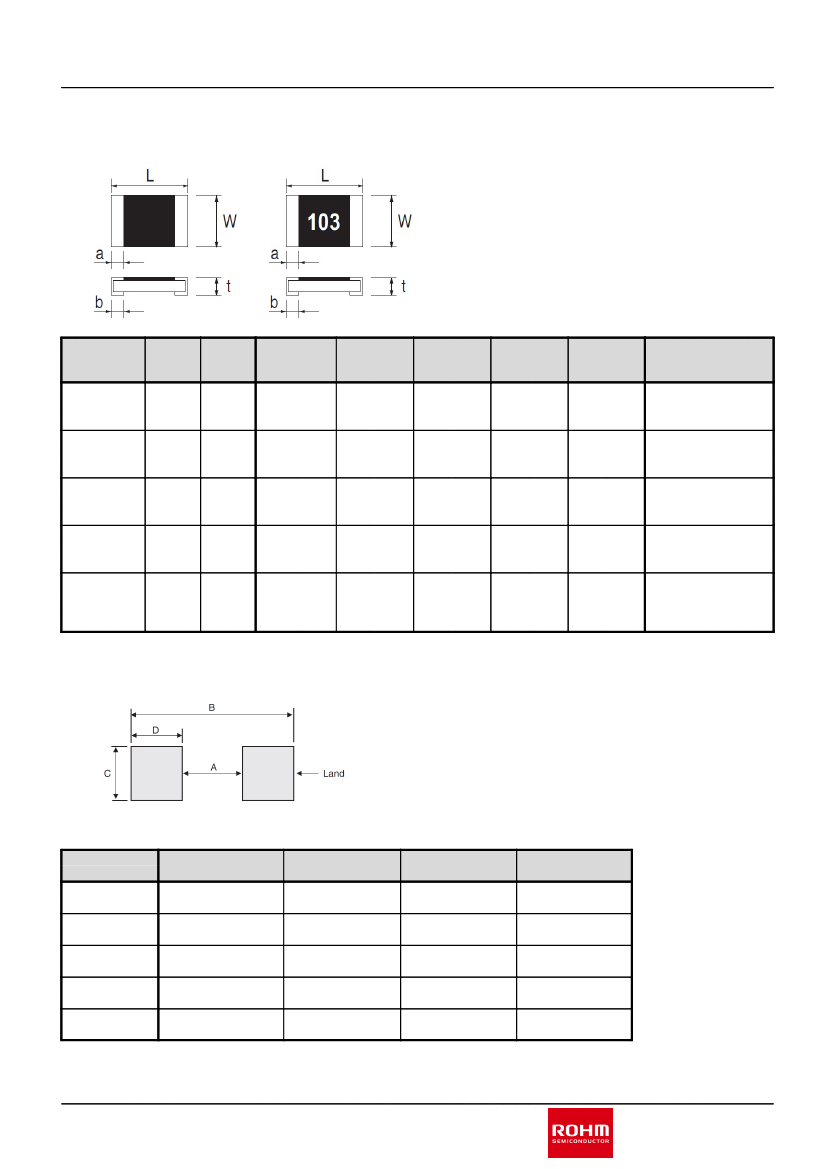

SFR series
●
Datasheet

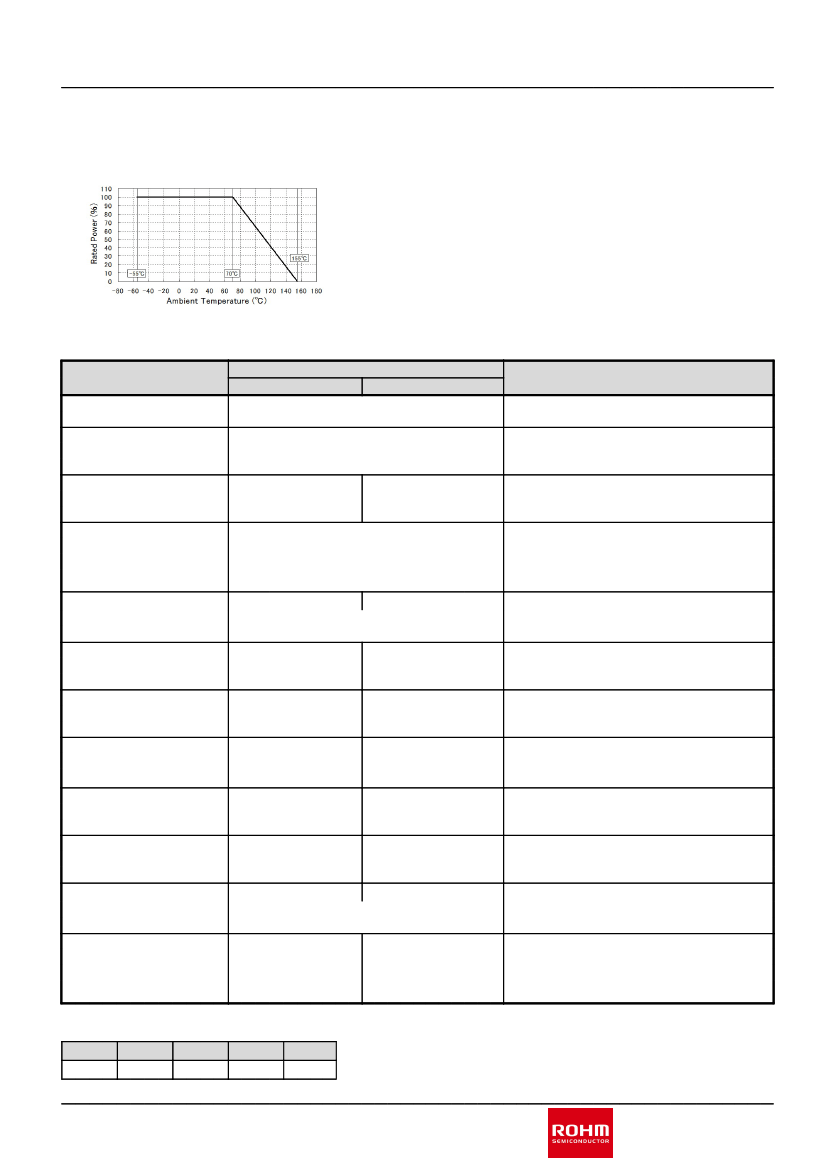

Derating curve
When the ambient temperature exceeds 70°C, power dissipation must be adjusted according to the derating curves below.
■SF R 01/03/10/18/25
SF
●
Characteristics
T items
est
Guaranteed value
Resistor type
Jumper type
See P.1
See P.1
±2.0
％
MAX. 50mΩ
20
℃
Measurement
：
+25/+125
℃
Rated voltage(current)×2.5
，
, 2s
Maximum overload voltage
※
T conditions
est
Resistance
Variation of resistance
with temperature
Overload
Solderability
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
Soldering condition
：
260±5
℃
No remarkable abnormality on the appearance. Duration of immersion
：
10±1s
±1.0
％
±3.0
％
±3.0
％
MAX. 50mΩ
T temp
：
-55
℃½
+125
℃
5cycle
est
MAX. 100mΩ
MAX. 100mΩ
40
℃，
93
％
(Relative humidity)
T time
：
1,000h
est
Rated voltage(current),70
℃
1.5h:ON
－
0.5h:OFF
T time
：
1,000h
est
155
℃
T time
：
1,000h
est
23±5
℃
, Immersion cleaning, 5±0.5min
Solvent: 2-propanol
-
Put specimen and sulfur powder 10g in the
desiccator which is placed under 110
℃
environment after sealed.
T time:1,000h
est
Compliance Standard(s) : IEC60115-8
JISC 5201-8
Anew uniform coating of minimum
of 95% of the surface being
immersed and no soldering
damage.
±1.0
％
MAX. 50mΩ
Rosin-ethanol solution(25% weight)
Soldering condition
：
245±5
℃
Duration of immersion
：
2.0±0.5s
Endurance at 70
℃
±3.0
％
Endurance
±1.0
％
Resistance to solvent
Bend strength of
the end face plating
Resistance in
Sulfur vapor
±1.0
％
MAX. 50mΩ
MAX. 50mΩ
MAX. 100mΩ
Without mechanical damage such as breaks.
±1.0
％
MAX. 50mΩ
※
Maximum overload voltage (Voltage of overload test)
SFR01
100V
SFR03
100V
SFR10
200V
SFR18
400V
SFR25
400V
www.rohm.com
© 2019 ROHM Co., Ltd. All rights reserved.
3/4
2019.01 - Rev.C
